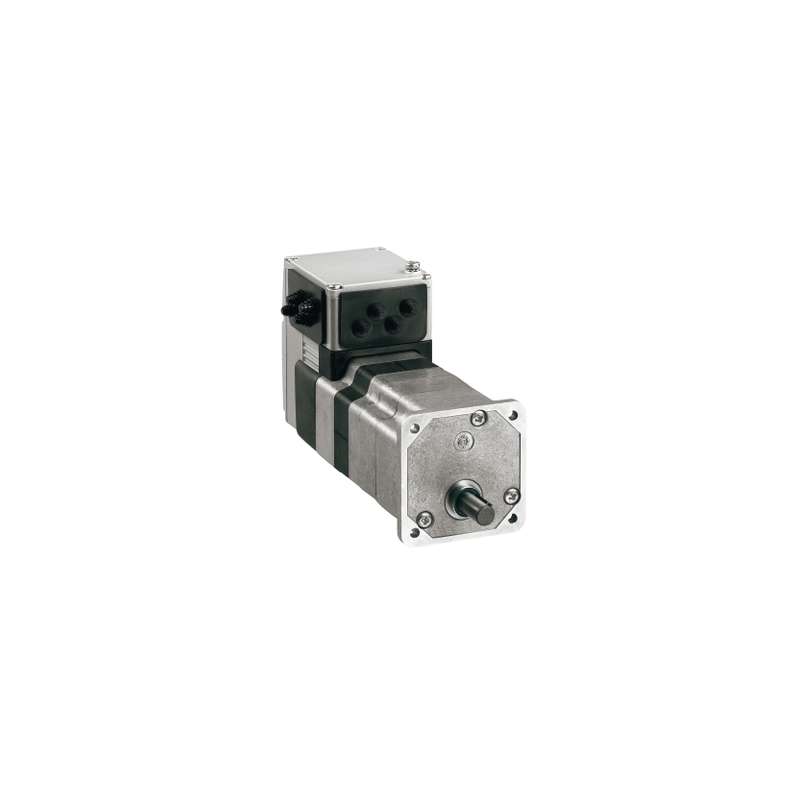

Schneider ILE2E661PB1A5 Motore DC Brushless 24..48 Vdc Interfaccia EtherCat

Riferimento: 5844/BB2/DX/Q2

Condizione: Nuovo (Altro)

400,00 € tasse incl.

2 Articolo Articoli

Attenzione: ultimi articoli in magazzino!

Maggiori informazioni
Scheda tecnica

Tipo	Motore

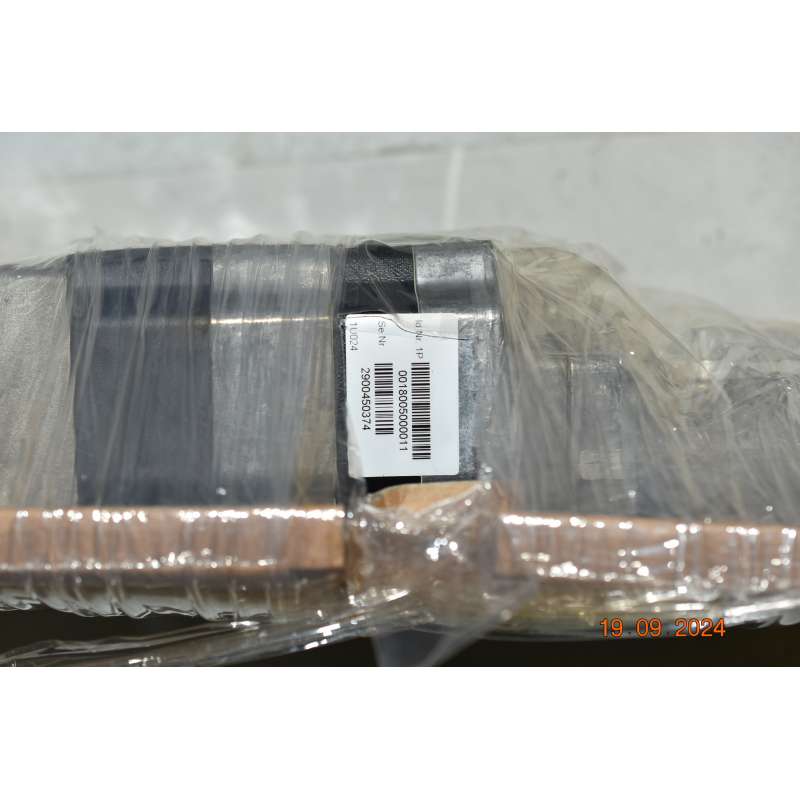

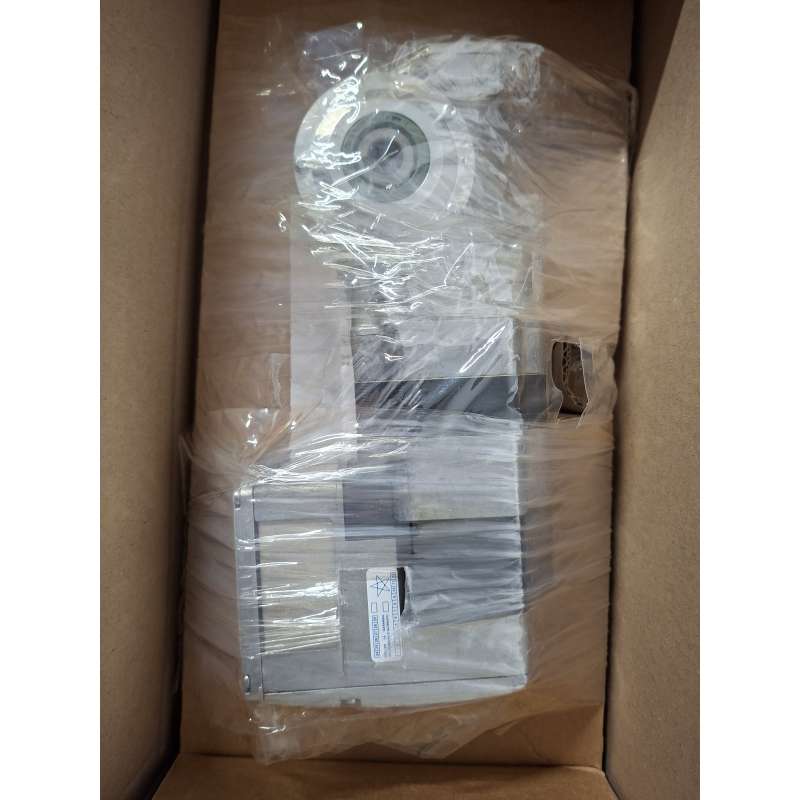

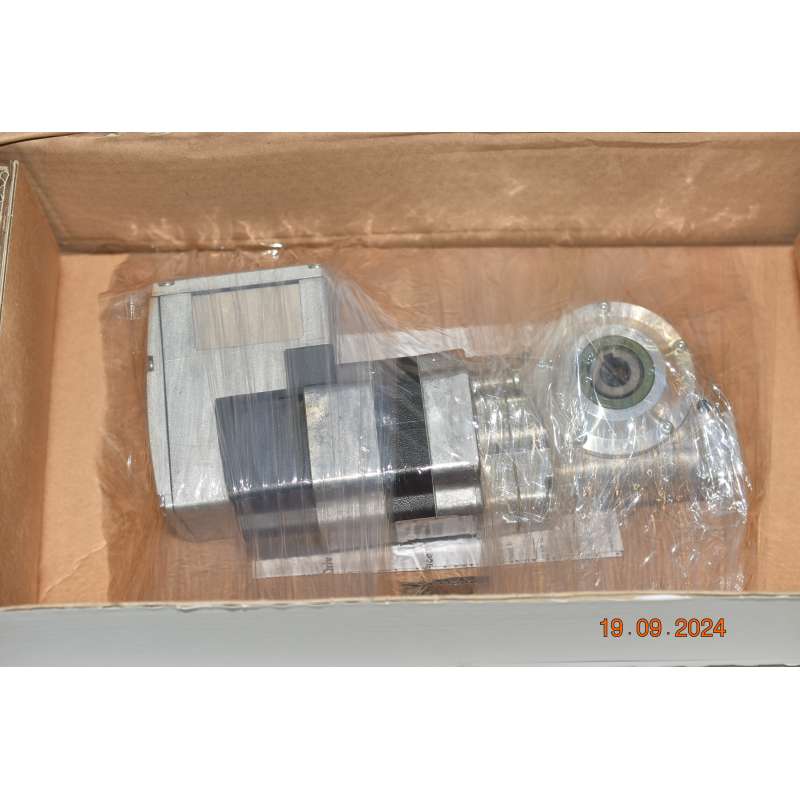

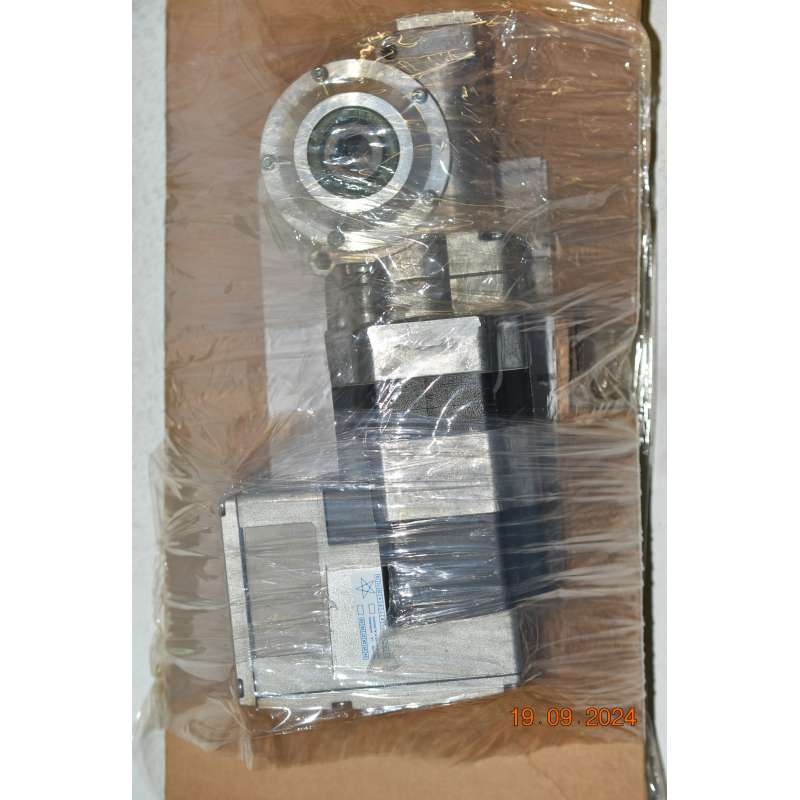

Descrizione delle condizioni	Confezione originale danneggiata. Viene spedito quello che vedete nelle foto
Marca	Schneider
Fabbricante	Schneider Electric
Responsabile dei Prodotti	Schneider Electric

Schneider ILE2E661PB1A5 Motore DC Brushless 24..48 Vdc Interfaccia EtherCat L 174mm 24:1
Seriale:2900462757
SCATOLA DI CARTONE ROVINATA

VIENE SPEDITO QUELLO CHE VEDETE NELLE FOTO.NON RIMUOVERE IL BOLLINO BIANCO E BLU APPLICATO (VEDI FOTO): IL BOLLINO DICE CHE L'ARTICOLO E' STATO VENDUTO DALLA MIA AZIENDA. LA RIMOZIONE, ROTTURA, MANOMISSIONE DEL BOLLINO BIANCO E BLU FA DECADERE QUALSIASI FORMA DI GARANZIA E LA POSSIBILITA' DI RESTITUZIONE DEL BENE IN QUANTO “MANOMESSO/APERTO/USATO”. IN CASO DI RESO DEVONO ESSERE RESTITUITI ANCHE EVENTUALI ACCESSORI/VITI/ISTRUZIONI E TUTTO QUANTO E' A CORREDO.

Caratteristiche:

Range of Product	Lexium integrated drive
Product or Component Type	Motion integrated drive
Device short name	ILE
Motor Type	Brushless DC motor
Number of motor poles	6
Phase	Single phase
[Us] rated supply voltage	24 V 48 V
Network type	DC
Communication interface	EtherCAT, Integrated
Length	9.02 in (229 mm)
Winding type	Medium speed of rotation and medium torque
Electrical Connection	Printed circuit board connector
Holding brake	Without
Gear box type	Worm gear, 2 stages
Reduction ratio	24:1 (525:22)
Nominal speed	168 rpm 24 V 168 rpm 48 V
Nominal torque	33.6 lbf.in (3.8 N.m) 24 V 33.6 lbf.in (3.8 N.m) 48 V

Complementary
Transmission Rate	100 Mbits
Mounting Support	Flange
Motor flange size	2.6 in (66 mm)
Number of motor stacks	1
Centring collar diameter	1.4 in (36 mm)
Number of mounting holes	2
Mounting holes diameter	0.2 in (4.4 mm)
Feedback type	BLDC encoder
Shaft end	Hole
Second shaft	Without second shaft end
Supply voltage limits	18…55.2 V
Current consumption	7000 mA peak 5500 mA maximum continuous
Associated fuse rating	16 A
Commissioning interface	RS485 Modbus TCP 9.6, 19.2 and 38.4 kbauds)
Input/output type	4 signals (each be used as input or output)
Voltage state 0 guaranteed	-3...4.5 V
Voltage state 1 guaranteed	15...30 V
Discrete input current	10 mA at 24 V on/STO_A safety input 3 mA at 24 V on/STO_B safety input 2 mA at 24 V 24 V signal interface
Discrete output voltage	23...25 V
Maximum switching current	100 mA per output 200 mA total
Protection Type	Short circuit of the output voltage Safe torque off Overload of output voltage
Maximum supply current	0.1 A power stage disabled) 6.8 A 24 V 3.8 A 48 V
Nominal output power	45 W 24 V 66 W 48 V
Peak stall torque	54.79 lbf.in (6.19 N.m) 24 V 54.79 lbf.in (6.19 N.m) 48 V
Continuous stall torque	37.2 lbf.in (4.2 N.m)
detent torque	25.7 lbf.in (2.9 N.m)
Speed feedback resolution	12 points/turn motor 1.26° gearbox output
Accuracy error	+/- 1 point
Rotor inertia	90 kg.cm²
Maximum mechanical speed	186 rpm
Maximum radial force Fr	200 N
Maximum axial force Fa	80 N
Service life in hours	3000 h bearing
marking	CE
Type of cooling	Natural convection
Net Weight	5.07 lb(US) (2.3 kg)

Environment
Standards	EN/IEC 61800-3 IEC 61800-3, Ed 2 EN/IEC 50178 EN 50347 IEC 60072-1 EN 61800-3:2001, second environment EN 61800-3 : 2001-02
Product Certifications	TÜV cUL UL
Ambient air temperature for operation	104…131 °F (40…55 °C) with power derating of 2 % per °C) 32…104 °F (0…40 °C) without derating)
Permissible ambient air temperature around the device	221 °F (105 °C) power amplifier 230 °F (110 °C) motor
Ambient Air Temperature for Storage	-13…158 °F (-25…70 °C)
Operating altitude	<= 3280.84 ft (1000 m) without derating
Relative humidity	15…85 % without condensation
Vibration resistance	20 m/s² 10…500 Hz) 10 cycles EN/IEC 60068-2-6
Shock resistance	150 m/s² 1000 shocks EN/IEC 60068-2-29
IP degree of protection	IP41 shaft bushing: conforming to EN/IEC 60034-5 IP54 total except shaft bushing: conforming to EN/IEC 60034-
