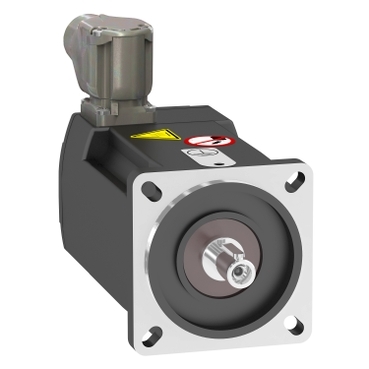

Schneider BMP0702F3NA2A Motore Sincrono 480VAC 0.55Kwatt IP65 IEC

Riferimento: 5340/DH3/DX/Q2

Condizione: Nuovo (Altro)

290,00 € tasse incl.

Più dettagli

1 Articolo Articoli

Attenzione: ultimi articoli in magazzino!

Maggiori informazioni
Scheda tecnica

Tipo	Motore elettrico
Descrizione delle condizioni	Confezione originale danneggiata. Viene spedito quello che vedete nelle foto
Marca	Schneider Electric
Fabbricante	Schneider Electric
Responsabile dei Prodotti	Schneider Electric

Schneider BMP0702F3NA2A Motore Sincrono 480VAC 0.55Kwatt IP65 IEC
SERIALE 3200019878

VIENE SPEDITO QUELLO CHE VEDETE NELLE FOTO.NON RIMUOVERE IL BOLLINO BIANCO E BLU APPLICATO (VEDI FOTO): IL BOLLINO INDICA CHE L'ARTICOLO E' STATO VENDUTO DALLA MIA AZIENDA.

Caratteristiche:

Product or component type	Synchronous motor
Device short name	BMP
Maximum mechanical speed	3600 rpm
Nominal output power	550 W with drive ATV32 at 0.55 kW 400 V three phase 550 W with drive ATV320 at 0.55 kW 400 V three phase
Nominal torque	1.75 N.m with drive ATV32 at 0.55 kW 400 V three phase 1.75 N.m with drive ATV320 at 0.55 kW 400 V three phase
Nominal speed	3000 rpm with drive ATV32 at 0.55 kW 400 V three phase 3000 rpm with drive ATV320 at 0.55 kW 400 V three phase
Product compatibility	Variable speed drive ATV32 at 0.55 kW 400 V three phase Variable speed drive ATV320 at 0.55 kW 380...500 V three phase
Shaft end	Keyed
IP degree of protection	IP65 standard IP67 with IP67 kit
Holding brake	Without
mounting support	International standard flange
Electrical connection	Rotatable right-angled connector

Complementary
Range compatibility	Altivar Machine ATV320 Altivar 32
[Us] rated supply voltage	480 V
Network number of phases	Three phase
Maximum current Irms	2.9 A with drive ATV32 at 0.55 kW 400 V three phase 2.9 A with drive ATV320 at 0.55 kW 400 V three phase
Nominal operating frequency	250 Hz with drive ATV32 at 0.55 kW 400 V three phase 250 Hz with drive ATV320 at 0.55 kW 400 V three phase
Minimum operating frequency	25 Hz with drive ATV32 at 0.55 kW 400 V three phase 25 Hz with drive ATV320 at 0.55 kW 400 V three phase
Maximum operating frequency	300 Hz with drive ATV32 at 0.55 kW 400 V three phase 300 Hz with drive ATV320 at 0.55 kW 400 V three phase
Shaft diameter	11 mm
Shaft length	23 mm
Key width	4 mm
Motor flange size	70 mm
Torque constant	1.51 N.m/A at 40 °C
Number of motor poles	5
Number of motor stacks	2
Rotor inertia	1.13 kg.cm²
Stator resistance	6.96 Ohm at 40 °C
Stator inductance	20.7 mH for q-axis winding at 40 °C 20.7 mH for d-axis winding at 40 °C
Maximum radial force Fr	710 N at 1000 rpm 560 N at 2000 rpm 490 N at 3000 rpm 450 N at 4000 rpm
Maximum axial force Fa	0.2 x Fr
Type of cooling	Natural convection
Length	154 mm
Centring collar diameter	60 mm
Centring collar depth	2.5 mm
Number of mounting holes	4
Mounting holes diameter	5.5 mm
Circle diameter of the mounting holes	75…82 mm
Net weight	1.8 kg
