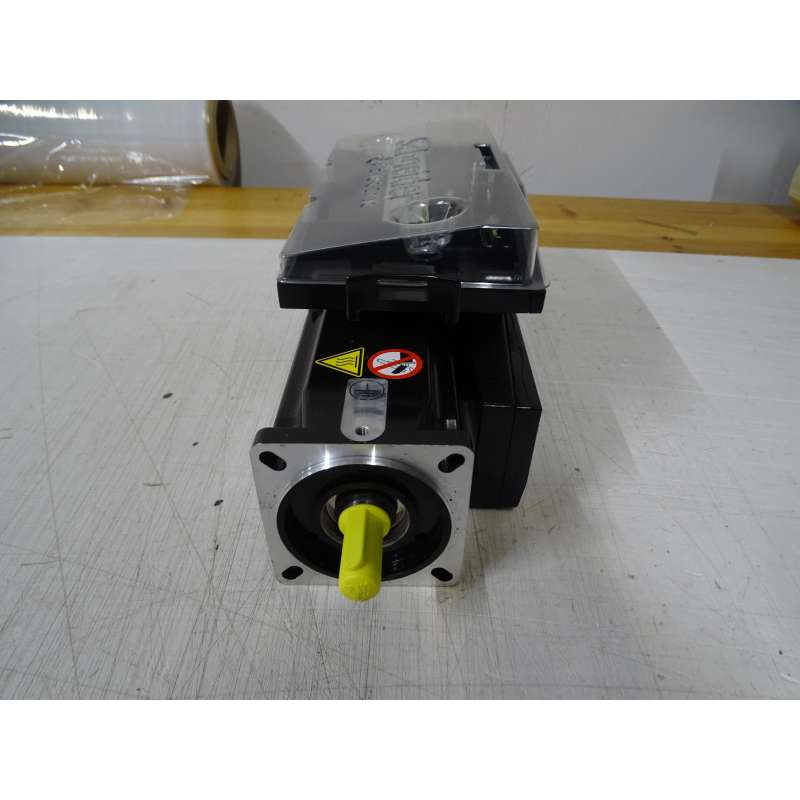

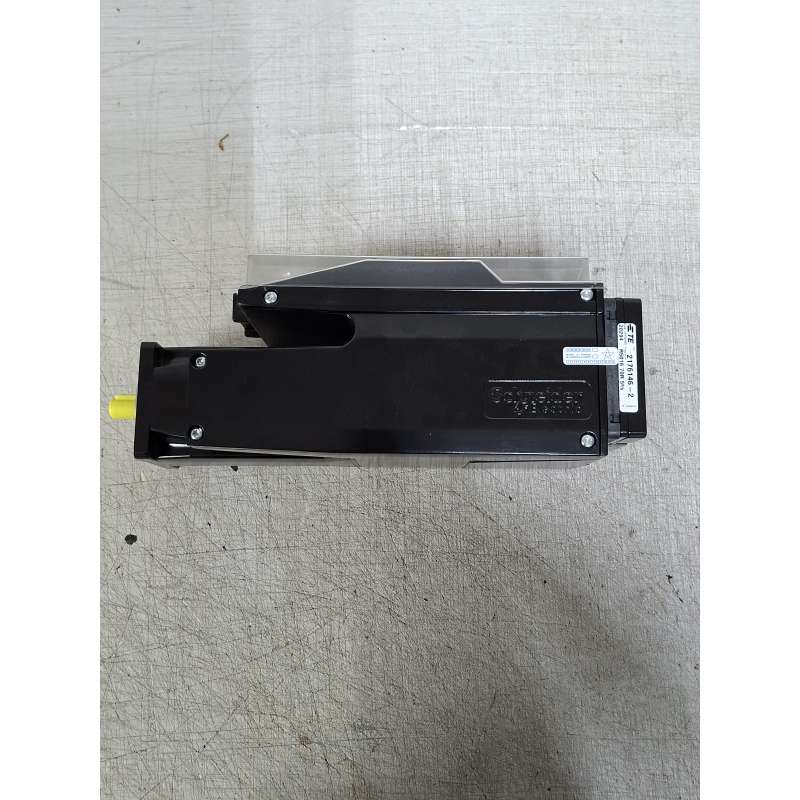

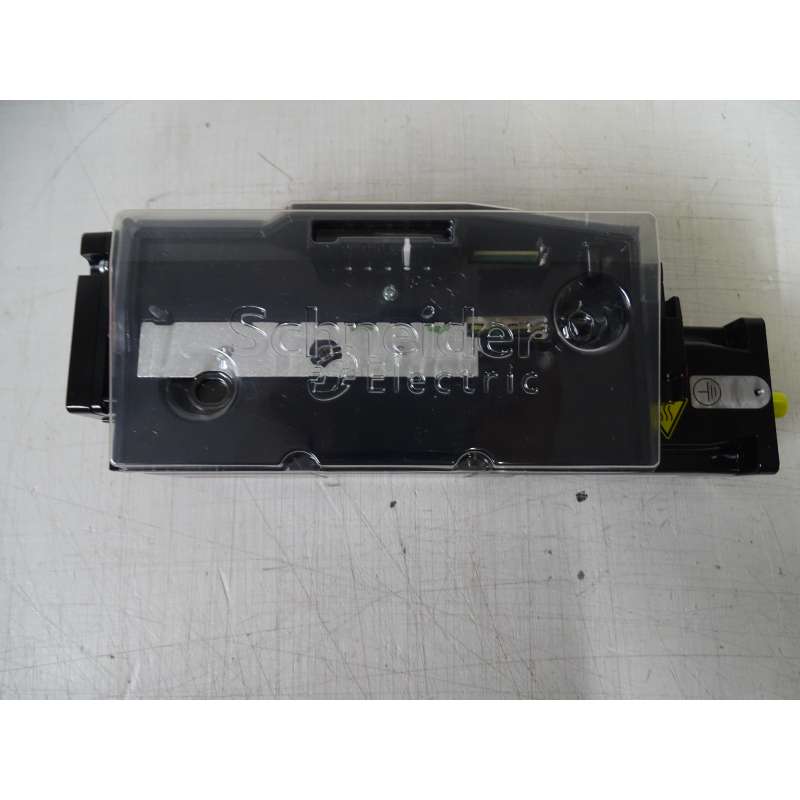

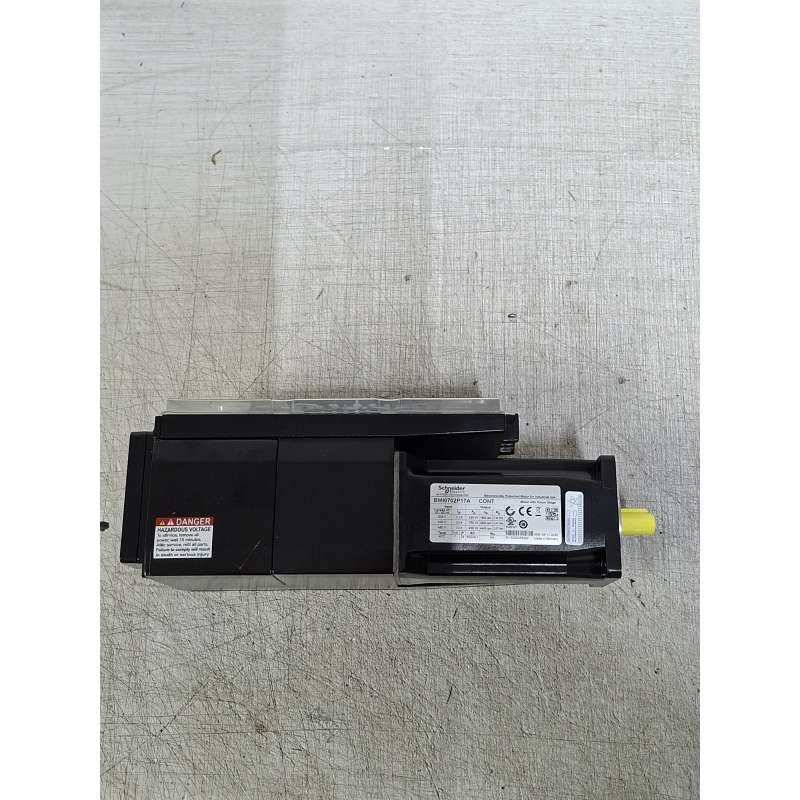

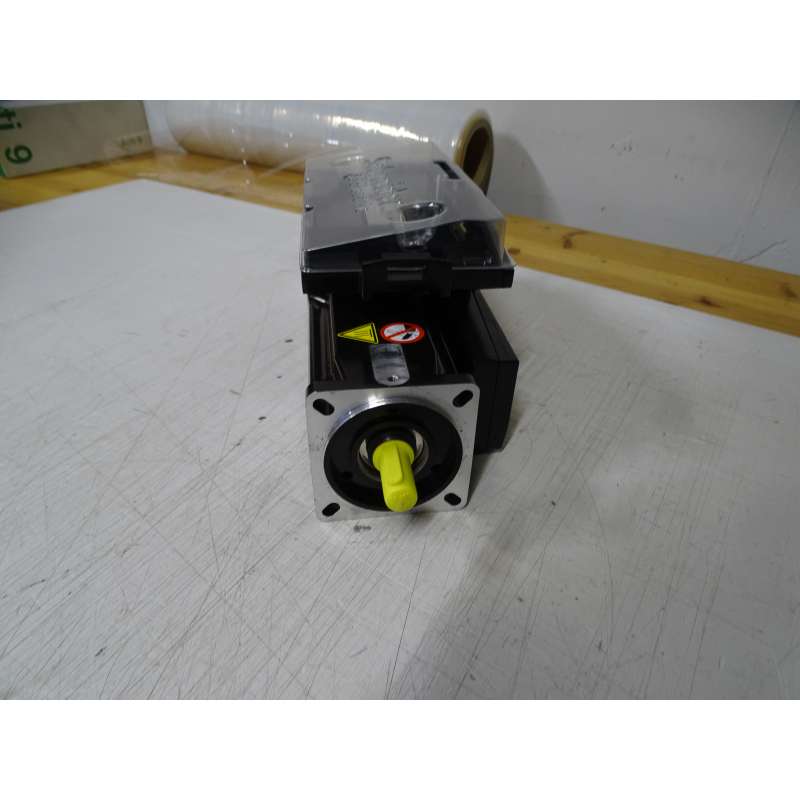

Lexium BMI0702P17A servomotore BMI trifase Schneider

Riferimento: 3959/DE2SX /Q2

Condizione: Nuovo (Altro)

599,00 € tasse incl.

2 Articolo Articoli

Attenzione: ultimi articoli in magazzino!

Maggiori informazioni
Scheda tecnica

Tipo	Motore
Descrizione delle condizioni	Senza confezione originale
Marca	Schneider Electric
Codice Schneider	BMI0702P17A
Fabbricante	Schneider Electric
Responsabile dei Prodotti	Schneider Electric

Lexium BMI0702P17A servomotore BMI trifase Schneider

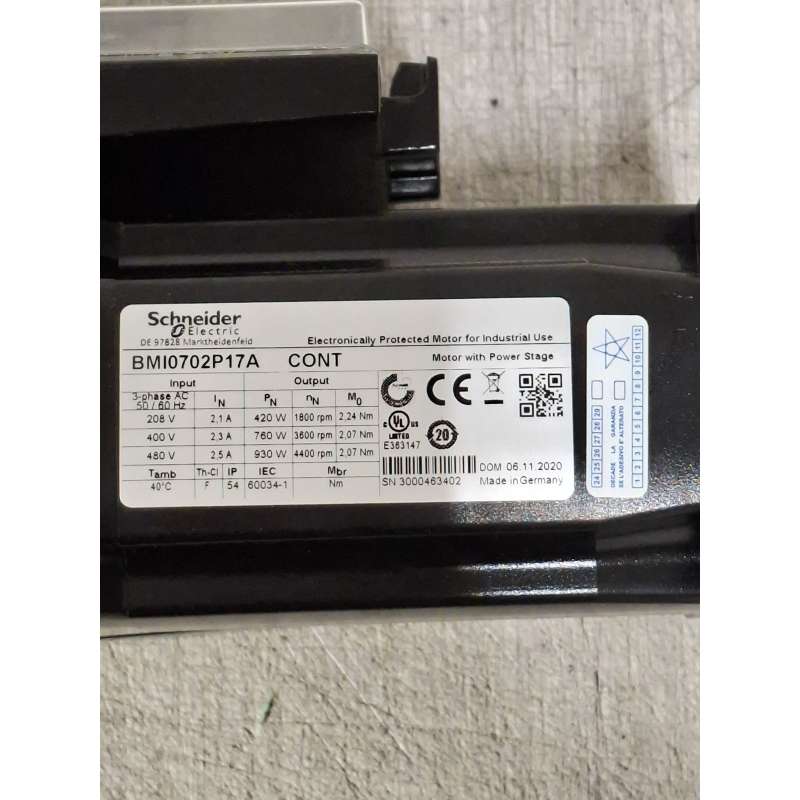

S/N 3000463402
PER ULTERIORI INFORMAZIONI CONSULTARE IL SITO DEL PRODUTTORE
IL PRODOTTO VIENE VENDUTO SENZA SCATOLA ORIGINALE E SENZA ISTRUZIONI

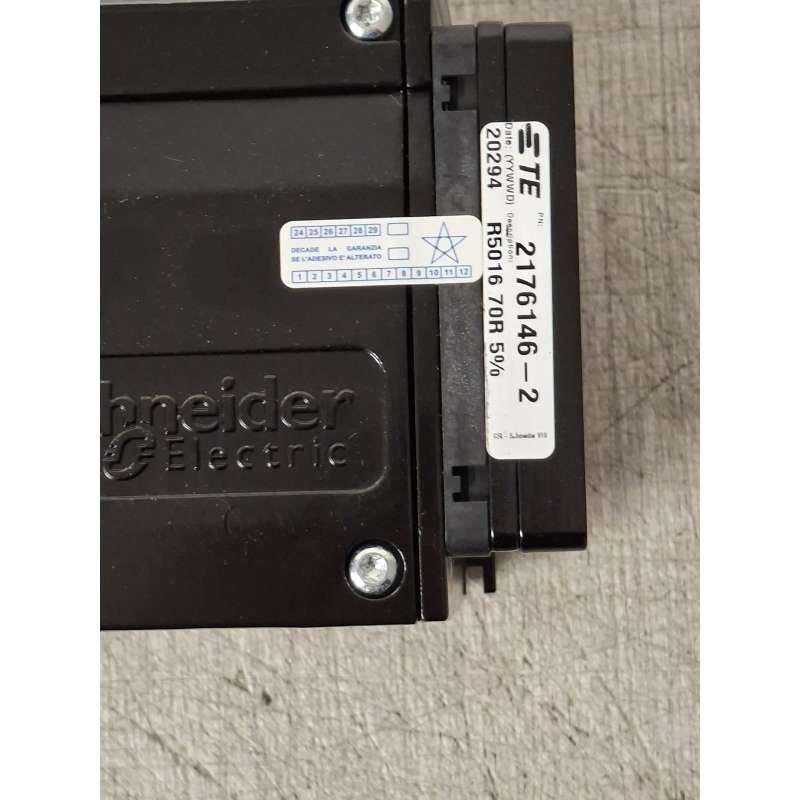

VIENE SPEDITO QUELLO CHE VEDETE NELLE FOTO.NON RIMUOVERE IL BOLLINO BIANCO E BLU APPLICATO (VEDI FOTO): IL BOLLINO DICE CHE L'ARTICOLO E' STATO VENDUTO DALLA MIA AZIENDA. LA RIMOZIONE, ROTTURA, MANOMISSIONE DEL BOLLINO BIANCO E BLU FA DECADERE QUALSIASI FORMA DI GARANZIA E LA POSSIBILITA' DI RESTITUZIONE DEL BENE IN QUANTO “MANOMESSO/APERTO/USATO”.

range compatibility	Lexium 32i
product or component type	Servo motor with power stage
device short name	BMI

Complementary
maximum mechanical speed	8000 rpm
[Us] rated supply voltage	208...480 V - 15...10 %
supply voltage limits	208…480 V
network number of phases	Three phase
supply frequency	50/60 Hz - 5...5 %
network frequency limits	47.5…63 Hz
EMC filter	Integrated
continuous output current	2 A at 8 kHz
output current 3s peak	6 A at 400 V for 3 s
continuous stall current	2 A
continuous stall torque	2.48 N.m at 208...480 V three phase
peak stall torque	6.8 N.m at 208 V three phase 6.8 N.m at 400 V three phase 6.8 N.m at 480 V three phase
nominal output power	400 W at 208 V three phase 800 W at 400 V three phase 900 W at 480 V three phase
nominal torque	2.4 N.m at 208 V three phase 2.2 N.m at 400 V three phase 2 N.m at 480 V three phase
nominal speed	1800 rpm at 208 V three phase 3600 rpm at 400 V three phase 4400 rpm at 480 V three phase
maximum current Irms	9.6 A at 208 V, three phase 9.6 A at 400 V, three phase 9.6 A at 480 V, three phase
product compatibility	Drive control unit LXM32i CANopen Drive control unit LXM32i EtherCAT
shaft end	Keyed
second shaft	Without second shaft end
shaft diameter	11 mm
shaft length	23 mm
key width	4 mm
feedback type	Absolute multiturn SinCos Hiperface
speed feedback resolution	32768 points/turn x 4096 turns
holding brake	Without
mounting support	International standard flange
motor flange size	70 mm

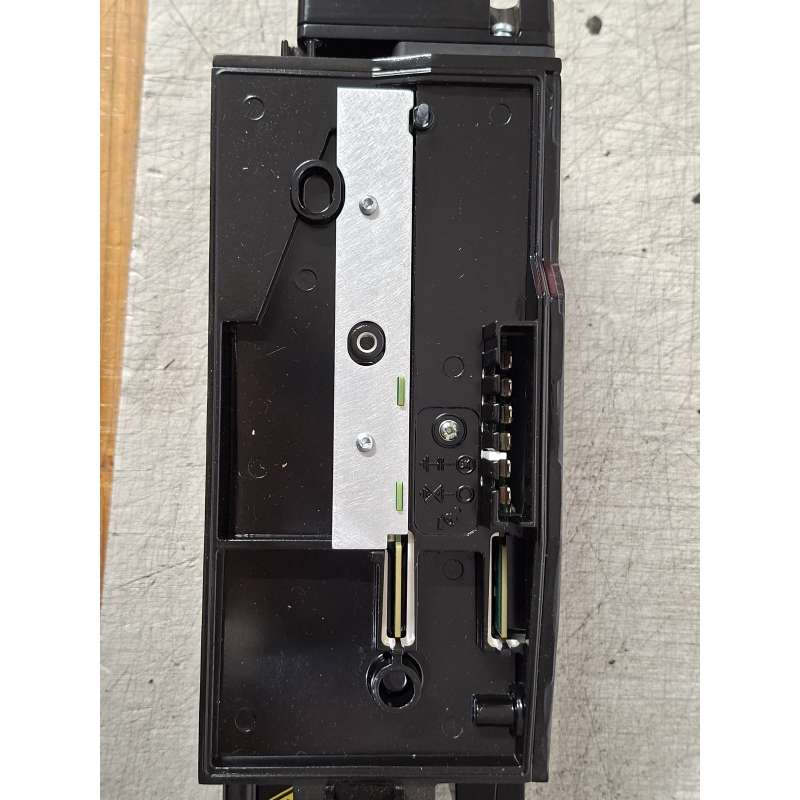

electrical connection	Printed circuit board connector
torque constant	1.15 N.m/A at 20 °C
back emf constant	77.18 V/krpm at 20 °C
number of motor poles	10
rotor inertia	1.13 kg.cm²
stator resistance	8.89 Ohm at 20 °C
stator inductance	25.75 mH at 20 °C
stator electrical time constant	2.9 ms at 20 °C
maximum radial force Fr	710 N at 1000 rpm 560 N at 2000 rpm 490 N at 3000 rpm 450 N at 4000 rpm 410 N at 5000 rpm 390 N at 6000 rpm
maximum axial force Fa	0.2 x Fr
type of cooling	Natural convection
length	268 mm
number of motor stacks	2
centring collar diameter	60 mm
centring collar depth	2.5 mm
number of mounting holes	4
mounting holes diameter	5.5 mm
circle diameter of the mounting holes	75…82 mm
distance shaft shoulder-flange	2.5 mm
