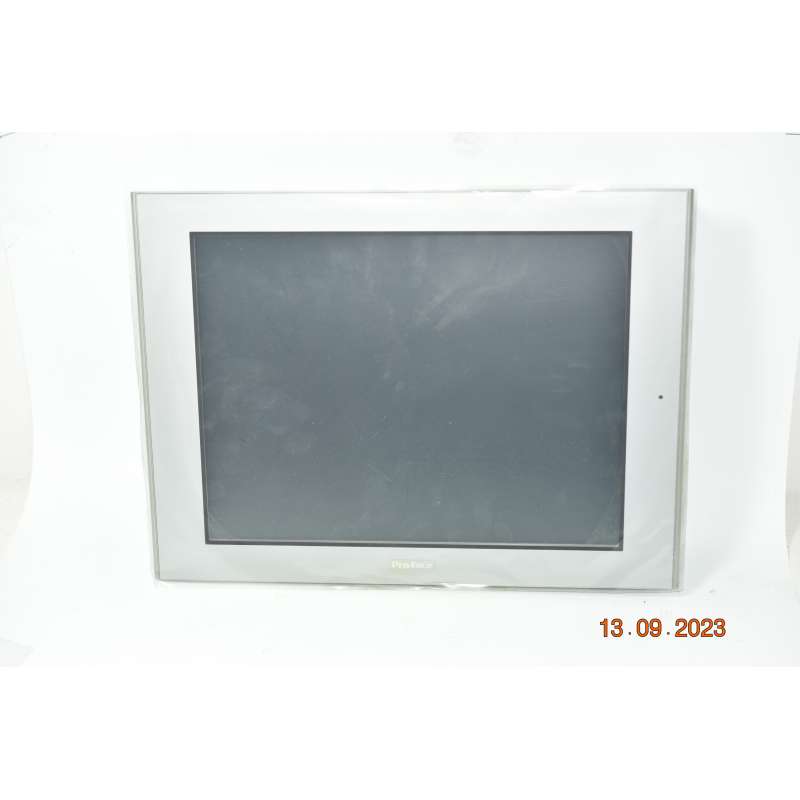

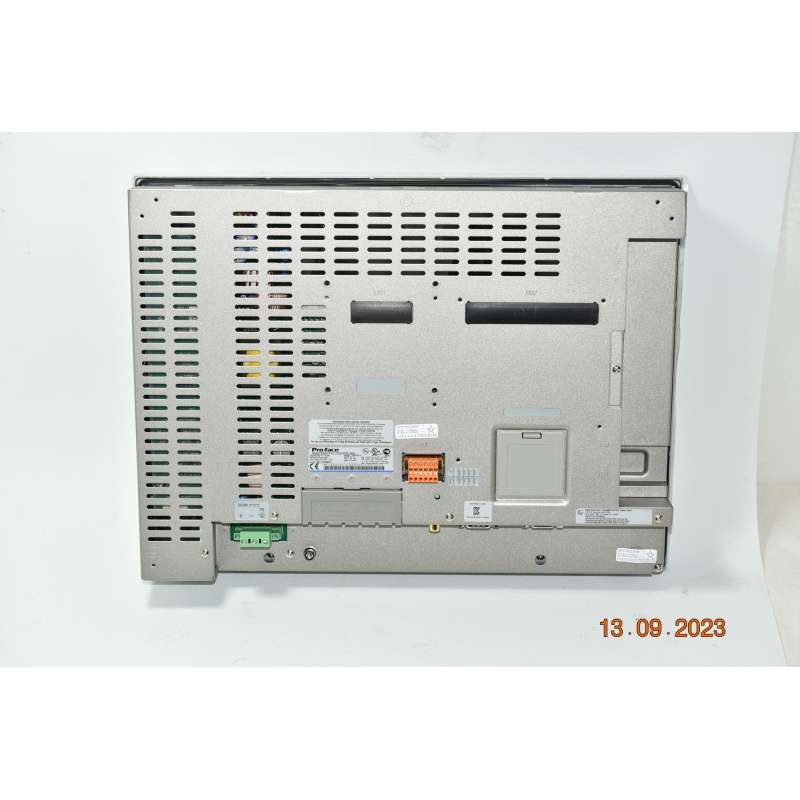

Schneider PRO-FACE AGP3750-T1-D24 PFXGP3750TAD Mod.3280024.02

Riferimento: 5169/HA1/Q3/Bancale 1

Condizione: Nuovo

3 500,00 € tasse incl.

Più dettagli

1 Articolo Articoli

Attenzione: ultimi articoli in magazzino!

Maggiori informazioni
Scheda tecnica

Tipo	Display
Descrizione delle condizioni	Nuovo, aperto per fare le foto
Marca	Schneider Electric
Modello	AGP3750-T1-D24
Fabbricante	Schneider Electric
Responsabile dei Prodotti	Schneider Electric

Schneider PRO-FACE AGP3750-T1-D24 PFXGP3750TAD Mod.3280024.02

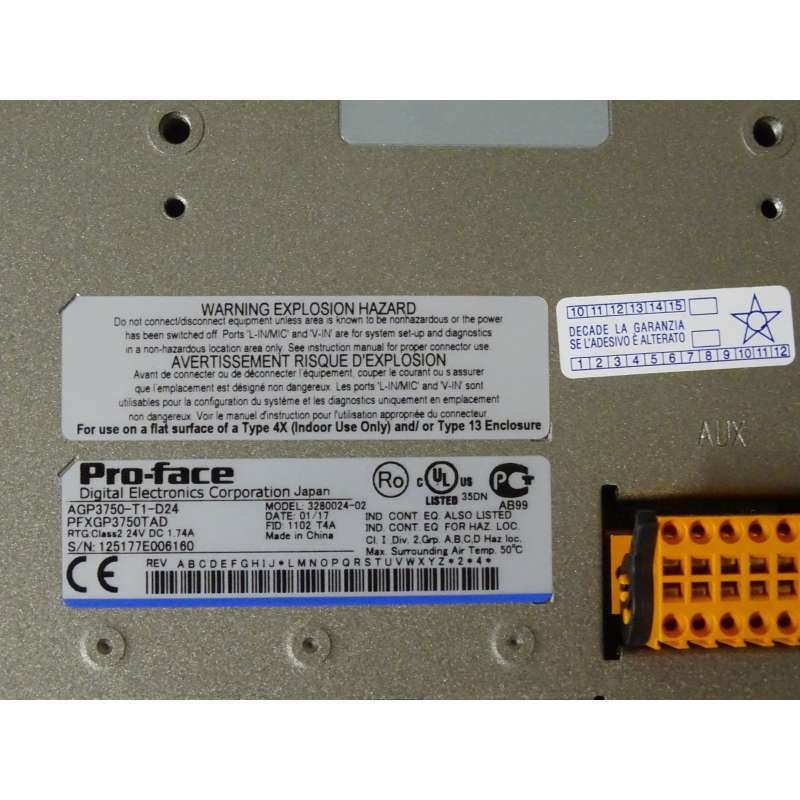

Seriale 125177E006160

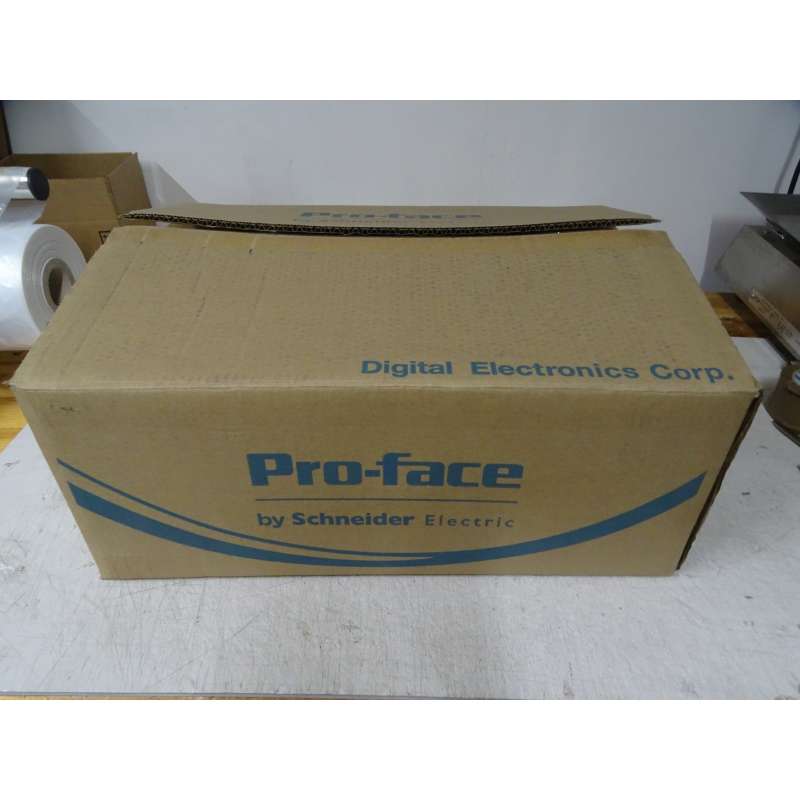

Scatola di cartone leggermente rovinata.

VIENE SPEDITO QUELLO CHE VEDETE NELLE FOTO.NON RIMUOVERE IL BOLLINO BIANCO E BLU APPLICATO (VEDI FOTO): IL BOLLINO DICE CHE L'ARTICOLO E' STATO VENDUTO DALLA MIA AZIENDA. LA RIMOZIONE, ROTTURA, MANOMISSIONE DEL BOLLINO BIANCO E BLU FA DECADERE QUALSIASI FORMA DI GARANZIA E LA POSSIBILITA' DI RESTITUZIONE DEL BENE IN QUANTO “MANOMESSO/APERTO/USATO”. IN CASO DI RESO DEVONO ESSERE RESTITUITI ANCHE EVENTUALI ACCESSORI/VITI/ISTRUZIONI E TUTTO QUANTO E' A CORREDO.

Caratteristiche :

Display Type	TFT Color LCD
Display Size	15"
Resolution	1,024 x 768 pixels (XGA)
Dot pitch	W0.297 x H0.297 mm [W0.01 x H0.01 in.]
Effective Display Area	W306.2 x H230.1 mm [W12.06 x H9.06 in.]
Display Colors	65,536 Colors (No blink)/16,384 Colors (Blink)
Backlight	When GP Revision 5 and later:<br>
Brightness Control	8 Levels (Adjusted with the touch panel)
Contrast Control	Not applicable
Backlight Service Life	50,000 hrs. or more (continuous operation at 25°C before backlight brightness decreases to 50% or backlight starts to blink)
Language Fonts	Japanese: 6,962 (JIS Standards 1 & 2) (including 607 non-kanji characters), ANK: 158 (Korean fonts, Simplified Chinese and Traditional Chinese fonts are downloadable.
Character Sizes	Standard font: 8 x 8, 8 x 16, 16 x 16 and 32 x 32 pixel fonts, Stroke font: 6 to 127 pixel fonts, Image font: 8 to 72 pixel fonts
Font Sizes	Standard font: Width can be expanded up to 8 times. Height can be expanded up to 8 times.
8 x 16 dots	128 char. x 48 rows
16 x 16 dots	64 char. x 48 rows
32 x 32 dots	32 char. x 24 rows
8 x 8 dots	128 char. x 96 rows
Program Area	FLASH EPROM 132 KB
Number of Step	Equivalent to 15,000 steps
Variable Area	SRAM 64 KB (uses lithium battery)
Application Memory	FLASH EPROM 16 MB (10 MB when the Event Recorder Function is in use)
Data Backup	SRAM 320KB (uses lithium battery)
Clock Accuracy	65 sec/month (deviation at room temperature and power is OFF)
Touch Panel Type	Resistive Film (analog)
Touch Panel Resolution	1,024 x 1,024
Touch Panel Service Life	1,000,000 times or more
Serial (COM1)	RS-232C/422/485, Asynchronous Transmission, Data Length: 7 or 8 bit, Parity: none, Even or Odd, Stop Bit: 1 or 2 bit, Data Transmission Speed: 2,400 bps to 115.2 kbps, Connector: D-Sub9 (plug)
Serial (COM2)	RS-422/485, Asynchronous Transmission, Data Length: 7 or 8 bit, Parity: none, Even or Odd, Stop Bit: 1 or 2 bit, Data Transmission Speed: 2,400 bps to 115.2 kbps, 187.5kbps (MPI), Connector: D-Sub9 (socket)
Ethernet (LAN)	IEEE802.3i/IEEE802.3u, 10BASE-T/100BASE-TX, Connector: Modular jack (RJ-45) x 1
Expansion Unit 1	Communication Expansion Unit x 1
Expansion Unit 2	VM/DVI Input Expansion Unit x 1
USB (TYPE-A)	Conforms to USB1.1 (TYPE-A) x 2, Power Supply Voltage: DC 5 V ±5 %, Output Current: 500 mA or less, Communication Distance: 5 m or less
Expansion Memory	Function Expansion Memory x 1 (Inside interface cover)
CF Card	Compact Flash Card Slot (TYPE-II) x 1
Video Input	NTSC: 59.9Hz, PAL: 50Hz, SECAM: 50Hz, Connector: RCA 75Ω X 1
Sound Input	MIC or LINE input (software switch), Connector: MINI-JACK Φ3.5 x 1
Sound Output	Speaker Output, 70 mW (Rated Load: 8 Ω, Frequency: 1 kHz), Connector: 2-piece terminal block (AUX) x 1
AUX Input/Output	Alarm Output, RUN Output, Buzzer Output, Rated Voltage: DC24V, Rated Current: 50mA, Remote Reset Input, Input Voltage: DC24V, Connector: 2-piece terminal block (AUX) X 1
