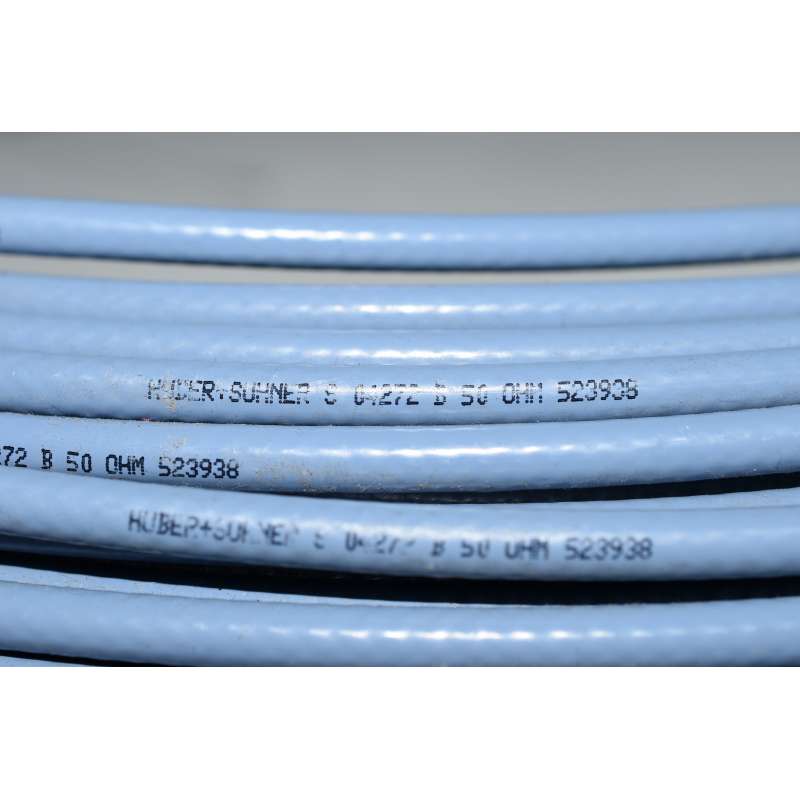

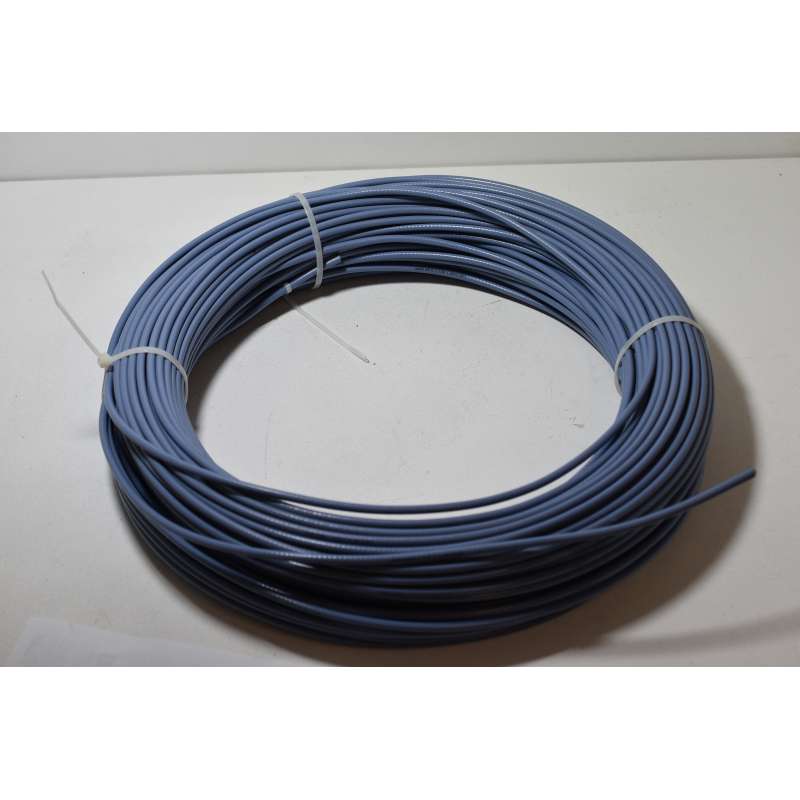

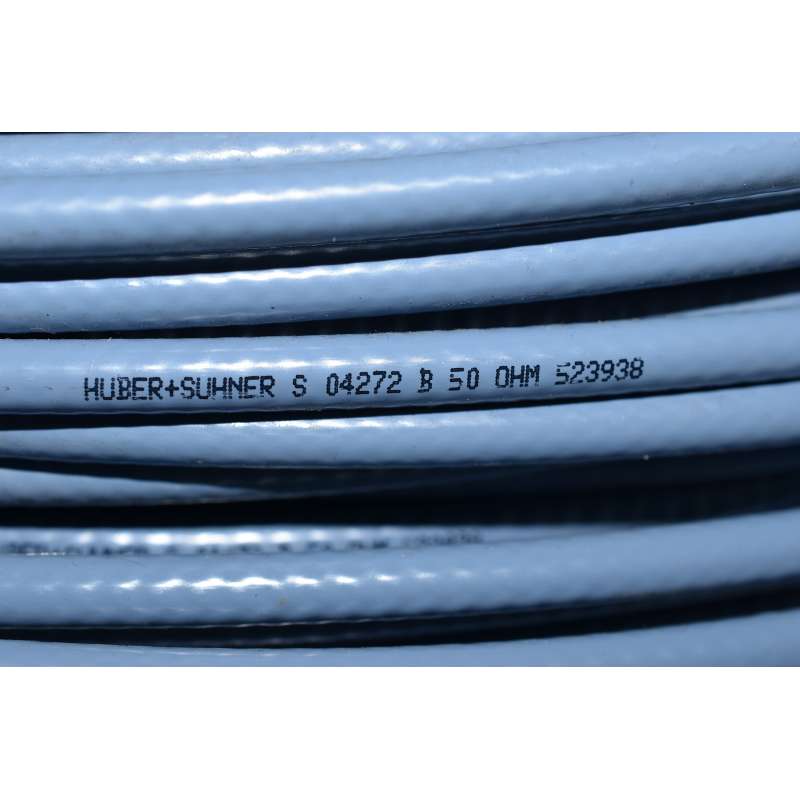

1 metro Huber+Suhner S04272 B 50 Ohm Flexible microwave cable 18 Ghz
4415/FB1/C2
Usato
10,00 € tasse incl.
tasse incl.
1 Articolo
Attenzione: ultimi articoli in magazzino!
| Tipo | Cavo |
| Marca | HUBER+SUHNER |
| Modello | Huber+Suhner S04272 B 50 Ohm |
Huber+Suhner S04272 B 50 Ohm Flexible microwave cable 18 Ghz
Frequenza max per questo cavo 18 Ghz.
Viene spedito 1 metro di cavo
Description S: Low loss RF cables with foam PE dielectrics 50 Ohm, 18 GHz, 85°C, ø5.5 mm, PE jacket
Technical Data Construction
Centre conductor Copper, Silver plated Wire 1.4 mm
Dielectric SPE (Foamed Polyethylene) 3.8 mm
Outer conductor Aluminum / PES longitudinal Foil, 100% 4 mm
Outer conductor Copper, Tin plated Braid, 86 % 4.5 mm
Jacket PE (Polyethylene) RAL 5014 - bl 5.5 mm +/- 0.1
HUBER+SUHNER S 04272 B 50 Ohm
Electrical Data
Impedance 50 Ω +/- 2 Operating
Frequency 18 GHz
Capacitance 82 pF/m
Velocity of signal propagation 82 %
Signal delay 4.1 ns/m
Screening effectiveness ≥ 90 dB (up to 18 GHz)
Operating voltage ≤ 0.5 kVrms (at sea level)
Test voltage 1 kVrms (50 Hz/1 min)
Mechanical Data Weight 4.4 kg/100 m Min. bending radius static 25 mm 90 mm
Frequenza max per questo cavo 18 Ghz.
Viene spedito 1 metro di cavo
Description S: Low loss RF cables with foam PE dielectrics 50 Ohm, 18 GHz, 85°C, ø5.5 mm, PE jacket
Technical Data Construction
Centre conductor Copper, Silver plated Wire 1.4 mm
Dielectric SPE (Foamed Polyethylene) 3.8 mm
Outer conductor Aluminum / PES longitudinal Foil, 100% 4 mm
Outer conductor Copper, Tin plated Braid, 86 % 4.5 mm
Jacket PE (Polyethylene) RAL 5014 - bl 5.5 mm +/- 0.1
HUBER+SUHNER S 04272 B 50 Ohm
Electrical Data
Impedance 50 Ω +/- 2 Operating
Frequency 18 GHz
Capacitance 82 pF/m
Velocity of signal propagation 82 %
Signal delay 4.1 ns/m
Screening effectiveness ≥ 90 dB (up to 18 GHz)
Operating voltage ≤ 0.5 kVrms (at sea level)
Test voltage 1 kVrms (50 Hz/1 min)
Mechanical Data Weight 4.4 kg/100 m Min. bending radius static 25 mm 90 mm
