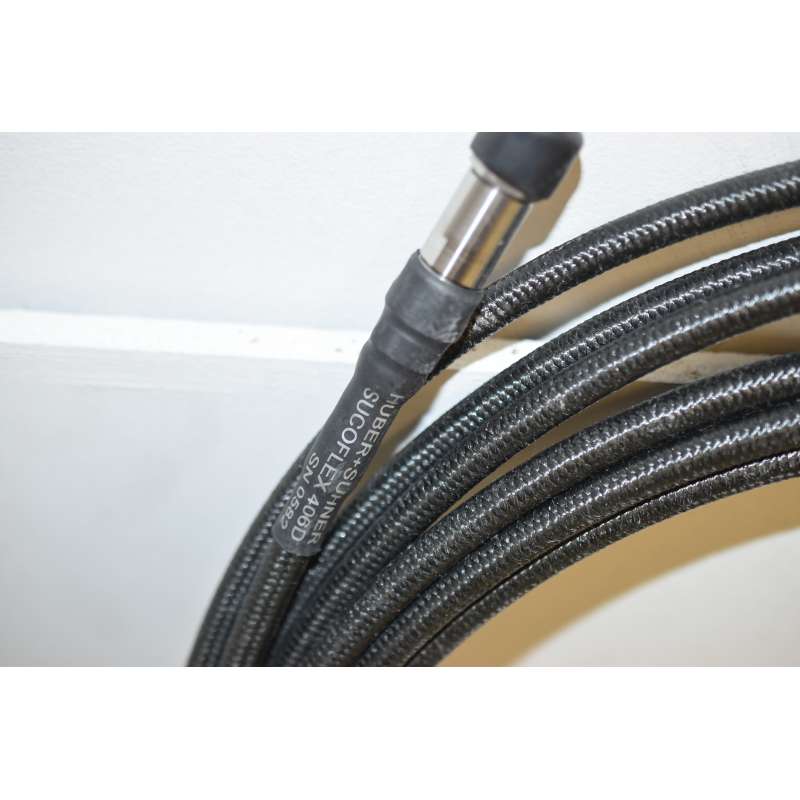

Huber+Suhner SUCOFLEX 406D 18 Ghz connettori 11_TNCA602 SN.0582

Riferimento: 4414/FB1/C2

Condizione: Usato

50,00 € tasse incl.

Questo prodotto non è più disponibile

Maggiori informazioni
Scheda tecnica

Tipo	Cavo
Marca	HUBER+SUHNER
Modello	Huber+Suhner SUCOFLEX 406D 18 Ghz connettori 11_TNCA602

Huber+Suhner SUCOFLEX 406D 18 Ghz connettori 11_TNCA602 SN.0588

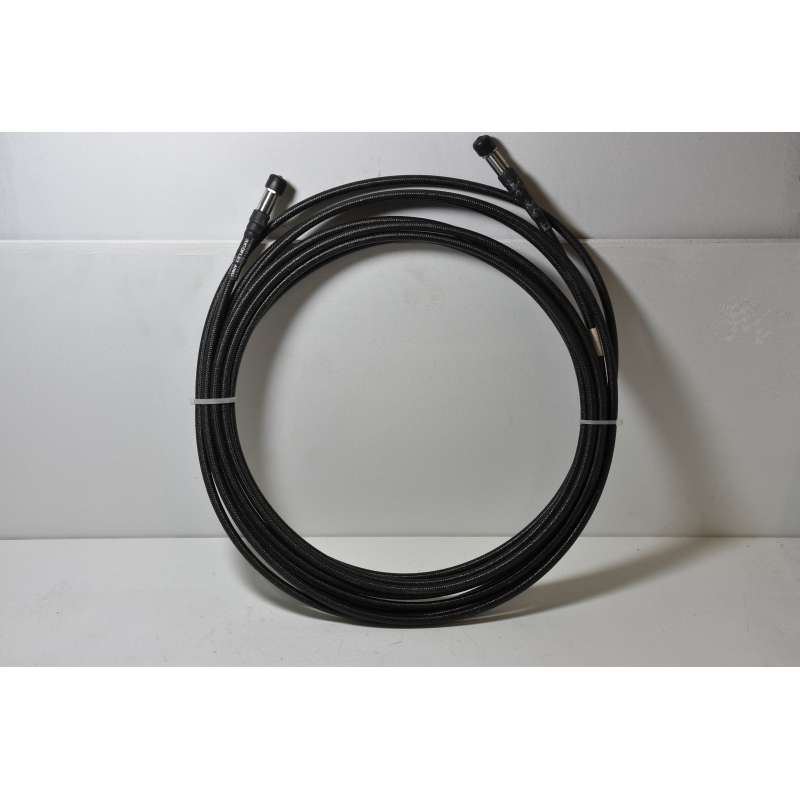

Cavo terminato con connettori TNCA-602 dritto dritto lungo mt.9
Ulteriori informazioni sul sito del produttore

Product description SUCOFLEX 406 is used in applications up to 18 GHz where special consideration must be given to low attenuation or high power handling capacity.
Product features • Applicable up to 18 GHz • Best insertion loss on the market • High phase stability versus temperature • Excellent voltage standing wave radio (VSW
SUCOFLEX_406_D CuAg wire ULD-PTFE CuAg tape/braid FEP aramid yarn braid, black 8.8

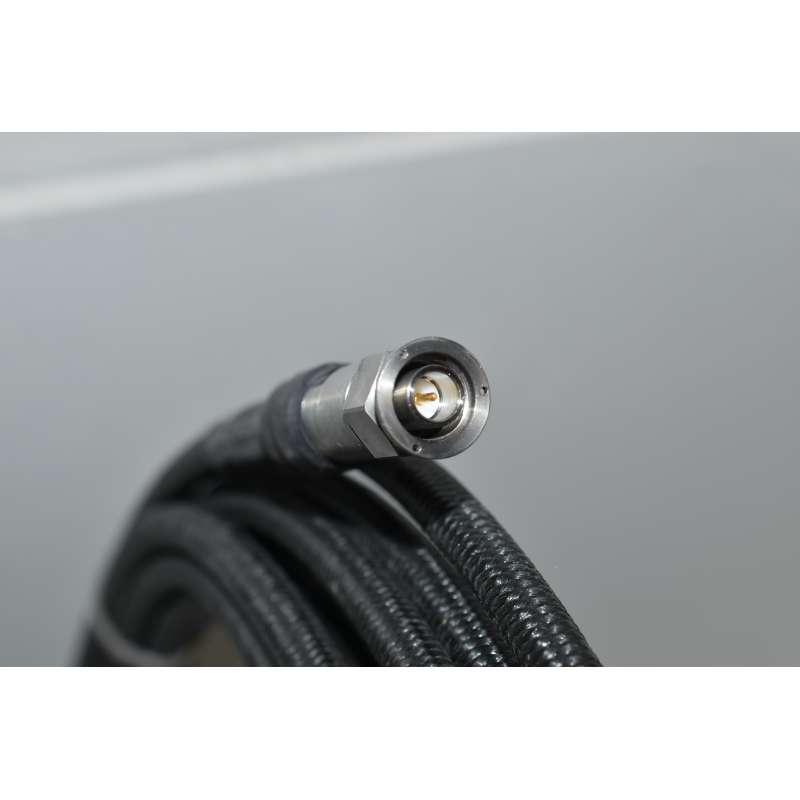

TNCA straight cable plug 11_TNCA-602 Operating frequency 18Ghz
ssembly types SUCOFLEX 406D Construction
Max. operating frequency GHz 18
Application static static static
Velocity of propagation % 89
Weight g/m 155
Min. bending radius static mm 40
Min. bending radius repeated mm 80
Crush resistance kN/m 7.5
Tensile load N 175
Inner conductor solid wire
Dielectric ULD-PTFE
Outer conductor tape/braid
Jacket FEP F
Ruggedisation aramid yarn
Outer diameter mm 8.8
Screening effectiveness (up to 18 GHz) dB > 90
Phase stability vs. flexure (360°, diameter 85 mm) °el/GHz < 2.5
Phase stability vs. temperature ppm < 500
Assembly phase matching tolerances °el/GHz ± 0.5
Cable attenuation at 25 °C dB/m see graph
Insertion loss stability vs. bending dB ± 0.1
Insertion loss stability vs. temperature %/°C < 0.26
Insertion loss stability vs. shaking dB ± 0.1 ± 0.1 ± 0.
