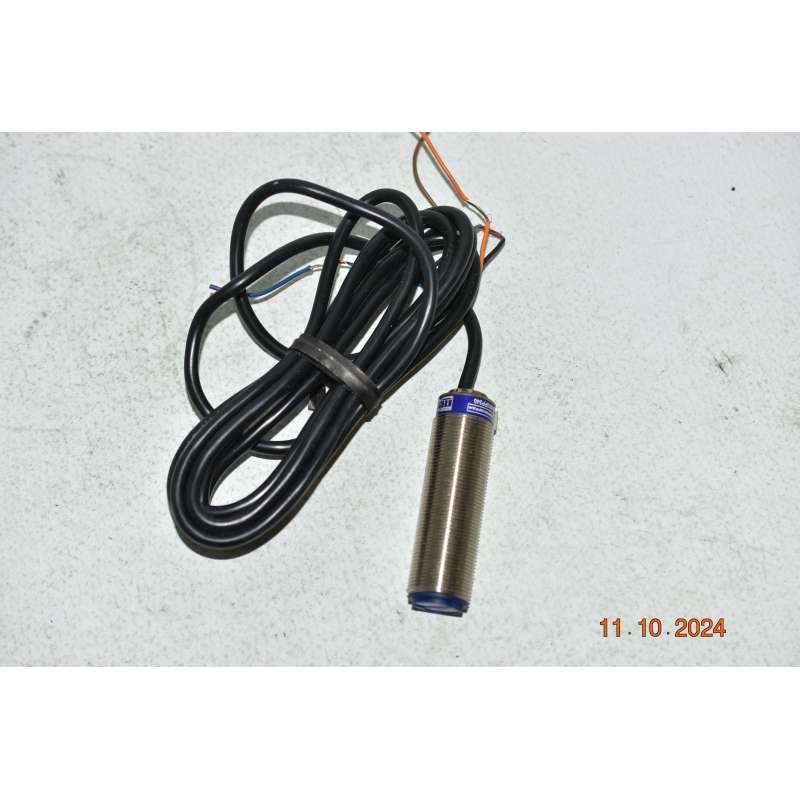

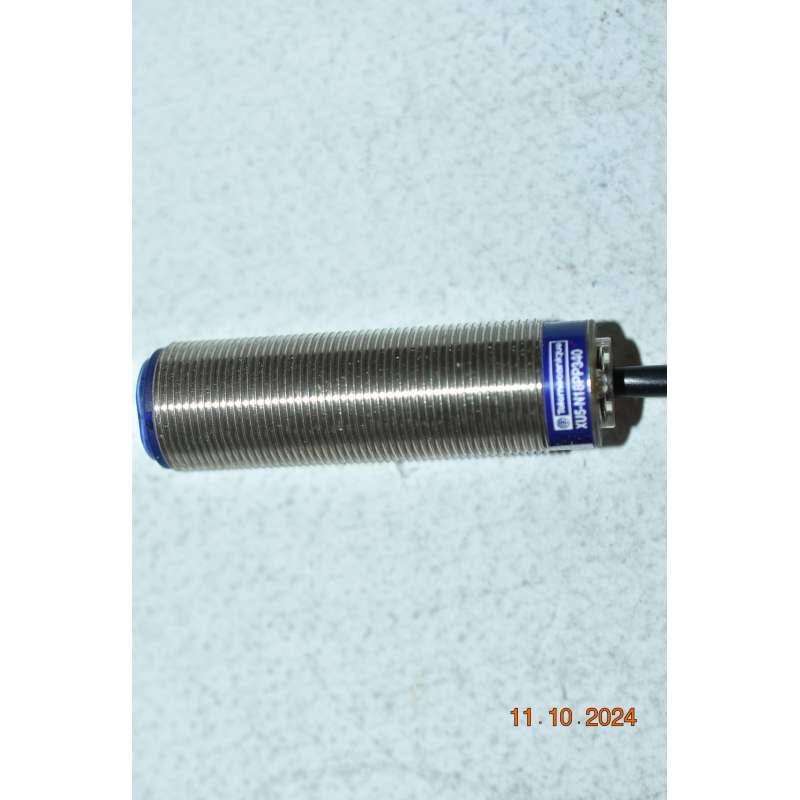

Telemecanique XU5N18PP340 Sensore Fotoelettrico12..24 Vdc
5959/BC3/SX
Nuovo
80,00 € tasse incl.
tasse incl.
1 Articolo
Attenzione: ultimi articoli in magazzino!
| Tipo | Sensore |
| Marca | Telemecanique |
| Fabbricante | Telemecanique |
| Responsabile dei Prodotti | Telemecanique |
Telemecanique XU5N18PP340 Sensore Fotoelettrico12..24 Vdc
Caratteristiche:
Range of product Telemecanique Photoelectric sensors XU Series name General purpose single mode Electronic sensor type Photo-electric sensor Sensor name XU5 Sensor design Cylindrical M18 Line of sight type Axial Discrete output function 1 NO or 1 NC programmable Electrical connection Cable Cable length 2 m Emission Infrared diffuse
Enclosure material Nickel plated brass Lens material PMMA Output type Solid state Add on output Without Status LED 1 LED (yellow) for output state [Us] rated supply voltage 24...240 V AC/DC Supply voltage limits 20…264 V AC/DC Maximum residual current 1.5 mA open state Maximum voltage drop <6 V (closed state) Maximum delay first up 300 ms Maximum delay response 20 ms Maximum delay recovery 20 ms Setting-up Sensitivity adjustment Environment Product certifications CE[RETURN]UL[RETURN]CSA Ambient air temperature for operation -25…55 °C Ambient air temperature for storage -40…70 °C Vibration resistance 7 gn, amplitude = +/- 1.5 mm (f = 10…55 Hz) conforming to IEC 60068-2-6 Shock resistance 30 gn (duration = 11 ms) conforming to IEC 60068-2-27 IP degree of protection IP67 conforming to IEC 6052
Caratteristiche:
Range of product Telemecanique Photoelectric sensors XU Series name General purpose single mode Electronic sensor type Photo-electric sensor Sensor name XU5 Sensor design Cylindrical M18 Line of sight type Axial Discrete output function 1 NO or 1 NC programmable Electrical connection Cable Cable length 2 m Emission Infrared diffuse
Enclosure material Nickel plated brass Lens material PMMA Output type Solid state Add on output Without Status LED 1 LED (yellow) for output state [Us] rated supply voltage 24...240 V AC/DC Supply voltage limits 20…264 V AC/DC Maximum residual current 1.5 mA open state Maximum voltage drop <6 V (closed state) Maximum delay first up 300 ms Maximum delay response 20 ms Maximum delay recovery 20 ms Setting-up Sensitivity adjustment Environment Product certifications CE[RETURN]UL[RETURN]CSA Ambient air temperature for operation -25…55 °C Ambient air temperature for storage -40…70 °C Vibration resistance 7 gn, amplitude = +/- 1.5 mm (f = 10…55 Hz) conforming to IEC 60068-2-6 Shock resistance 30 gn (duration = 11 ms) conforming to IEC 60068-2-27 IP degree of protection IP67 conforming to IEC 6052
