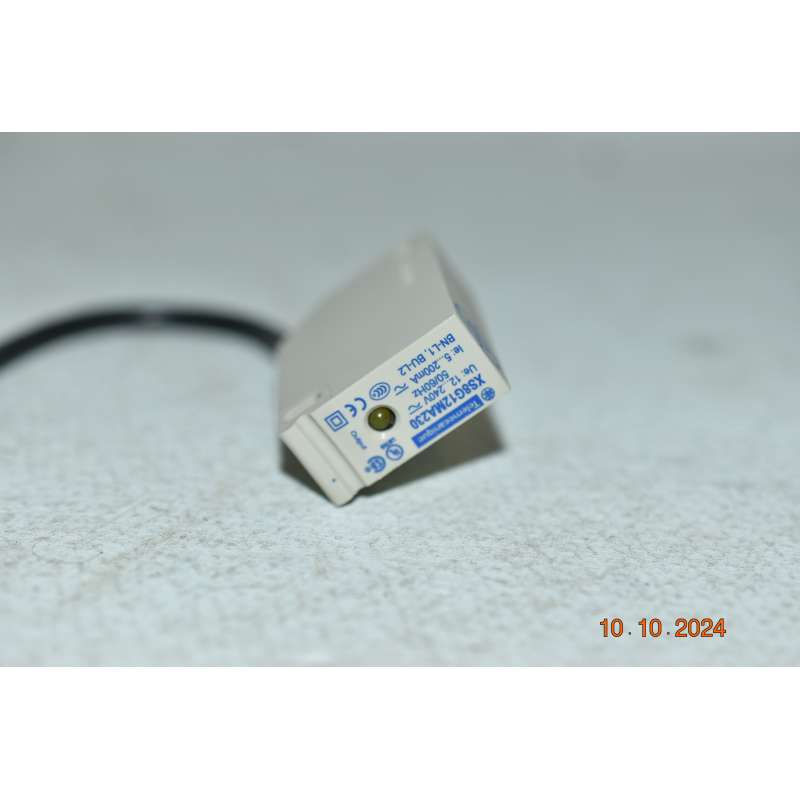

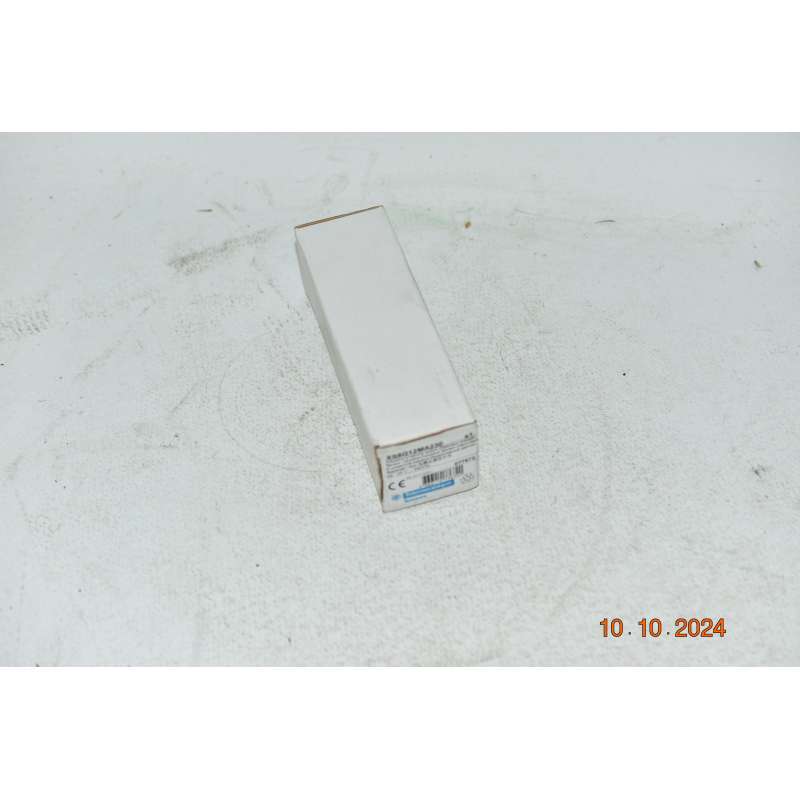

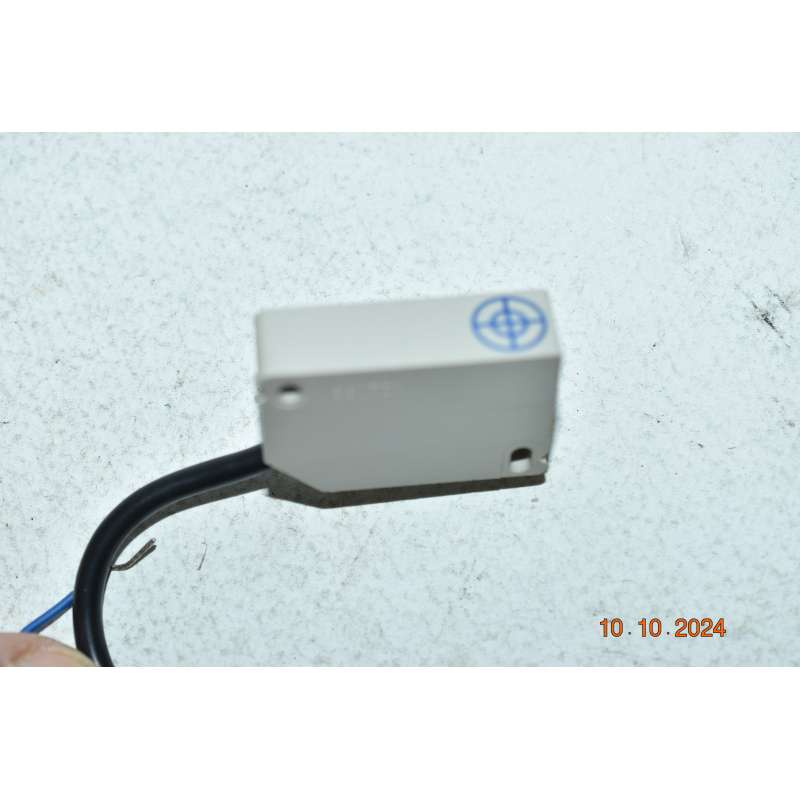

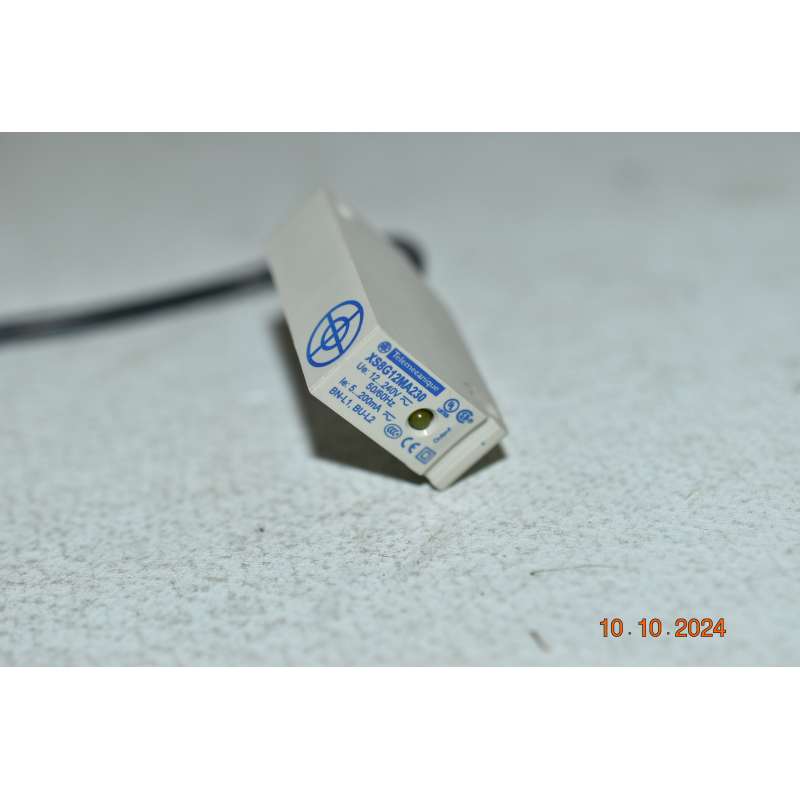

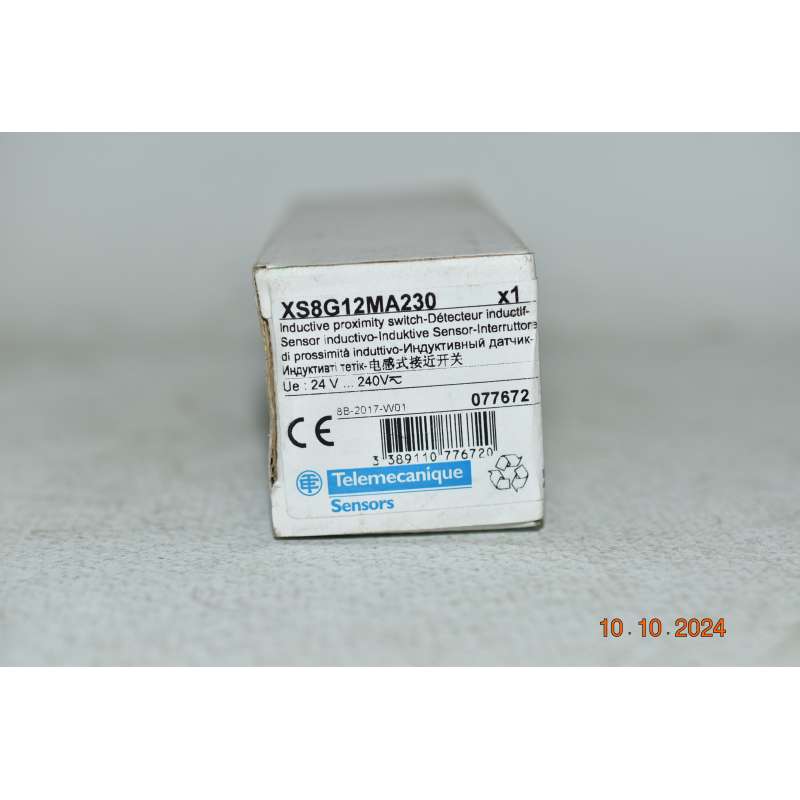

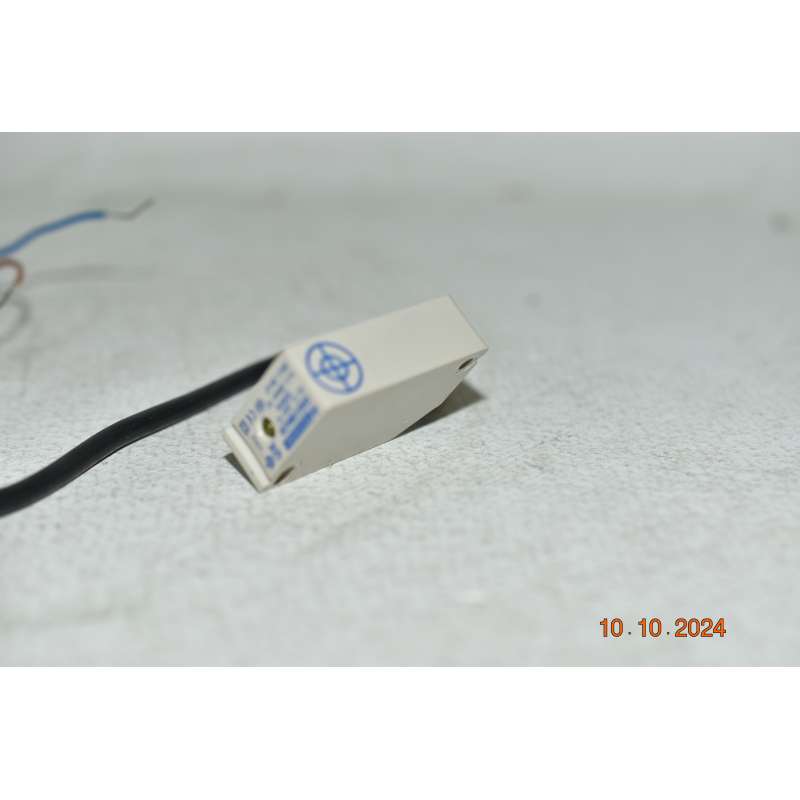

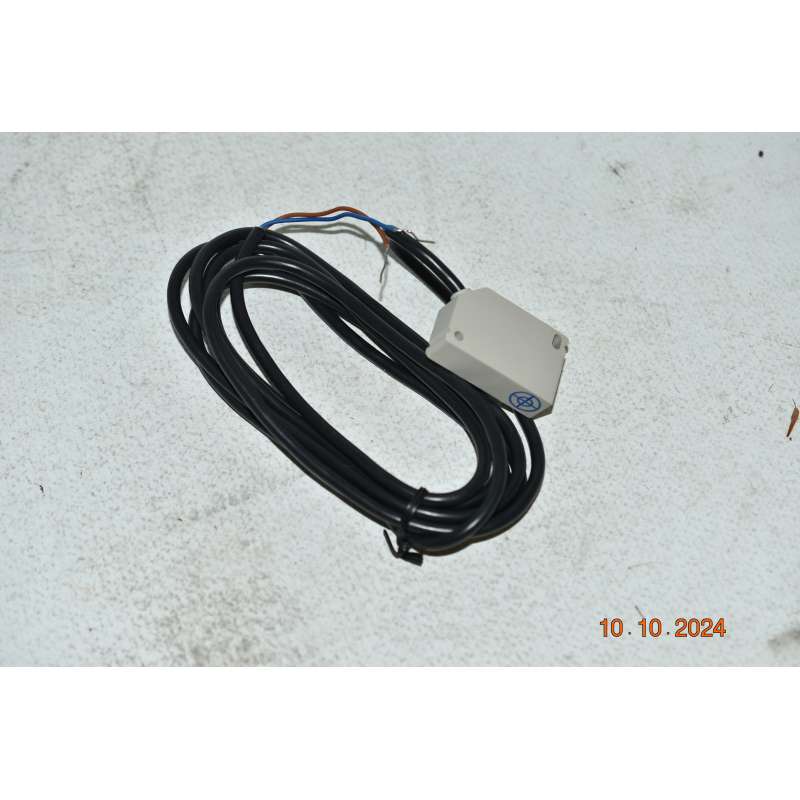

Telemecanique XS8G12MA230 Sensore Induttivo Prossimità Sn 4mm 24..240 Vac/Dc
5935/BC3/SX/Q1
Nuovo (Altro)
30,00 € tasse incl.
tasse incl.
1 Articolo
Attenzione: ultimi articoli in magazzino!
| Tipo | Sensore |
| Descrizione delle condizioni | Nuovo, aperto per fare le foto |
| Marca | Telemecanique |
| Fabbricante | Telemecanique |
| Responsabile dei Prodotti | Telemecanique |
Telemecanique XS8G12MA230 Sensore Induttivo Prossimità Sn 4mm 24..240 Vac/Dc
Caratteristiche:Range of product Telemecanique Inductive proximity sensors XS Series name General purpose Sensor type Inductive proximity sensor Product specific application - Sensor name XS8 Sensor design Form 12 x 40 x 26 Size 26 mm Body type Fixed Enclosure material Plastic Type of output signal Discrete Wiring technique 2-wire [Sn] nominal sensing distance 4 mm Discrete output function 1 NO Electrical connection Cable Cable length 2 m Wire insulation material PVC [Us] rated supply voltage 24...210 V DC 24...240 V AC 50/60 Hz Switching capacity in mA 5...200 mA IP degree of protection IP67 conforming to IEC 6052
Detection face Lateral Detector flush mounting acceptance Non flush mountable Material Plastic Front material Plastic Operating zone 0…3.2 mm Differential travel 3...20% of Sr Repeat accuracy <= 10% of Sr Output circuit type AC/DC Cable composition 2 x 0.34 mm² Status LED Output state: 1 LED (yellow) Supply voltage limits 20…264 V AC/DC Maximum residual current 0.8 MA open state 24 V 1.5 mA open state 120 V Switching frequency <= 25 Hz AC <= 250 Hz DC Maximum voltage drop <5.5 V (closed) Maximum delay first up 40 ms Maximum delay response 1 ms Maximum delay recovery 2 ms Marking CE Depth 26 mm Height 40 mm Width 12 mm
Caratteristiche:Range of product Telemecanique Inductive proximity sensors XS Series name General purpose Sensor type Inductive proximity sensor Product specific application - Sensor name XS8 Sensor design Form 12 x 40 x 26 Size 26 mm Body type Fixed Enclosure material Plastic Type of output signal Discrete Wiring technique 2-wire [Sn] nominal sensing distance 4 mm Discrete output function 1 NO Electrical connection Cable Cable length 2 m Wire insulation material PVC [Us] rated supply voltage 24...210 V DC 24...240 V AC 50/60 Hz Switching capacity in mA 5...200 mA IP degree of protection IP67 conforming to IEC 6052
Detection face Lateral Detector flush mounting acceptance Non flush mountable Material Plastic Front material Plastic Operating zone 0…3.2 mm Differential travel 3...20% of Sr Repeat accuracy <= 10% of Sr Output circuit type AC/DC Cable composition 2 x 0.34 mm² Status LED Output state: 1 LED (yellow) Supply voltage limits 20…264 V AC/DC Maximum residual current 0.8 MA open state 24 V 1.5 mA open state 120 V Switching frequency <= 25 Hz AC <= 250 Hz DC Maximum voltage drop <5.5 V (closed) Maximum delay first up 40 ms Maximum delay response 1 ms Maximum delay recovery 2 ms Marking CE Depth 26 mm Height 40 mm Width 12 mm
