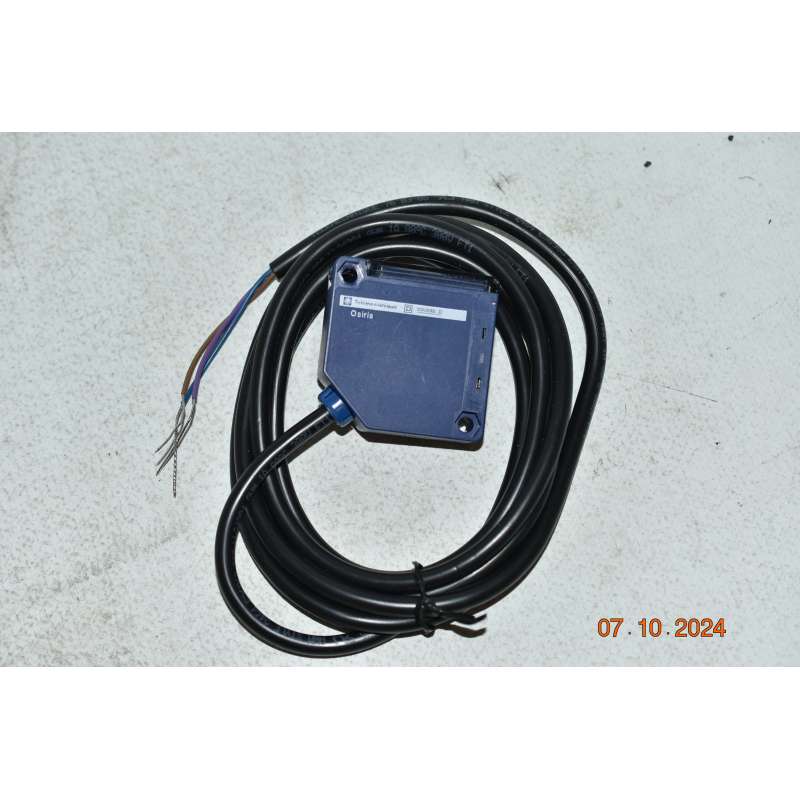

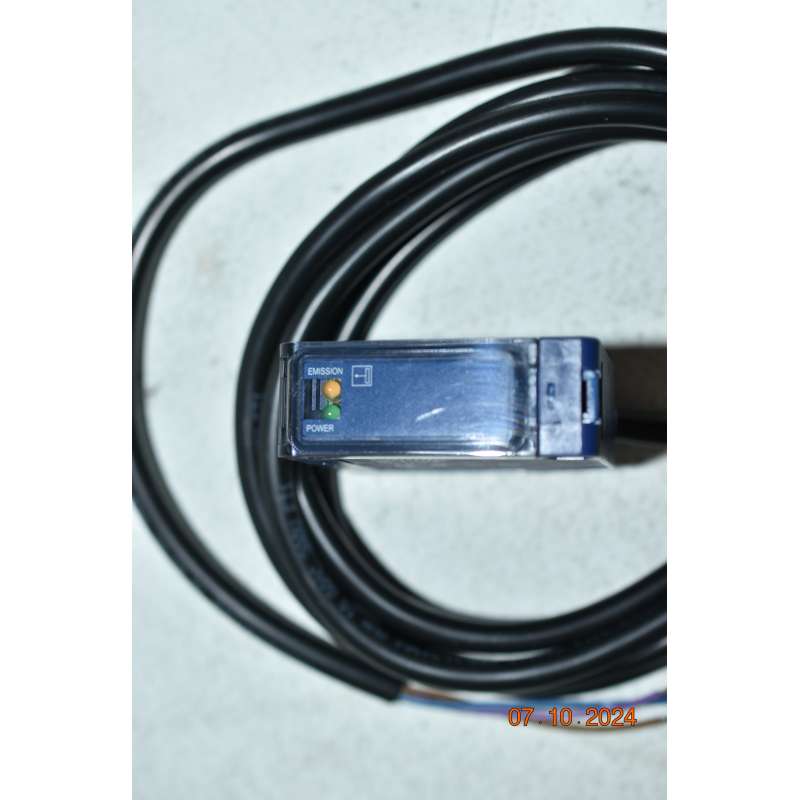

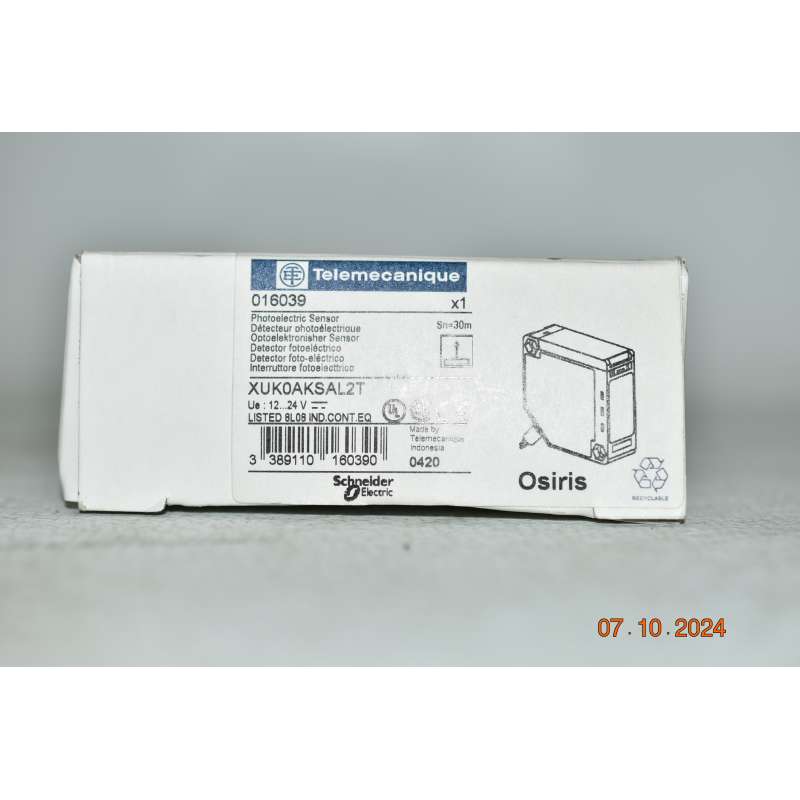

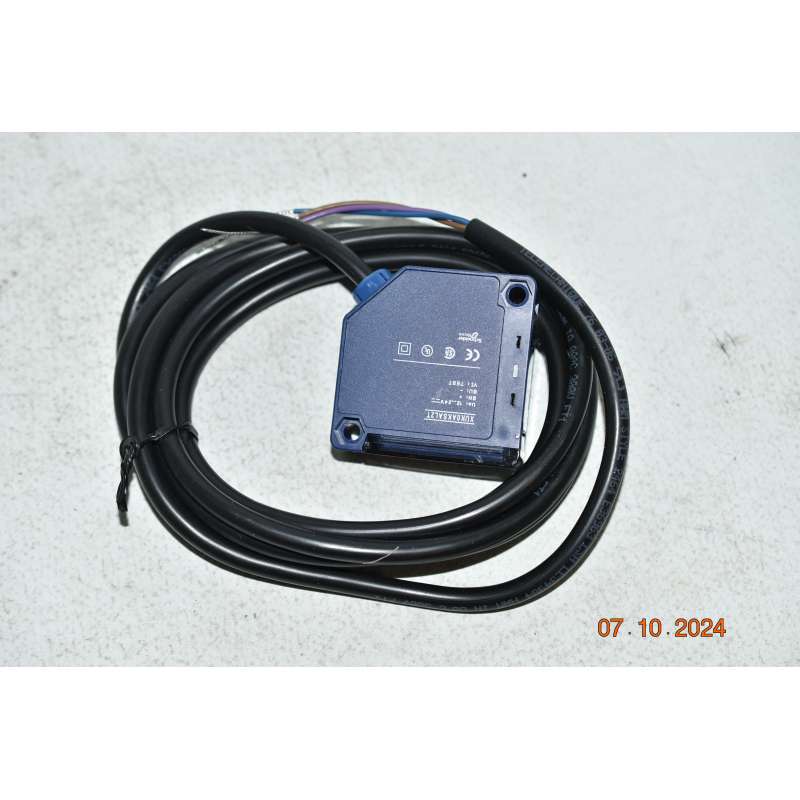

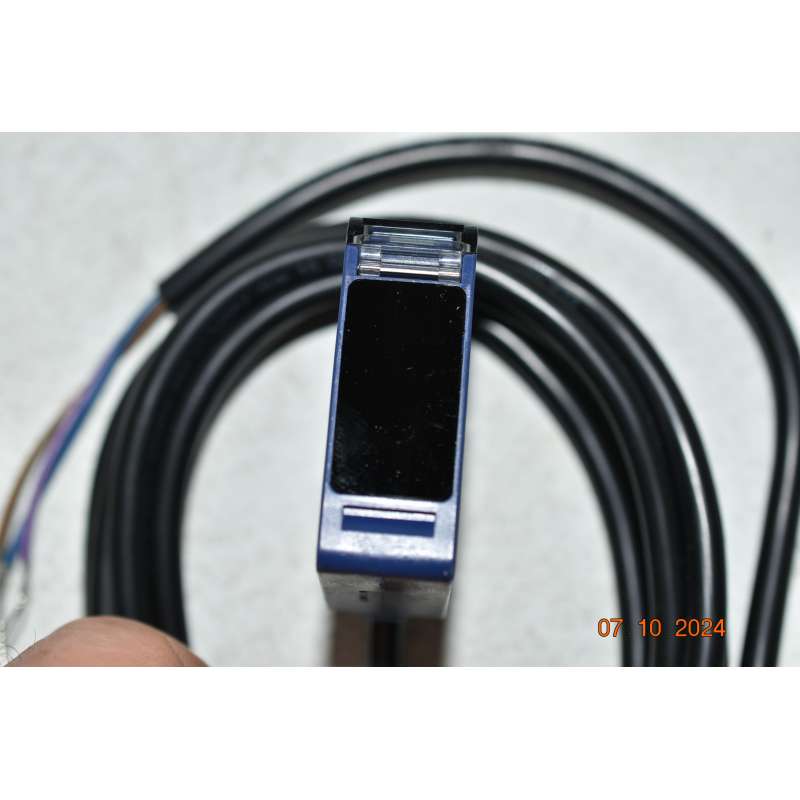

Telemecanique XUK0AKSAL2T Sensore Fotoelettrico 12.. 24 V
5919/BC3/SX
Nuovo (Altro)
40,00 € tasse incl.
tasse incl.
1 Articolo
Attenzione: ultimi articoli in magazzino!
| Tipo | Sensore |
| Descrizione delle condizioni | Nuovo, aperto per fare le foto |
| Marca | Telemecanique |
| Fabbricante | Telemecanique |
| Responsabile dei Prodotti | Telemecanique |
Telemecanique XUK0AKSAL2T Sensore Fotoelettrico 12.. 24 V
Caratteristiche:
Range of product Telemecanique Photoelectric sensors XU Series name General purpose multimode Electronic sensor type Photo-electric sensor transmitter Sensor name XUK Sensor design Compact 50 x 50 Detection system Thru beam Material Plastic Supply circuit type DC Wiring technique 3-wire Electrical connection Cable Cable length 2 m Product specific application - Emission Infrared thru beam [Sn] nominal sensing distance 30 m thru beam need a receive
Enclosure material PBT Lens material PMMA Maximum sensing distance 35 m thru beam Add on input Test by emission breaking Wire insulation material PvR Status LED 1 LED (green) for supply on [Us] rated supply voltage 12...24 V DC with reverse polarity protection Supply voltage limits 10…36 V DC Switching capacity in mA <= 100 mA (overload and short-circuit protection) Switching frequency <= 250 Hz Maximum voltage drop <1.5 V (closed state) Current consumption 20 mA no-load Maximum delay first up 300 ms Maximum delay response 2 ms Maximum delay recovery 2 ms Setting-up Without sensitivity adjustment Depth 50 mm Height 50 mm Width 18 mm
