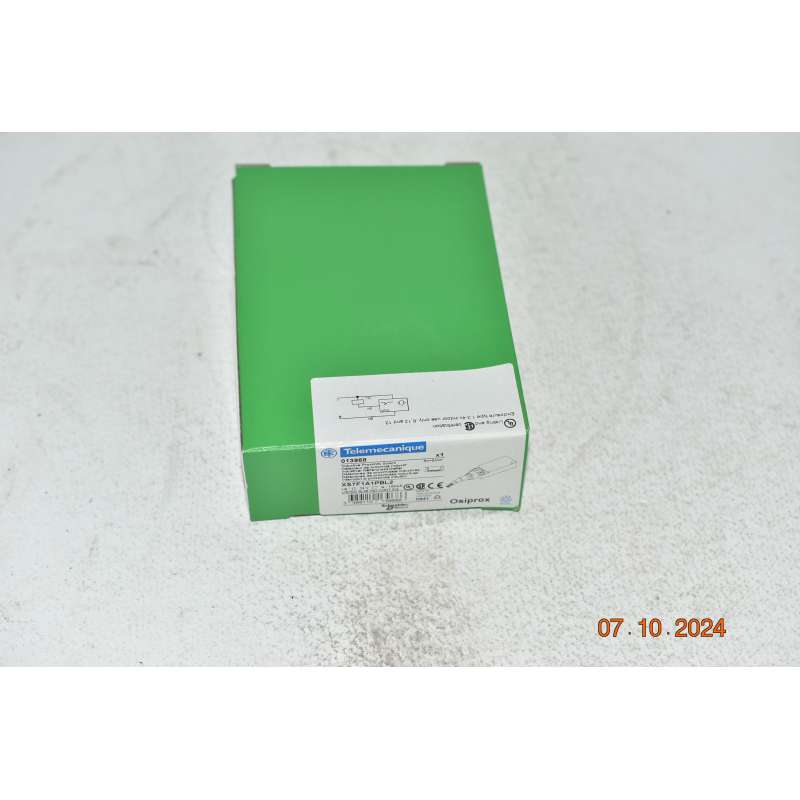

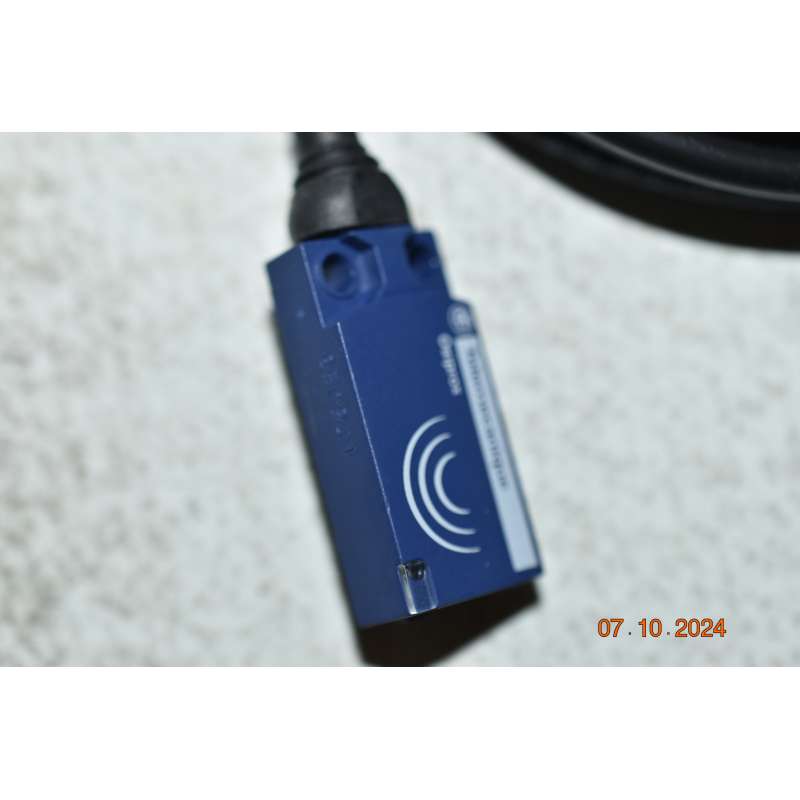

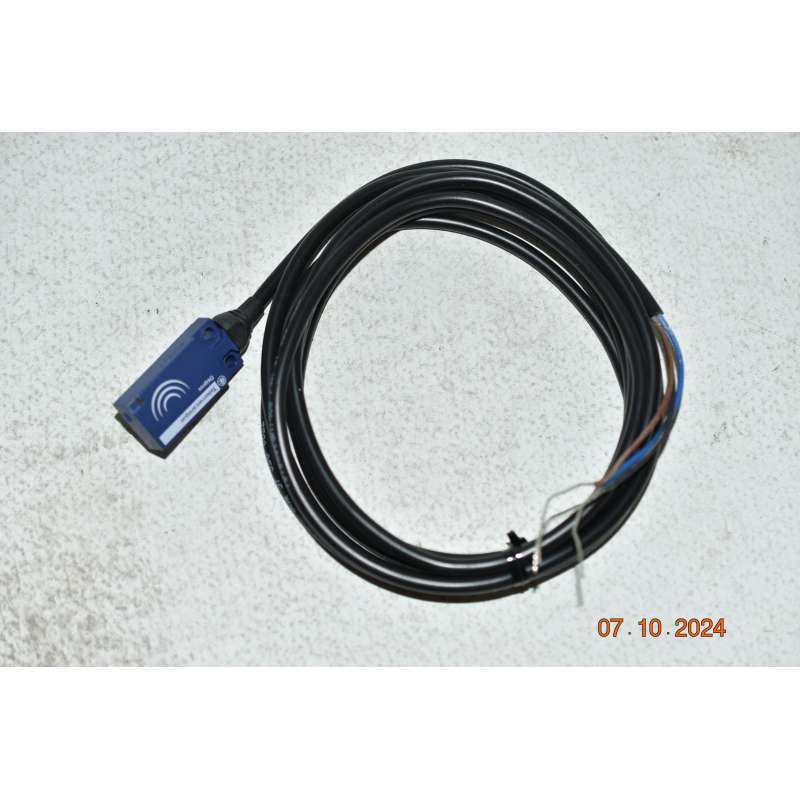

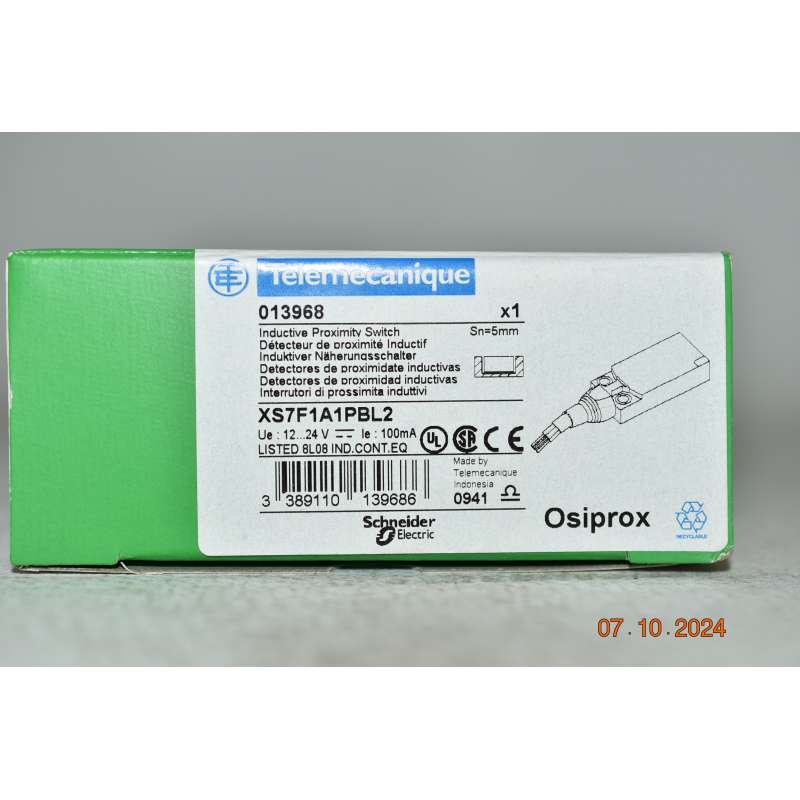

Telemecanique XS7F1A1PBL2 Sensore Induttivo Ue 12...24V Ie 100 mA
5913/BC3/SX/Q17
Nuovo (Altro)
20,00 € tasse incl.
tasse incl.
17 Articoli
| Tipo | Sensore |
| Descrizione delle condizioni | Nuovo, aperto per fare le foto |
| Marca | Telemecanique |
| Fabbricante | Telemecanique |
| Responsabile dei Prodotti | Telemecanique |
Telemecanique XS7F1APBL2 013968 Sensore Induttivo Sn=5mm Ue 12..24 V Ie 100mA
Caratteristiche:
Main Range of product Telemecanique Inductive proximity sensors XS Series name General purpose Sensor type Inductive proximity sensor Device application - Sensor name XS7 Sensor design Flat form 15 x 32 x 8 Size 8 mm Body type Fixed Detector flush mounting acceptance Flush mountable Material Plastic Enclosure material PBT Type of output signal Discrete Wiring technique 3-wire Discrete output function 1 NC Output circuit type DC Discrete output type PNP Electrical connection Cable Cable length 2 m [Us] rated supply voltage 12...24 V DC with reverse polarity protection Switching capacity in mA <= 100 mA DC with overload and short-circuit protection.
Complementary
Detection face Frontal Front material PBT Operating zone 0…4 mm Differential travel 1...15% of Sr Cable composition 3 x 0.34 mm² Wire insulation material PVC Status LED Output state: 1 LED (yellow) Supply voltage limits 10…36 V DC Switching frequency <= 2000 Hz Maximum voltage drop <2 V (closed) Current consumption <= 10 mA no-load Maximum delay first up 5 ms Maximum delay response 0.1 ms Maximum delay recovery 0.1 ms Marking CE Depth 8 mm Height 32 mm Width 15 mm Net weight 0.065 k
Caratteristiche:
Main Range of product Telemecanique Inductive proximity sensors XS Series name General purpose Sensor type Inductive proximity sensor Device application - Sensor name XS7 Sensor design Flat form 15 x 32 x 8 Size 8 mm Body type Fixed Detector flush mounting acceptance Flush mountable Material Plastic Enclosure material PBT Type of output signal Discrete Wiring technique 3-wire Discrete output function 1 NC Output circuit type DC Discrete output type PNP Electrical connection Cable Cable length 2 m [Us] rated supply voltage 12...24 V DC with reverse polarity protection Switching capacity in mA <= 100 mA DC with overload and short-circuit protection.
Complementary
Detection face Frontal Front material PBT Operating zone 0…4 mm Differential travel 1...15% of Sr Cable composition 3 x 0.34 mm² Wire insulation material PVC Status LED Output state: 1 LED (yellow) Supply voltage limits 10…36 V DC Switching frequency <= 2000 Hz Maximum voltage drop <2 V (closed) Current consumption <= 10 mA no-load Maximum delay first up 5 ms Maximum delay response 0.1 ms Maximum delay recovery 0.1 ms Marking CE Depth 8 mm Height 32 mm Width 15 mm Net weight 0.065 k
