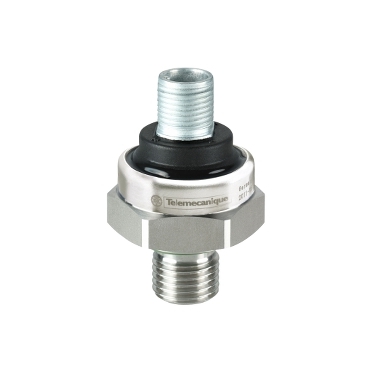

Schneider XMLP400BD22 Trasmettitore di Pressione 0..400 Bar Iout 4..20mA

Riferimento: 4814/DB2/DX/Q4

Condizione: Nuovo (Altro)

79,00 € tasse incl.

Più dettagli

2 Articolo Articoli

Attenzione: ultimi articoli in magazzino!

Maggiori informazioni
Scheda tecnica

Tipo	Trasmettitore di pressione
Descrizione delle condizioni	Nuovo, aperto per fare le foto
Marca	Telemecanique
Codice Telemecanique	XMLP400BD22
Fabbricante	Telemecanique
Responsabile dei Prodotti	Telemecanique

Schneider XMLP400BD22 Trasmettitore di Pressione 0..400 Bar Iout 4..20mA
This XMLP electronic pressure sensor has a a pressure rating of 400 bar, a M12 connector electrical connection and a G 1/4 a DIN 3852-a male fluid connection. This high pressure transmitter is designed for accurate pressure control of air, fresh water, between 0°C and +120°C, refrigeration fluids, hydraulic oils and any fluid compatible with AISI 304 stainless steel, between -30°C and +120°C. It is fixed directly on tubage. It provides high corrosion resistance AISI 316L stainless steel and fluorocarbon resin pressure chamber for maximum longevity. 10 million cycles mechanical durability for minimum required maintenance on your pressurized fluid circuits.

Range of product	Telemecanique Pressure sensors XM
Product or component type	Electronic pressure sensors
Pressure sensor type	Pressure transmitter
Pressure sensor name	XMLP
Electrical circuit type	Control circuit
Pressure sensor size	400 bar
Local display	Without
controlled fluid	Fresh water (0…120 °C) Air (-30…120 °C) Hydraulic oil (-30…120 °C) Gas (-30…120 °C) Refrigeration fluid (-30…120 °C)
fluid connection type	G 1/4A (male) conforming to DIN 3852-A
electrical connection	1 male connector M12 4 pins
[Us] rated supply voltage	12...24 V DC SELV (voltage limits: 8…30 V)
Current consumption	< 20 mA
Type of output signal	Analogue
analogue output function	4...20 mA, 2-wire
Quantity per set	Set of 1
Type of packing	Individual

Complementary
Pressure setting range	0…400 bar
Maximum permissible accidental pressure	800 bar
Destruction pressure	1600 bar
Materials in contact with fluid	Stainless steel type 17-4PH Stainless steel type AISI 304
Operating position	Any position
Protection type	Reverse polarity Load short-circuit
electromagnetic compatibility	Susceptibility to electromagnetic fields conforming to EN/IEC 61000-4-3 10 V/m 80...1000 MHz Electrical fast transient/burst immunity test conforming to EN/IEC 61000-4-4 2 kV 1.2/50 µs shock waves immunity test conforming to EN/IEC 61000-4-5 500 V 12 Ohm, 1 kV 42 Ohm Radiated RF fields conforming to EN/IEC 61000-4-6 10 V 0.15...80 MHz Electrostatic discharge immunity test conforming to EN/IEC 61000-4-2 8 kV air, 4 kV contact
[Uimp] rated impulse withstand voltage	0.5 kV
response time on output	< 5 ms 92 % of full scale
Measurement accuracy	+/- 0.5 % of the measuring range
Resolution	Infinity
Drift of the sensitivity	+/- 0.02 % of measuring range/°K
Drift of the zero point	+/- 0.02 % of measuring range/°K
Long term stability	+/- 0.2 % of the measuring range
Mechanical durability	10000000 cycles
Net weight	0.05 kg
Diameter	30 mm
Length	26 mm
Scale type	Fixed differential
