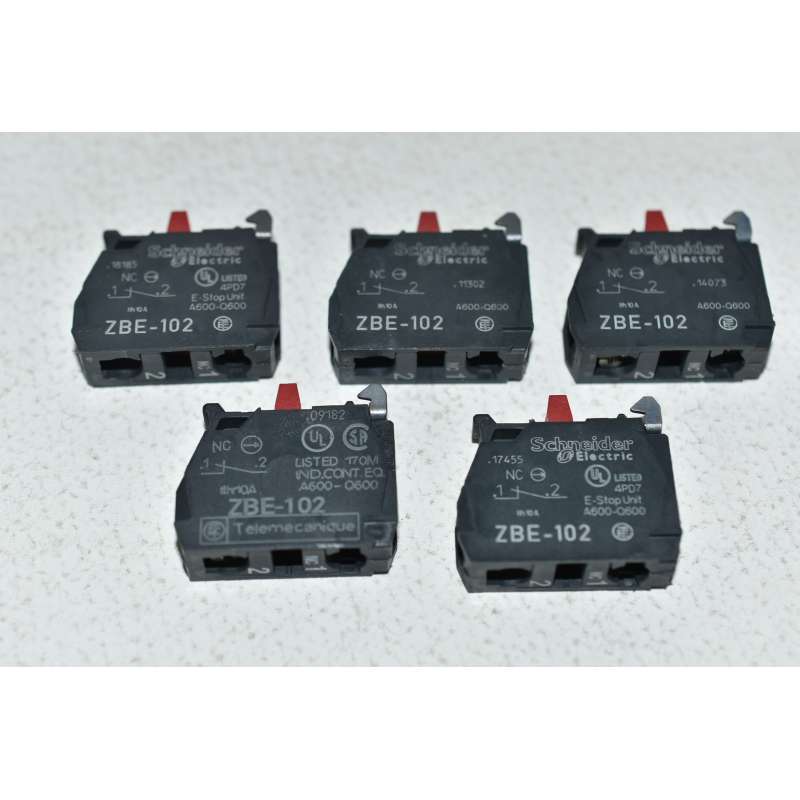

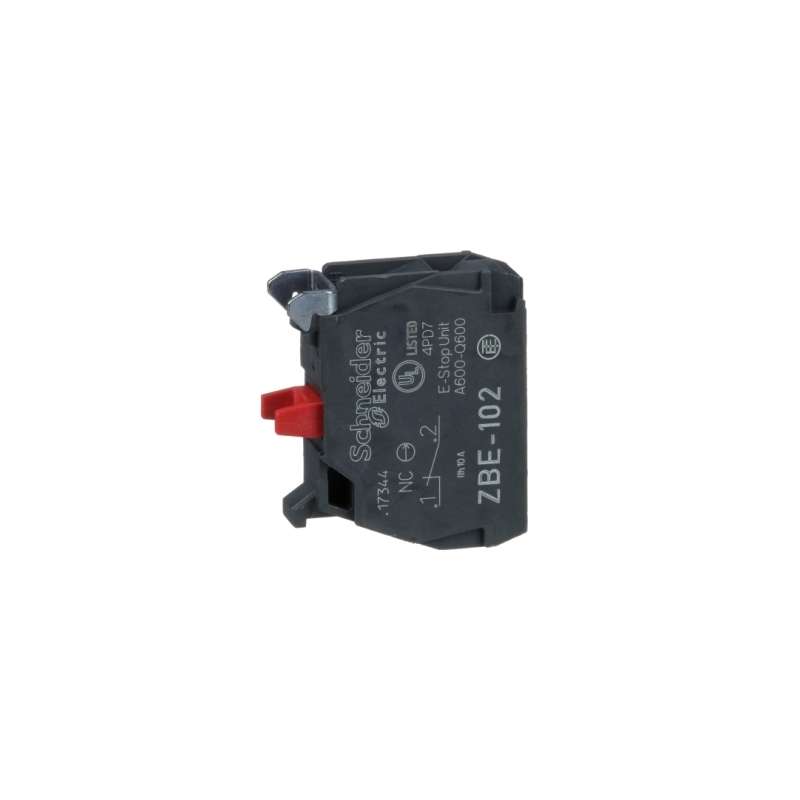

Schneider Electric Harmony ZBE-102 NC contact element standard (IA1)
124/BF2/SX/Q165
Nuovo
5,00 € tax incl.
tax incl.
15 Items
| Tipo | Hrmony pulsantiera |
| Description of the conditions | Senza confezione originale |
| Brand | Schneider |
Schneider Electric Harmony ZBE-102 NC contact element standard .Sale minimum 5 pcs
| the product range |
Harmony XB4
Harmony XB5 |
|
|---|---|---|
| the type of product or component |
Element contacts
|
|
| abbreviated name |
ZBE
|
|
| sale quantity indivisible |
5
|
|
| degree of protection IP |
IP20 TO IEC 60529
|
|
| type and composition contacts |
1 NC
|
|
| operation of the contacts |
Slow break
|
|
| type contact block |
Single
|
|
| use contacts |
Standard contacts
|
|
| Connections - terminals |
The screw terminals <= 2 x 1.5 mm2 with cable end EN 60947-1
The screw terminals > = 1 x 0.22 mm2 without cable end EN 60947-1 |
| product weight |
0,011 kg
|
|
|---|---|---|
| positive opening |
With EN/IEC 60947-5-1 appendix K
|
|
| stroke operation |
1.5 mm NC changing the electrical state
4.3 mm total travel |
|
| operating force |
2 N NC changing the electrical state
|
|
| mechanical life |
10000000 cycles
|
|
| tightening torque |
0.8...1.2 Nm EN 60947-1
|
|
| the shape of the head (screw) |
Cross head Philips no 1
Cross head pozidriv No 1 Slotted flat Ø 4 mm Slotted flat Ø 5.5 mm |
|
| contact material |
Silver alloy (Ag/Ni)
|
|
| protection against short circuits |
10 A fuse cartridge gG EN/IEC 60947-5-1
|
|
| Conventional thermal current in open air [Ith] |
10 A EN/IEC 60947-5-1
|
|
| Rated insulation voltage [Ui] |
600 V 3 EN 60947-1
|
|
| Rated voltage impulse withstand [Uimp] |
6 kV EN 60947-1
|
|
| Nominal operating current [Ie] |
1.2 A 600 V AC-15 A600 EN/IEC 60947-5-1
0,27 A 250 V DC-13 Q600 EN/IEC 60947-5-1 0.1 A AT 600 V DC-13 Q600 EN/IEC 60947-5-1 3 A 240 V AC-15 A600 EN/IEC 60947-5-1 0,55 A 125 V DC-13 Q600 EN/IEC 60947-5-1 6 TO 120 V AC-15 A600 EN/IEC 60947-5-1 |
|
| electrical life |
1000000 cycles AC-15 2 A 230 V 3600 cycles/h 0.5 EN/IEC 60947-5-1 appendix C
1000000 cycles DC-13 0.2 A 110 V 3600 cycles/h 0.5 EN/IEC 60947-5-1 appendix C 1000000 cycles AC-15 3 A 120 V 3600 cycles/h 0.5 EN/IEC 60947-5-1 appendix C 1000000 cycles AC-15 4 A 24 V 3600 cycles/h 0.5 EN/IEC 60947-5-1 appendix C 1000000 cycles DC-13 0,5 A 24 V 3600 cycles/h 0.5 EN/IEC 60947-5-1 appendix C |
|
| electrical reliability |
Λ < 10exp(-7) 1 mA in clean environment EN/IEC 60947-5-4
Λ < 10exp(-8) 5 mA in clean environment EN/IEC 60947-5-4 |
|
| block mounting |
The front mounting
|
|
| conditions of use |
Mounting on a push-button collar
|
|
| code composition electrical |
C1 <= 9
|
