Schneider Harmony XB4 ZB4BVJ6 body for pilot light ZB4 integral led blue 12 volt (IA1)
3018/FB1/C4
Nuovo (Altro)
70,00 € tax incl.
tax incl.
1 Item
Warning: Last items in stock!

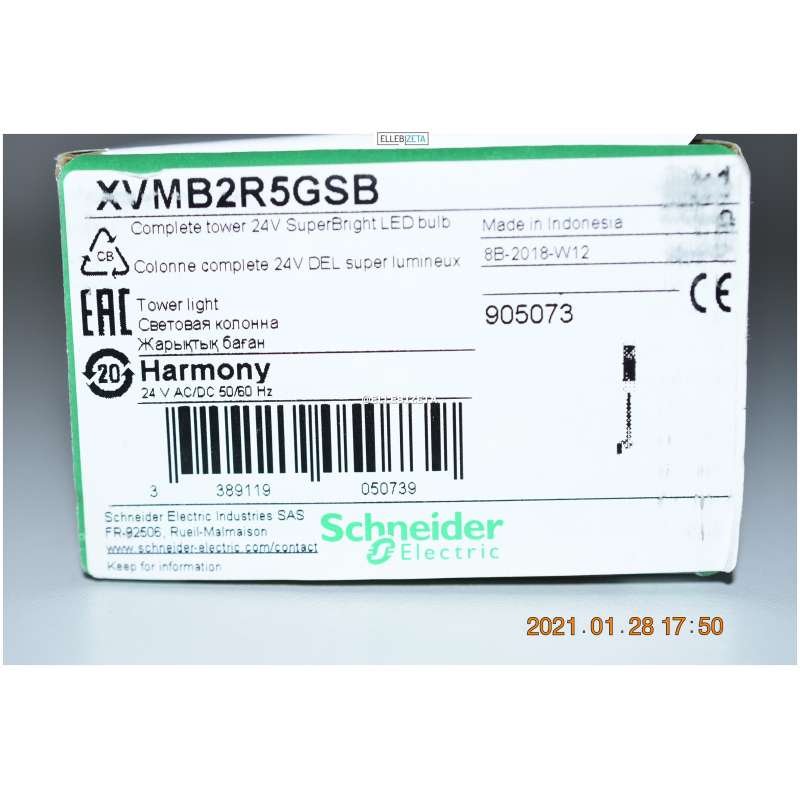

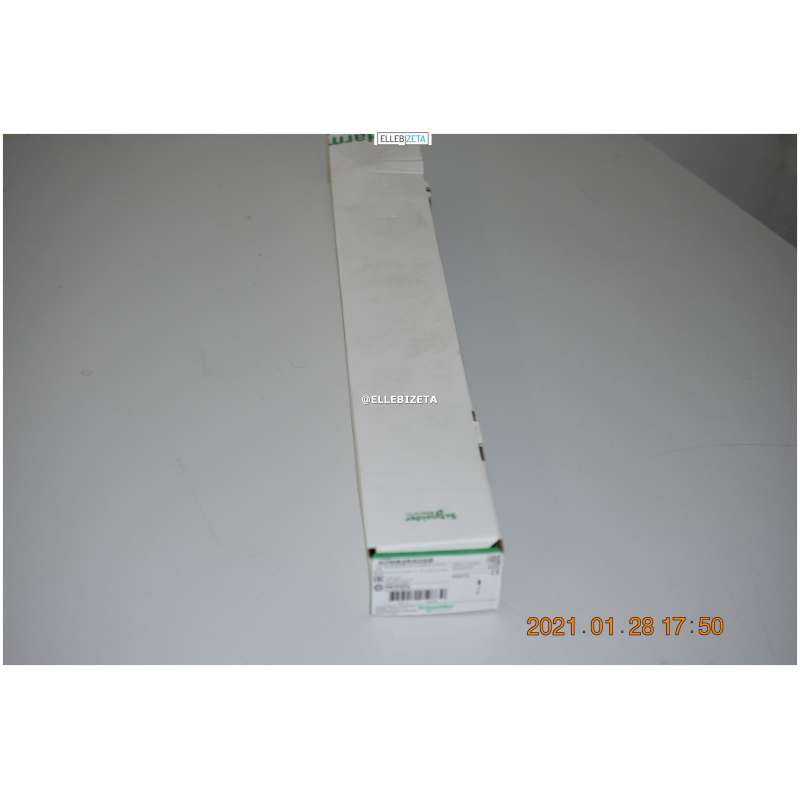

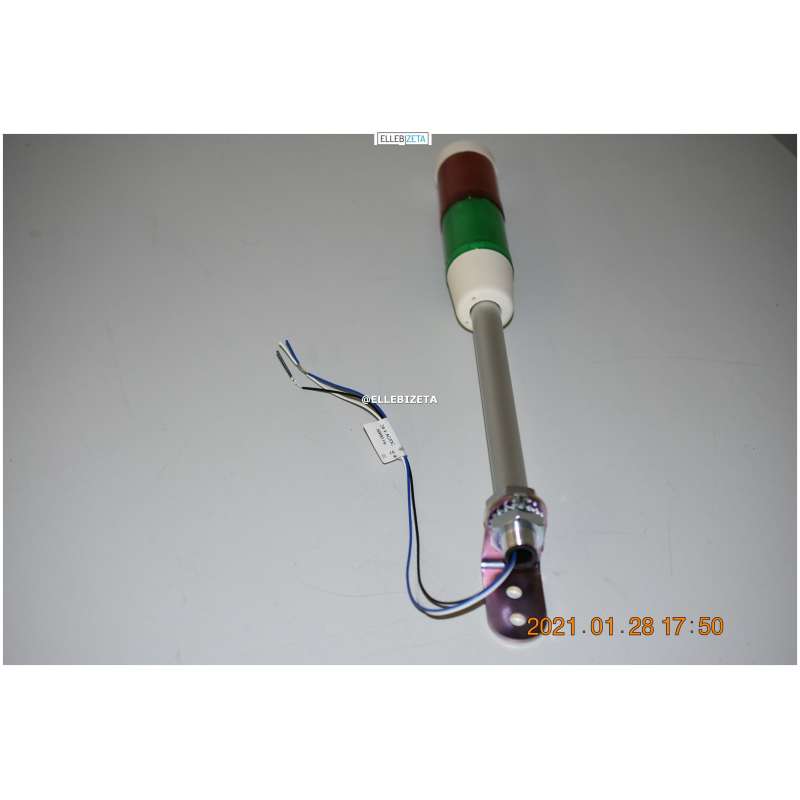

| Tipo | Harmony XVM |
| Description of the conditions | Senza confezione originale |
| Brand | Schneider Electric |
| Modello | XVMB2R5GSB |
Schneider Harmony XB4 ZB4BVJ6 body for pilot light ZB4 integral led blue 12 volt.
| the product range |
Harmony XB4
|
|
|---|---|---|
| the type of product or component |
Mounting full body/luminous element
|
|
| abbreviated name |
ZB4
|
|
| material fixing base |
Zamak
|
|
| sale quantity indivisible |
1
|
|
| Connections - terminals |
Screw terminal : <= 2 x 1.5 mm2 with cable end
Of the screw terminals : > = 1 x 0.22 mm2 without cable end |
|
| light source |
Integrated LED
|
|
| attack lamp |
Integrated LED
|
|
| color light source |
Blue
|
|
| Input rated voltage [Us] |
12 V AC/DC, 50/60 Hz
|
| overall width CAD |
30 mm
|
|
|---|---|---|
| overall height CAD |
47 mm
|
|
| total depth CAD |
37 mm
|
|
| terminals description ISO n°1 |
(X1-X2)PL
|
|
| product weight |
0,054 kg
|
|
| tightening torque |
0.8...1.2 Nm conforming to EN 60947-1
|
|
| the shape of the head (screw) |
Head to the cross head compatible with Philips no 1 screwdriver
Head to the cross head compatible with pozidriv No 1 screwdriver Slotted head compatible with flat Ø 4 mm screwdriver Slotted head compatible with flat Ø 5.5 mm screwdriver |
|
| Rated insulation voltage [Ui] |
600 V (degree of pollution: 3) conforming to EN 60947-1
|
|
| Rated voltage impulse withstand [Uimp] |
6 kV conforming to EN 60947-1
|
|
| type of reporting |
Fixed
|
|
| the limits of the power supply voltage |
10...15 V DC
10,2...13,8 V AC |
|
| current consumption |
18 but
|
|
| duration of life |
100000 H at rated voltage and 25 °C
|
|
| resistance to the over - |
1 kV conforming to IEC 61000-4-5
|
| protection treatment |
TH
|
|
|---|---|---|
| storage temperature |
-40...70°C
|
|
| operating environment temperature |
-40...70°C
|
|
| class of protection against electric shock |
Class I conforming to IEC 60536
|
|
| reference standards |
EN/IEC 60947-1
EN/IEC 60947-5-1 EN/IEC 60947-5-4 EN/IEC 60947-5-5 JIS C 4520 UL 508 CSA C22.2 No 14 |
|
| certifications product |
BV
CSA DNV GL LROS (Lloyds register of shipping) RINA UL listed |
|
| vibration resistance |
5 gn (f = 2...500 Hz) conforming to IEC 60068-2-6
|
|
| shock resistance |
30 gn (duration = 18 ms) for half sine wave acceleration conforming to IEC 60068-2-27
50 gn (duration = 11 ms) for half sine wave acceleration conforming to IEC 60068-2-27 |
|
| resistance to fast transients |
2 kV conforming to IEC 61000-4-4
|
|
| resistance to electromagnetic fields |
10 V/m conforming to IEC 61000-4-3
|
|
| resistance to electrostatic discharge |
6 kV on contact (on metal parts) conforming to IEC 61000-2-6
8 kV in free air (in insulating parts) conforming to IEC 61000-2-6 |
|
| electromagnetic emission |
Class B conforming to IEC 55011
|
