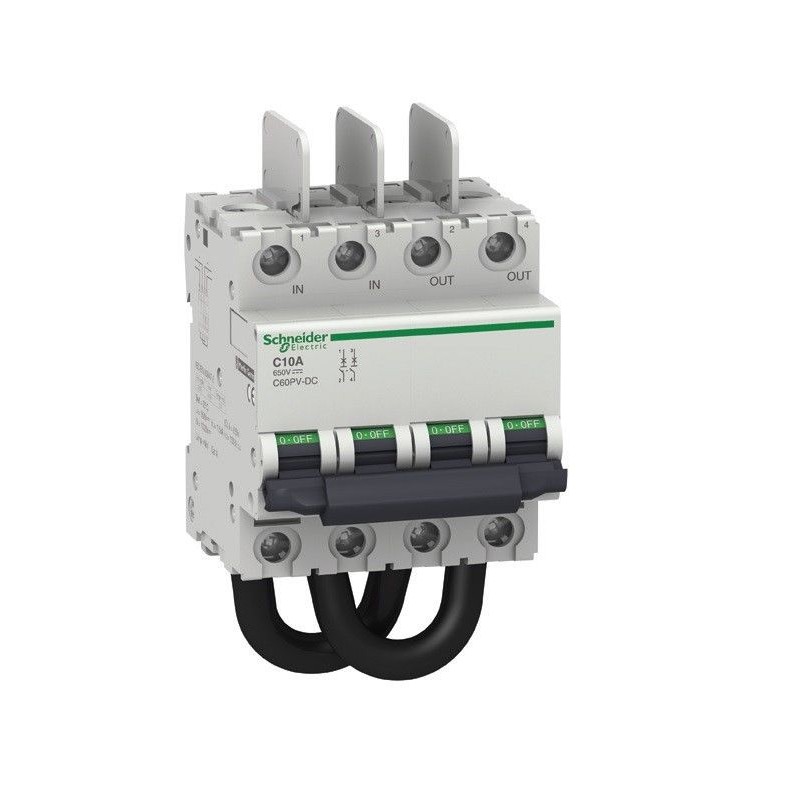

C60PV-DC 2P 16 Amp 650 Volt Curva C Schneider MGN61650 Magnetotermico

Riferimento: 5446/CB2/EDX/Q2

Condizione: Nuovo (Altro)

50,00 € tasse incl.

2 Articolo Articoli

Attenzione: ultimi articoli in magazzino!

Tipo	Magnetotermico

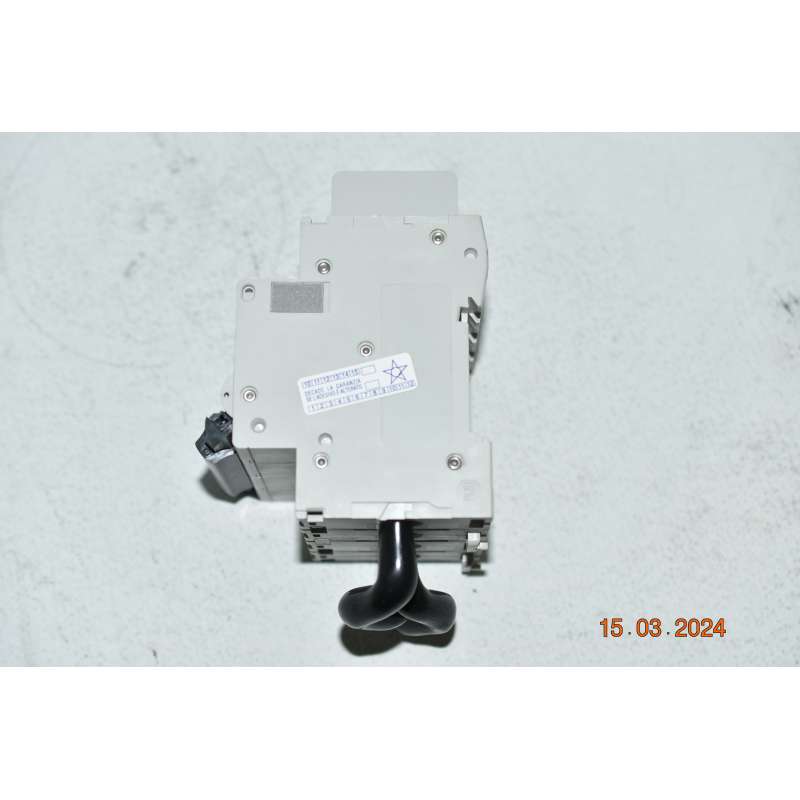

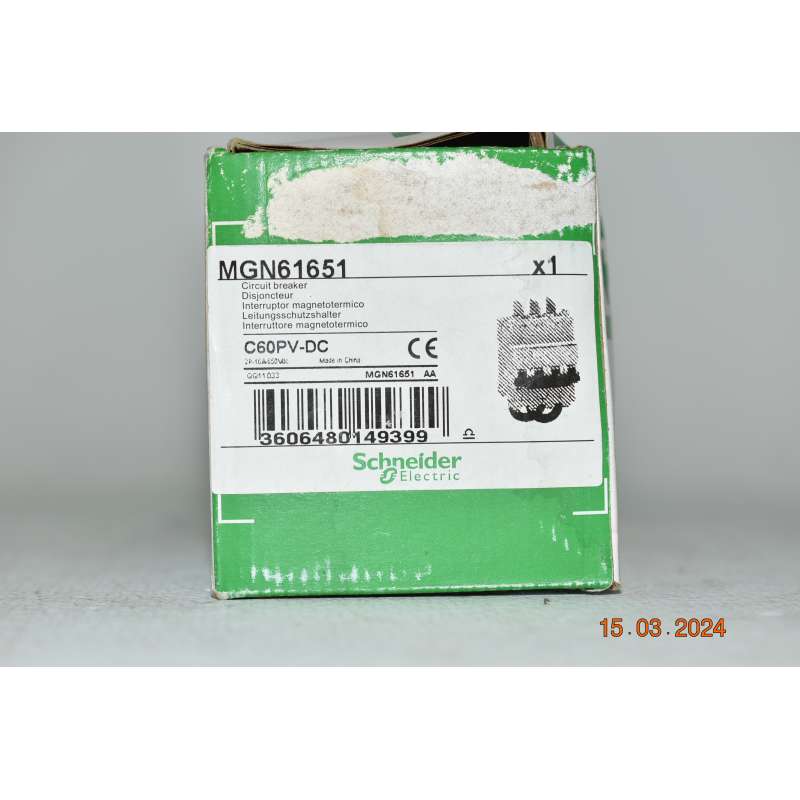

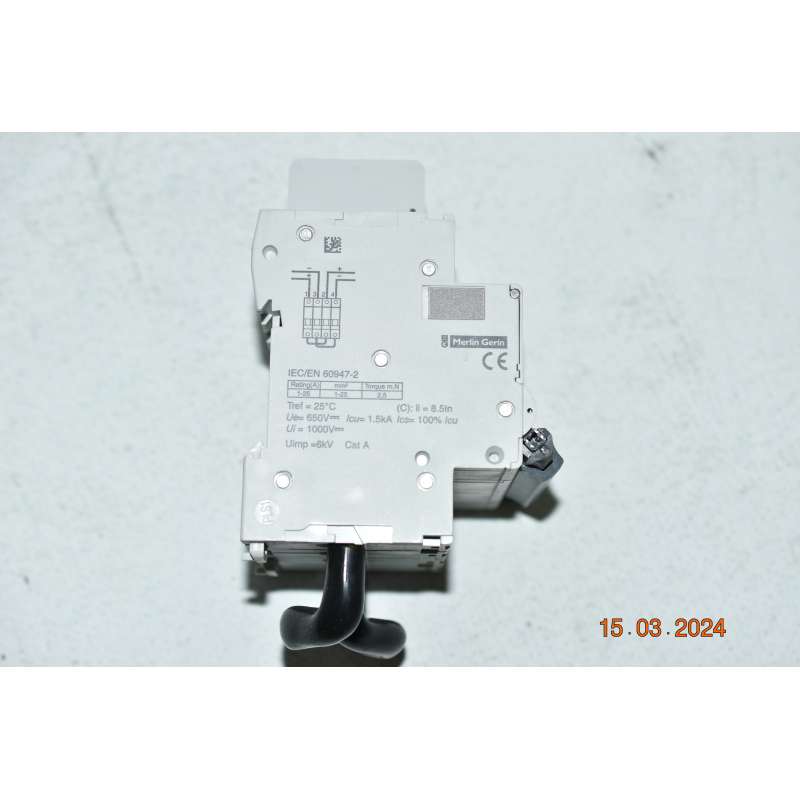

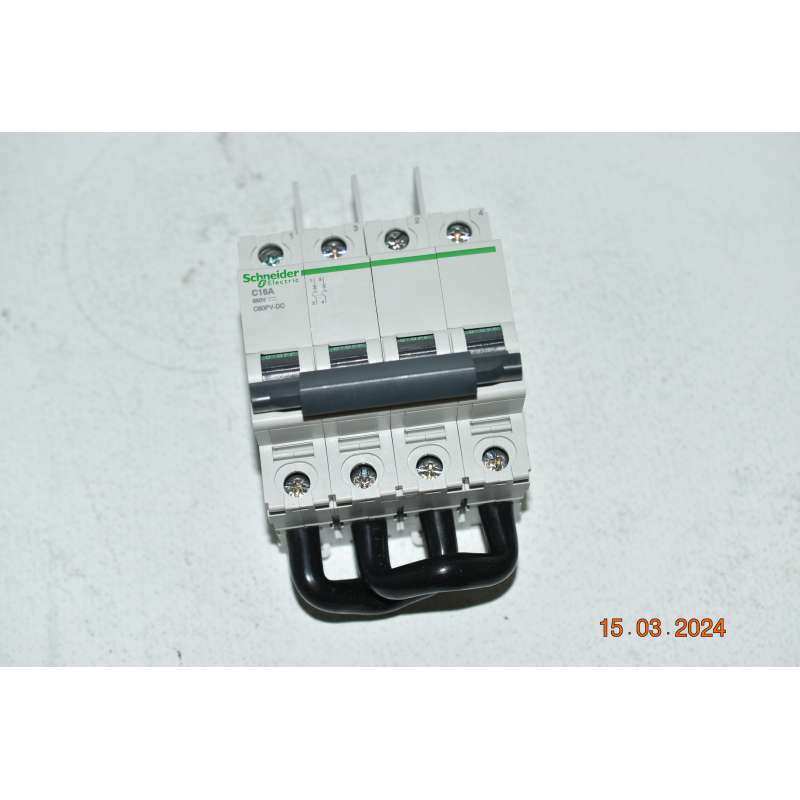

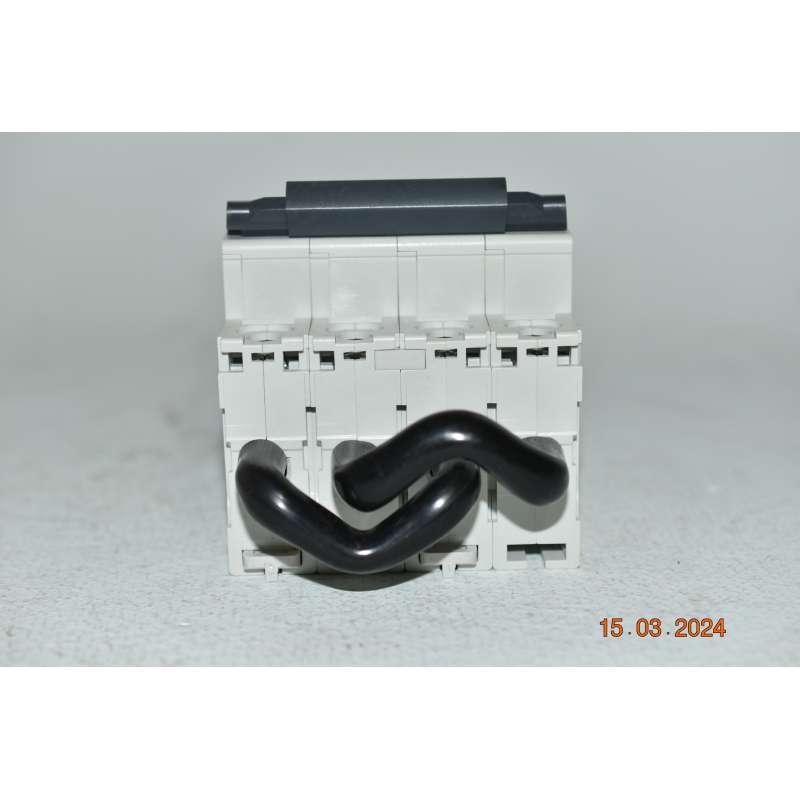

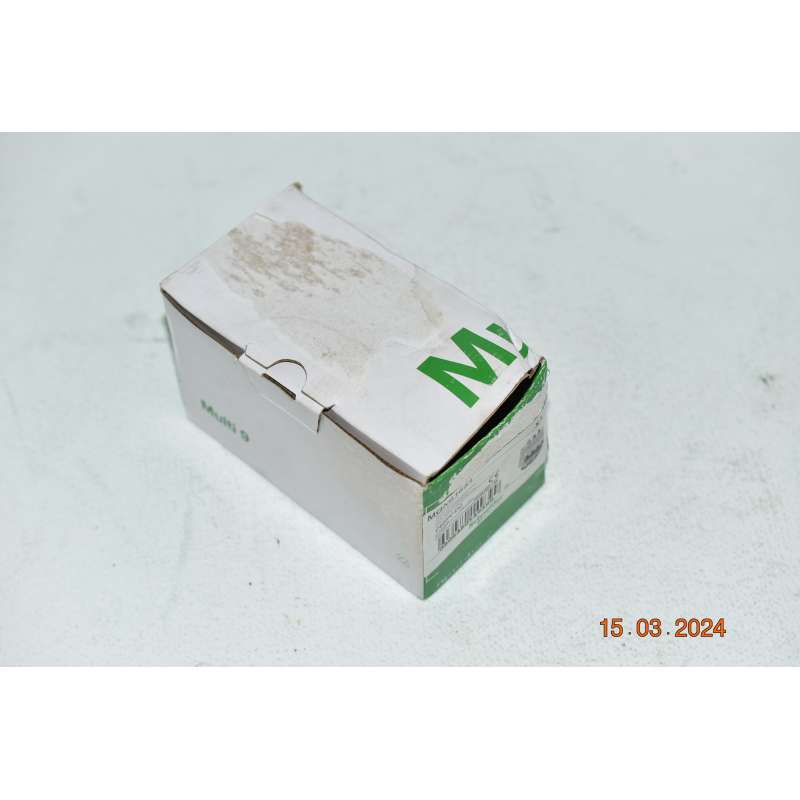

Descrizione delle condizioni	Confezione originale danneggiata. Viene spedito quello che vedete nelle foto
Marca	Schneider Electric

C60PV-DC 2P 16 Amp 650 Volt Curva C Schneider MGN61650 Magnetotermico
Caratteristiche

Main
Range of produc	C60
Product or component type	Miniature circuit-breaker
Device short name	C60PV-DC
Poles description	2P
Number of protected poles	2
Network type	DC
Curve code	C
Utilisation category	Category A conforming to EN/IEC 60947-2
Suitability for isolation	Yes conforming to EN/IEC 60947-2

Complementary
[In] rated current	16 A
Voltage Drop	656 mV 41 mOhm 10.496 W 16 A
[Ue] rated operational voltage	650 V DC
Magnetic tripping limit	8.5 x In
Breaking capacity	1.5 kA Icu
[Ics] rated service breaking capacity	1.5 kA 100 %
[Ui] rated insulation voltage	1000 V DC
[Uimp] rated impulse withstand voltage	6 kV
Contact position indicator	Yes
control type	Toggle
Mounting mode	Fixed
mounting support	35 mm symmetrical DIN rail
9 mm pitches	8
height	132.7 mm
Width	72 mm
Depth	77.4 mm
Net weight	0.53 kg
Colour	Grey
Mechanical durability	20000 cycles
Electrical durability	1500 cycles L/R = 2 ms
Locking options description	Padlocking in OFF position
Wire stripping length	14 mm
Tightening torque	2.5 N.m
Compatibility code	C60PV-DC
