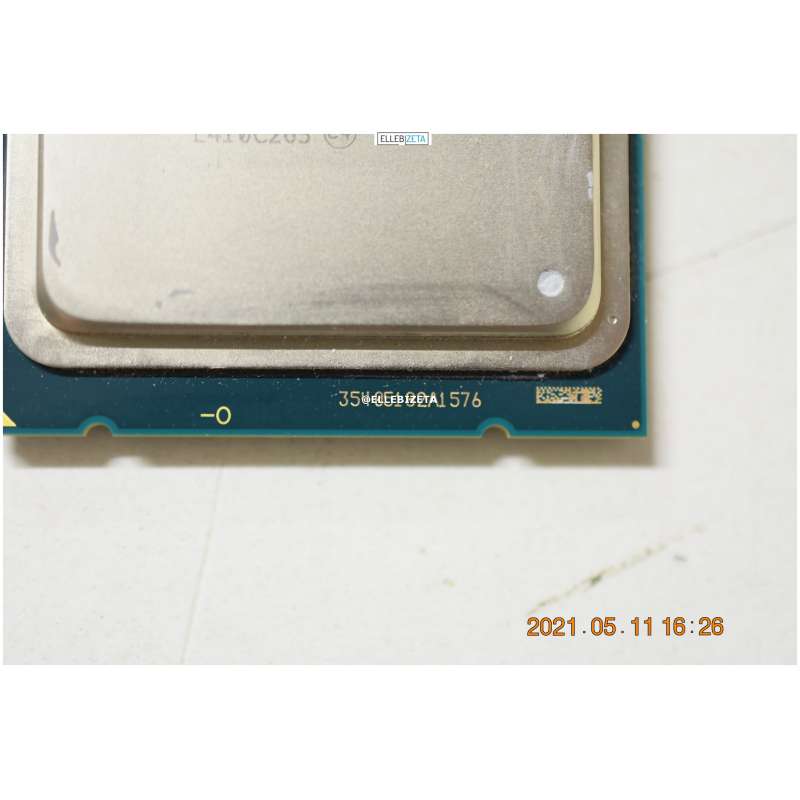

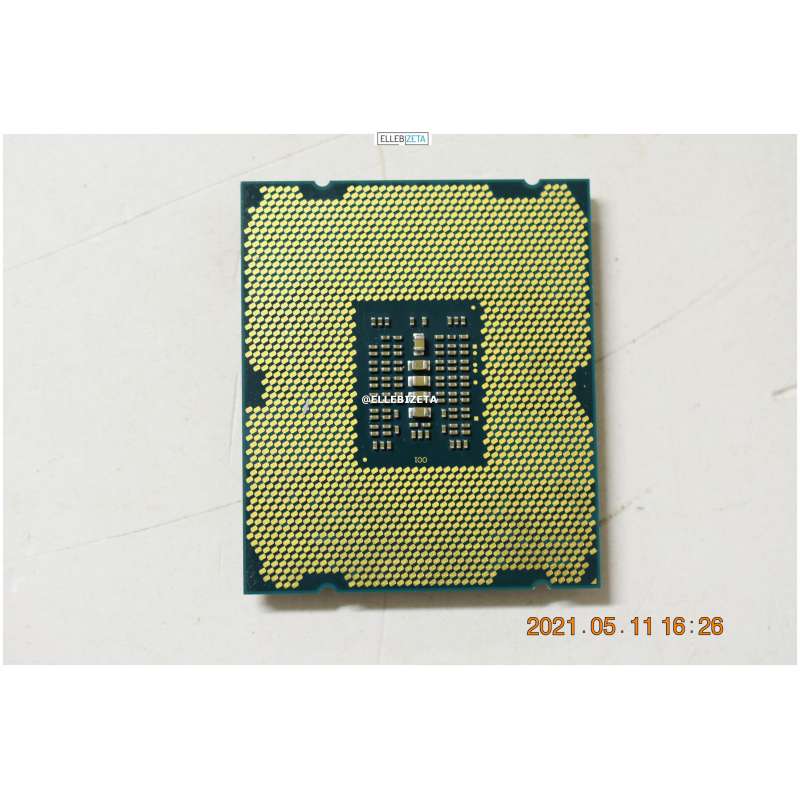

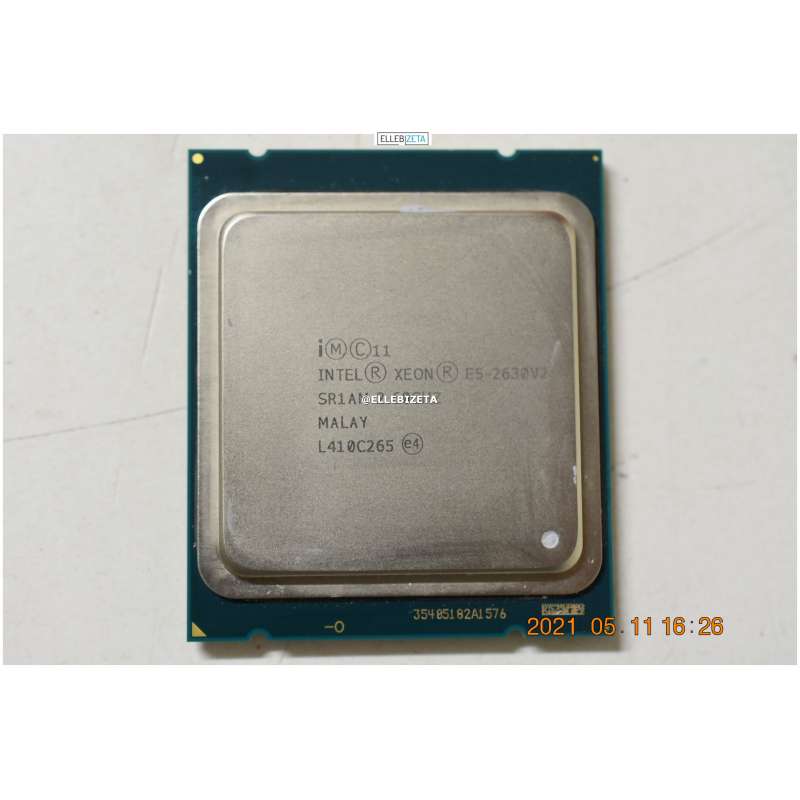

Intel Xeon Sei Core E5-2630 v2 2.60GHz 7.2 Gt/s QPI LGA2011 SR1AM Processore CPU

Specifications

Essentials

• Product Collection: Intel Xeon Processor E5 v2 Family
• Code Name: Products formerly Ivy Bridge EP
• Vertical Segment: Server
• Processor Number: E5-2630V2
• Lithography: 22 nm

Performance

• # of Cores: 6
• # of Threads: 12
• Processor Base Frequency: 2.60 GHz
• Max Turbo Frequency: 3.10 GHz
• Cache: 15 MB SmartCache
• Bus Speed: 7.2 GT/s QPI
• # of QPI Links: 2
• TDP: 80 W
• VID Voltage Range: 0.65–1.30V

• Embedded Options Available: Yes
• Conflict Free: Yes

Memory Specifications

• Max Memory Size (dependent on memory type): 768 GB
• Memory Types: DDR3 800/1066/1333/1600
• Max # of Memory Channels: 4
• Max Memory Bandwidth: 51.2 GB/s
• Physical Address Extensions: 46-bit
• ECC Memory Supported: Yes

Expansion Options

• Scalability: 2S Only
• PCI Express Revision: 3.0
• PCI Express Configurations: x4, x8, x16
• Max # of PCI Express Lanes: 40

Package Specifications

• Sockets Supported: FCLGA2011
• Max CPU Configuration: 2
• TCASE: 71°C

Advanced Technologies

• Intel Turbo Boost Technology: 2.0
• Intel vPro Technology: Yes
• Intel Hyper-Threading Technology: Yes
• Intel Virtualization Technology (VT-x): Yes
• Intel Virtualization Technology for Directed I/O (VT-d): Yes
• Intel VT-x with Extended Page Tables (EPT): Yes
• Intel TSX-NI: No
• Intel 64: Yes
• Instruction Set: 64-bit
• Instruction Set Extensions: AVX
• Idle States: Yes
• Enhanced Intel SpeedStep Technology: Yes
• Intel Demand Based Switching: Yes
• Thermal Monitoring Technologies: Yes
• Intel Flex Memory Access: No
• Intel Identity Protection Technology: No
