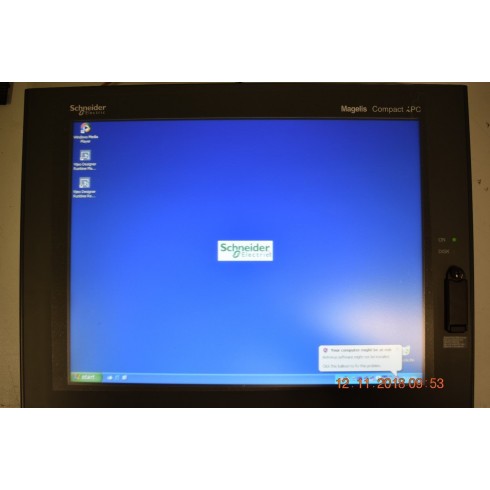

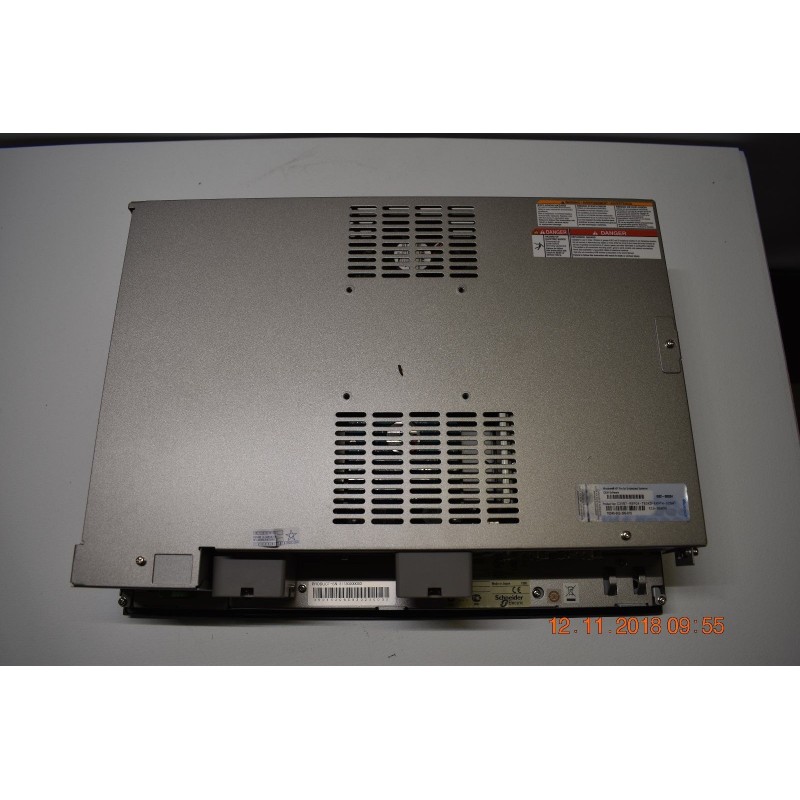

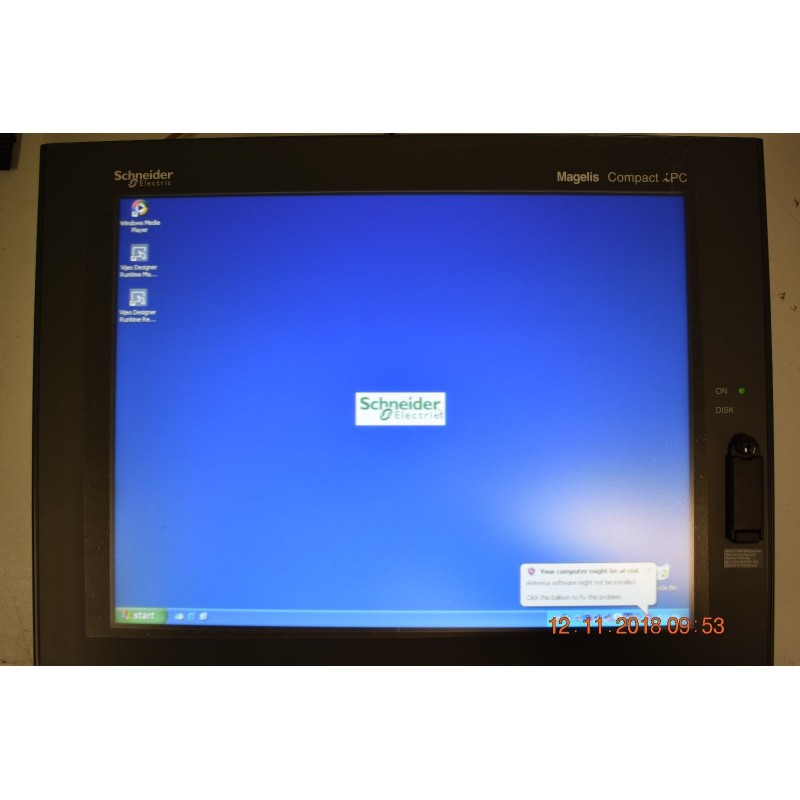

Schneider Imagelist MPCKT55NDX20N Compact iPC 15" Touch (ci5)
CI5SX
Nuovo (Altro)
1 490,00 € tax incl.
tax incl.
1 Item
Warning: Last items in stock!
| Tipo | Compact IPC |
| Description of the conditions | Senza confezione originale |
| Brand | Schneider Electric |
| Modello Librio | MPCKT55NDX20N |
| Fabbricante | Schneider Electric |
| Responsabile dei Prodotti | Schneider Electric |
SCHNEIDER IMAGELIST MPCKT55NDX20N COMPACT iPC 15" TOUCH screen INTEL CELERON M 1.6 GHZ
S/N 350152060930200030
| range of product |
Imagelist Compact iPC
|
|
|---|---|---|
| product or component type |
PC panel
|
|
| product specific application |
General purpose
|
|
| terminal type |
Touchscreen display
|
|
| processor name |
Intel Pentium M
|
|
| display size |
15 inch
|
|
| display type |
Active matrix colour TFT LCD
|
|
| display resolution |
1024 x 768 pixels SVGA
|
|
| display colour |
16777216 colors
|
|
| processor frequency |
1.6 GHz
|
|
| data storage equipment |
IDE hard disk (2.5 inch) >= 80 GB
|
|
| number of slots available for expansion |
1 slot(s) for PCI bus
2 slot(s) for PCMCIA |
|
| operating system |
Windows XP Professional
|
|
| software package |
Vijeo Designer run time demo
|
|
| [Us] rated supply voltage |
24 V DC, conforming to EN 61131-2
|
|
| cut-out dimensions |
383.5 (+ 1/- 0) x 282.5 (+ 1/- 0) mm
|
| memory description |
Internal RAM SDRAM, 512 MB, expandable to 2 GB
|
|
|---|---|---|
| drive type |
Floppy disk, 3.5 inch, 1.44 MB
DVD-RW |
|

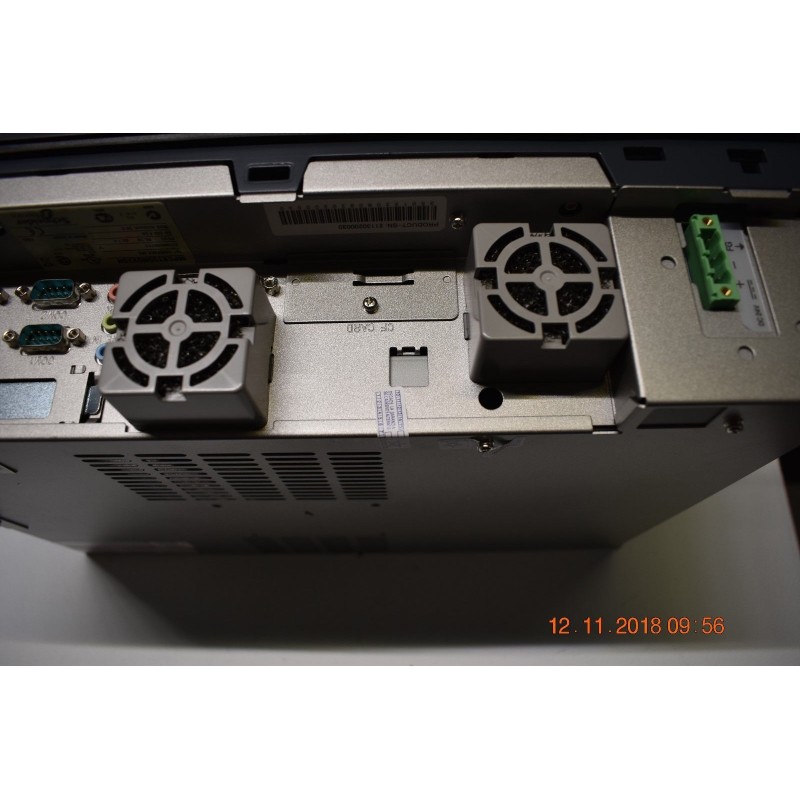

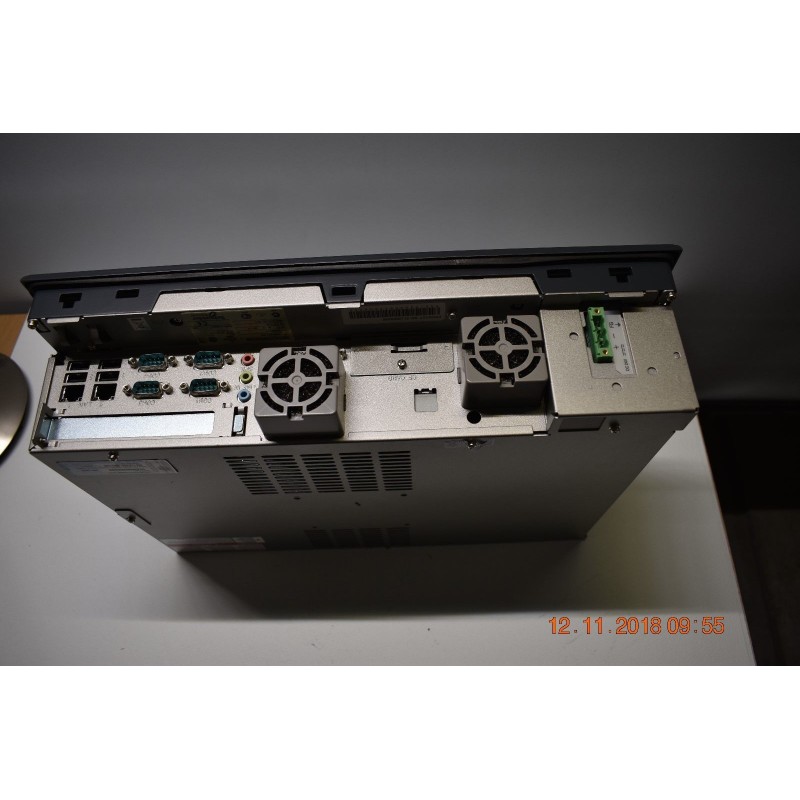

| integrated connection type |
2 Ethernet TCP/IP on control box, RJ45 connector
4 USB 2.0 ports on control box Audio line input on control box, mini-jack connector Audio line output on control box, mini-jack connector Audio micro input on control box, mini-jack connector 1 USB port on the front panel, transmission rate 12 Mbit/s 4 COM serial link on control box, male SUB-D 9 connector (RS232C) |
|
| port Ethernet |
10BASE-T/100BASE-T
10BASE-T/100BASE-T/1000BASE-T |
|
| network frequency |
50...60 Hz conforming to EN 61131-2
|
|
| network frequency limits |
47...63 Hz
|
|
| power consumption in VA |
<= 150 VA
|
|
| luminance |
>= 250 cd/m2
|
|
| view angle horizontal x vertical |
120 x 100°
|
|
| touch panel |
Analogue resistive, 1000000 cycles
|
|
| front material |
Aluminium alloy
|
|
| enclosure material |
Treated steel
|
|
| the display material |
Polyethylene sheet
|
|
| fixing mode |
By 8 bolts on enclosure door
By 8 bolts on the panel |
|
| local signalling |
1 LED (green) for accessing hard disk (DISK)
1 LED (green) for PC switched on (ON) |
|
| width |
395 mm
|
|
| height |
294 mm
|
|
| depth |
103 mm
|
|
| product weight |
4.5 kg
|
| immunity to microbreaks |
20 ms
|
|
|---|---|---|
| IP degree of protection |
IP65
|
|
| product certifications |
CSA
|
|
| standards |
IEC 61131-2
UL 1604 UL 508 |
|
| electromagnetic compatibility |
Immunity to electromagnetic emissions conforming to EN 55011 group 1 class A
Immunity to electromagnetic emissions conforming to EN 61000-3-2 Immunity to electromagnetic emissions conforming to EN 61000-3-3 Immunity to high frequency interference conforming to EN 61000-6-2 Immunity to high frequency interference conforming to FCC Class A Immunity to high frequency interference conforming to IEC 61131-2 |
|
| ambient air temperature for operation |
5...50 °C
|
|
| ambient air temperature for storage |
-20...60 °C
|
|
| relative humidity |
10...85 %
|
|
| operating altitude |
0...3000 m
|
|
| storage altitude |
0...12000 m
|
|
| vibration resistance |
9.8 m/s2 (f = 10...25 Hz)
|
