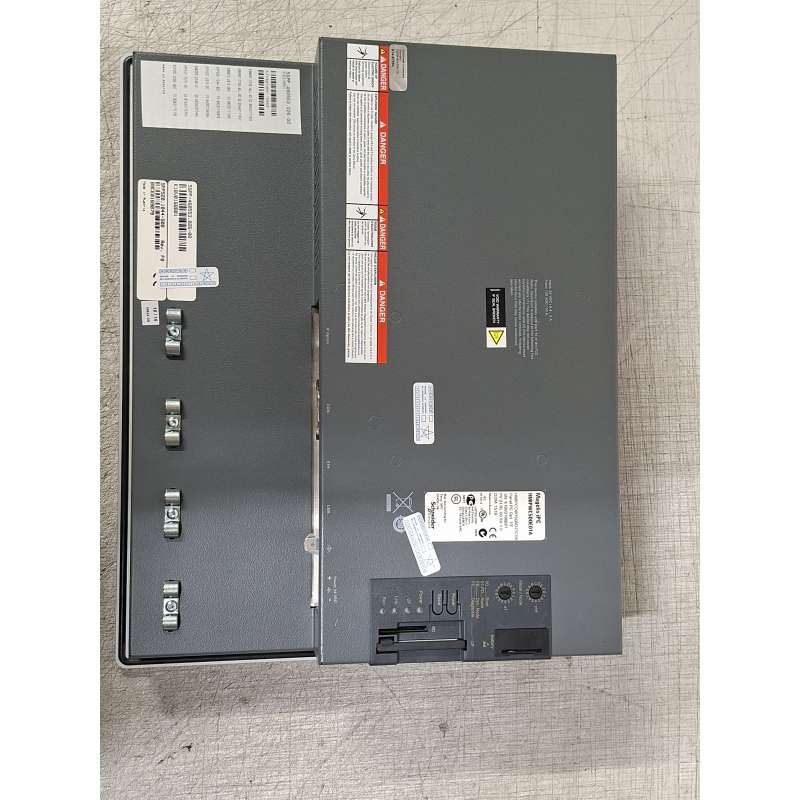

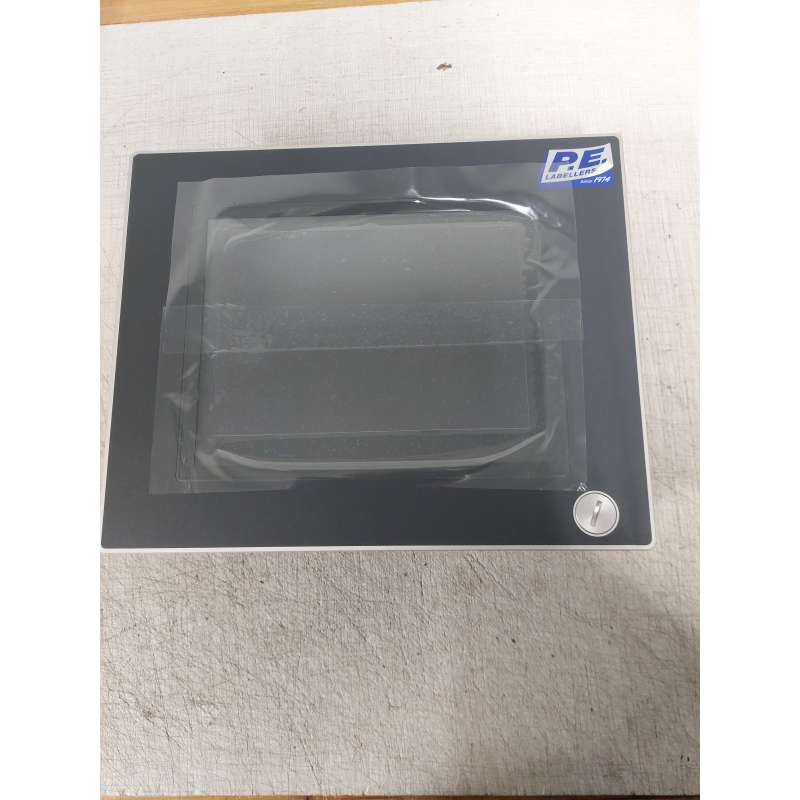

Schneider Imagelist HMIGTO1310 3,5" Color Touch Panel QVGA-TFT (ci3)
3013/FB1/C7/Q1
Nuovo (Altro)
850,00 € tax incl.
tax incl.
1 Item
Warning: Last items in stock!
| Tipo | Schneider Magelis |

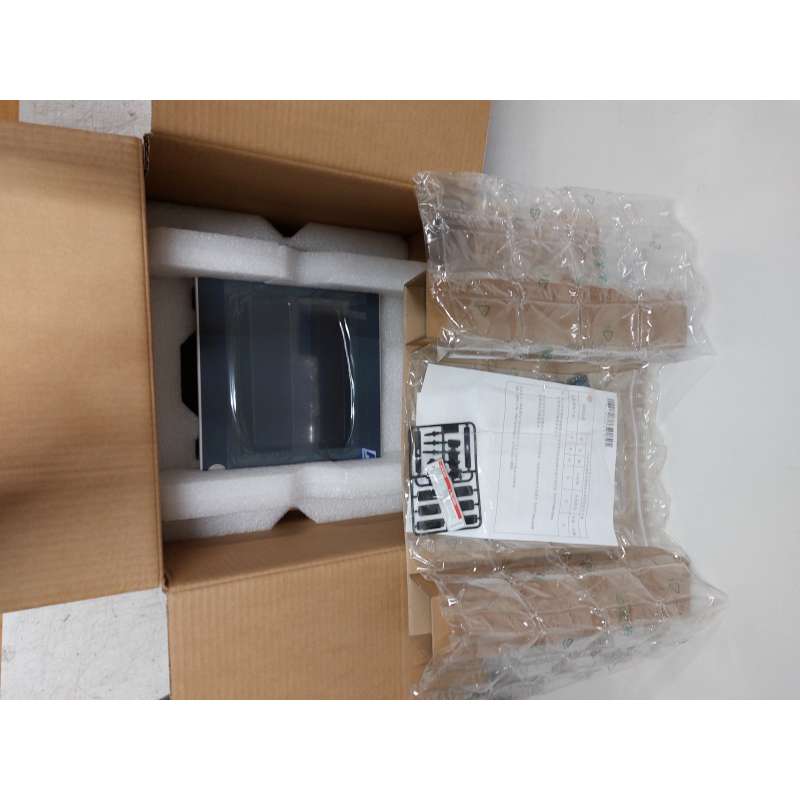

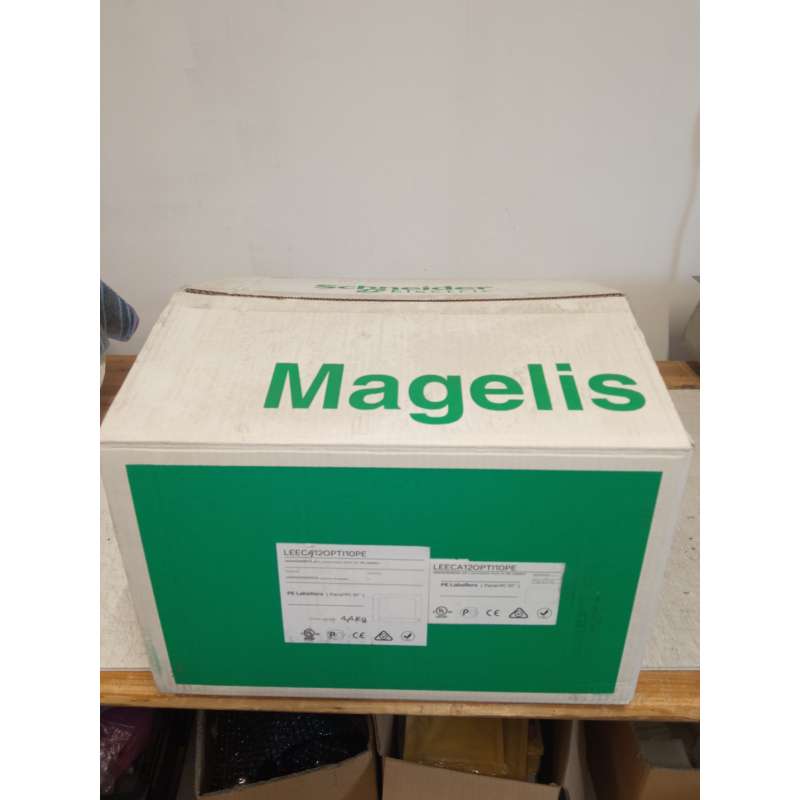

| Description of the conditions | Nuovo, aperto per fare le foto |
| Brand | Schneider Electric |

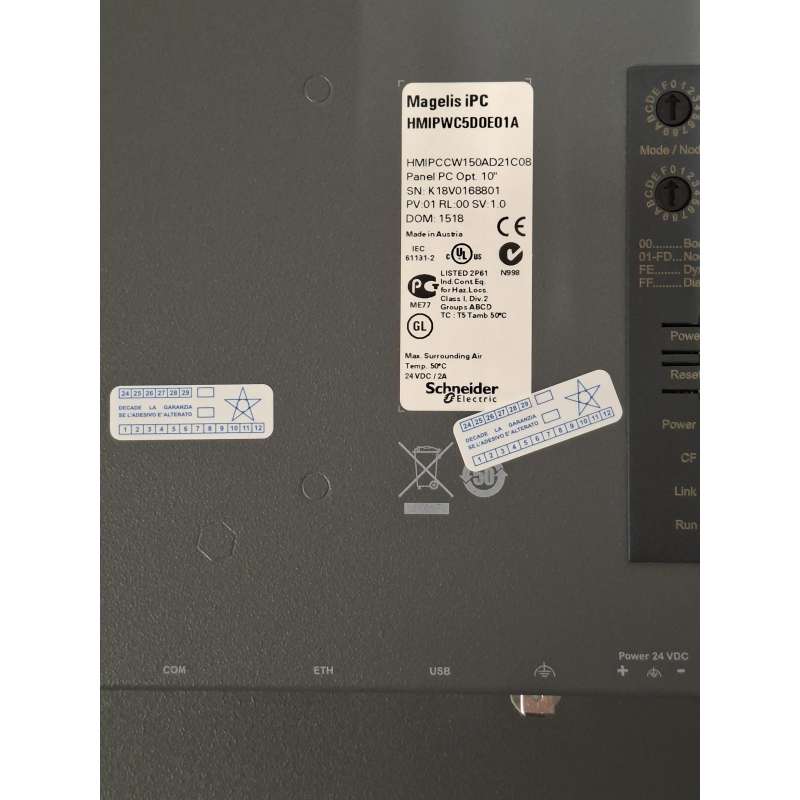

| Modello Librio | HMIPWC5D0E01 |
| Fabbricante | Schneider Electric |
| Responsabile dei Prodotti | Schneider Electric |
SCHNEIDER IMAGELIST HMIGTO1310 3,5" COLOR TOUCH PANEL QVGA-TFT 320X200 320X200 PIXELS
S/N 138846L002962
| the product range |
Imagelist GTO
|
|
|---|---|---|
| the type of product or component |
Touchscreen panel advanced
|
|
| color display |
65536 colors
|
|
| display size |
3.5-inch
|
|
| power |
External power supply
|
|
| type control button |
Push-button, key type , marking: F1...F6, number of function keys = 6 (operation defined using Vijeo Designer)
|
|
| operating system |
Imagelist
|
|
| battery type |
Lithium battery for internal RAM, autonomy: 100 days, charging time = 5 d, battery life = 10 to
|
| terminal type |
Touch screen
|
|
|---|---|---|
| display type |
TFT color LCD, backlit
|
|
| display resolution |
320 x 240 pixels QVGA
|
|
| area sensitive to touch |
1024 x 1024
|
|
| digital screen |
Film resistive, 1000000 cycles
|
|
| light time back |
50000 hours (white) at 25 °C
|
|
| brightness |
16 levels - control by touch panel
16 levels - control by software |
|
| font |
ASCII (european characters)
Chinese (simplified chinese) Japanese (ANK, Kanji) Korean Taiwanese (traditional chinese) |
|
| Rated supply voltage [Us] |
24 V DC
|
|
| voltage limits power supply |
19,2...28,8 V
|
|
| inrush current |
<= 30 A
|
|
| power consumption in W |
<= 9.6 W
<= 5.2 W (when power is not supplied to external devices) <= 4.2 W (when backlight is OFF) <= 4.3 W (when backlight is dimmed noisy mehanas) |
|
| local reporting |
Status LED (orange) flashing software starting up
Status LED (green) steady offline Status LED (green) steady operating Status LED (red) steady Power supply (ON) Status LED (clear) faded Power supply (OFF) |
|
| software description |
Vijeo Designer configuration software >= V6.1
|
|
| description memory |
96 MB flash (EPROM)
|
|
| backup data |
512 kB internal RAM (SRAM)
|
|
| drive data rescue |
SD card <= 32 GB
SDHC card <= 32 GB |
|
| downloadable protocols |
Modbus Plus Schneider Electric Modicon
FIPWAY Schneider Electric Modicon Modbus TCP Schneider Electric Modicon Modbus Schneider Electric Modicon Protocols third-party Mitsubishi Melsec Protocols third-party Omron Sysmac Protocols third-party Rockwell Automation Allen-Bradley Protocols third-party Siemens Simatic Uni-TE Schneider Electric Modicon |
|
| connection type integrated |
Serial connection COM1 RJ45, interface: RS232C/RS485, transmission interval: 2400...115200 bps
Serial connection COM1 RJ45, interface: RS232C/RS485, transmission interval: 187,5 kbps compatible with Siemens MPI RJ45 Ethernet interface: 10BASE-T/100BASE-TX Ethernet RJ45, interface: IEEE 802.3 USB 2.0 type A USB 2.0 type mini-B |
|
| mounting product |
Mounting level
|
|
| type of fixing |
With 4 screw terminals
|
|
| material front |
PPT
|
|
| material of the container |
PPT
|
|
| type of cooling |
Natural convection
|
|
| width |
132 mm
|
|
| height |
106 mm
|
|
| depth |
42 mm
|
|
| product weight |
0.4 kg
|
