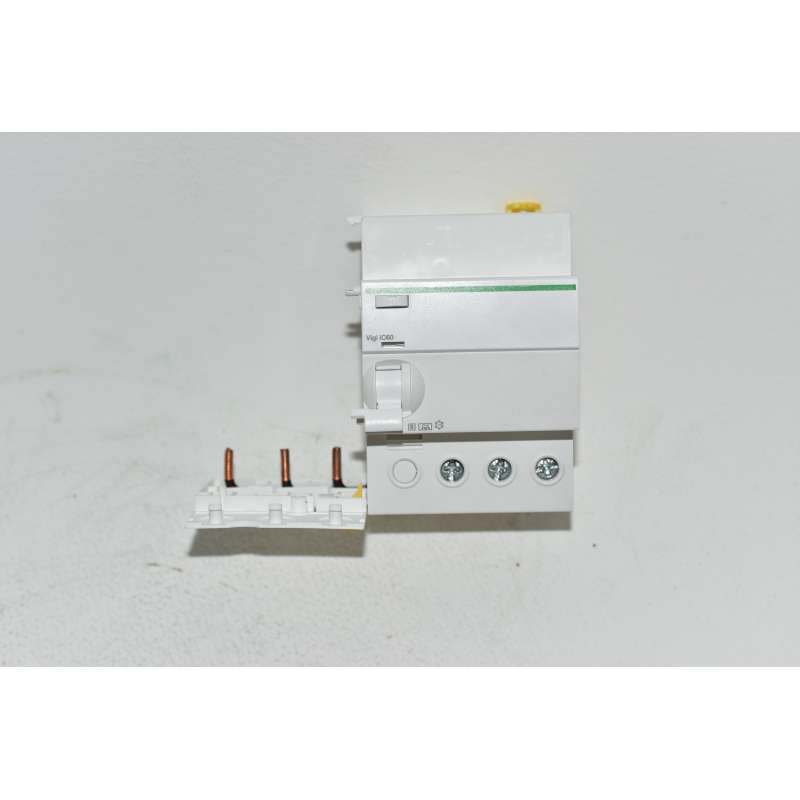

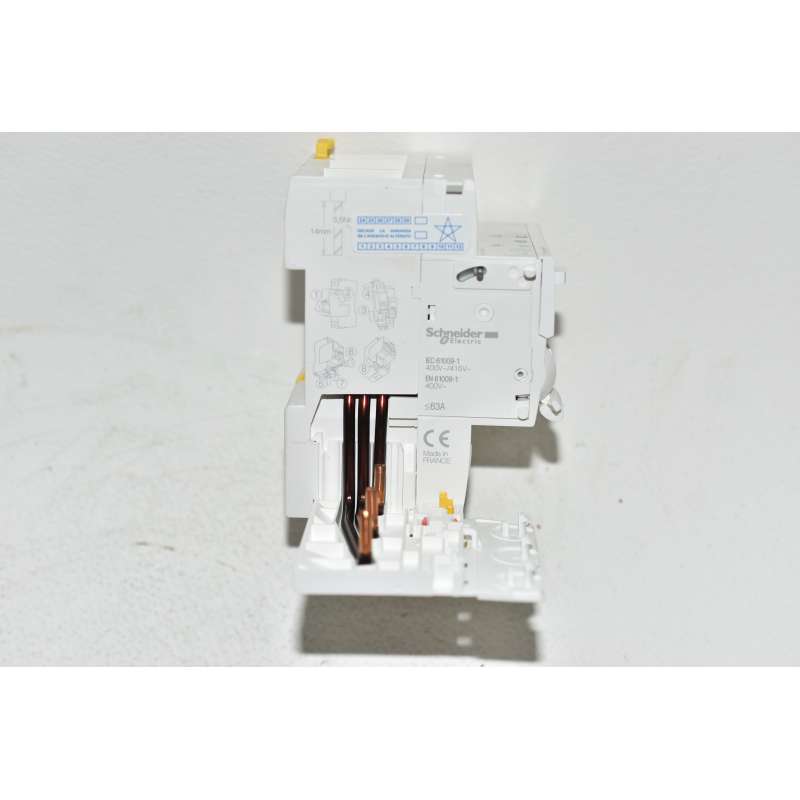

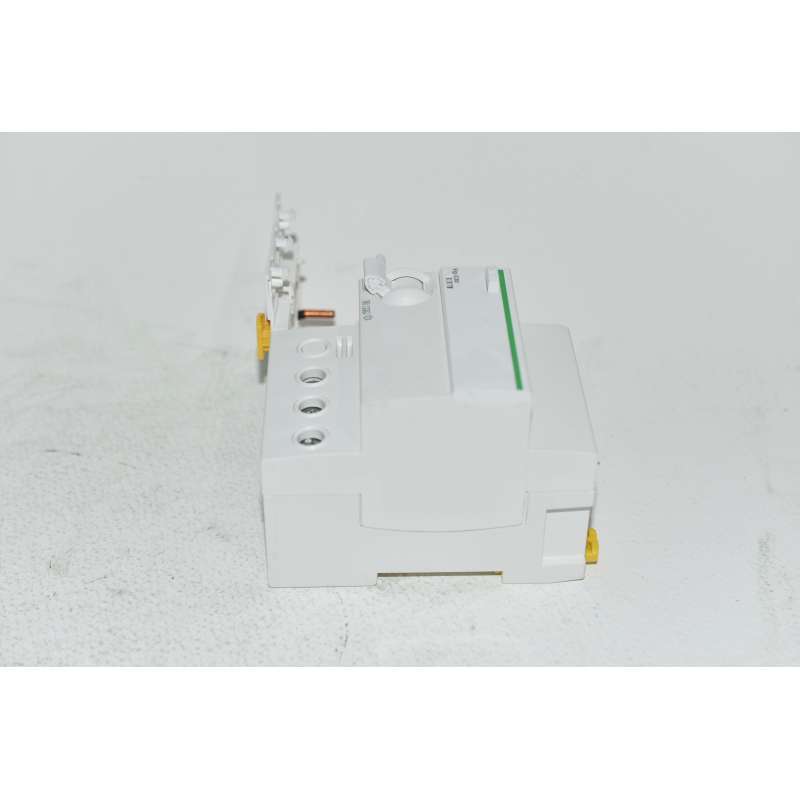

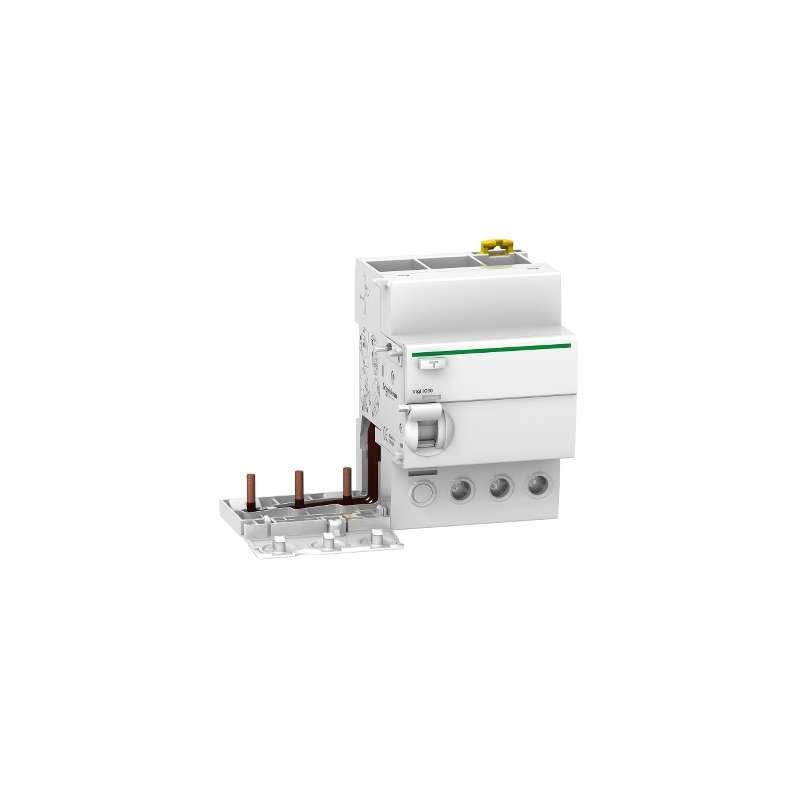

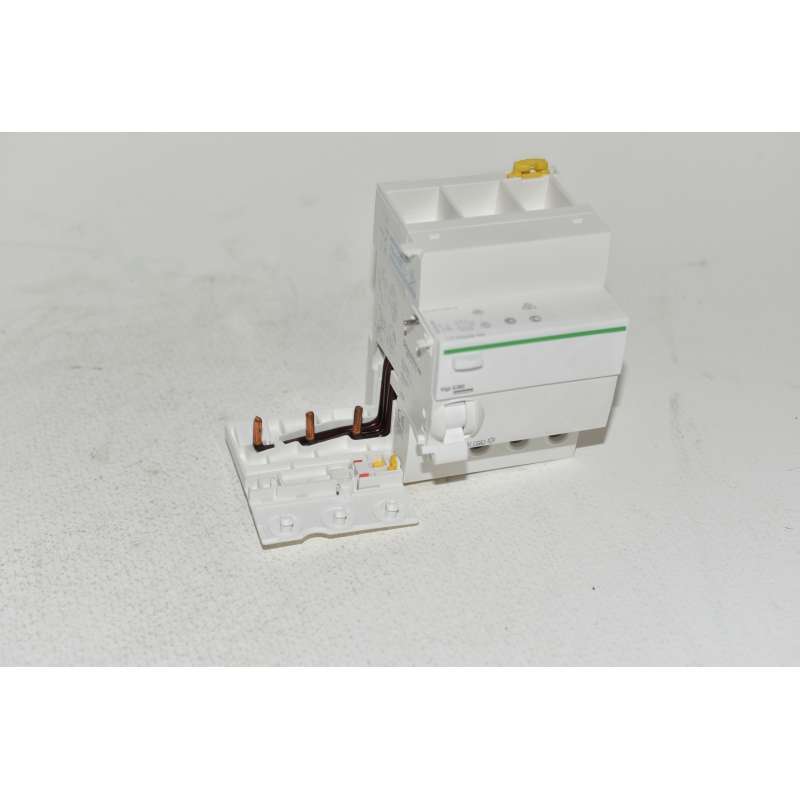

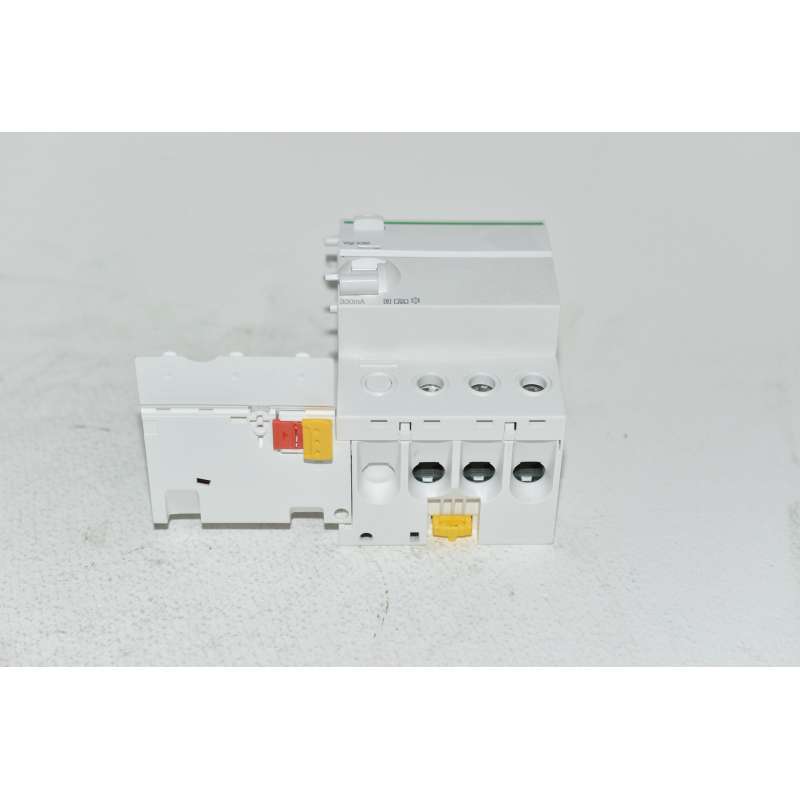

SCHNEIDER A9V35363 Block Differnziale Adaptable Vigi iC60-3P-63A-300ma-S-(C-A-2)
875/DI2/SX/Q1
Nuovo
45,00 € tax incl.
tax incl.
1 Item
Warning: Last items in stock!
| Tipo | differenziale |
| Brand | Schneider Electric |
SCHNEIDER A9V35363 Block Differnziale Adaptable Vigi iC60-3P-63A-300ma-S-
| range |
Acti 9
|
|
|---|---|---|
| product or component type |
Add-on residual current devices
|
|
| device short name |
Vigi iC60
|
|
| poles description |
3P
|
|
| [In] rated current |
63 A
|
|
| earth-leakage sensitivity |
300 mA
|
|
| earth-leakage protection time delay |
Selective
|
|
| Earth leakage protection type |
Type A-SI
|
|
| network type |
AC
|
|
| network frequency |
50/60 Hz
|
|
| [Ue] rated operational voltage |
400 V AC 50/60 Hz conforming to EN 61009-1
400/415 V AC 50/60 Hz conforming to IEC 61009-1 |
|
| standards |
EN 61009-1
IEC 61009-1 |
|
| 9 mm pitches |
7
|
| device location in system |
Outgoer
|
|
|---|---|---|
| residual current tripping technology |
Voltage independent
|
|
| [Ui] rated insulation voltage |
500 V AC 50/60 Hz conforming to IEC 60947-2
|
|
| [Uimp] rated impulse withstand voltage |
6 kV conforming to IEC 60947-2
|
|
| range compatibility |
Acti 9 iC60
Acti 9 Reflex iC60 |
|
| product compatibility |
Single terminal
|
|
| local signalling |
Trip indicator
|
|
| mounting mode |
Clip-on
|
|
| mounting support |
DIN rail
|
|
| electrical connection to mcb |
By screws
|
|
| comb busbar and distribution block compatibility |
Bottom : YES
|
|
| height |
91 mm
|
|
| width |
117 mm
|
|
| depth |
73.5 mm
|
|
| product weight |
0.21 kg
|
|
| connections - terminals |
Tunnel type terminal downside 1 cable(s) 1...35 mm2 rigid without cable end
Tunnel type terminal downside 1 cable(s) 1...25 mm2 flexible without cable end Tunnel type terminal downside 1 cable(s) 1...25 mm2 flexible with cable end |
|
| wire stripping length |
14 mm (bottom)
|
|
| tightening torque |
3.5 N. m (bottom)
|
| IP degree of protection |
IP40 modular enclosure conforming to IEC 60529
IP20 conforming to IEC 60529 |
|
|---|---|---|
| pollution degree |
3 conforming to IEC 60947-2
|
|
| electromagnetic compatibility |
8/20 µs impulse withstand 3000 A conforming to IEC 61009-1
|
|
| ambient air temperature for operation |
-25...60 °C
|
|
| ambient air temperature for storage |
-40...85 °C
|
