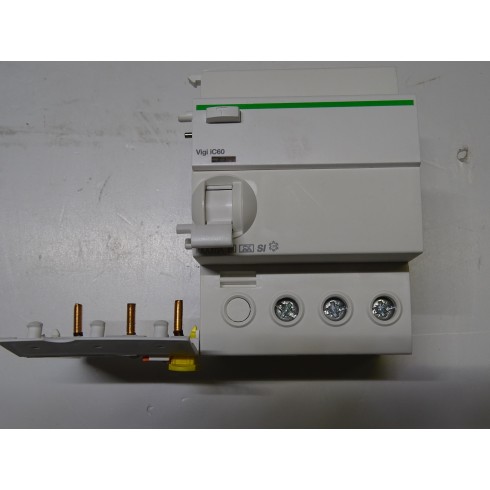

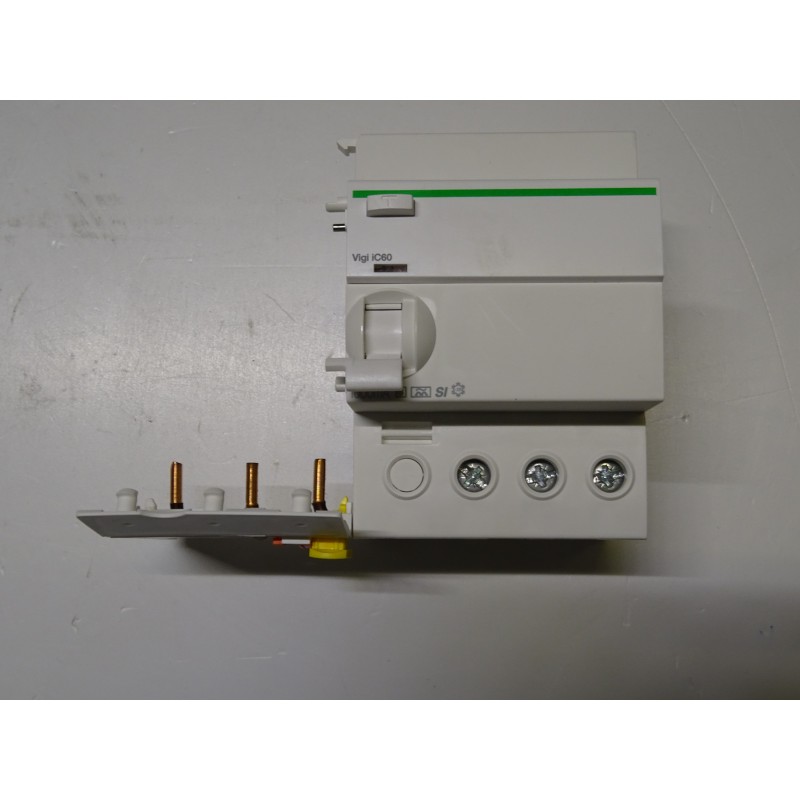

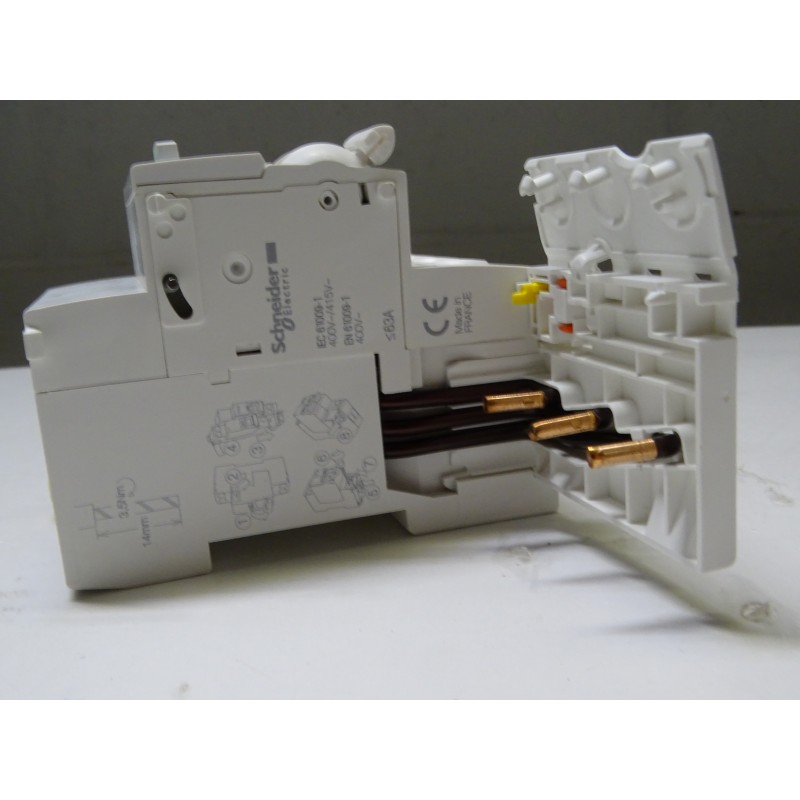

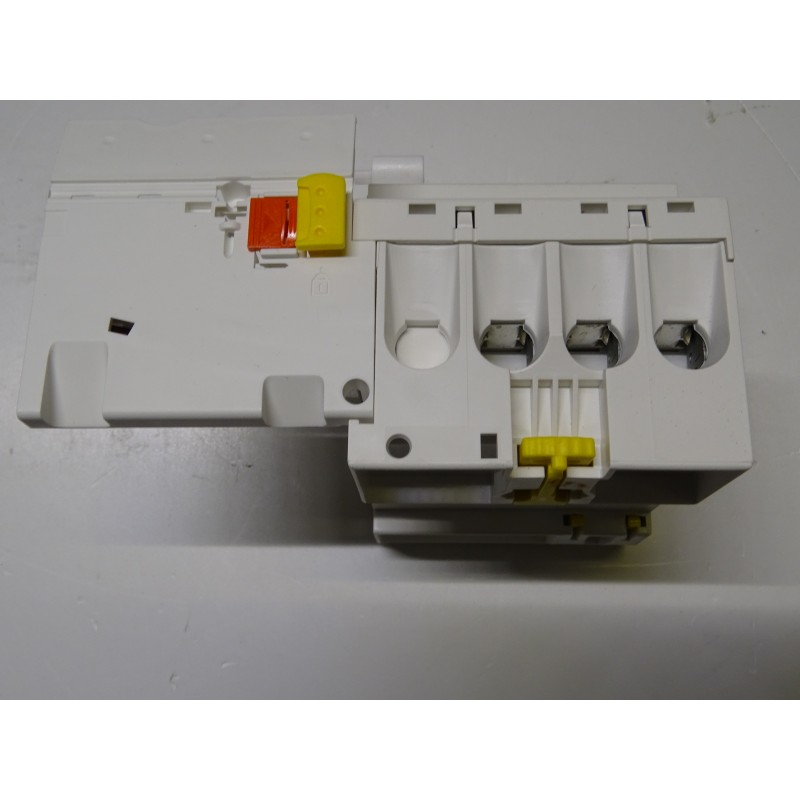

SCHNEIDER A9V61363 differential Lock Adaptable Vigi iC60-3P-63A-30mA-SI (C-B-3)
CA2DX
Nuovo (Altro)
50,00 € tax incl.
tax incl.
1 Item
Warning: Last items in stock!
| Tipo | differenziale |
| Description of the conditions | Confezione originale danneggiata |
| Brand | Schneider Electric |
| Modello Librio | A9V39363 |
SCHNEIDER A9V61363 differential Lock Adaptable Vigi iC60-3P-63A-30mA-
| range |
Acti 9
|
|
|---|---|---|
| the type of product or component |
Devices add-on residual current
|
|
| abbreviated name |
Vigi iC60
|
|
| number of poles |
3P
|
|
| Rated current [In] |
63 A
|
|
| differential sensitivity |
30 but
|
|
| timing differential protection |
Instant
|
|
| Type of differential protection |
Type A-SI
|
|
| network type |
CA
|
|
| network frequency |
50/60 Hz
|
|
| Rated operating voltage [Ue] |
400 V AC 50/60 Hz conforming to EN 61009-1
400/415 V AC 50/60 Hz conforming to IEC 61009-1 |
|
| reference standards |
EN 61009-1
IEC 61009-1 |
|
| distance of 9 mm |
7
|
| device location in system |
Starting point
|
|
|---|---|---|
| technology release residual current |
Independent of the voltage
|
|
| Rated insulation voltage [Ui] |
500 V AC 50/60 Hz conforming to IEC 60947-2
|
|
| Rated voltage impulse withstand [Uimp] |
6 kV conforming to IEC 60947-2
|
|
| compatibility range |
Acti 9 iC60
Acti 9 Reflex iC60 |
|
| compatibility product |
Single terminal
|
|
| local reporting |
Indicator shutter
|
|
| editing mode |
Coupling
|
|
| support for mounting |
DIN rail
|
|
| electrical connection to the circuit breaker |
By means of screws
|
|
| compatibility combs distribution |
Lower part :
|
|
| height |
91 mm
|
|
| depth |
73.5 mm
|
|
| product weight |
0.21 kg
|
|
| connections - terminals |
Cage-clamp side bottom 1 cable 1...35 mm2 rigid without cable end
Cage-clamp side bottom 1 cable 1...25 mm2 flexible without cable end Cage-clamp side bottom 1 cable 1...25 mm2 flexible with cable end |
|
| stripping length wire |
14 mm (bottom)
|
|
| tightening torque |
3.5 Nm (lower part)
|
| degree of protection IP |
IP40 modular container conforming to IEC 60529
IP20 conforming to IEC 60529 |
|
|---|---|---|
| pollution degree |
3 conforming to IEC 60947-2
|
|
| electromagnetic compatibility |
Impulse 8/20 µs 3000 A conforming to IEC 61009-1
|
|
| operating environment temperature |
-25...60°C
|
|
| storage temperature |
-40...85°C
|
