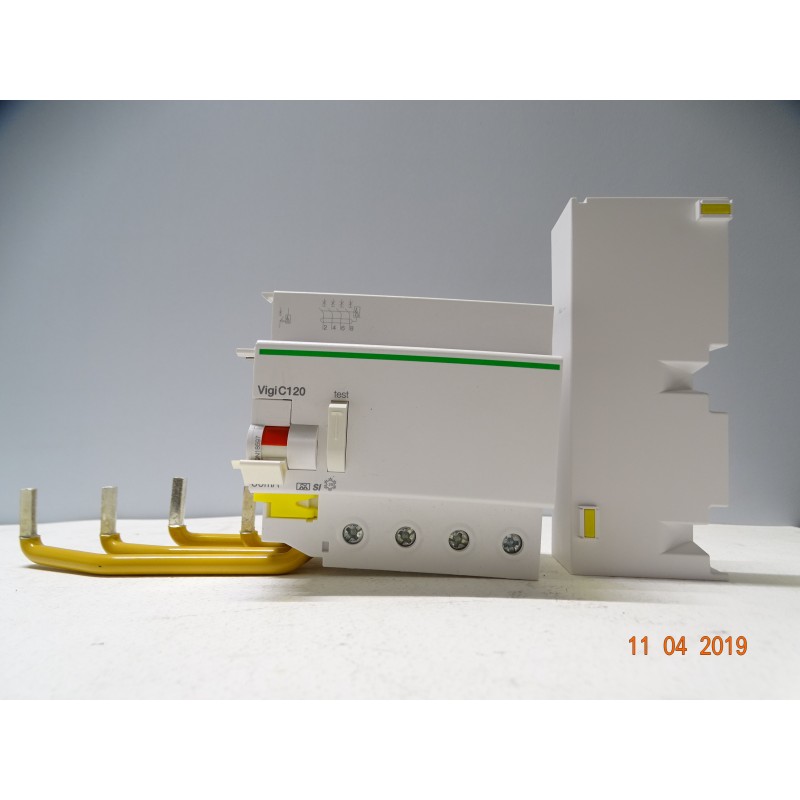

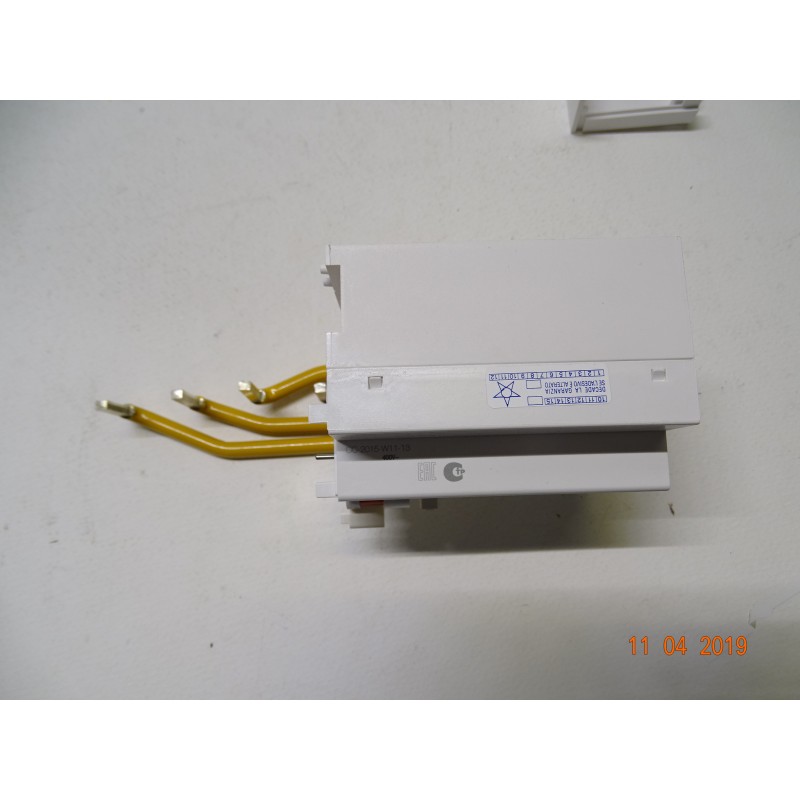

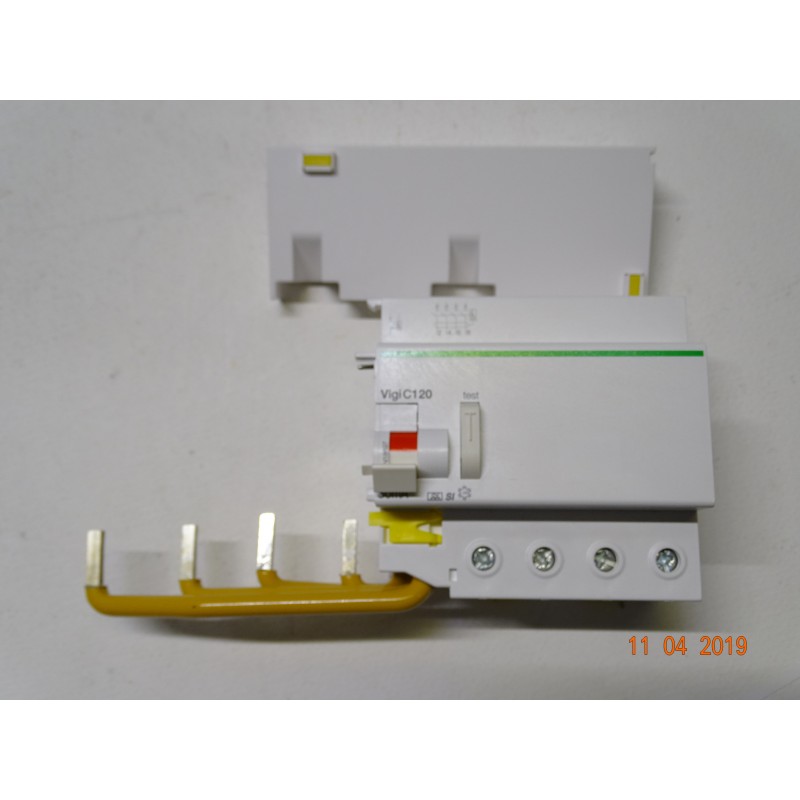

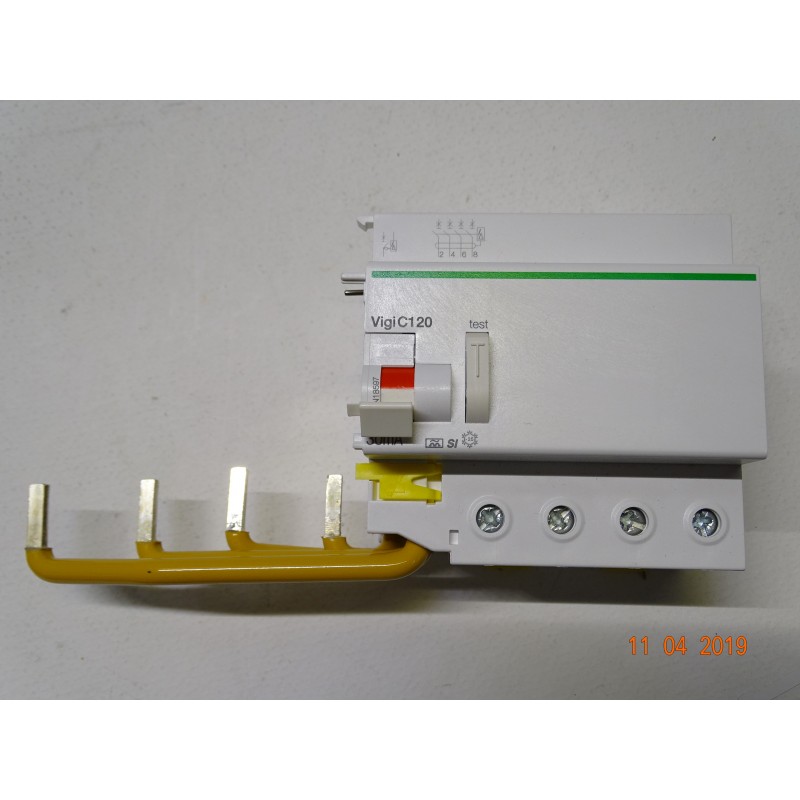

SCHNEIDER A9N18597 differential Lock Adaptable 4P-125A-30mA-SI (ARM9/2)
861/ARM9/2/Q5
Nuovo (Altro)
189,00 € tax incl.
tax incl.
2 Items
Warning: Last items in stock!
| Tipo | differenziale |

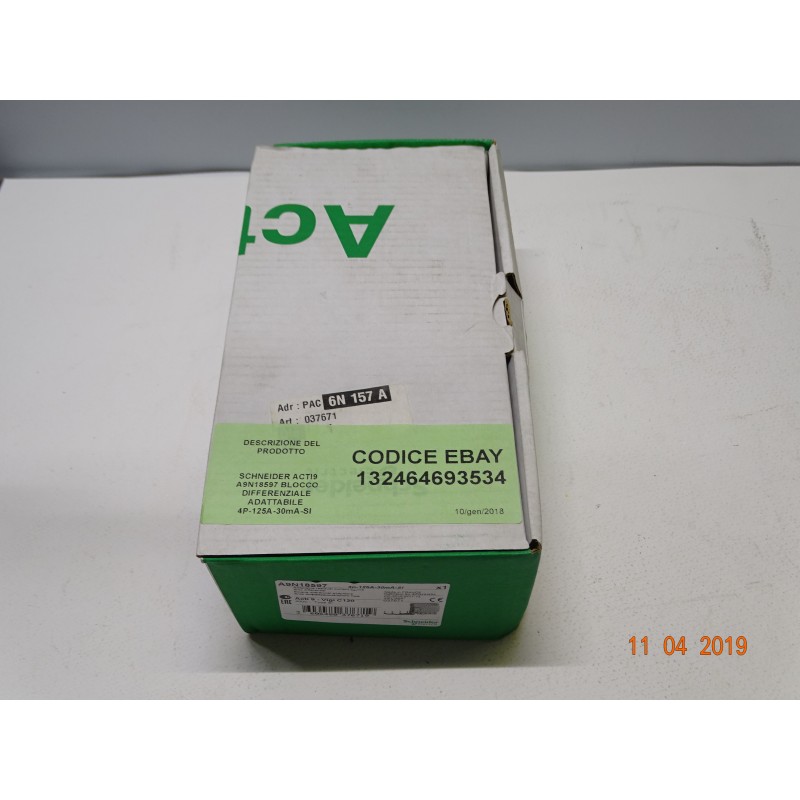

| Description of the conditions | Confezione originale danneggiata |
| Brand | Schneider Electric |
| Modello Librio | A9N18597 |
SCHNEIDER A9N18597 differential Lock Adaptable 4P-125A-30mA-
| the type of product or component |
Devices add-on residual current
|
|
|---|---|---|
| abbreviated name |
The Vigi C120
|
|
| number of poles |
4P
|
|
| Rated current [In] |
125
|
|
| network type |
CA
|
|
| differential sensitivity |
30 but
|
|
| timing differential protection |
Instant
|
|
| type of differential protection |
Type A-SI
|
| device location in system |
Starting point
|
|
|---|---|---|
| network frequency |
50 Hz
|
|
| Rated operating voltage [Ue] |
230...415 V AC 50 Hz
|
|
| technology release residual current |
Independent of the voltage
|
|
| Rated insulation voltage [Ui] |
500 V AC 50/60 Hz conforming to IEC 60947-1
|
|
| Rated voltage impulse withstand [Uimp] |
6 kV conforming to IEC 60947-2
|
|
| editing mode |
Coupling
|
|
| support for mounting |
DIN rail symmetrical 35 mm
|
|
| electrical connection to the circuit breaker |
By means of screws
|
|
| distance of 9 mm |
10
|
|
| height |
95 mm
|
|
| width |
198 mm
|
|
| depth |
73 mm
|
|
| product weight |
0.58 kg
|
|
| color |
White
|
|
| mechanical life |
20000 cycles
|
|
| connections - terminals |
Screw-cage clamps, rigid cable 1...50 mm2 max
Screw-cage clamps flexible cable 1...35 mm2 max |
|
| stripping length wire |
15 mm
|
|
| tightening torque |
3.5 Nm
|
| Rules |
EN 61009
|
|
|---|---|---|
| degree of protection IP |
IP20
|
|
| pollution degree |
3 conforming to IEC 60947-2
|
|
| operating environment temperature |
-25...60°C
|
|
| storage temperature |
-40...60°C
|
