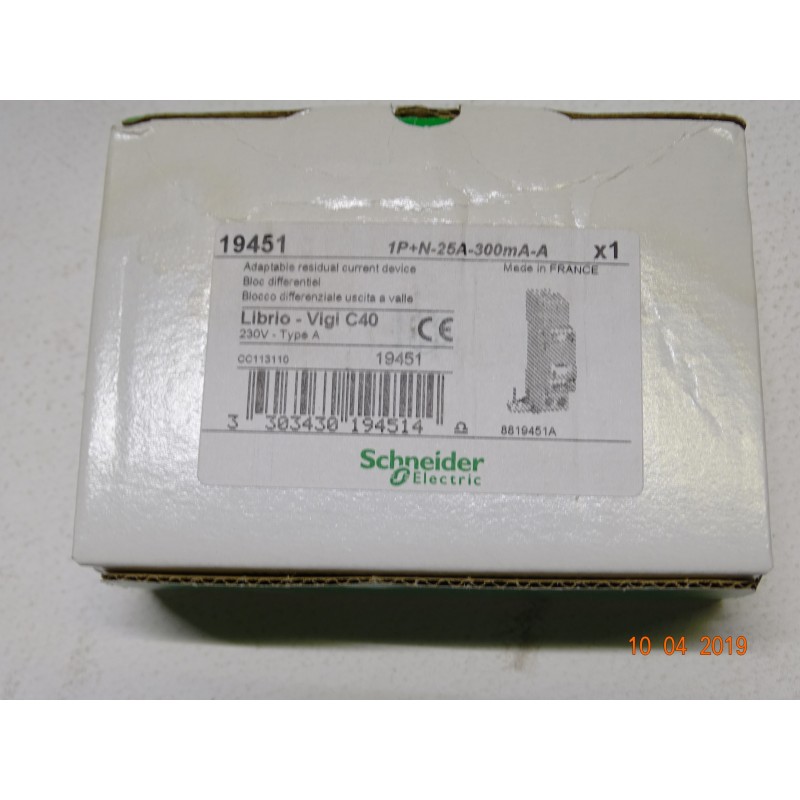

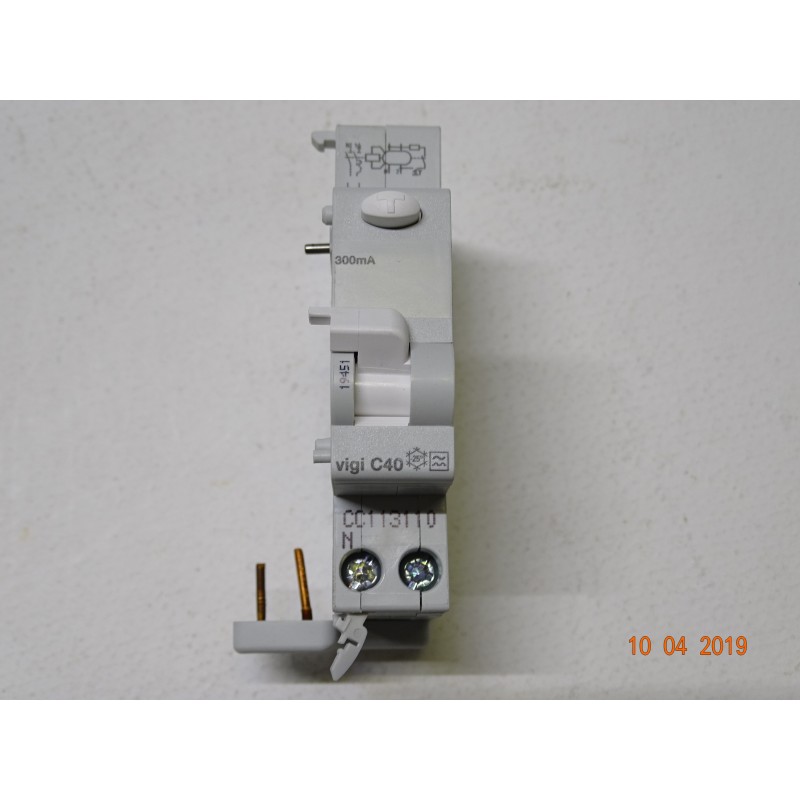

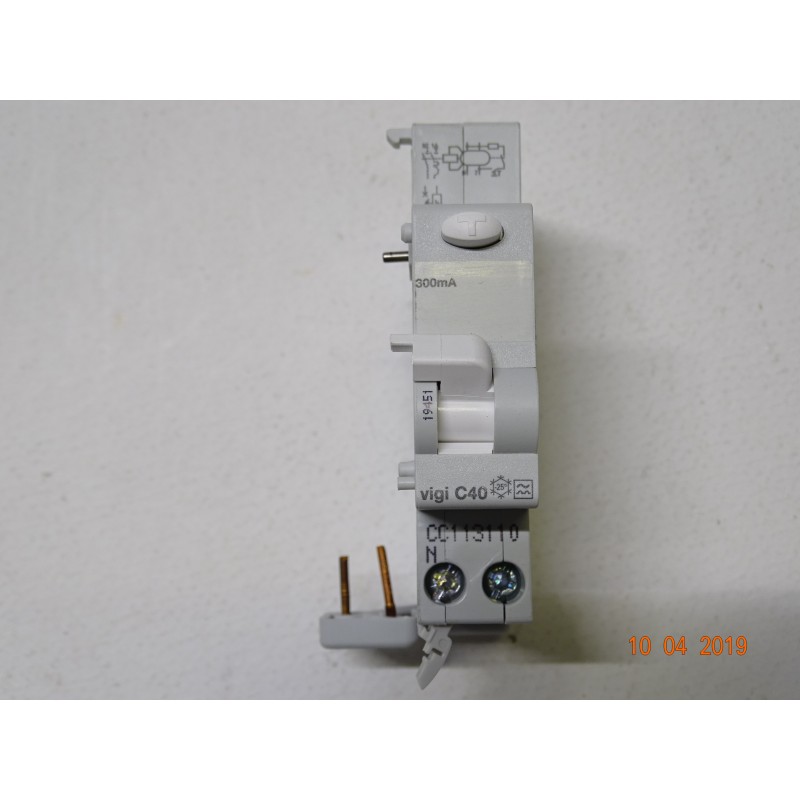

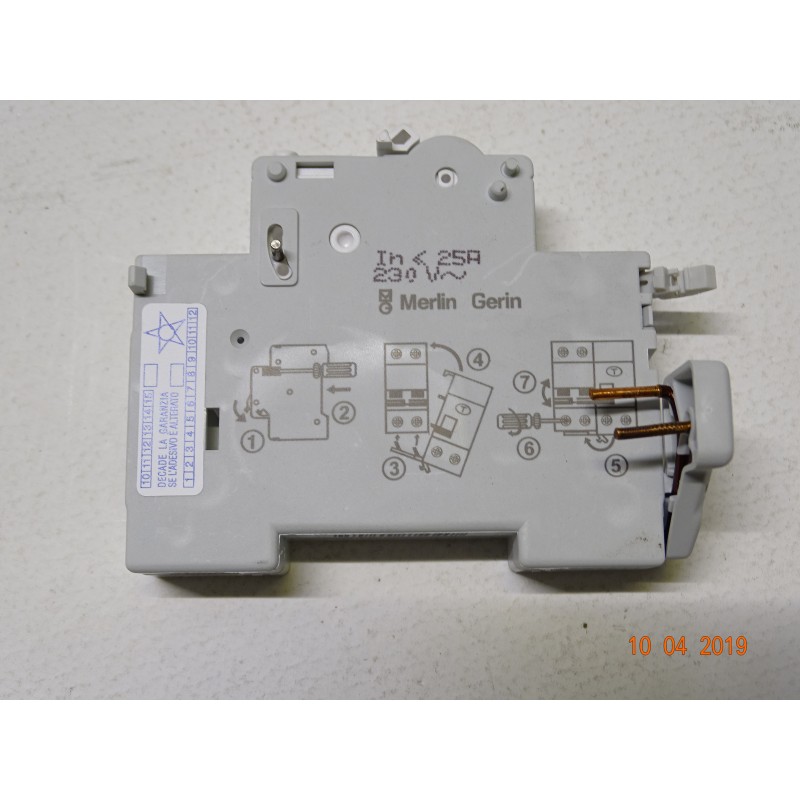

MERLIN GERIN 19451 block Differential Output Downstream 1P+N-25A-300mA-IN (ARM9/4)
(ARM9/4)/Q3
Nuovo (Altro)
45,00 € tax incl.
tax incl.
1 Item
Warning: Last items in stock!
| Tipo | differenziale |
| Description of the conditions | Confezione originale danneggiata |
| Brand | Merlin Gerin |
| Modello Librio | 19451 |
MERLIN GERIN 19451 block Differential Output Downstream 1P+N-25A-300mA-
| range |
Librio
|
|
|---|---|---|
| the type of product or component |
Devices add-on residual current
|
|
| abbreviated name |
Vigi C40
|
|
| number of poles |
1P + N
|
|
| neutral |
The left
|
|
| Rated current [In] |
25 To
|
|
| network type |
CA
|
|
| differential sensitivity |
300 mA
|
|
| type of differential protection |
Type
|
| device location in system |
Starting point
|
|
|---|---|---|
| network frequency |
50 Hz
|
|
| Rated operating voltage [Ue] |
230 V AC 50 Hz phase to neutral
|
|
| technology release residual current |
Independent of the voltage
|
|
| Rated insulation voltage [Ui] |
440 V AC 50 Hz conforming to EN 61009-1
|
|
| Rated voltage impulse withstand [Uimp] |
4 kV conforming to EN 61009-1
|
|
| local reporting |
ON/OFF indication
|
|
| editing mode |
Coupling
|
|
| support for mounting |
DIN rail
|
|
| electrical connection to the circuit breaker |
By means of screws
|
|
| distance of 9 mm |
2
|
|
| height |
82 mm
|
|
| width |
18 mm
|
|
| depth |
70 mm
|
|
| product weight |
90 g
|
|
| color |
White
|
|
| connections - terminals |
Cable, downstream rigid cables 0,75...16 mm2 max
Cable, downstream flexible cables of 0.33...10 mm2 max |
|
| stripping length wire |
13 mm
|
|
| tightening torque |
2 Nm
|
| Rules |
EN 61009-1
EN 61009-2-1 |
|
|---|---|---|
| degree of protection IP |
IP20 conforming to IEC 60529
|
|
| pollution degree |
3 conforming to EN 61009-1
|
|
| weather sealing |
2 conforming to IEC 60068-1
|
|
| relative humidity |
95 % ( 55 °C )
|
|
| operating altitude |
2000 m
|
|
| operating environment temperature |
-25...60°C
|
|
| storage temperature |
-40...60°C
|
