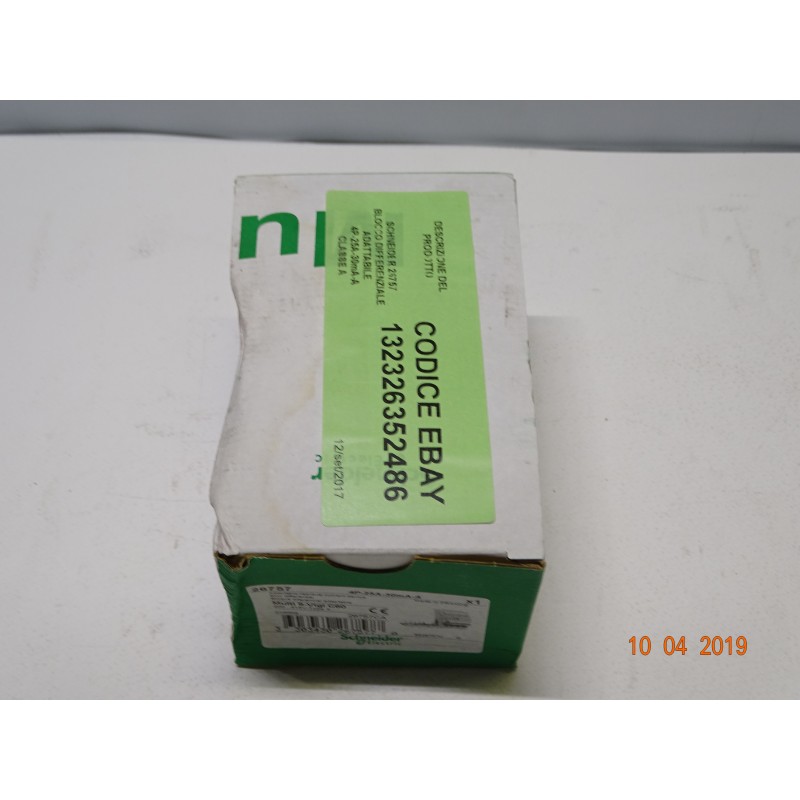

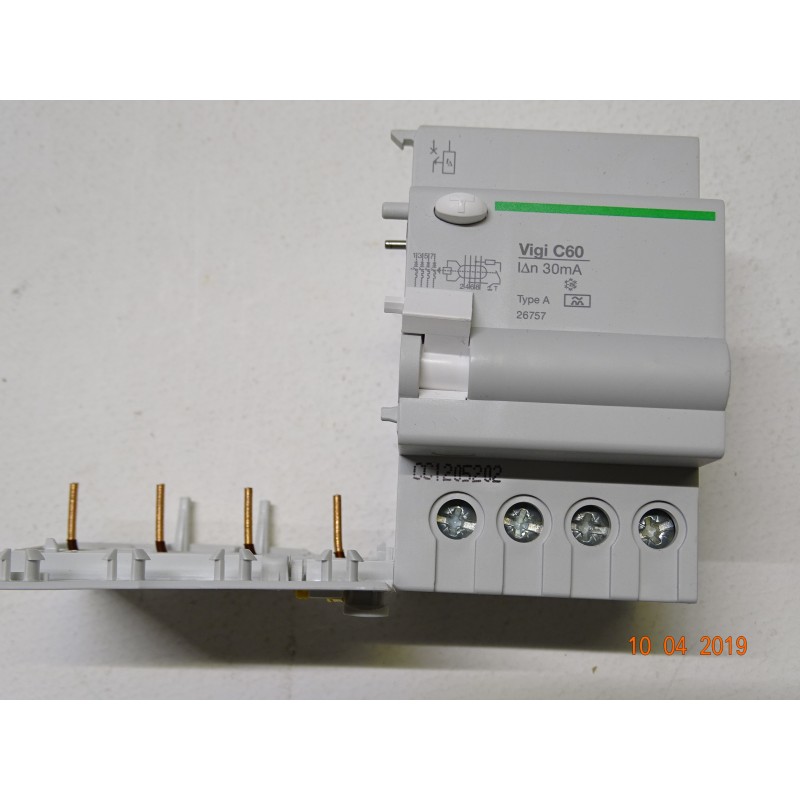

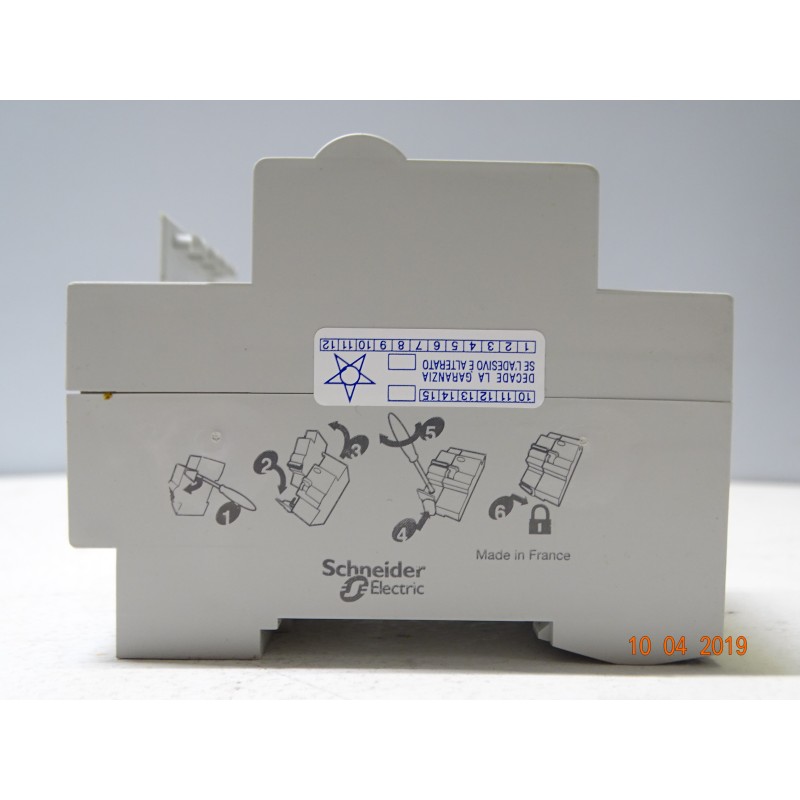

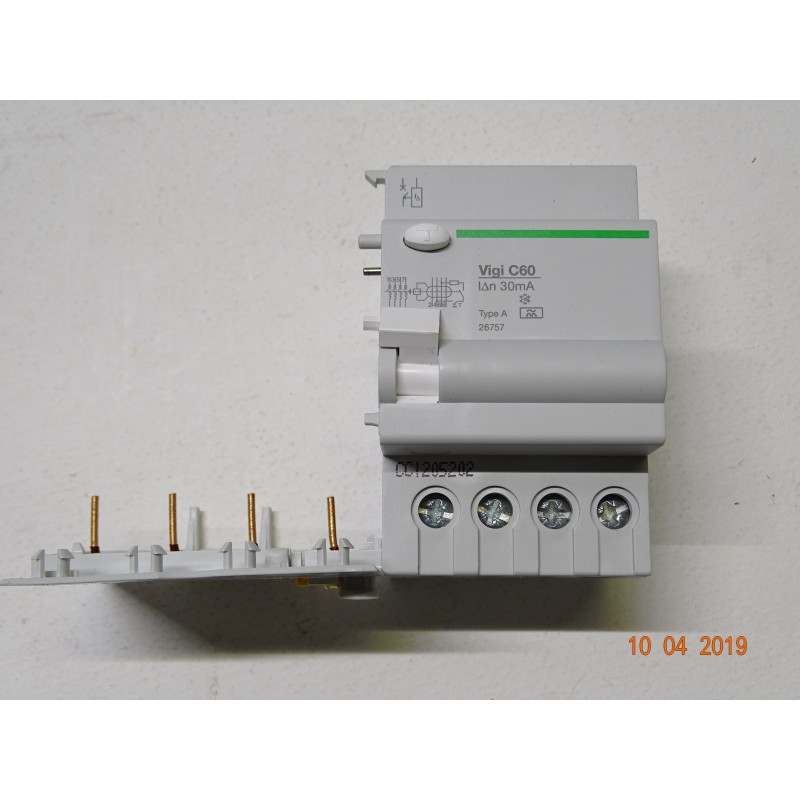

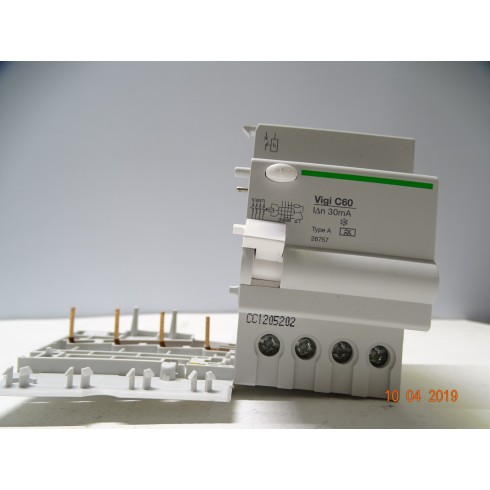

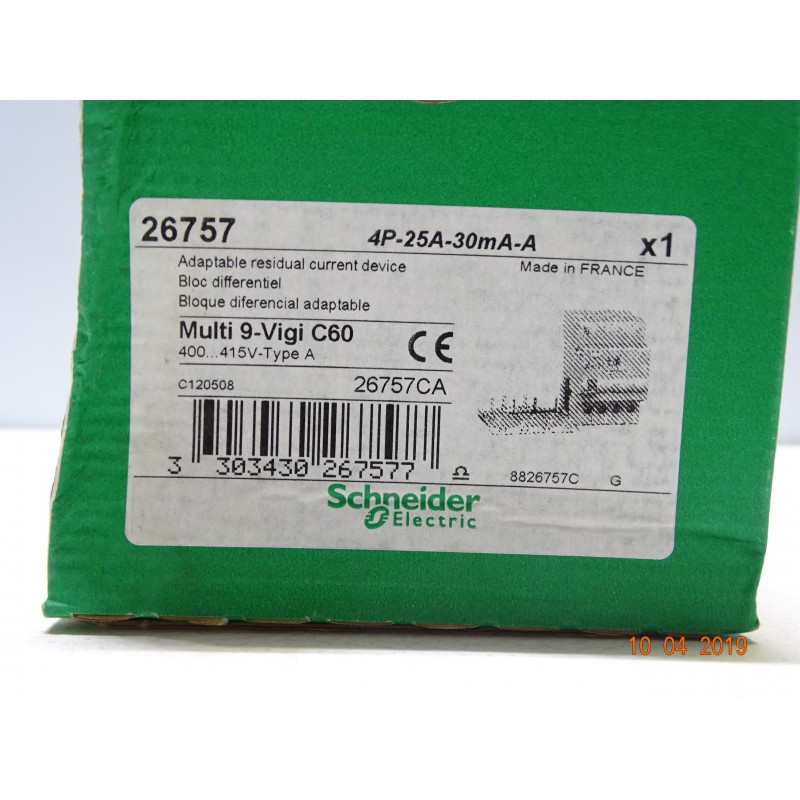

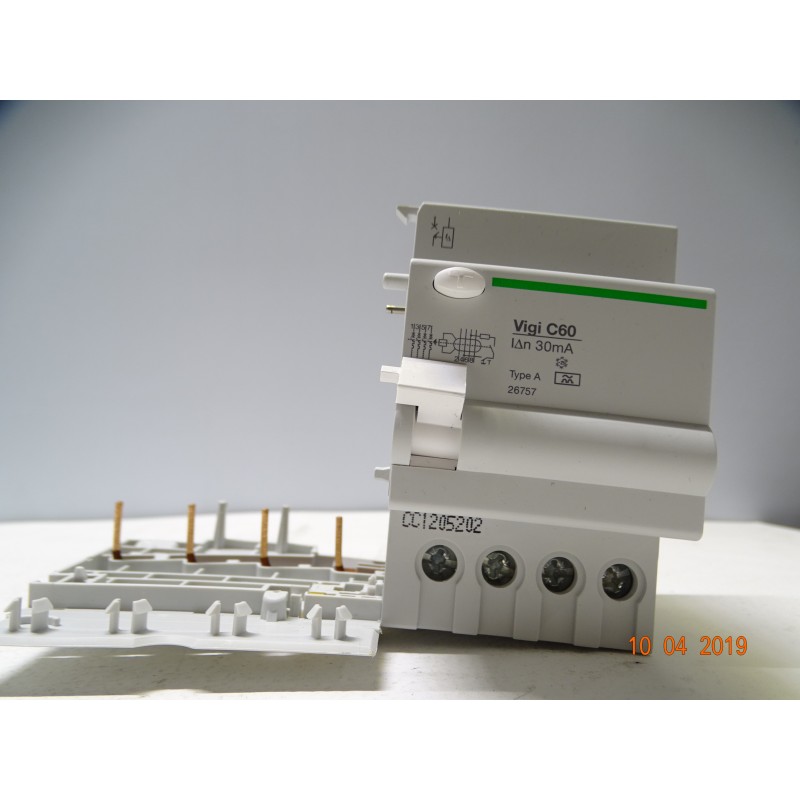

SCHNEIDER 26757 Differential Lock Adaptable Vigi C60-4P-25A-30mA-IN (ARM9/3)
(ARM9/3)/Q8
Nuovo (Altro)
50,00 € tax incl.
tax incl.
2 Items
Warning: Last items in stock!
| Tipo | differenziale |
| Description of the conditions | Confezione originale danneggiata |
| Brand | Schneider Electric |
| Modello Librio | 26757 |
SCHNEIDER 26757 Differential Lock Adaptable Vigi C60-4P-25A-30mA-
| the type of product or component |
Devices add-on residual current
|
|
|---|---|---|
| abbreviated name |
The Vigi C60
|
|
| number of poles |
4P
|
|
| Rated current [In] |
25 To
|
|
| network type |
CA
|
|
| differential sensitivity |
30 but
|
|
| timing differential protection |
Instant
|
|
| type of differential protection |
Type
|
| device location in system |
Starting point
|
|
|---|---|---|
| network frequency |
50/60 Hz
|
|
| Rated operating voltage [Ue] |
220...415 V AC 50/60 Hz
|
|
| technology release residual current |
On the basis of the voltage
|
|
| Rated insulation voltage [Ui] |
500 V AC 50/60 Hz conforming to IEC 60947-2
|
|
| Rated voltage impulse withstand [Uimp] |
6 kV conforming to IEC 60947-2
|
|
| support for mounting |
DIN rail symmetrical 35 mm
|
|
| electrical connection to the circuit breaker |
By means of screws
|
|
| distance of 9 mm |
6
|
|
| height |
87 mm
|
|
| width |
126 mm
|
|
| depth |
74 mm
|
|
| product weight |
0.18 kg
|
|
| mechanical life |
20000 cycles
|
|
| connections - terminals |
Screw-cage clamps flexible cables 0,5...16 mm2 max
Screw-cage clamps, rigid cable 0.5...25 mm2 max |
|
| stripping length wire |
14 mm
|
|
| tightening torque |
2 Nm
|
| Rules |
IEC 60947-2
|
|
|---|---|---|
| pollution degree |
3 conforming to IEC 60947-2
|
|
| weather sealing |
2 conforming to IEC 60947-2
|
|
| relative humidity |
95 % ( 55 °C )
|
|
| operating altitude |
2000 m
|
|
| operating environment temperature |
-25...60°C
|
|
| storage temperature |
-40...70°C
|
