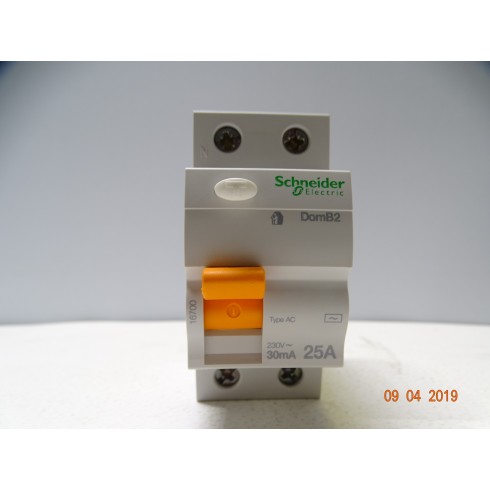

SCHNEIDER 16700 Differential Switch DOMB22530C-2P-25A-30mA-AC (ARM9/4)

Reference: 844/DA3/SX/Q16

Condition: Nuovo (Altro)

15,00 € tax incl.

10 Item Items

Tipo	Interruttore Differenziale

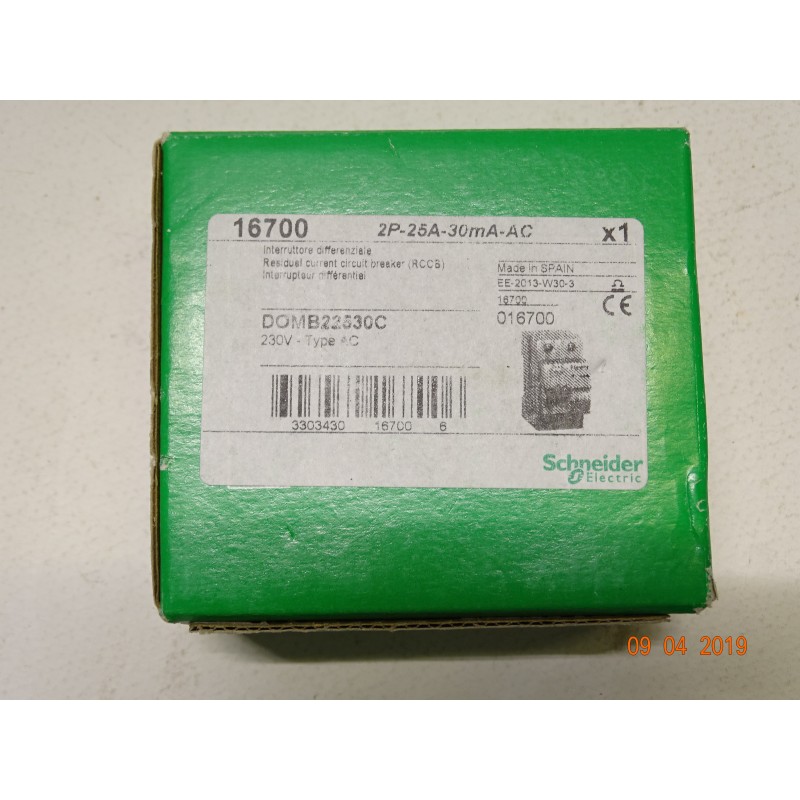

Description of the conditions	Confezione originale danneggiata
Brand	Schneider Electric
Modello Librio	16700
Fabbricante	Schneider Electric
Responsabile dei Prodotti	Schneider Electric

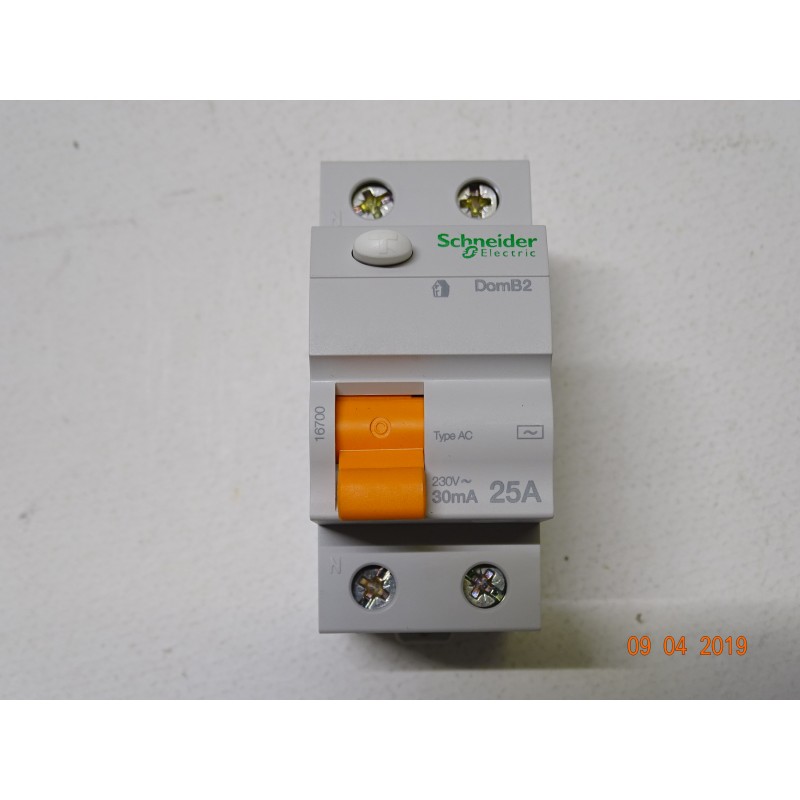

SCHNEIDER 16700 Differential Switch DOMB22530C-2P-25A-30mA-AC

Presentation
range	Domae
the type of product or component	Residual current circuit breaker (RCCB)
abbreviated name	RCCB
number of poles	2P
type of differential protection	Type AC
attitude cutting	You

Technical characteristics
neutral	The left
Rated current [In]	25 To
network type	CA
network frequency	50 Hz
Rated operating voltage [Ue]	230 V AC 50 Hz
differential sensitivity	30 but
timing differential protection	Instant
rated breaking capacity and closing	Im 500 To 230 V compliant to IEC 61008-1
The current conditional rated short-circuit	Inc 3000 At 25 To
Rated insulation voltage [Ui]	440 V AC 50 Hz
Rated voltage impulse withstand [Uimp]	4 kV
peak current	250 To
command type	Lever
local reporting	ON/OFF indication
editing mode	Fixed
support for mounting	DIN rail symmetrical 35 mm
distance of 9 mm	4
height	71 mm
width	36 mm
depth	65 mm
recessed depth	76 mm
product weight	0.23 kg
package quantity	Set 1
color	Light grey RAL 7035
electrical life	2500 cycles
stripping length wire	13 mm
tightening torque	3.5 Nm

Environment
reference standards	EN 61008-1 EN 61008-2-1
degree of protection IP	IP40 in modular container conforming to IEC 60529 IP20 conforming to IEC 60529
weather sealing	2
relative humidity	95 % ( 55 °C )
operating environment temperature	-5...40°C
storage temperature	-40...60°C
