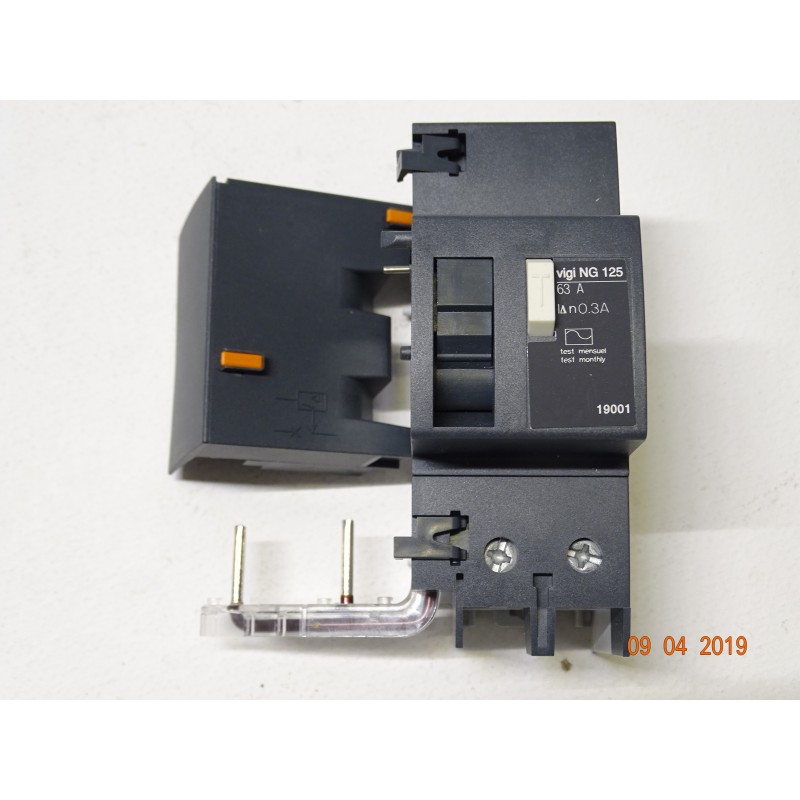

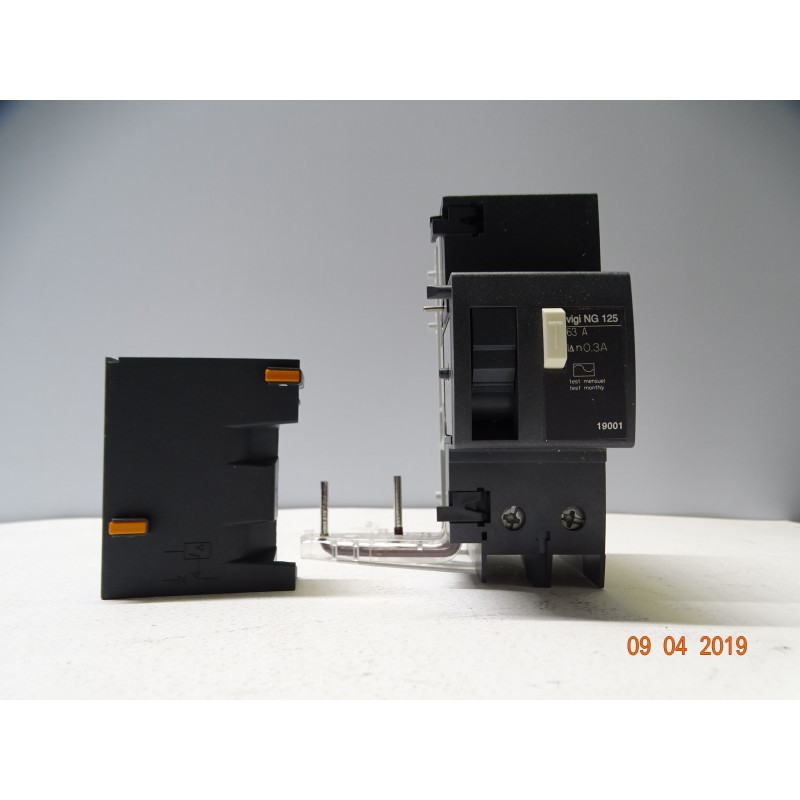

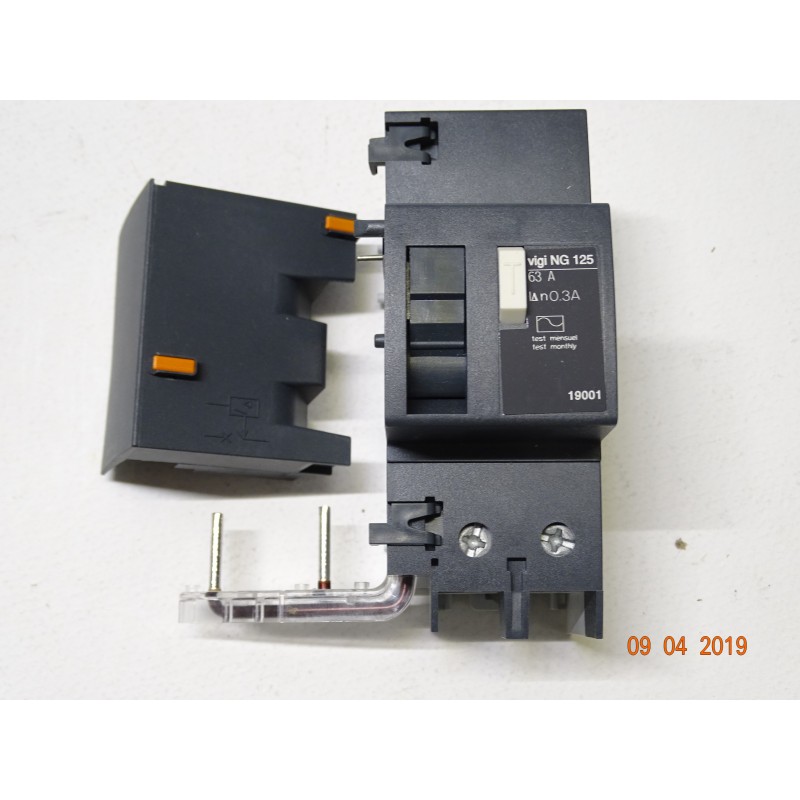

MERLIN GERIN 19001 Differential Lock Vigi NG125 2P-63A-300mA-AC Type (ARM9/1)
ARM9/1/Q1
Nuovo (Altro)
89,00 € tax incl.
tax incl.
1 Item
Warning: Last items in stock!
| Tipo | differenziale |
| Description of the conditions | Confezione originale danneggiata |
| Brand | Merlin Gerin |
| Modello Librio | 19001 |
MERLIN GERIN 19001 Differential Lock Vigi NG125 2P-63A-300mA-AC Type
| the type of product or component |
Devices add-on residual current
|
|
|---|---|---|
| abbreviated name |
Vigi NG125
|
|
| number of poles |
2P
|
|
| Rated current [In] |
63 A
|
|
| network type |
CA
|
|
| differential sensitivity |
300 mA
|
|
| timing differential protection |
Instant
|
|
| type of differential protection |
Type AC
|
| device location in system |
Starting point
|
|
|---|---|---|
| network frequency |
50/60 Hz
|
|
| Rated operating voltage [Ue] |
230...415 V AC 50/60 Hz
|
|
| technology release residual current |
Independent of the voltage
|
|
| Rated insulation voltage [Ui] |
690 V AC 50/60 Hz conforming to IEC 60947-2
|
|
| Rated voltage impulse withstand [Uimp] |
8 kV conforming to IEC 60947-2
|
|
| support for mounting |
DIN rail symmetrical 35 mm
|
|
| electrical connection to the circuit breaker |
By means of screws
|
|
| distance of 9 mm |
5
|
|
| height |
118 mm
|
|
| width |
99 mm
|
|
| depth |
81 mm
|
|
| product weight |
0.25 kg
|
|
| electrical life |
10000 cycles conforming to IEC 60947-2
|
|
| connections - terminals |
Screw-cage clamps rigid cables of 1.5...50 mm2 max
Screw-cage clamps flexible cable 1...35 mm2 max |
|
| stripping length wire |
20 mm
|
|

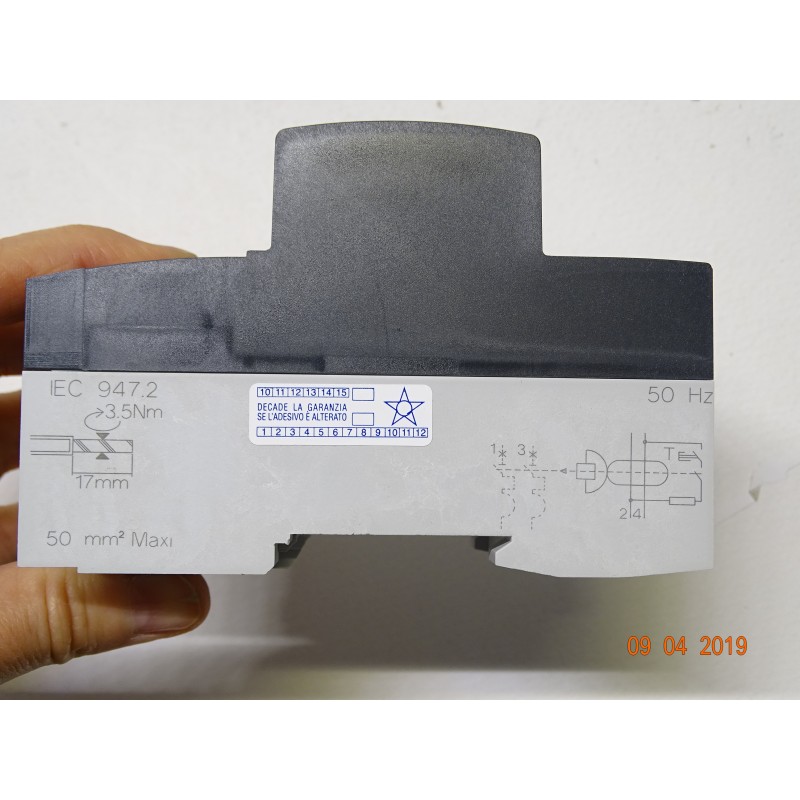

| tightening torque |
3.5 Nm
|
| Rules |
IEC 60947-2
|
|
|---|---|---|
| degree of protection IP |
IP40 conforming to IEC 60947-2
|
|
| pollution degree |
3 conforming to IEC 60947-2
|
|
| electromagnetic compatibility |
Impulse 8/20 ľs, 3000 A conforming to IEC 60947-2
|
|
| weather sealing |
2 conforming to IEC 60068-1
|
|
| relative humidity |
95 % ( 55 °C )
|
|
| operating altitude |
2000 m
|
