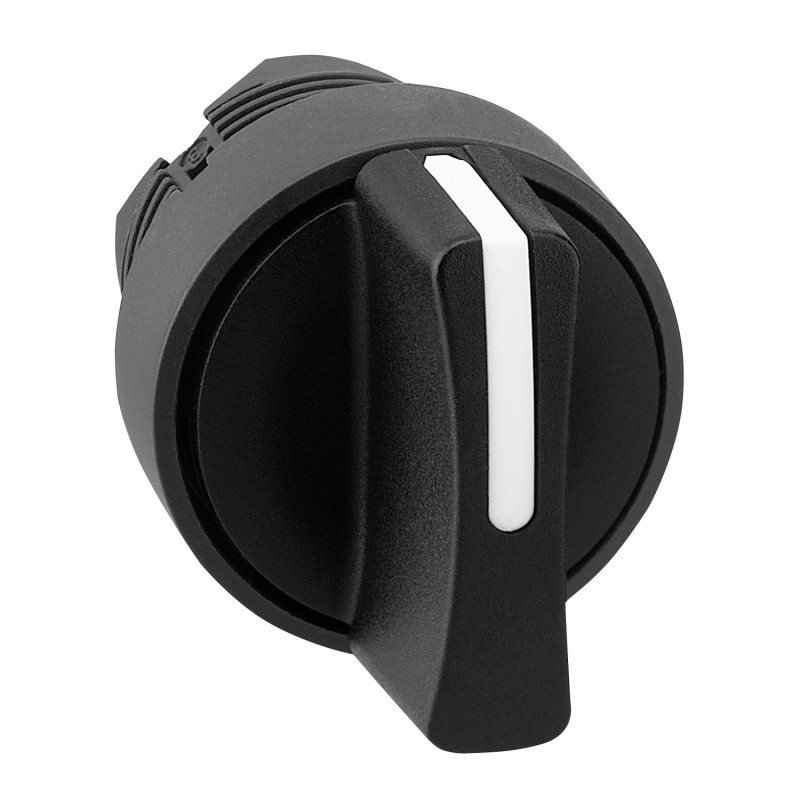

Schneider Harmony XB5 ZB5AD3 head selector 3-position, 22mm, black (IA1)
BF3/229/DX/Q120
Nuovo (Altro)
25,00 € tax incl.
tax incl.
5 Items
| Tipo | Hrmony pulsantiera |
| Description of the conditions | Confezione originale danneggiata |
| Brand | Schneider |
Schneider Harmony XB5 ZB5AD3 head selector 3-position, 22mm, black
| the product range |
Harmony XB5
|
|
|---|---|---|
| the type of product or component |
Head for selector switch
|
|
| abbreviated name |
ZB5
|
|
| Head material |
Plastic
|
|
| mounting diameter |
22 mm
|
|
| type of head |
Standard
|
|
| sale quantity indivisible |
1
|
|
| The shape of the head |
Circular
|
|
| type of operator |
Firm
|
|
| operator profile |
Black Lever standard
|
|
| information location operator |
3 positions +/- 45°
|
| overall width CAD |
29 mm
|
|
|---|---|---|
| overall height CAD |
29 mm
|
|
| total depth CAD |
46 mm
|
|
| product weight |
0,017 kg
|
|
| mechanical life |
1000000 cycles
|
|
| station name |
XALD 1...5-hole
XALK 2...5-hole |
|
| code composition electrical |
C11 to 3 contacts using single blocks in front mounting
SF1 for 3 contacts using single blocks in front mounting C7 for 4 contacts using single blocks in front mounting C8 for 4 contacts using single and double blocks in front mounting SR1 for 3 contacts using single blocks in rear mounting C4 for 6 contacts using single and double blocks in front mounting C5 for 5 contacts using single blocks in front mounting C6 for 5 contacts using single and double blocks in front mounting C3 for 6 contacts using single blocks in front mounting |
| protection treatment |
TH
|
|
|---|---|---|
| storage temperature |
-40...70°C
|
|
| operating environment temperature |
-40...70°C
|
|
| overvoltage category |
Class II conforming to IEC 60536
|
|
| degree of protection IP |
IP69 compliant to IEC 60529
IP67 conforming to IEC 60529 IP69K |
|
| degree of protection NEMA |
NEMA 13
NEMA 4X |
|
| resistance to high pressure washing |
7000000 Pa at 55 °C,distance: 0.1 m
|
|
| degree of protection IK |
IK06 conforming to IEC 50102
|
|
| reference standards |
EN/IEC 60947-1
EN/IEC 60947-5-1 EN/IEC 60947-5-4 JIS C 4520 UL 508 CSA C22.2 No 14 |
|
| certifications product |
BV
CSA DNV GL LROS (Lloyds register of shipping) RINA UL listed |
|
| vibration resistance |
5 gn (f = 2...500 Hz) conforming to IEC 60068-2-6
|
|
| shock resistance |
30 gn (duration = 18 ms) for half sine wave acceleration conforming to IEC 60068-2-27
50 gn (duration = 11 ms) for half sine wave acceleration conforming to IEC 60068-2-27 |
