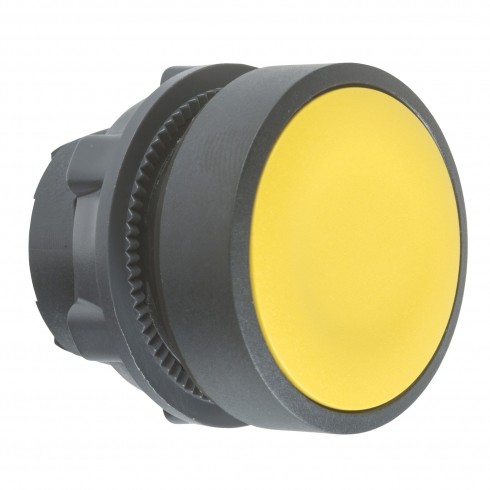

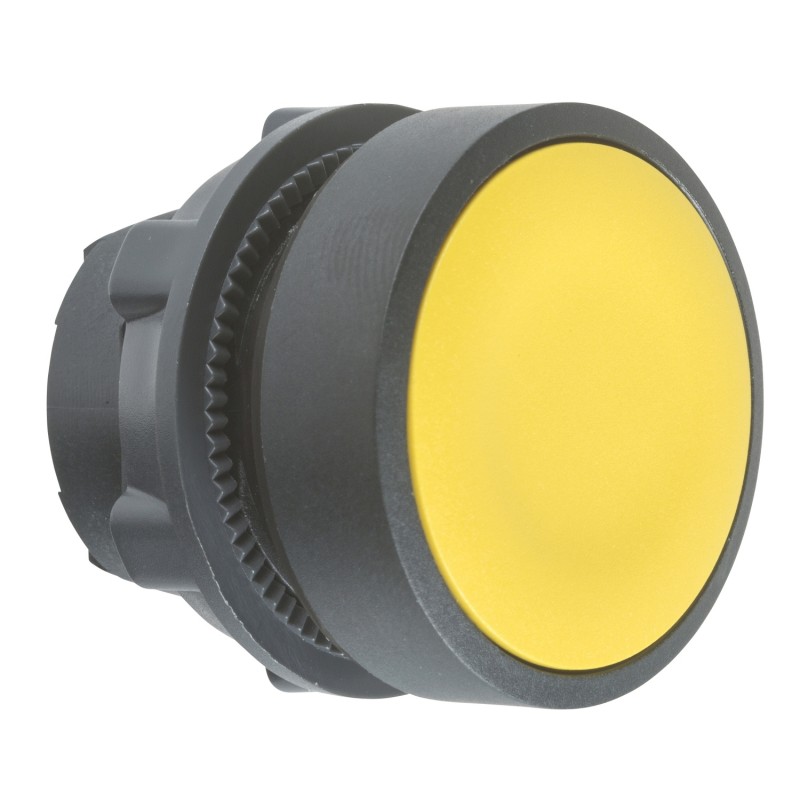

Schneider Harmony ZB5 AA5 button head impulse yellow(IA1)
221/BF3/DX/Q100
Nuovo (Altro)
20,00 € tax incl.
tax incl.
5 Items
| Tipo | Hrmony pulsantiera |
| Description of the conditions | Confezione originale danneggiata |
| Brand | Schneider |

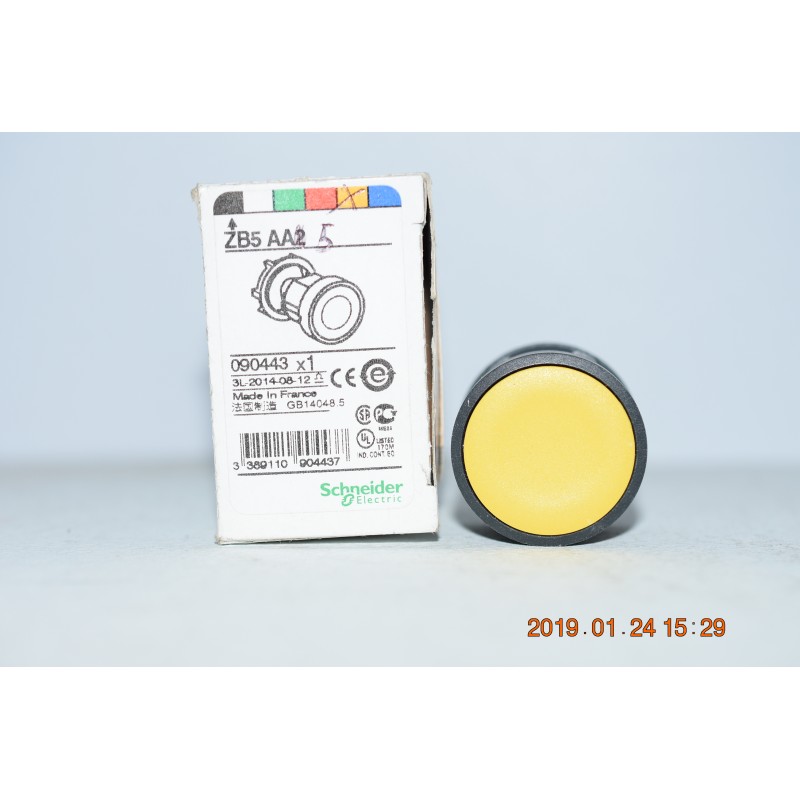

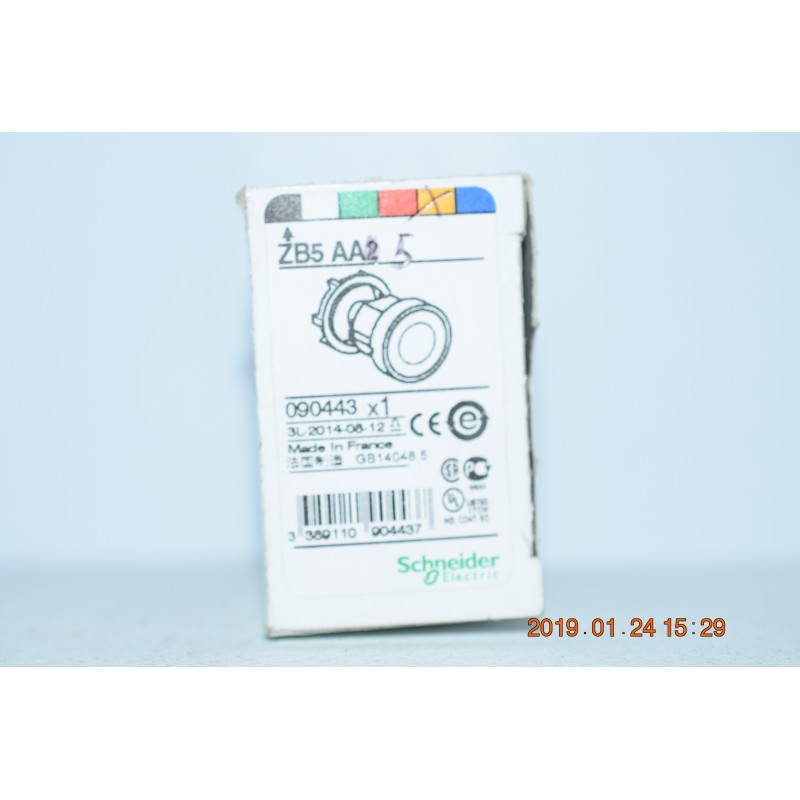

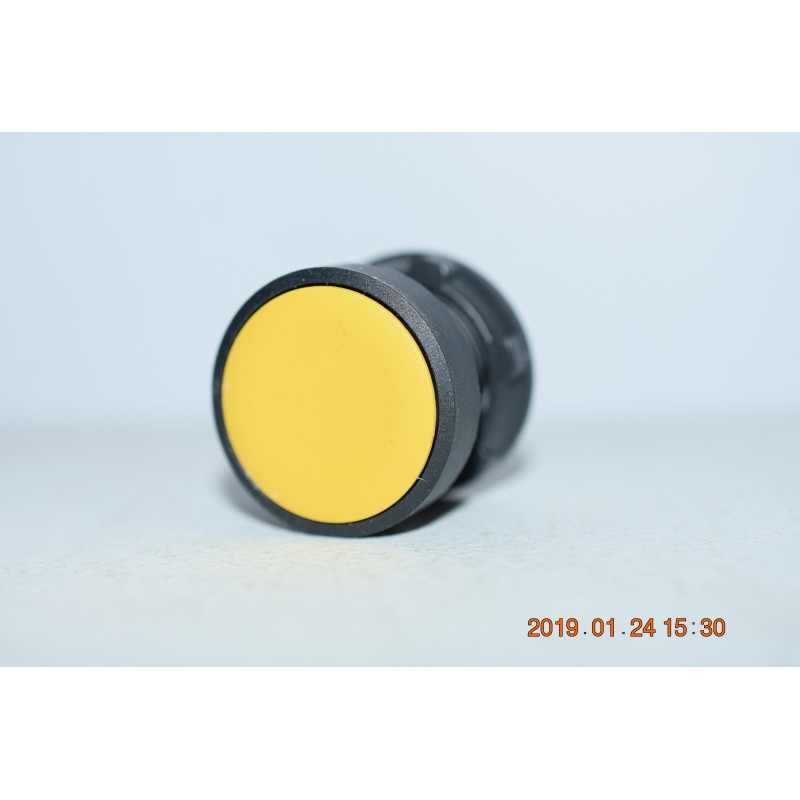

Schneider Harmony ZB5 AA5 button head impulse yellow filoghiera without marking 22mm .The boxes have a code ZB5 AA2 is actually ZB5AA5
| the product range |
Harmony XB5
|
|
|---|---|---|
| the type of product or component |
Head non-illuminated push button
|
|
| abbreviated name |
ZB5
|
|
| Head material |
Plastic
|
|
| mounting diameter |
22 mm
|
|
| type of head |
Standard
|
|
| sale quantity indivisible |
1
|
|
| The shape of the head |
Circular
|
|
| type of operator |
Impulse
|
| overall width CAD |
29 mm
|
|
|---|---|---|
| overall height CAD |
29 mm
|
|
| total depth CAD |
28 mm
|
|
| product weight |
0,018 kg
|
|
| mechanical life |
10000000 cycles
|
|
| station name |
XALD 1...5-hole
XALK 2...5-hole |
|
| code composition electrical |
C1 for <= 9 contacts using single blocks in front mounting
C2 for <= 9 contacts using single and double blocks in front mounting C11 for <= 3 contacts using single blocks in front mounting C15 for 1 contacts using single blocks in front mounting SF1 for <= 3 contacts using single blocks in front mounting SR1 for <= 3 contacts using single blocks in rear mounting |
| protection treatment |
TH
|
|
|---|---|---|
| storage temperature |
-40...70°C
|
|
| operating environment temperature |
-40...70°C
|
|
| overvoltage category |
Class II conforming to IEC 60536
|
|
| degree of protection IP |
IP69
IP67 IP66 conforming to IEC 60529 IP69K |
|
| degree of protection NEMA |
NEMA 13
NEMA 4X |
|
| resistance to high pressure washing |
7000000 Pa at 55 °C,distance: 0.1 m
|
|
| degree of protection IK |
IK03 conforming to IEC 50102
|
|
| reference standards |
EN/IEC 60947-1
EN/IEC 60947-5-1 EN/IEC 60947-5-4 JIS C 4520 UL 508 CSA C22.2 No 14 |
|
| certifications product |
BV
CSA DNV GL LROS (Lloyds register of shipping) RINA UL listed |
|
| shock resistance |
30 gn (duration = 18 ms) for half sine wave acceleration conforming to IEC 60068-2-27
50 gn (duration = 11 ms) for half sine wave acceleration conforming to IEC 60068-2-27 |
|
| vibration resistance |
5 gn (f = 2...500 Hz) conforming to IEC 60068-2-6
|
