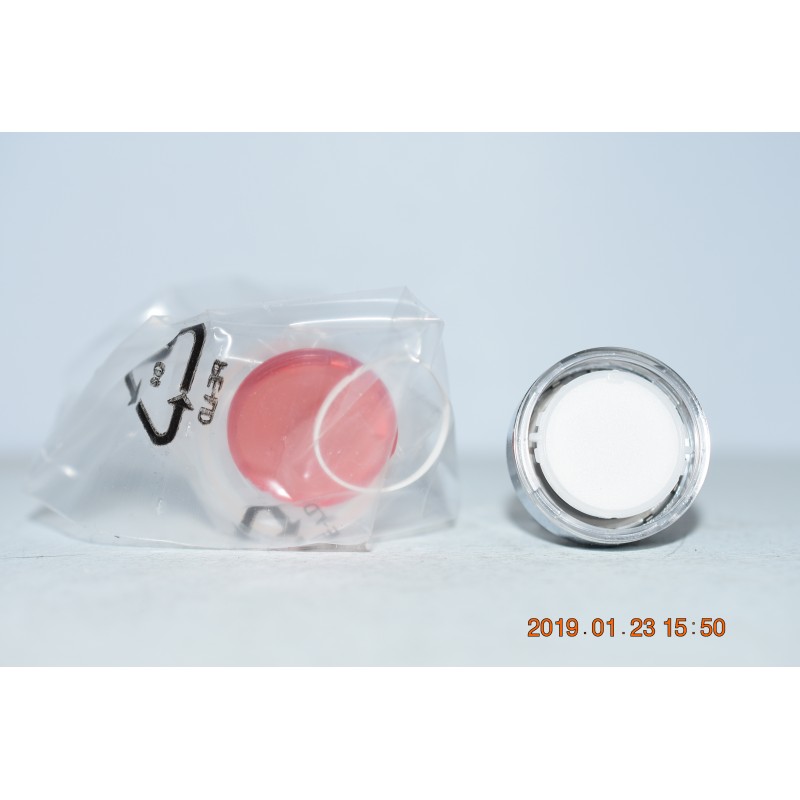

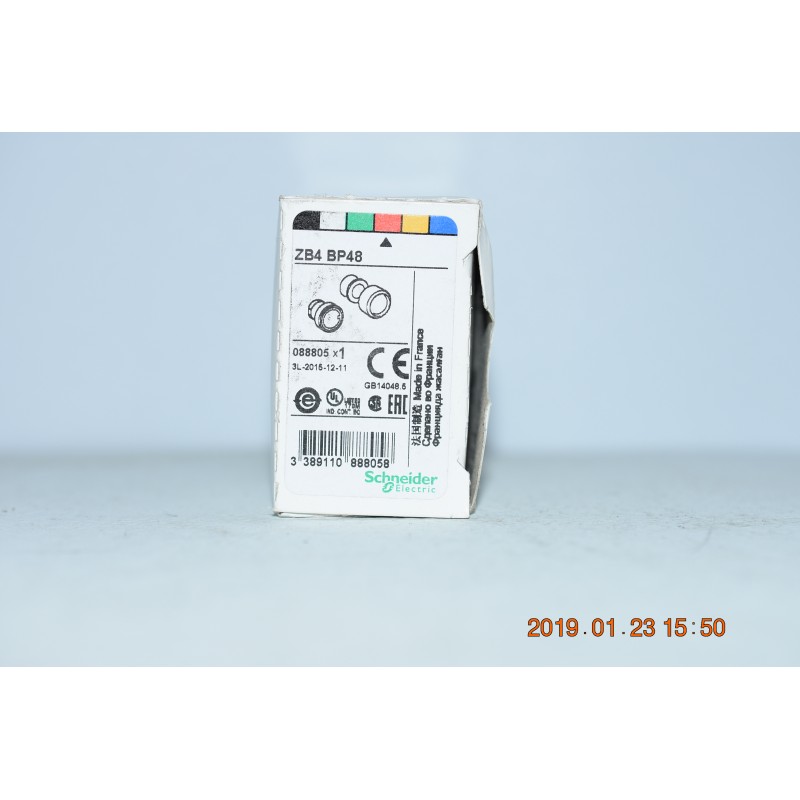

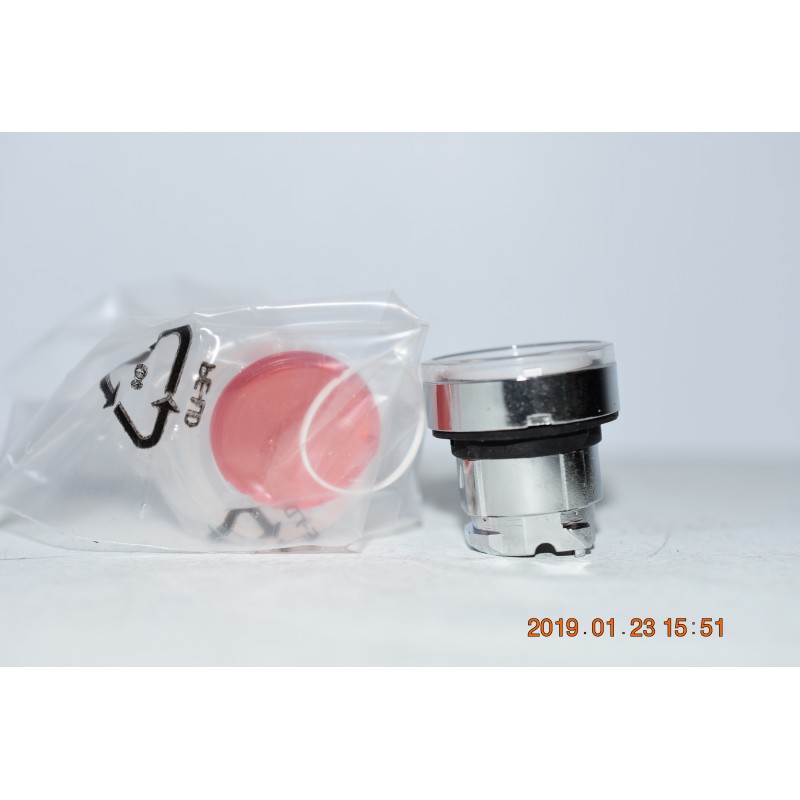

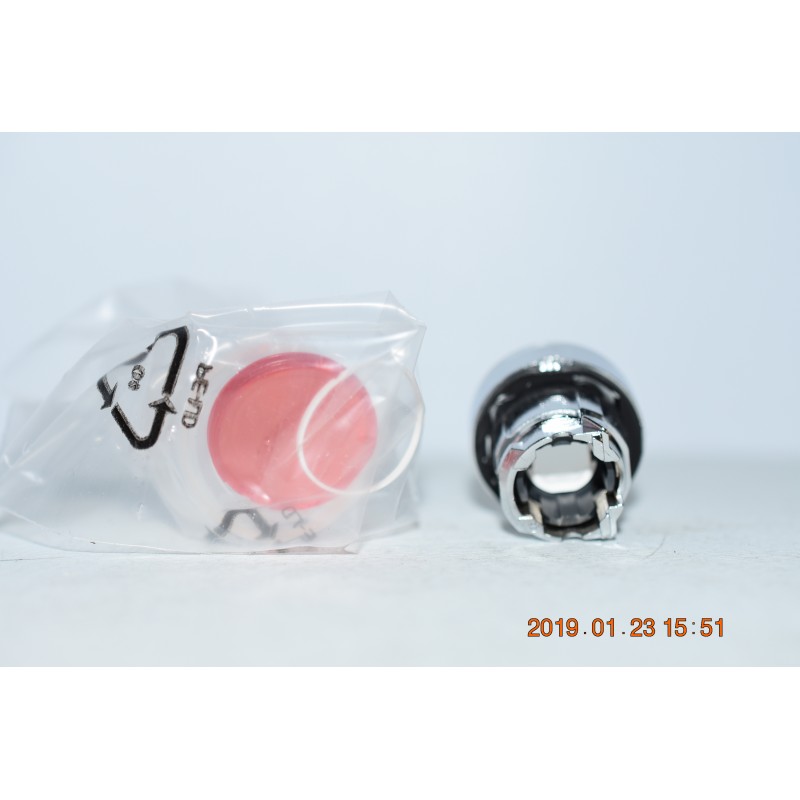

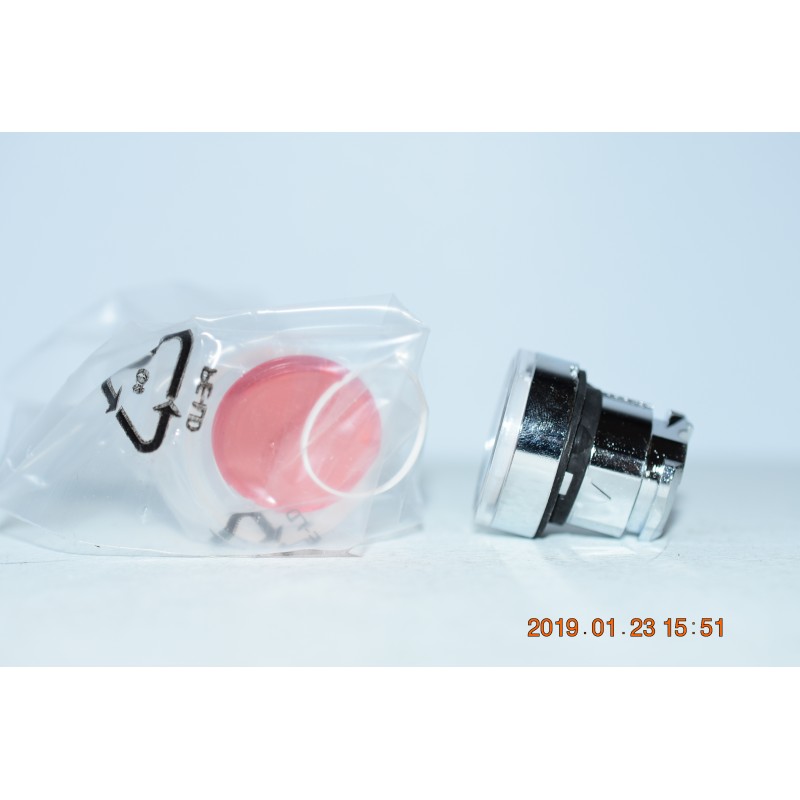

Schneider Harmony XB4-ZB4BP48 button head filoghiera red (IA1)
211/BF3/DX/Q18
Nuovo (Altro)
5,00 € tax incl.
tax incl.
10 Items
| Tipo | Hrmony pulsantiera |
| Description of the conditions | Confezione originale danneggiata |
| Brand | Schneider |
Schneider Harmony XB4-ZB4BP48 button head filoghiera red clear silicone.
| the product range |
Harmony XB4
|
|
|---|---|---|
| the type of product or component |
Head non-illuminated push button
|
|
| abbreviated name |
ZB4
|
|
| compatibility product |
Not compatible with port label
|
|
| Head material |
Chrome-plated metal
|
|
| mounting diameter |
22 mm
|
|
| sale quantity indivisible |
1
|
|
| type of head |
Standard
|
|
| The shape of the head |
Circular
|
|
| type of operator |
Impulse
|
|
| operator profile |
Red filoghiera Without marking
|
|
| Additional information operator |
Transparent cap for insertion of label on the head
|
| overall width CAD |
30 mm
|
|
|---|---|---|
| overall height CAD |
30 mm
|
|
| total depth CAD |
37 mm
|
|
| mechanical life |
10000000 cycles
|
|
| code composition electrical |
C4 for 6 contacts using single and double blocks in front mounting
C3 for 6 contacts using single blocks in front mounting C14 for 2 contacts using single blocks in front mounting |
| protection treatment |
TH
|
|
|---|---|---|
| storage temperature |
-40...70°C
|
|
| operating environment temperature |
-40...70°C
|
|
| overvoltage category |
Class I conforming to IEC 60536
|
|
| degree of protection IP |
IP66 conforming to IEC 60529
IP67 |
|
| degree of protection NEMA |
NEMA 13
NEMA 4X |
|
| degree of protection IK |
IK06 conforming to IEC 50102
|
|
| reference standards |
EN/IEC 60947-1
EN/IEC 60947-5-1 EN/IEC 60947-5-4 EN/IEC 60947-5-5 JIS C 4520 UL 508 CSA C22.2 No 14 |
|
| certifications product |
BV
CSA DNV GL LROS (Lloyds register of shipping) RINA UL listed |
|
| vibration resistance |
5 gn (f = 2...500 Hz) conforming to IEC 60068-2-6
|
|
| shock resistance |
30 gn (duration = 18 ms) for half sine wave acceleration conforming to IEC 60068-2-27
50 gn (duration = 11 ms) for half sine wave acceleration conforming to IEC 60068-2-27 |
