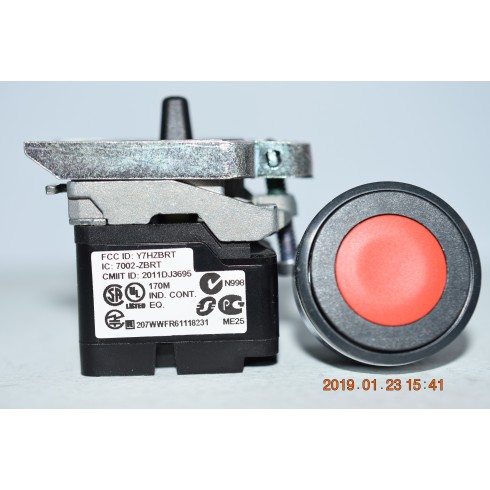

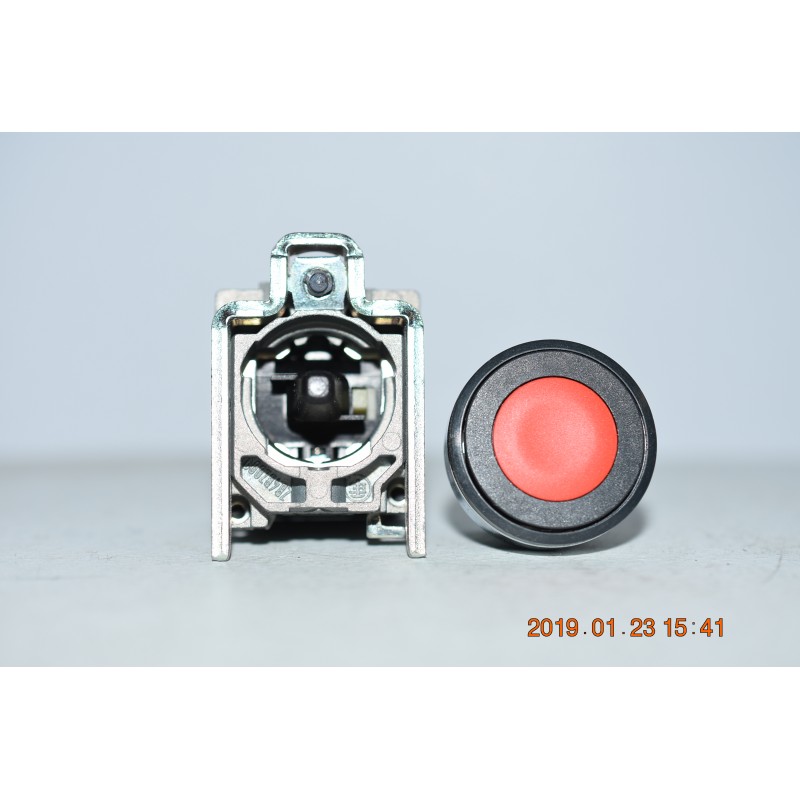

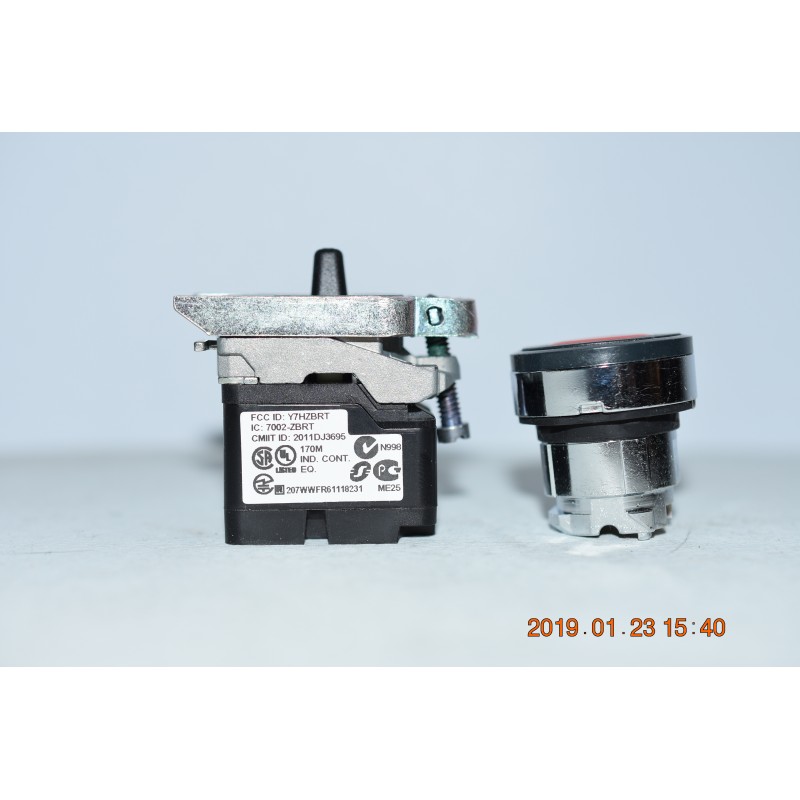

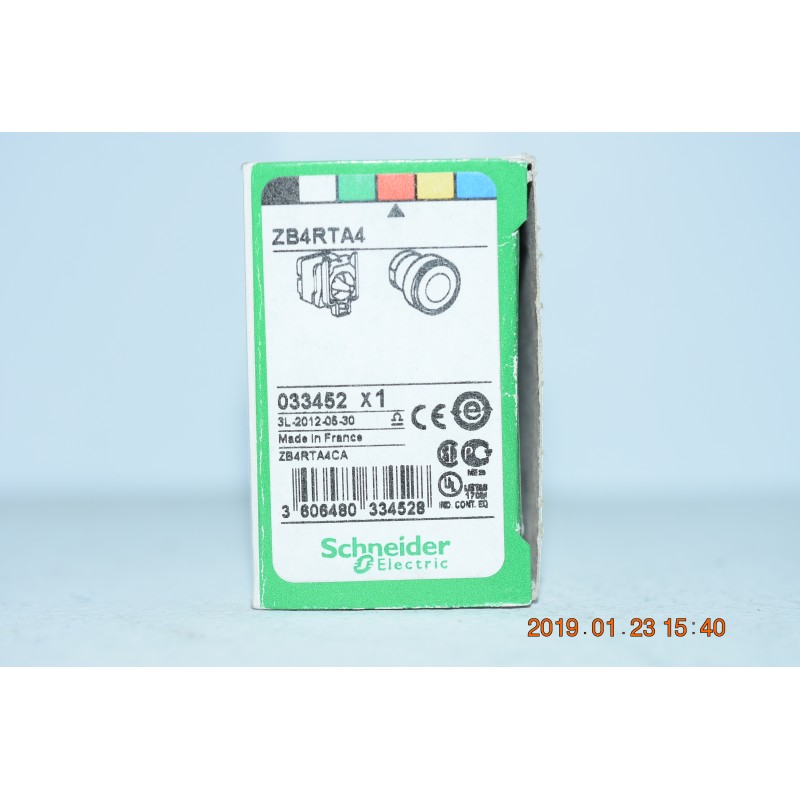

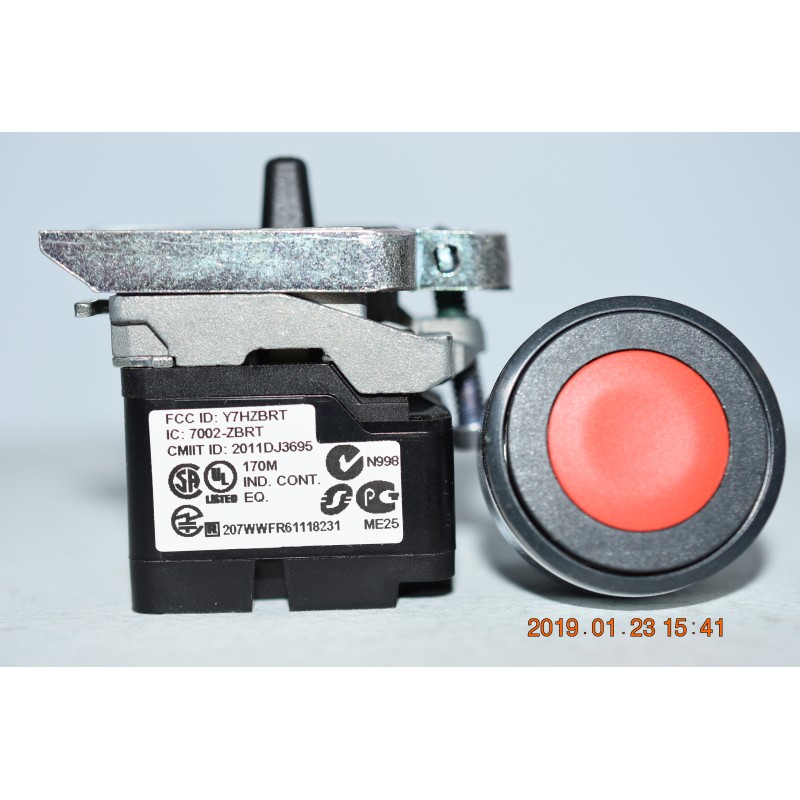

Schneider Harmony ZB4RTA4 button transmitter red (IA1)
211/BF3/DX/Q12
Nuovo (Altro)
40,00 € tax incl.
tax incl.
5 Items
| Tipo | Hrmony pulsantiera |
| Description of the conditions | Confezione originale danneggiata |
| Brand | Schneider |
Schneider Harmony ZB4RTA4 button transmitter 22mm metal red .
| the product range |
Harmony XB5
|
|
|---|---|---|
| the type of product or component |
Wireless transmitter without batteries
|
|
| abbreviated name |
XB5R
|
|
| Head material |
Chrome-plated metal
|
|
| material fixing base |
Zamak
|
|
| mounting diameter |
22 mm
|
|
| transmission frequency |
2405 MHz
|
|
| level or class of |
5M00G7W
|
|
| antenna type |
Omni-directional
|
| The shape of the head |
Circular
|
|
|---|---|---|
| type of operator |
Spring return push-button with transmitter
|
|
| operator profile |
Filoghiera red
|
|
| max power consumption in W |
1 mW
|
|
| number of ways |
1
|
|
| modulation technique |
O-QPSK
|
|
| the bandwidth for the |
5 MHz
|
|
| antenna gain |
0 dBi
|
|
| recessed depth |
42 mm
|
|
| overall height CAD |
41.5 mm
|
|
| overall width CAD |
30 mm
|
|
| total depth CAD |
43 mm
|
|
| product weight |
0,045 kg
|
|
| stroke operation |
4.3 mm total travel
|
|
| operating force |
25 N C/O changing electrical state
|
|
| mechanical strength |
Drop resistance (test level: 1000 mm) conforming to EN/IEC 60068-2-32
|
|
| reference standards |
EN/IEC 60947-1
EN/IEC 60947-5-1 UL 508 CSA C22.2 No 14 |
|
| agreement radio |
RSS
SRRC ICASA ANATEL ARIB T66 FCC |
|
| protocol port communication |
Zigbee (green power) at 2.4 GHz conforming to IEEE 802.15.4
|
|
| sensing distance max |
100 m in free field
25 m transmitter in a plastic box type XAL D and receiver in a metal enclosure 300 m transmitter in box type XAL D, receiver in metal enclosure and use relay-antenna |
|
| acquisition time |
2 ms
|
|
| response time |
< 2 ms
|
|
| emission power |
3 mW
|
|
| type of fixing |
Fixing screw beneath head recommended torque: 0.8...1.2 Nm
|
|
| code composition electrical |
PW1
|
| protection treatment |
TH
|
|
|---|---|---|
| storage temperature |
-40...70°C
|
|
| operating environment temperature |
-25...55°C
|
|
| relative humidity |
95% at 70 °C without condensation
|
|
| degree of protection IP |
IP65 on the front according to IEC 60529
IP30 on back face conforming to IEC 60529 IP65 on the front part conforming to UL type 12 |
|
| degree of protection IK |
IK03 conforming to IEC 50102
|
|
| mechanical life |
1000000 cycles
|
|
| shock resistance |
25 gn (duration = 6 ms) for 6000 shocks conforming to IEC 60068-2-27
30 gn (duration = 18 ms) for half sine wave acceleration conforming to IEC 60068-2-27 50 gn (duration = 11 ms) for half sine wave acceleration conforming to IEC 60068-2-27 |
|
| vibration resistance |
+/- 10 mm (f = 2...11 Hz) conforming to IEC 60068-2-6
5 gn (f = 11...500 Hz) conforming to IEC 60068-2-6 |
|
| electromagnetic compatibility |
Immunity for industrial environments
Radiated emission Tests immunity electrostatic discharge (test level: 8 kV - in free air (in insulating parts)) Tests immunity electrostatic discharge (test level: 6 kV - on contact (on metal parts)) Susceptibility to electromagnetic fields (test level: 10 V/m - 80...2000 MHz) Susceptibility to electromagnetic fields (test level: 3 V/m - 80...2700 MHz, distance = 20 m) |
|
| certifications product |
CCC
CSA C-Tick GOST UL BT 2006/95/EC |
|
| commands |
2004/108/EC - electromagnetic compatibility
1999/5/EC - R&TTE directive |
| The state sustainability offer |
Product Green Premium
|
|
|---|---|---|
| RoHS (date code: aass) | ||
| REACh | ||
| Environmental profile product |
Available
|
|
| Instructions end-of-life product |
Available
|
