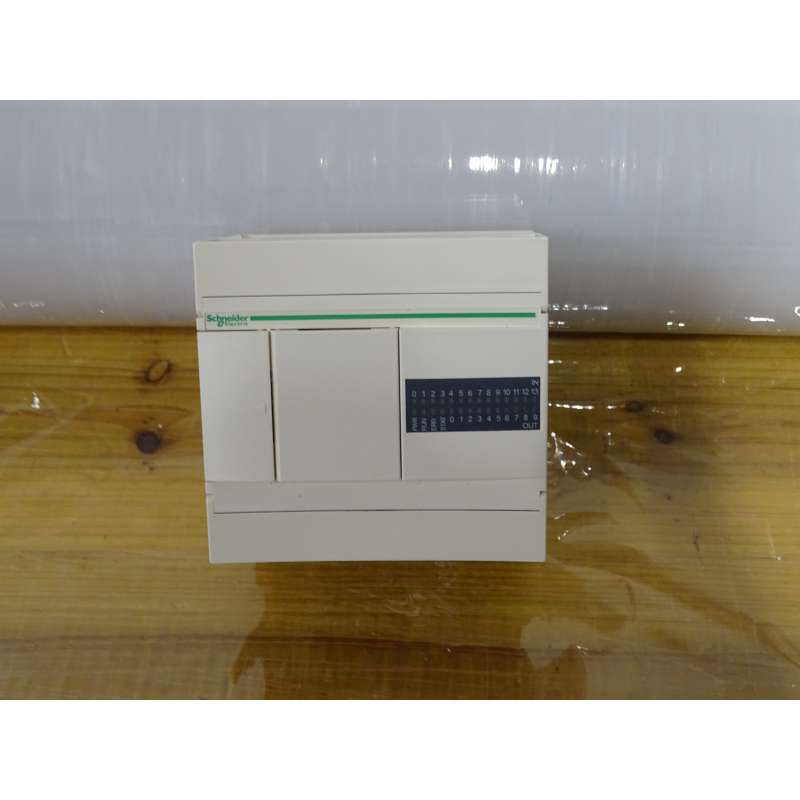

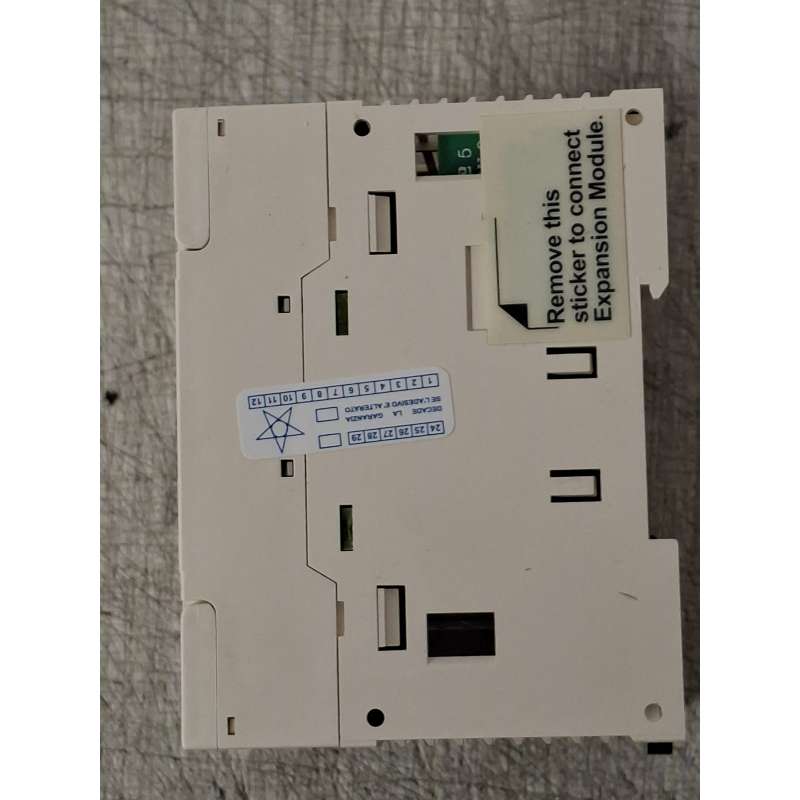

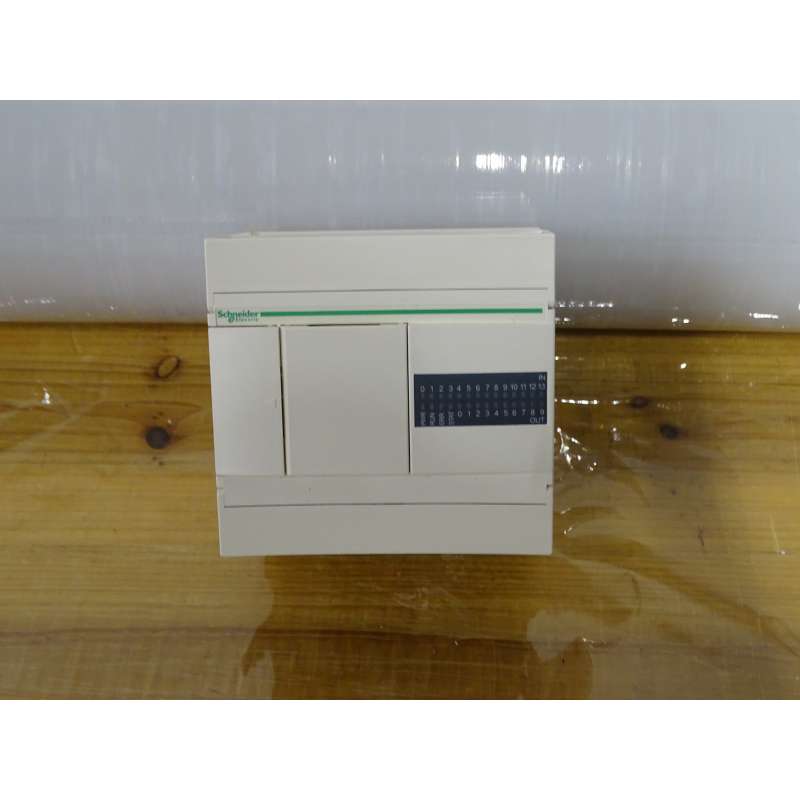

SCHNEIDER TWIDO TWDLCDA10DRF Compact PLC base Twido - 24 V DC supply - 6 I 24 V DC - 4 O relay (ARM 6/2)
3030/FB1/C5/Q60
Nuovo (Altro)
150,00 € tax incl.
tax incl.
6 Items
| Tipo | TWIDO |
| Description of the conditions | Nuovo, aperto per fare le foto |
| Brand | Schneider Electric |

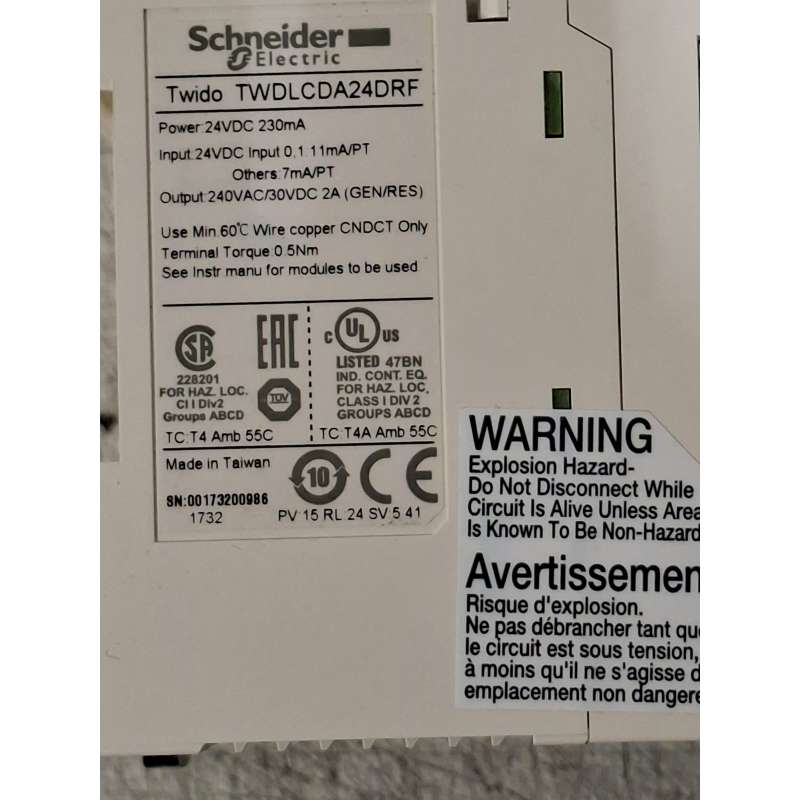

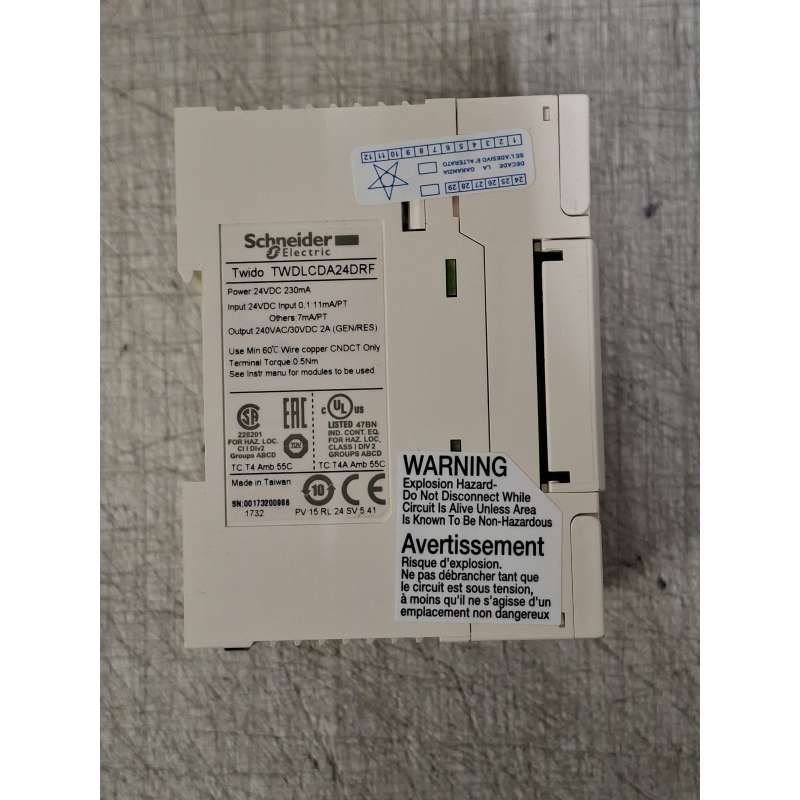

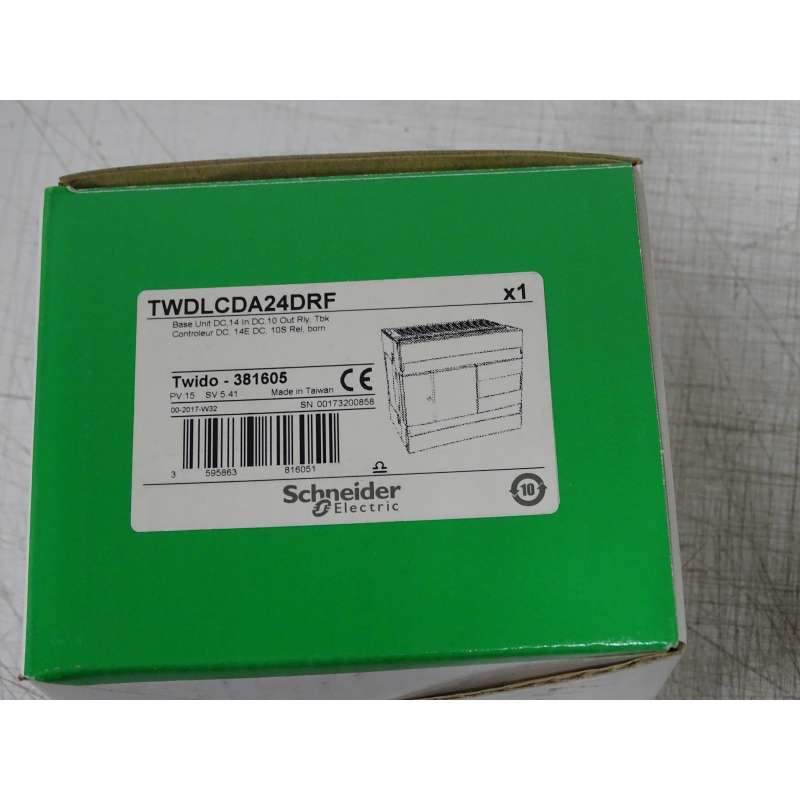

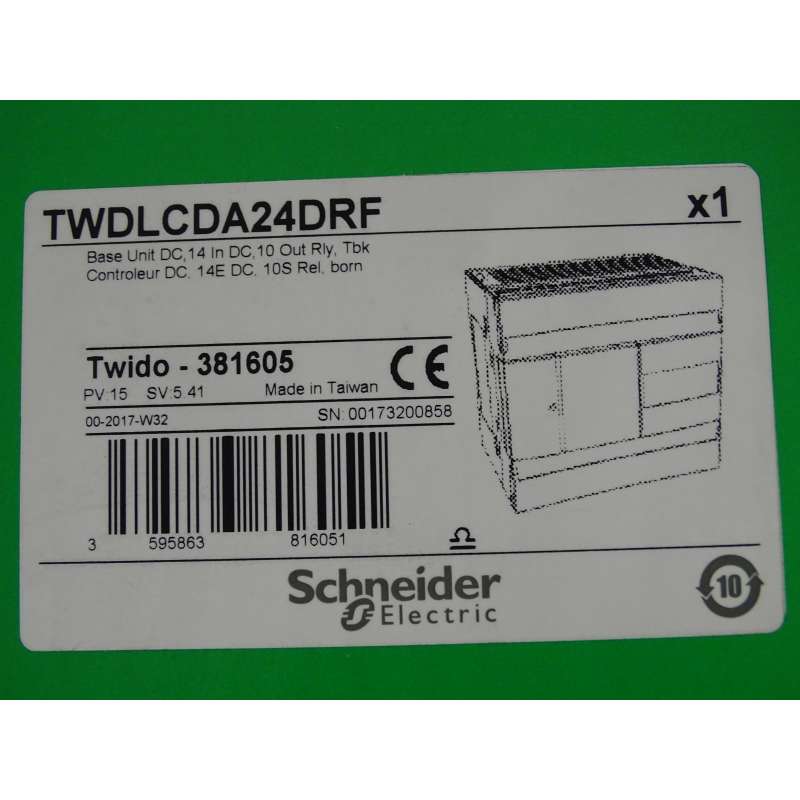

| Modello Librio | TWDLCDA24DRF |
| Fabbricante | Schneider Electric |
| Responsabile dei Prodotti | Schneider Electric |
SCHNEIDER TWIDO TWDLCDA10DRF Compact PLC base Twido - 24 V DC supply - 6 I 24 V DC - 4 O relay
| range of product |
Twido
|
|
|---|---|---|
| product or component type |
Compact base controller
|
|
| discrete I/O number |
10
|
|
| discrete input number |
6
|
|
| discrete input voltage |
24 V
|
|
| discrete input voltage type |
DC
|
|
| discrete output number |
4 relay
|
|
| [Us] rated supply voltage |
24 V DC
|
|
| use of the slot |
Memory cartridge or realtime clock cartridge
|
|
| data backed up |
Internal RAM (lithium) 30 days, charging time = 10 h, battery life = 10 yr
|
|
| integrated connection type |
Non isolated serial link mini DIN, Modbus/character mode master/slave RTU/ASCII (RS485) half duplex, 38.4 kbit/s
Power supply |
| discrete input logic |
Sink or source
|
|
|---|---|---|
| input voltage limits |
20.4...28.8 V
|
|
| discrete input current |
11 mA for I0.0 to I0.1
7 mA for I0.2 to I0.5 |
|
| input impedance |
2100 Ohm for I0.0 to I0.1
3400 Ohm for I0.2 to I0.5 |
|
| filter time |
35 µs + programmed filter time for I0.0 to I0.5 at state 1
45 µs + programmed filter time for I0.0 to I0.5 at state 0 |
|
| insulation between channel and internal logic |
1500 Vrms for 1 minute
|
|
| insulation resistance between channel |
None
|
|
| minimum load |
0.1 mA
|
|
| contact resistance |
<= 30000 µOhm
|
|
| load current |
2 A at 240 V AC inductive load, operating rate = 30 cyc/mn for relay output
2 A at 240 V AC resistive load, operating rate = 30 cyc/mn for relay output 2 A at 30 V DC inductive load, operating rate = 30 cyc/mn for relay output 2 A at 30 V DC resistive load, operating rate = 30 cyc/mn for relay output |
|
| mechanical durability |
>= 20000000 cycles relay output
|
|
| electrical durability |
>= 100000 cycles for relay output
|
|
| current consumption |
24 mA at 5 V DC at state 1
26 mA at 24 V DC at state 1 5 mA at 5 V DC at state 0 |
|
| I/O connection |
Non-removable screw terminal block
|
|
| supply voltage limits |
20.4...28.8 V
|
|
| inrush current |
<= 35
|
|
| protection type |
Power protection with internal fuse
|
|
| power consumption in W |
<= 3.9 W
|
|
| insulation resistance |
> 10 MOhm at 500 V, between I/O and earth terminals
> 10 MOhm at 500 V, between supply and earth terminals |
|
| program memory |
700 instructions
|
|
| exact time for 1 Kinstruction |
1 ms
|
|
| system overhead |
0.5 ms
|
|
| memory description |
Internal RAM, 128 counters, no floating, no trigonometrical
Internal RAM, 128 internal bits, no floating, no trigonometrical Internal RAM, 3000 internal words, no floating, no trigonometrical Internal RAM, 64 timers, no floating, no trigonometrical |
|
| free slots |
1
|
|
| the real-time clock |
Without
|
|
| counting input number |
1 channel(s) at 20000 Hz 32 bits
3 channel(s) at 5000 Hz 16 bits |
|
| analogue adjustment points |
1 point adjustable from 0...1023
|
|
| status LED |
1 LED user pilot light (STAT)
1 LED green for PWR 1 LED green RUN 1 LED per channel green I/O status 1 LED red module error (ERR) |
|
| depth |
2.76 in (70 mm)
|
|
| height |
3.74 in (95 mm)
|
|
| width |
3.54 in (90 mm)
|
|
| product weight |
0.51 lb(US) (0.23 kg)
|
