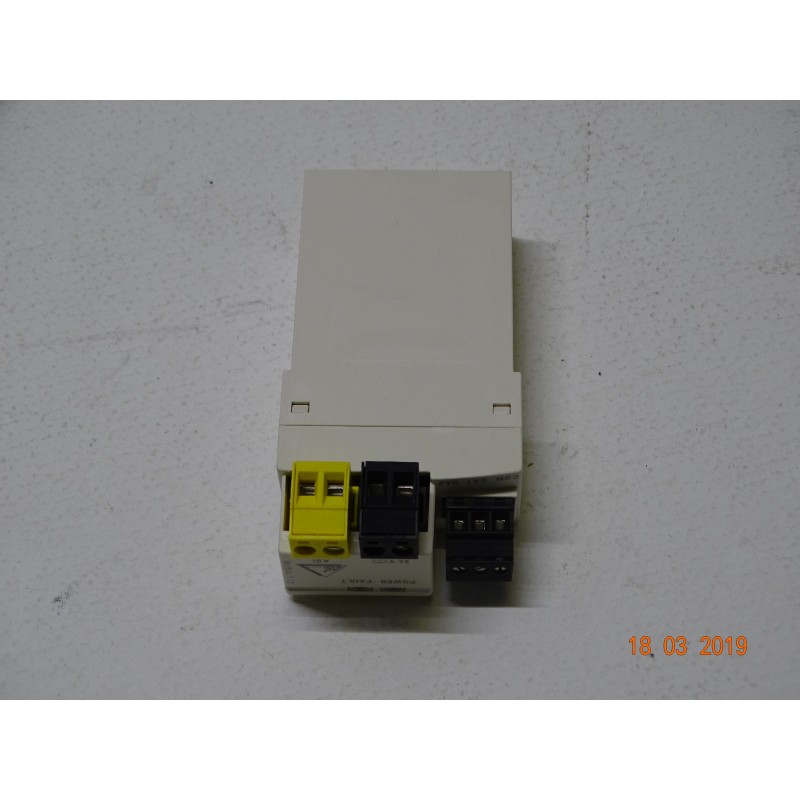

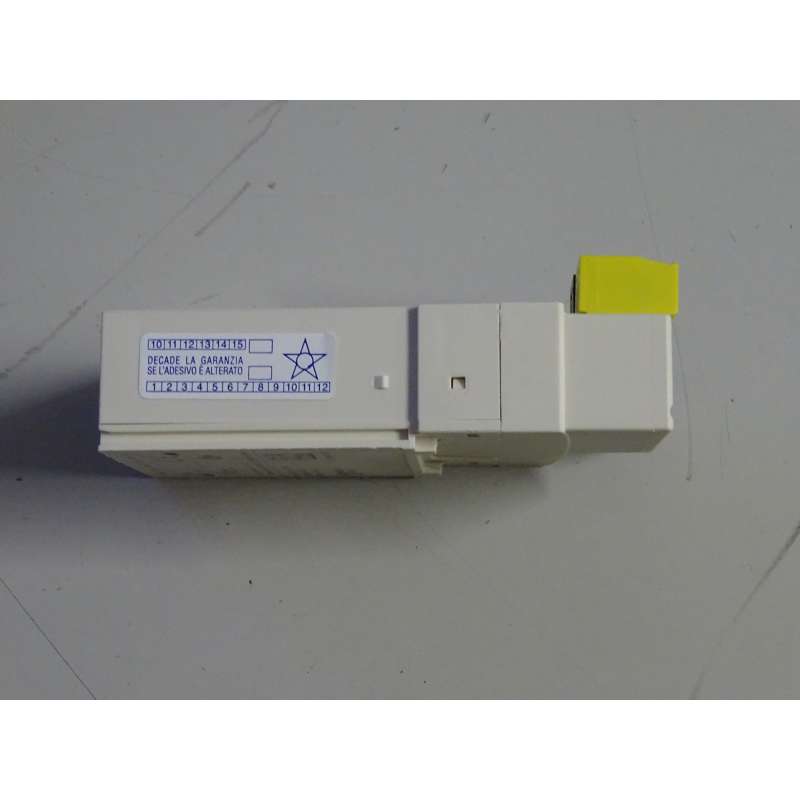

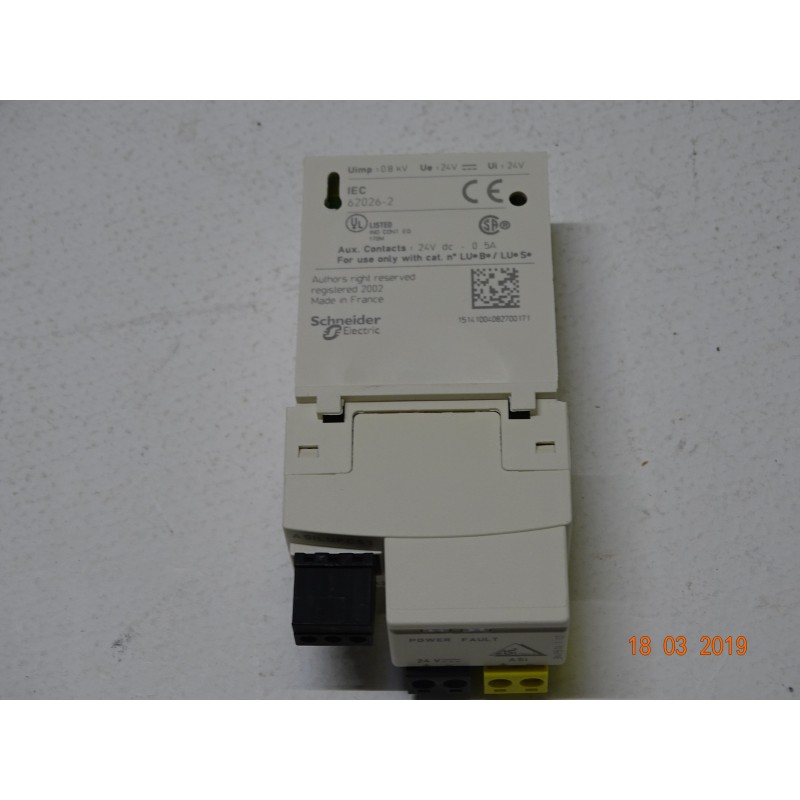

SCHNEIDER TESYS ASILUFC51 Module Communication for Tesys U (ARM 6/3)
684/GC2/Q60/SCAT1
Nuovo (Altro)
29,00 € tax incl.
tax incl.
20 Items
| Tipo | Modulo |
| Description of the conditions | Nuovo, aperto per fare le foto |
| Brand | Schneider Electric |
| Modello Librio | ASILUFC51 |
| Fabbricante | Schneider Electric |
| Responsabile dei Prodotti | Schneider Electric |
SCHNEIDER TESYS ASILUFC51 Module Communication for Tesys U
| range |
TeSys
|
|
|---|---|---|
| device short name |
ASILUL
|
|
| product or component type |
Communication module
|
|
| product compatibility |
LUKE
LUCB LUCC LUCD LUCL LUCM |
|
| device application |
Communication
|
|
| range compatibility |
TeSys TeSys U LUB non reversing power base
TeSys TeSys U LU2B reversing power base |
| main function available |
Communication module
|
|
|---|---|---|
| mounting mode |
Plug-in
|
|
| mounting location |
Front side
|
|
| physical interface |
7.A.7.And
|
|
| bus type |
AS-Interface
|
|
| addressing |
62 slaves
|
|
| return time |
10 ms
|
|
| current consumption |
200 mA at 24 V output
25 mA normal operation 30 mA fault condition |
|
| number of outputs |
2 dedicated to starter-controller coil operation
|
|

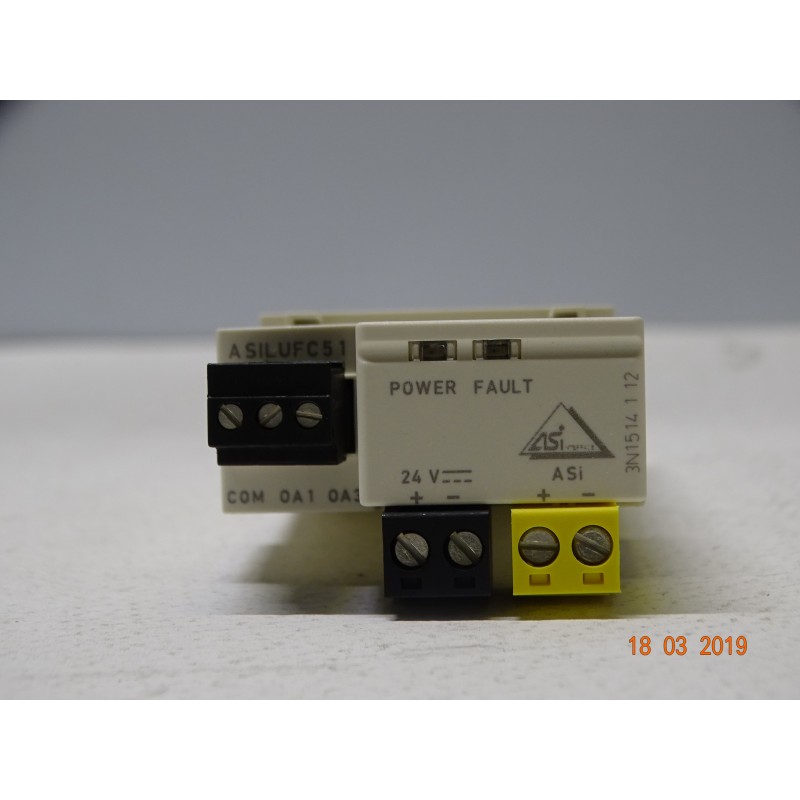

| local signalling |
2 LEDs the front panel
|
|
| connection pitch |
3.81 mm output
5.08 mm input |
|
| connections - terminals |
Input : screw clamp terminals 1 cable 0.2...1.5 mm2 - cable stiffness: flexible - without cable end
Input : screw clamp terminals 1 cable 0.2...1.5 mm2 - cable stiffness: rigid - without cable end Input : screw clamp terminals 1 cable 0.25...1.5 mm2 - cable stiffness: flexible - with cable end Input : screw clamp terminals 2 cable 0.2...1 mm2 - cable stiffness: flexible - without cable end Input : screw clamp terminals 2 cable 0.2...1 mm2 - cable stiffness: rigid - without cable end Input : screw clamp terminals 2 cable 0.25...1 mm2 - cable stiffness: flexible - with cable end Input : screw clamp terminals 2 cable 0.5...1 mm2 - cable stiffness: flexible - with cable end Output : screw clamp terminals 1 cable 0.14...1 mm2 - cable stiffness: flexible - without cable end Output : screw clamp terminals 1 cable 0.14...1 mm2 - cable stiffness: rigid - without cable end Output : screw clamp terminals 1 cable 0.25...0.5 mm2 - cable stiffness: flexible - with cable end Output : screw clamp terminals 1 cable 0.25...1 mm2 - cable stiffness: flexible - with cable end Output : screw clamp terminals 2 cable 0.14...0.5 mm2 - cable stiffness: rigid - without cable end Output : screw clamp terminals 2 cable 0.14...0.75 mm2 - cable stiffness: flexible - without cable end Output : screw clamp terminals 2 cable 0.25...0.34 mm2 - cable stiffness: flexible - with cable end Output : screw clamp terminals 2 cable 0.5 mm2 - cable stiffness: flexible - with cable end |
|
| tightening torque |
Input : 0.5...0.6 N. m - with screwdriver 3.5 mm
Output : 0.2...0.25 N. m - with screwdriver 2.5 mm |
