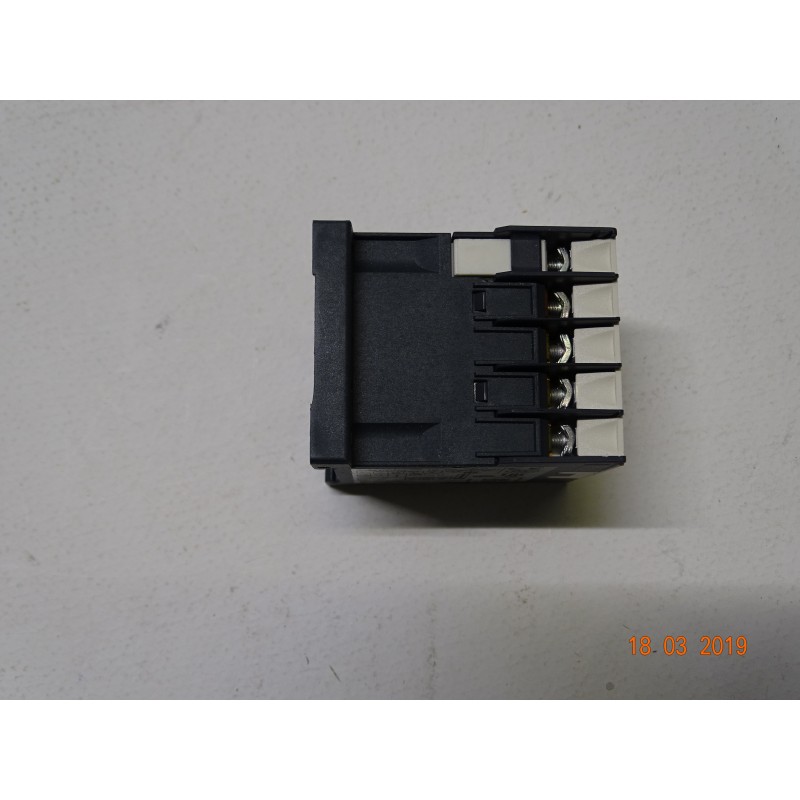

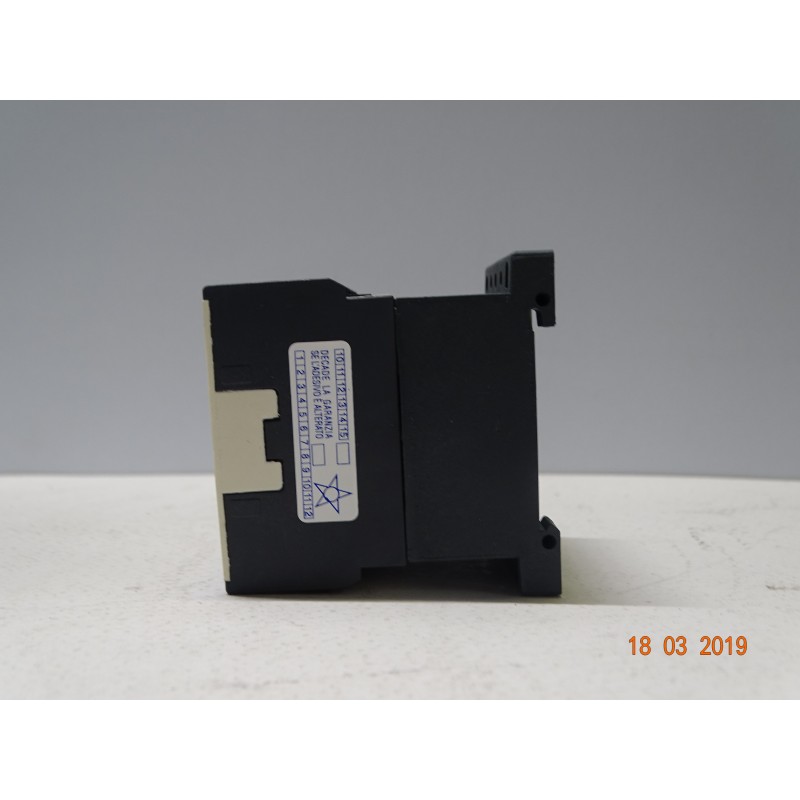

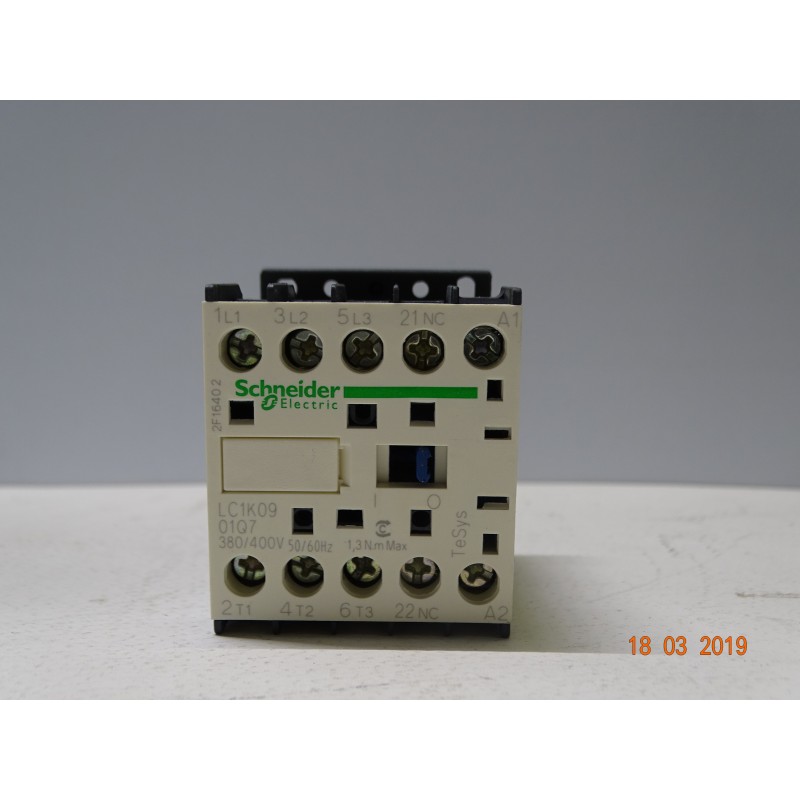

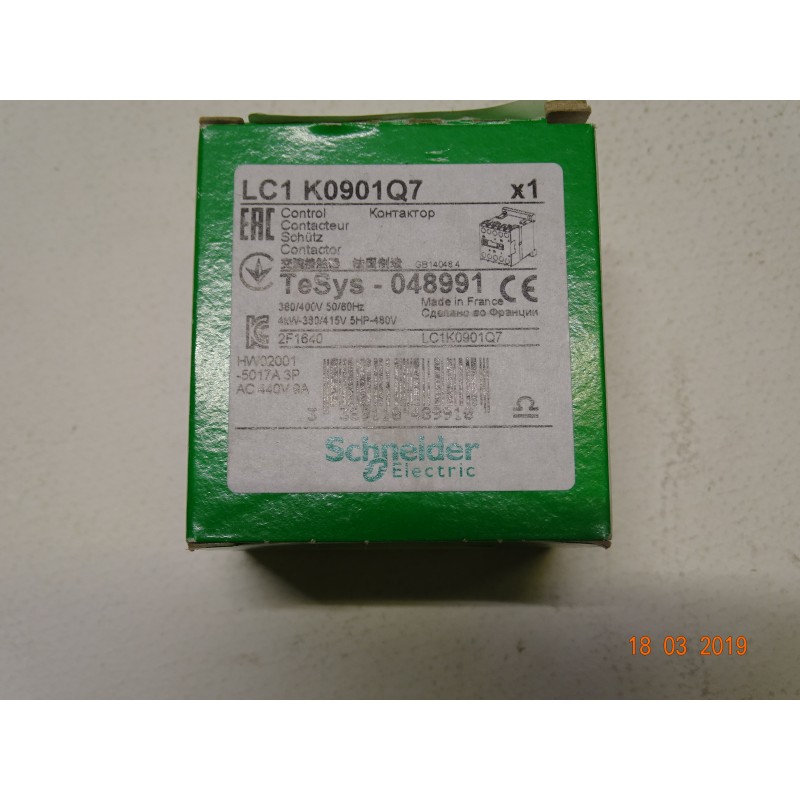

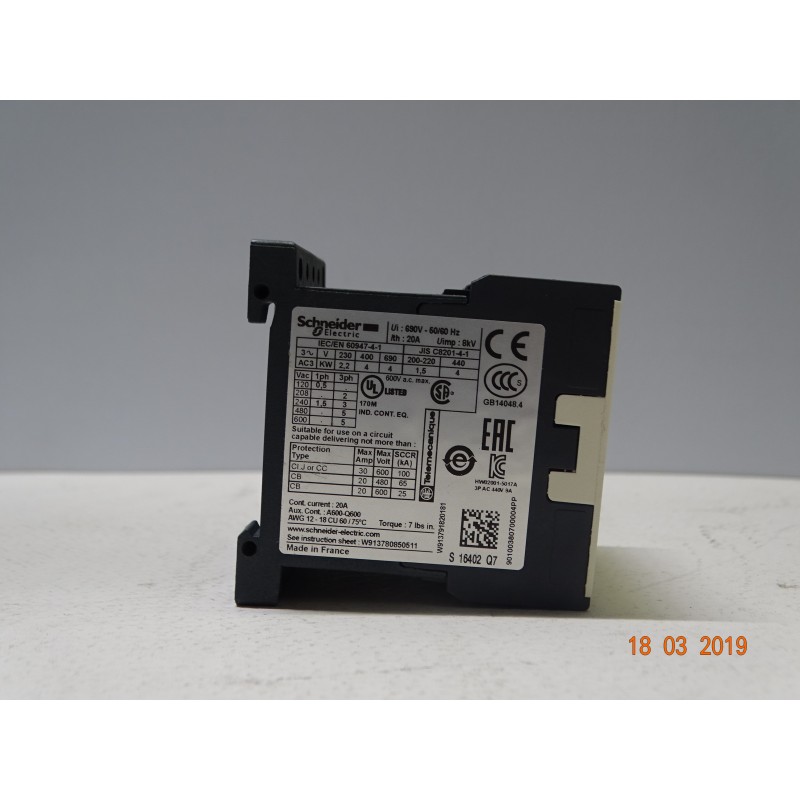

SCHNEIDER TESYS LC1K0901Q7 Contactor TeSys LC1K - 3 poles - AC3 440V 9 A - 380...400V AC (ARM 6/4)
682/GA2/Q1
Nuovo (Altro)
10,00 € tax incl.
tax incl.
1 Item
Warning: Last items in stock!
| Tipo | Contattore |
| Description of the conditions | Nuovo, aperto per fare le foto |
| Brand | Schneider Electric |
| Fabbricante | Schneider Electric |
| Responsabile dei Prodotti | Schneider Electric |
SCHNEIDER TESYS LC1K0901Q7 Contactor TeSys LC1K - 3 poles - AC3 440V 9 A - 380...400V AC
| range |
TeSys
|
|
|---|---|---|
| the type of product or component |
Contactor
|
|
| product name |
TeSys K
|
|
| application |
Control
|
|
| application the contactor |
Command engine
Resistive load |
| category of use |
AC-1
AC-3 AC-4 |
|
|---|---|---|
| number of poles |
3P
|
|
| composition contact polo |
3 NO
|
|
| Nominal operating current [Ie] |
9 a At <= 440 V AC AC-3 for power circuit
20 A (<= 50 °C) at <= 440 V AC AC-1 for power circuit 16 A (<= 70 °C) at 690 V AC AC-1 for power circuit |
|
| type control circuit |
AC 50/60 Hz
|
|
| control voltage [Uc] |
380...400 V AC 50/60 Hz
|
|
| motor power in kW |
2.2 kW 400 V AC 50/60 Hz AC-4
2.2 kW at 220...230 V AC 50/60 Hz AC-3 4 kW at 380...415 V AC 50/60 Hz AC-3 4 kW at 440 V AC 50/60 Hz AC-3 4 kW at 480 V AC 50/60 Hz AC-3 4 kW at 500...600 V AC 50/60 Hz AC-3 4 kW at 660...690 V AC 50/60 Hz AC-3 |
|
| composition auxiliary contact |
1 NC
|
|
| overvoltage category |
III
|
|
| Conventional thermal current in open air [Ith] |
20 a At <= 50 °C for power circuit
10 a At <= 50 °C for circuit signaling |
|
| power closing rated Irms |
110 A AC for power circuit conforming to NF C 63-110
110 A AC for power circuit conforming to IEC 60947 110 A AC for circuit signaling conforming to IEC 60947 |
|
| breaking capacity rated |
110 a At 415 V conforming to IEC 60947
110 A at 440 V conforming to IEC 60947 80 a At 500 V conforming to IEC 60947 110 a At 220...230 V conforming to IEC 60947 110 a At 380...400 V conforming to IEC 60947 70 a At 660...690 V conforming to IEC 60947 |
|
| the caliber of the fuse associated |
25 A gG at <= 440 V for power circuit
25 A aM for power circuit 10 A gG for circuit signaling conforming to IEC 60947 10 A gG for circuit signaling conforming to VDE 0660 |
|
| average impedance |
3 mOhm at 50 Hz - Ith 20 A for power circuit
|
|
| insulation resistance |
> 10 MOhm for circuit signaling
|
|
| power consumption in VA |
30 VA at 20 °C
|
|
| power absorption maintenance GOES |
4,5 VA 20 °C
|
|
| heat dissipation |
1.3 W
|
|
| voltage limits control circuit |
0,2...0,75 Uc at <= 50 °C drop-out
0,8...1,15 Uc at <= 50 °C operating |
|
| speed of operation |
3600 cycles/h
|
|
| type auxiliary contacts |
Type instantaneous (1 NC)
|
|
| frequency circ. reporting |
<= 400 Hz
|
|
| current minimum switching |
5, but circuit reporting
|
|
| voltage minimum switching |
17 V for circuit signaling
|
|
| operating time |
10...20 ms coil drop-out + open
10...20 ms coil pull-in + clasp NO |
|
| Level of reliability, security |
B10d = 1369863 cycles Contactor with nominal load conforming to EN/ISO 13849-1
B10d = 20000000 cycles Contactor with mechanical load conforming to EN/ISO 13849-1 |
|
| distance of non-overlapping |
0.5 mm
|
|
| mechanical strength |
Shocks contactor closed, on X axis 10 Gn for 11 ms IEC 60068-2-27
Shocks contactor closed, on Y axis 15 Gn for 11 ms IEC 60068-2-27 Shocks contactor closed, on Z axis 15 Gn for 11 ms IEC 60068-2-27 Shocks contactor opened, on X axis 6 Gn for 11 ms IEC 60068-2-27 Shocks contactor opened, on Y axis 10 Gn for 11 ms IEC 60068-2-27 Shocks contactor opened, on Z axis 10 Gn for 11 ms IEC 60068-2-27 Vibrations contactor closed 4 Gn, 5...300 Hz IEC 60068-2-6 Vibrations contactor open 2 Gn, 5...300 Hz IEC 60068-2-6 |
