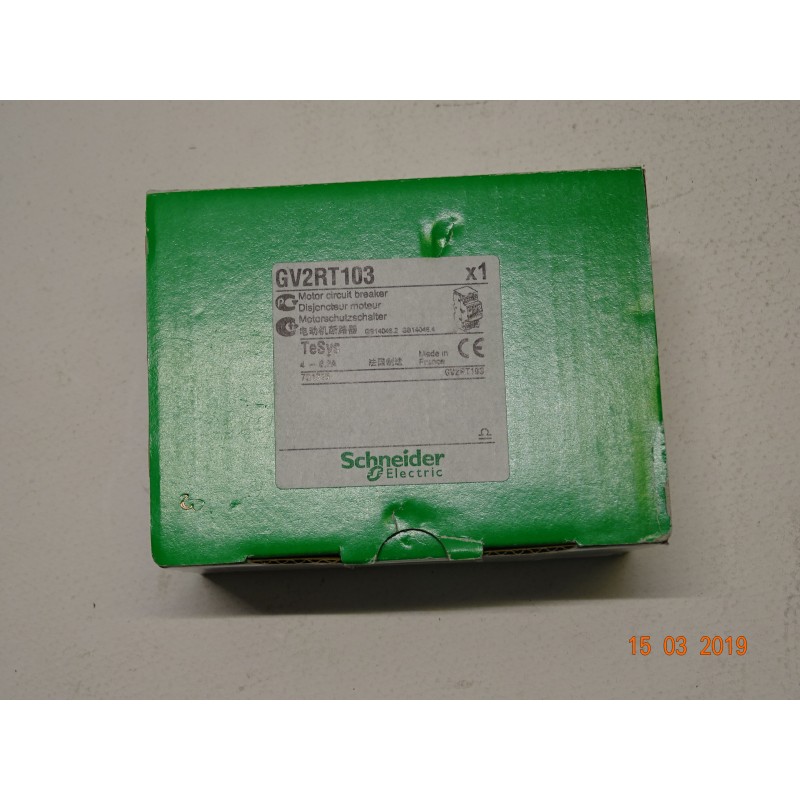

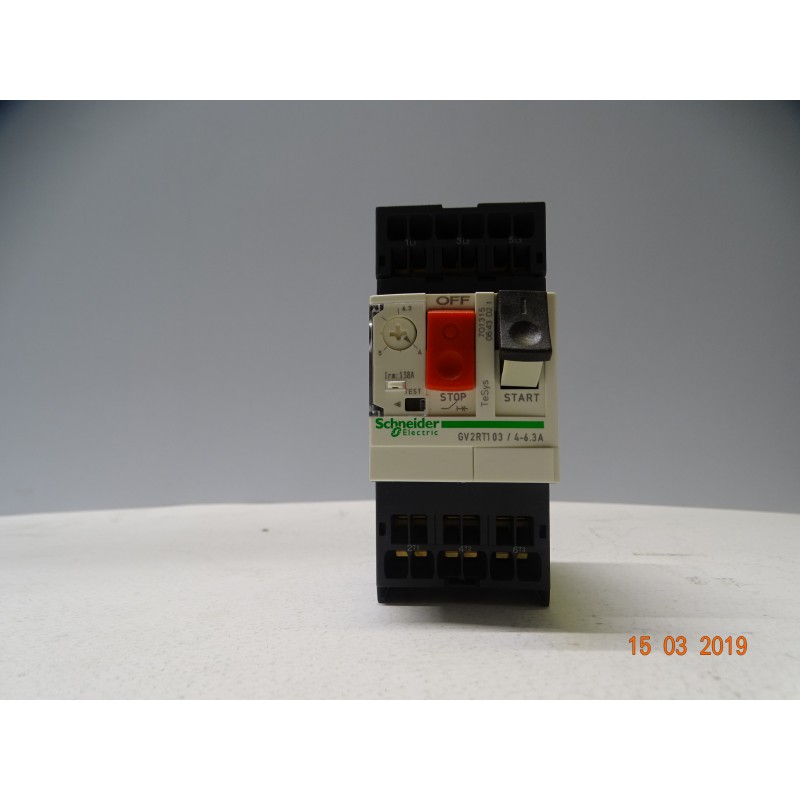

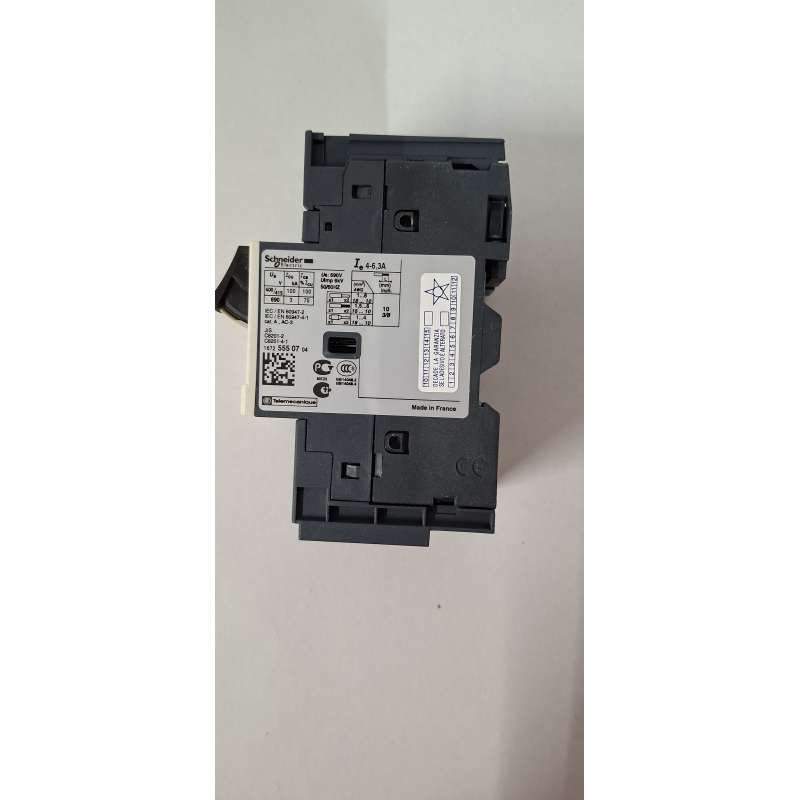

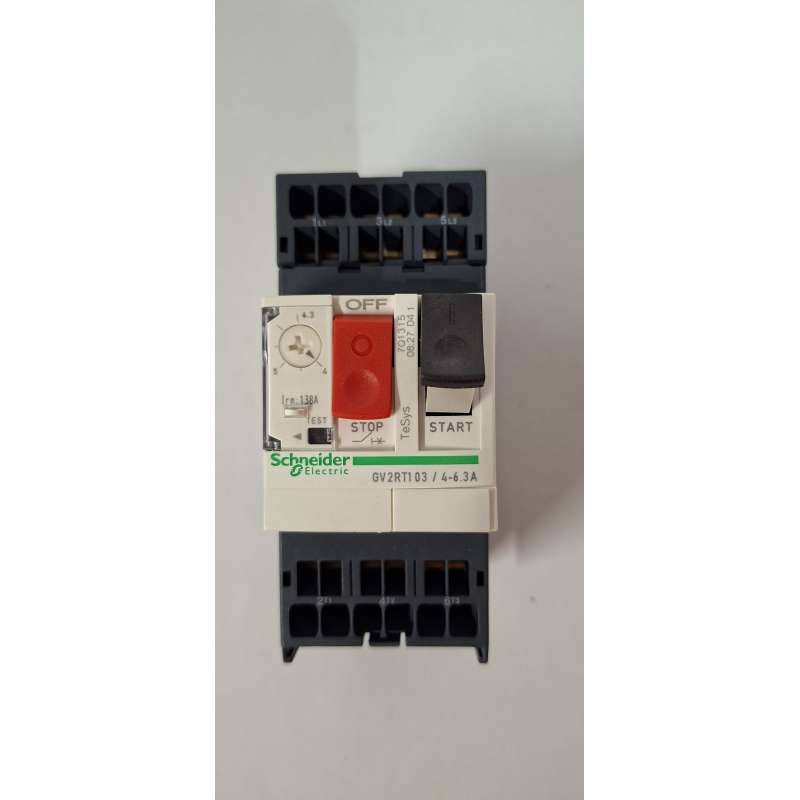

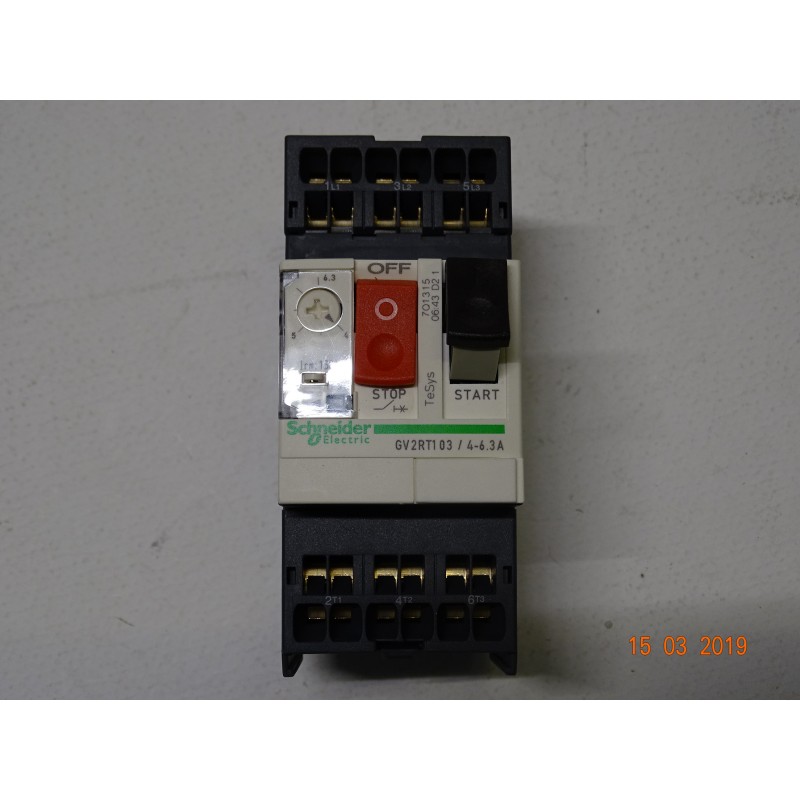

SCHNEIDER TESYS GV2RT103-Circuit Breaker TeSys GV2 - 4...6.3 A - Spring Terminals (ARM 6/4)
673/GA2/Q23
Nuovo (Altro)
40,00 € tax incl.
tax incl.
22 Items
| Tipo | Salvamotore |
| Description of the conditions | Nuovo, aperto per fare le foto |
| Brand | Schneider Electric |
| Fabbricante | Schneider Electric |
| Responsabile dei Prodotti | Schneider Electric |
SCHNEIDER TESYS GV2RT103-Circuit Breaker TeSys GV2 - 4...6.3 A - Spring Terminals
| range |
TeSys
|
|
|---|---|---|
| product name |
TeSys GV2
|
|
| abbreviated name |
GV2RT
|
|
| the type of product or component |
Circuit breaker
|
|
| application |
Engine
Transformer |
|
| technology release |
Breaker
|
| number of poles |
3P
|
|
|---|---|---|
| network type |
CA
|
|
| category of use |
AC-3 conforming to IEC 60947-4-1
Category A conforming to IEC 60947-2 |
|
| network frequency |
50/60 Hz conforming to IEC 60947-4-1
|
|
| type of fixing |
Hooked on the DIN rail symmetrical 35 mm
Screwed on panel (with adaptor plate) |
|
| operating position |
Any position
|
|
| motor power in kW |
1.1 kW at 220/230 V AC 50/60 Hz motor protection high peak current)
2.2 kW at 400/415 V AC 50/60 Hz motor protection high peak current) 2.2 kW at 440 V AC 50/60 Hz motor protection high peak current) 3 kW at 440 V AC 50/60 Hz motor protection high peak current) 3 kW at 500 V AC 50/60 Hz motor protection high peak current) 4 kW at 690 V AC 50/60 Hz motor protection high peak current) 1.6 kW at 230/240 V AC 50/60 Hz (transformer protection) 2 kW at 230/240 V AC 50/60 Hz (transformer protection) 2.5 kW at 400/415 V AC 50/60 Hz (transformer protection) 2.5 kW at 440 V AC 50/60 Hz (transformer protection) 4 kW at 440 V AC 50/60 Hz (transformer protection) 4 kW at 500 V AC 50/60 Hz (transformer protection) 4 kW at 690 V AC 50/60 Hz (transformer protection) 5 kW at 690 V AC 50/60 Hz (transformer protection) 6.3 kW at 690 V AC 50/60 Hz (transformer protection) |
|
| power outage |
3 kA Icu at 690 V AC 50/60 Hz conforming to IEC 60947-2
50 kA Icu at 440 V AC 50/60 Hz conforming to IEC 60947-2 50 kA Icu at 500 V AC 50/60 Hz conforming to IEC 60947-2 100 kA Icu at 400/415 V AC 50/60 Hz conforming to IEC 60947-2 100 kA Icu at 220/230 V AC 50/60 Hz conforming to IEC 60947-2 |
|
| command type |
Lever
|
|
| Rated current [In] |
6.3 A
|
|
| calibre release |
4...6.3 A
|
|
| the current of magnetic release |
138
|
|
| Rated operating voltage [Ue] |
690 V AC 50/60 Hz conforming to IEC 60947-2
|
|
| Rated insulation voltage [Ui] |
690 V AC 50/60 Hz conforming to IEC 60947-2
|
|
| Conventional thermal current in open air [Ith] |
6.3 A conforming to IEC 60947-4-1
|
|
| Rated voltage impulse withstand [Uimp] |
6 kV conforming to IEC 60947-2
|
|
| energy dissipation per pole |
2.5 W
|
|
| mechanical life |
100000 cycles
|
|
| electrical life |
100000 cycles for AC-3 at 440 V
|
|
| maximum operating speed |
25 cycles/h
|
|
| rated |
Continuous conforming to IEC 60947-4-1
|
|
| connections - terminals |
Spring terminals 2 cable(s) 1...6 mm2 solid
Spring terminals 2 cable(s) 1.5...4 mm2 flexible without cable end |
|
| attitude cutting |
It conforms to IEC 60947-1
|
|
| sensitivity phase failure |
S conforms to IEC 60947-4-1
|
|
| height |
89 mm
|
|
| width |
45 mm
|
|
| depth |
78.5 mm
|
