MERLIN GERIN 16618 System Lightning 3P+N Imax 10kA QUICK PF10 (IB1)
3002/FB1/C2/Q4
Nuovo (Altro)
90,50 € tax incl.
tax incl.
1 Item
Warning: Last items in stock!

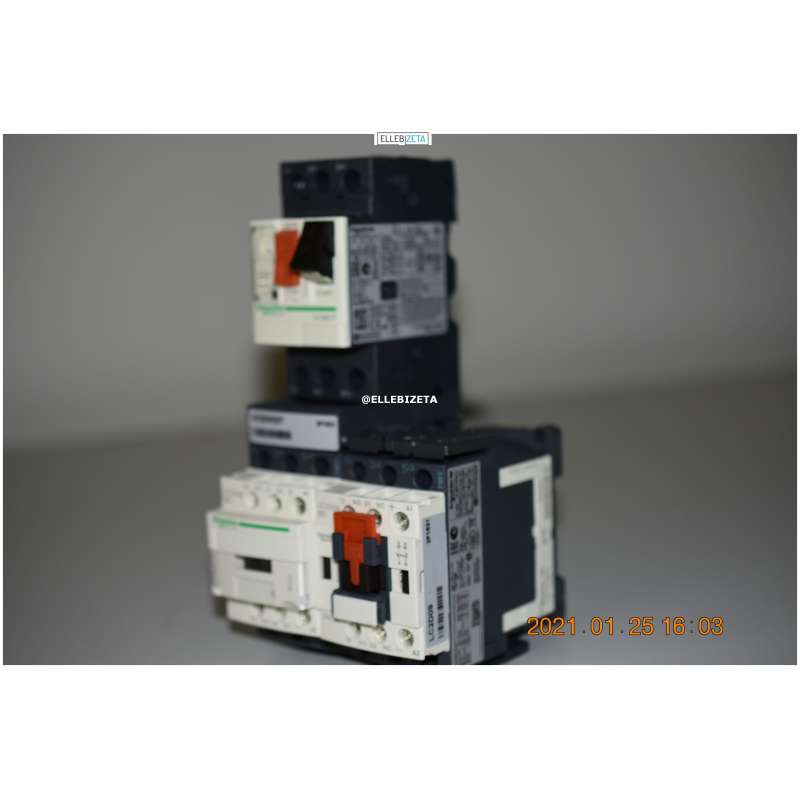

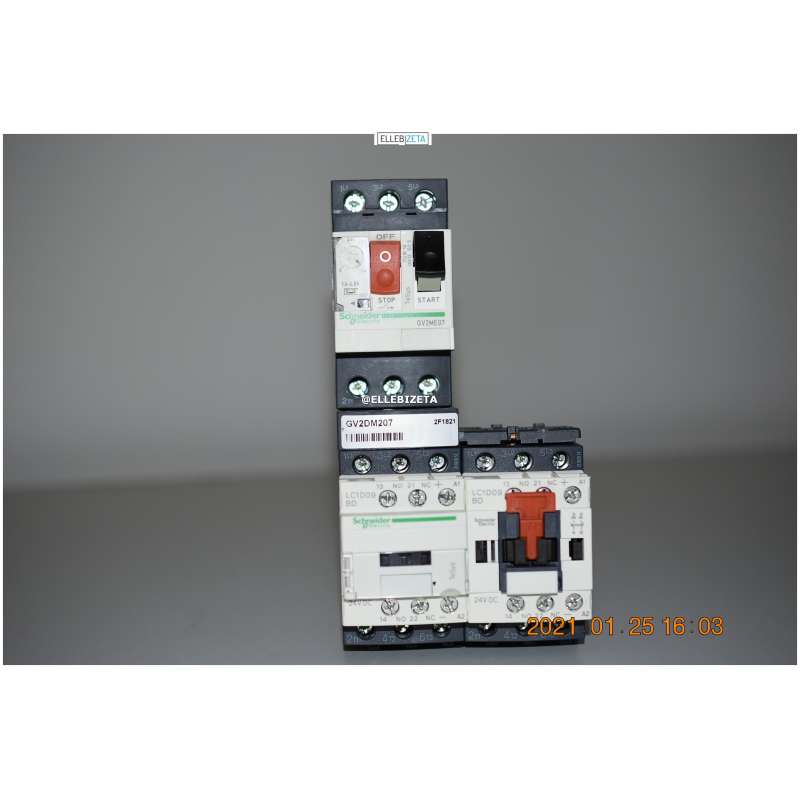

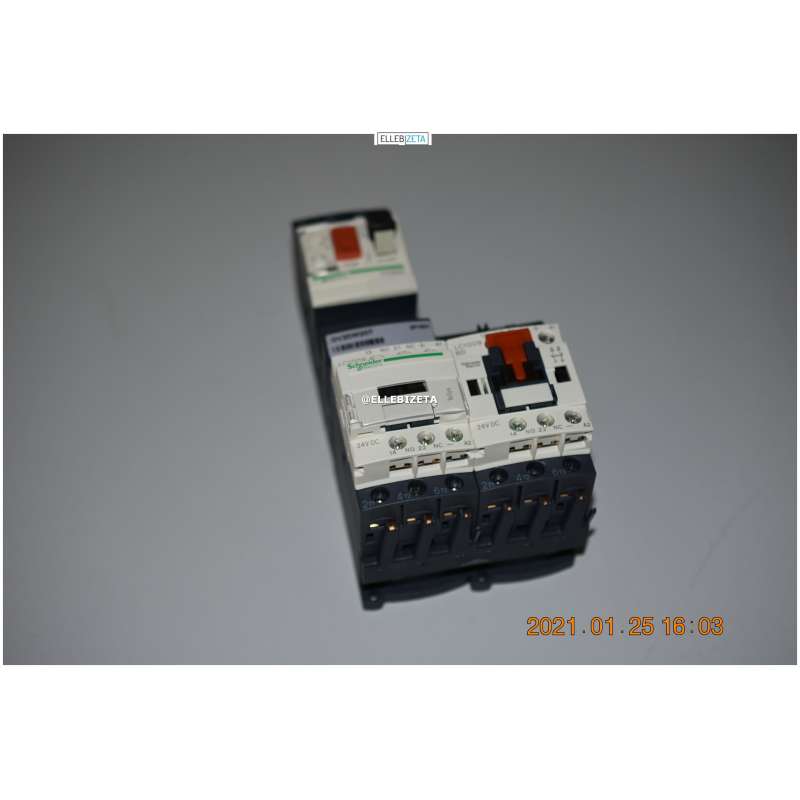

| Tipo | TeSys GV2D |
| Description of the conditions | Nuovo, aperto per fare le foto |
| Brand | Schneider Electric |
| Fabbricante | Schneider Electric |
| Responsabile dei Prodotti | Schneider Electric |
MERLIN GERIN 16618 System Lightning 3P+N Imax 10kA QUICK PF10
| the product range |
Multi 9
|
|
|---|---|---|
| product name |
Multi 9 Quick PF
|
|
| the type of product or component |
System lightning
|
|
| abbreviated name |
Quick PF
|
|
| application |
Distribution
|
|
| number of poles |
3P + N
|
|
| remote signaling |
Without
|
|
| type limiter overvoltage |
Network, distribution of electricity,
|
|
| grounding system |
TN-S
TT |
| type class lim. surge |
Type2
|
|
|---|---|---|
| techn. limiter overvoltage |
MOV + GDT
|
|
| Rated operating voltage [Ue] |
230 V (+/- 10 %) AC 50/60 Hz
400 V (+/- 10 %) AC 50/60 Hz |
|
| nominal discharge current [In] |
Differential mode : 5 kA L/N
Common mode : 20 kA N/PE |
|
| maximum discharge current |
Differential mode : 10 kA L/N
Common mode : 20 kA N/PE |
|
| maximum voltage for continuous operation [Uc] |
Common mode : 275 V N/PE
Differential mode : 275 V L/N |
|
| Level of protection voltage [Up] |
1.5 kV type2 common mode N/PE
1.5 kV type2 differential mode L/N |
|
| current subsequent |
0.1 kA common mode N/PE
|
|
| type disconnect device |
Integrated circuit breaker - Icu 6 kA
|
|
| the sealing of the short-circuit-proof |
25 kA
|
|
| local reporting |
Flag color: white/red
|
|
| editing mode |
Coupling
|
|
| support for mounting |
DIN rail
|
|
| distance of 9 mm |
10
|
|
| height |
106,8 mm
|
|
| width |
88,4 mm
|
|
| depth |
74,1 mm
|
|
| color |
Grey ( RAL 7035 )
|
|
| response time |
<= 25 ns
|
|
| connections - terminals |
Cage-clamp, lower side of the 2.5...25 mm2
Cage-clamp, upper side is 2.5...25 mm2 |
|
| tightening torque |
2.5 Nm
|
| brands quality |
WHERE
|
|
|---|---|---|
| degree of protection IP |
On front face : IP40 conforming to IEC 60529
On terminal : IP20 conforming to IEC 60529 |
|
| degree of protection IK |
IK03 conforming to IEC 62262
|
|
| relative humidity |
5...90%
|
|
| operating environment temperature |
-5...40°C
|
|
| storage temperature |
-40...85°C
|
