MERLIN GERIN 16618 System Lightning 3P+N Imax 10kA QUICK PF10 (IB1)

Reference: 2770/CB4DX/Q6

Condition: Nuovo (Altro)

40,00 € tax incl.

5 Item Items

Tipo	Contattore
Description of the conditions	Nuovo, aperto per fare le foto
Brand	Schneider Electric

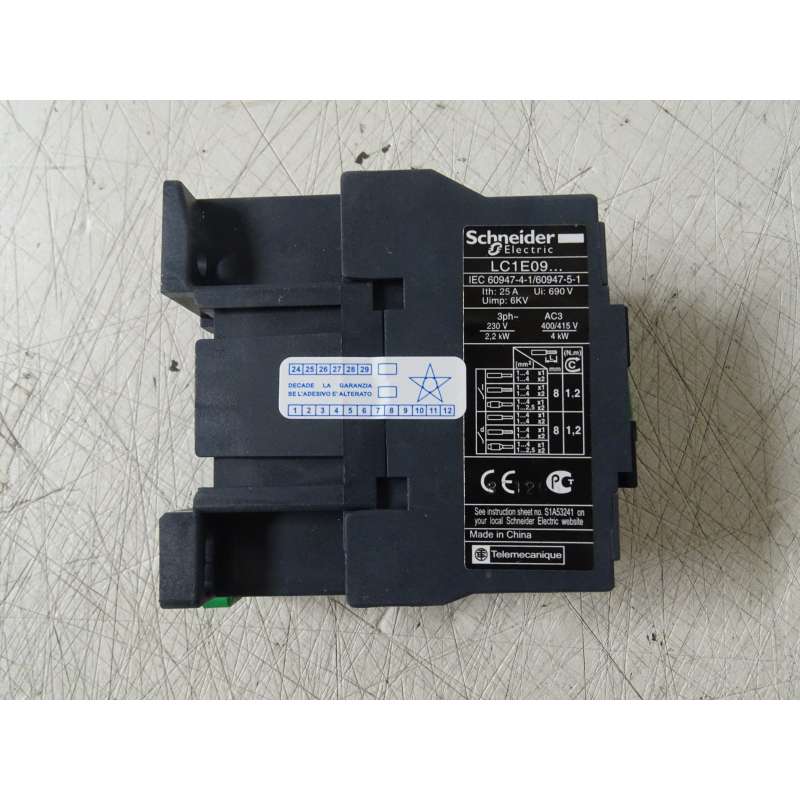

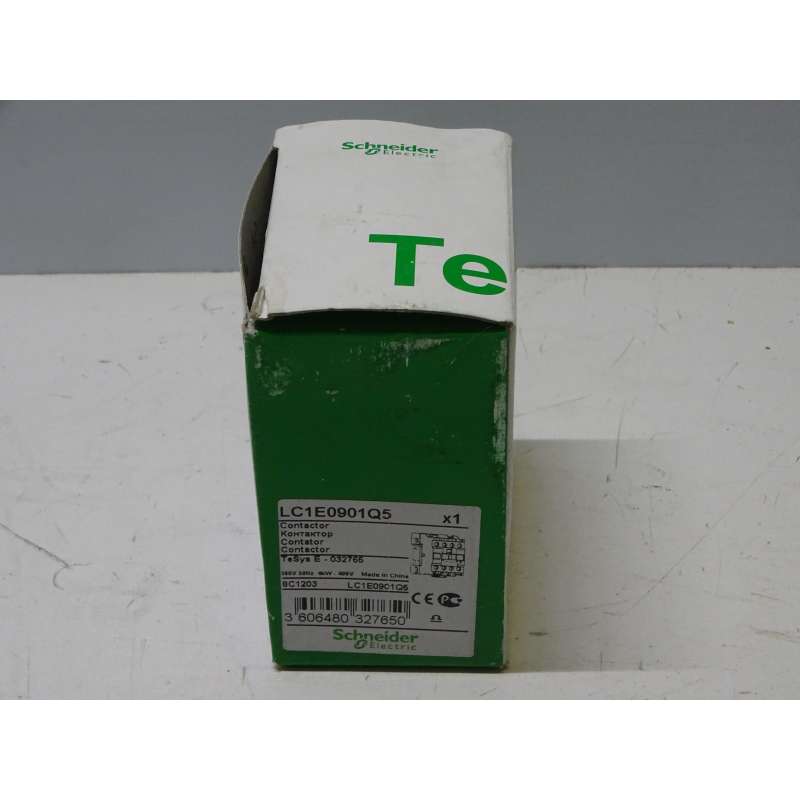

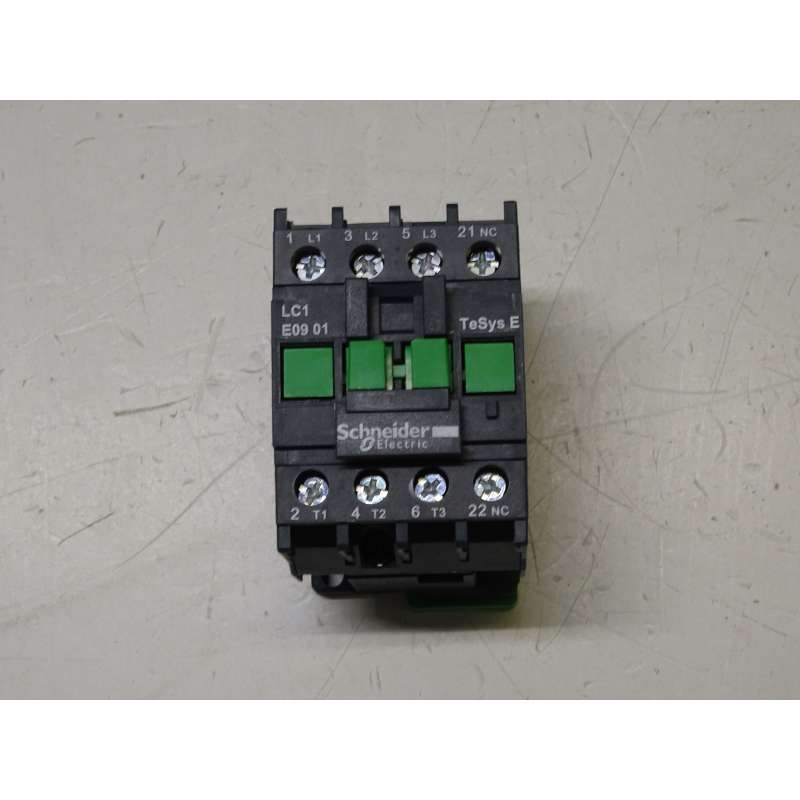

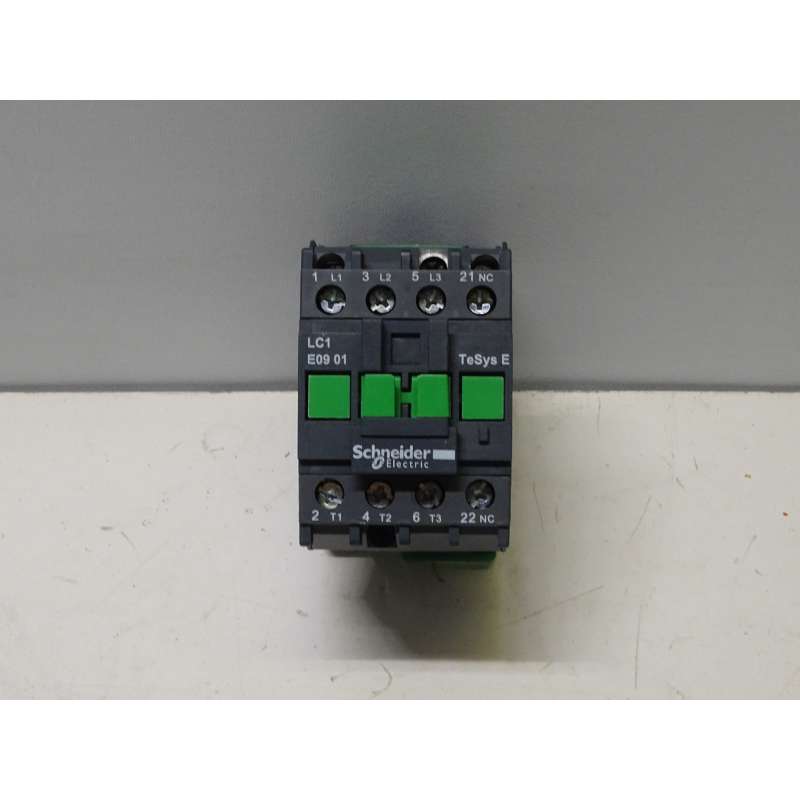

Modello Librio	LC1E0901Q5
Colore	Nero

MERLIN GERIN 16618 System Lightning 3P+N Imax 10kA QUICK PF10

Presentation
the product range	Multi 9
product name	Multi 9 Quick PF
the type of product or component	System lightning
abbreviated name	Quick PF
application	Distribution
number of poles	3P + N
remote signaling	Without
type limiter overvoltage	Network, distribution of electricity,
grounding system	TN-S TT

Technical characteristics
type class lim. surge	Type2
techn. limiter overvoltage	MOV + GDT
Rated operating voltage [Ue]	230 V (+/- 10 %) AC 50/60 Hz 400 V (+/- 10 %) AC 50/60 Hz
nominal discharge current [In]	Differential mode : 5 kA L/N Common mode : 20 kA N/PE
maximum discharge current	Differential mode : 10 kA L/N Common mode : 20 kA N/PE
maximum voltage for continuous operation [Uc]	Common mode : 275 V N/PE Differential mode : 275 V L/N
Level of protection voltage [Up]	1.5 kV type2 common mode N/PE 1.5 kV type2 differential mode L/N
current subsequent	0.1 kA common mode N/PE
type disconnect device	Integrated circuit breaker - Icu 6 kA
the sealing of the short-circuit-proof	25 kA
local reporting	Flag color: white/red
editing mode	Coupling
support for mounting	DIN rail
distance of 9 mm	10
height	106,8 mm
width	88,4 mm
depth	74,1 mm
color	Grey ( RAL 7035 )
response time	<= 25 ns
connections - terminals	Cage-clamp, lower side of the 2.5...25 mm2 Cage-clamp, upper side is 2.5...25 mm2
tightening torque	2.5 Nm

Environment
brands quality	WHERE
degree of protection IP	On front face : IP40 conforming to IEC 60529 On terminal : IP20 conforming to IEC 60529
degree of protection IK	IK03 conforming to IEC 62262
relative humidity	5...90%
operating environment temperature	-5...40°C
storage temperature	-40...85°C
