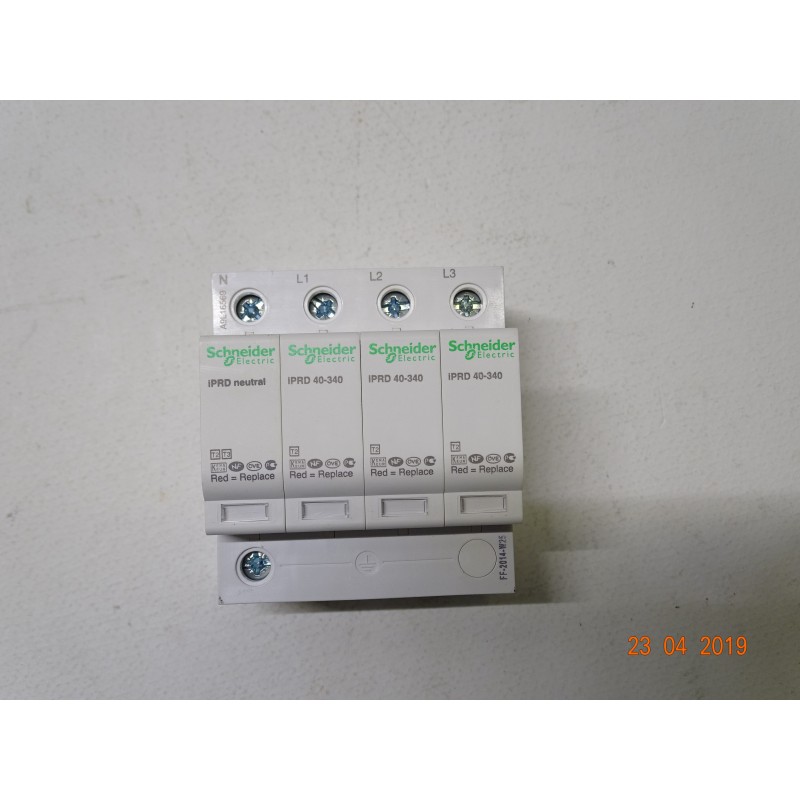

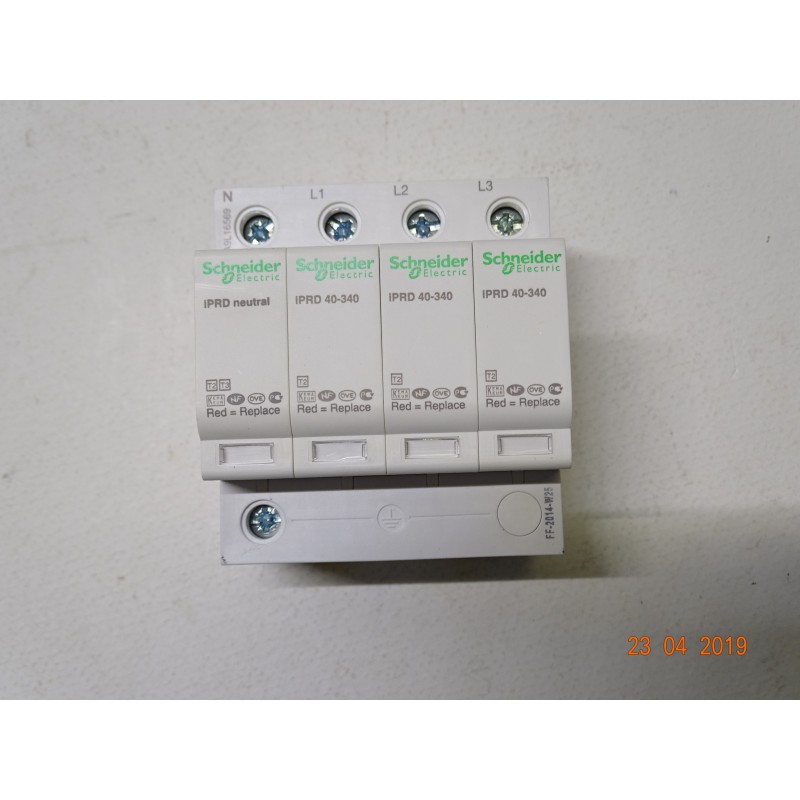

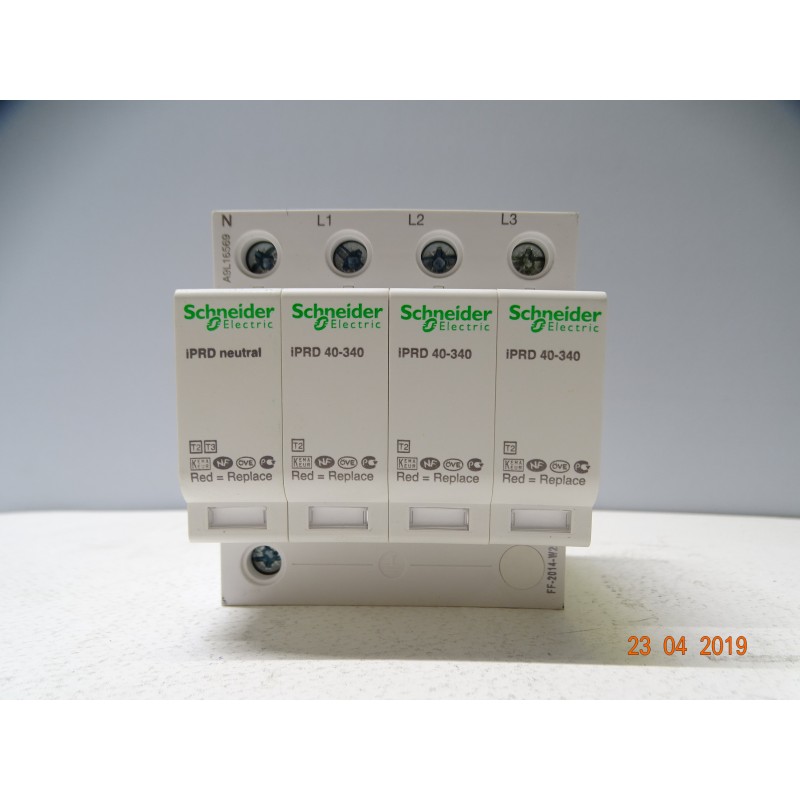

SCHNEIDER A9L16569 System Lightning Modular iPRD 3P+N-Imax 40KA 230/400V (IB1)
IB1/Q5
Nuovo (Altro)
49,00 € tax incl.
tax incl.
2 Items
Warning: Last items in stock!
| Tipo | Sistema Antifulmine |

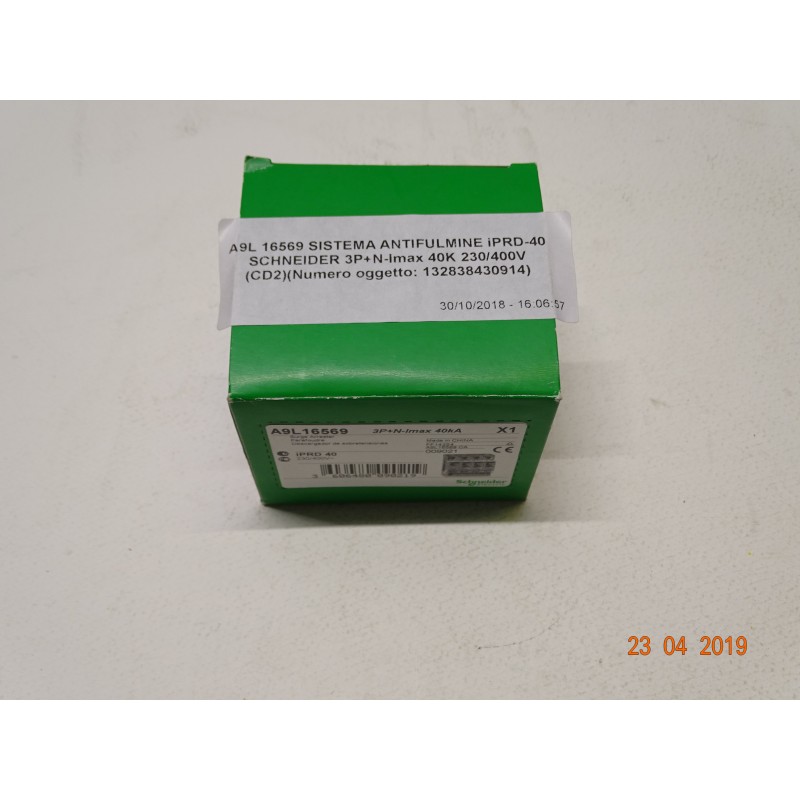

| Description of the conditions | Confezione originale danneggiata |
| Brand | Schneider Electric |
| Modello Librio | A9L16569 |
SCHNEIDER A9L16569 System Lightning Modular iPRD 3P+N-Imax 40KA 230/400V
| the product range |
Acti 9
|
|
|---|---|---|
| product name |
Acti 9 iPRD
|
|
| the type of product or component |
System lightning with plug-in card
|
|
| abbreviated name |
IPRD
|
|
| application |
Distribution
|
|
| number of poles |
3P + N
|
|
| remote signaling |
Without
|
|
| type limiter overvoltage |
Network, distribution of electricity,
|
|
| grounding system |
TN-S
TT |
| type class lim. surge |
Type2
|
|
|---|---|---|
| techn. limiter overvoltage |
MOV + GDT
|
|
| Rated operating voltage [Ue] |
230 V (+/- 10 %) AC 50/60 Hz
400 V (+/- 10 %) AC 50/60 Hz |
|
| nominal discharge current [In] |
Common mode : 15 kA L/PE
Common mode : 15 kA N/PE Differential mode : 15 kA L/N |
|
| maximum discharge current |
Common mode : 40 kA L/PE
Common mode : 40 kA N/PE Differential mode : 40 kA L/N |
|
| maximum voltage for continuous operation [Uc] |
Common mode : 260 V N/PE
Common mode : 340 V L/PE Differential mode : 340 V L/N |
|
| Level of protection voltage [Up] |
<= 1.4 kV type 2 common mode N/PE
<= 1.4 kV type 2 differential mode L/N |
|
| type disconnect device |
The Associated circuit breaker iC60N 40 A curve C - Icu 10 kA
The Associated circuit breaker iC60H 40 A curve C - Icu 15 kA The Associated circuit breaker iC60L 40 curves In C - Icu 25 kA |
|
| local reporting |
Flag color: white/red
|
|
| editing mode |
Coupling
|
|
| support for mounting |
DIN rail
|
|
| distance of 9 mm |
8
|
|
| height |
81 mm
|
|
| width |
72 mm
|
|
| depth |
69 mm
|
|
| color |
White ( RAL 9003 )
|
|
| response time |
<= 25 ns
|
|
| connections - terminals |
Tunnel type terminal downside 2.5...35 mm2
Tunnel type terminal upside 2.5...35 mm2 |
|
| tightening torque |
2.5 Nm
|
| Rules |
EN 61643-11
IEC 61643-11 |
|
|---|---|---|
| certifications product |
EC
|
|
| brands quality |
NF
KEMA-KEUR WHERE |
|
| degree of protection IP |
On front face : IP40 conforming to IEC 60529
Built-in : IP20 conforming to IEC 60529 |
|
| degree of protection IK |
IK03 conforming to IEC 62262
|
|
| relative humidity |
5...90%
|
|
| operating altitude |
2000 m
|
|
| operating environment temperature |
-25...60°C
|
|
| storage temperature |
-40...85°C
|
