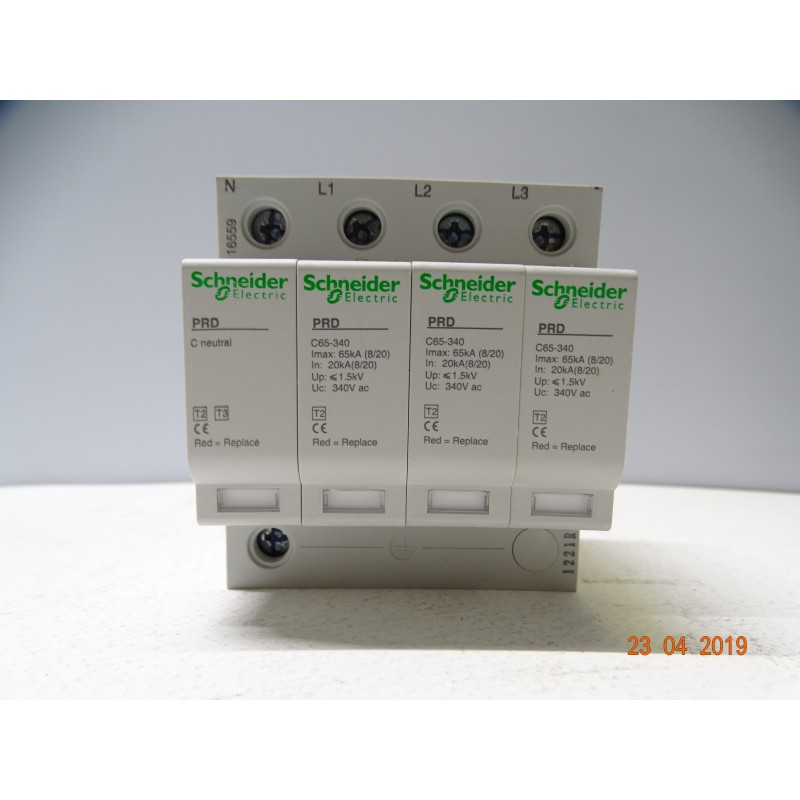

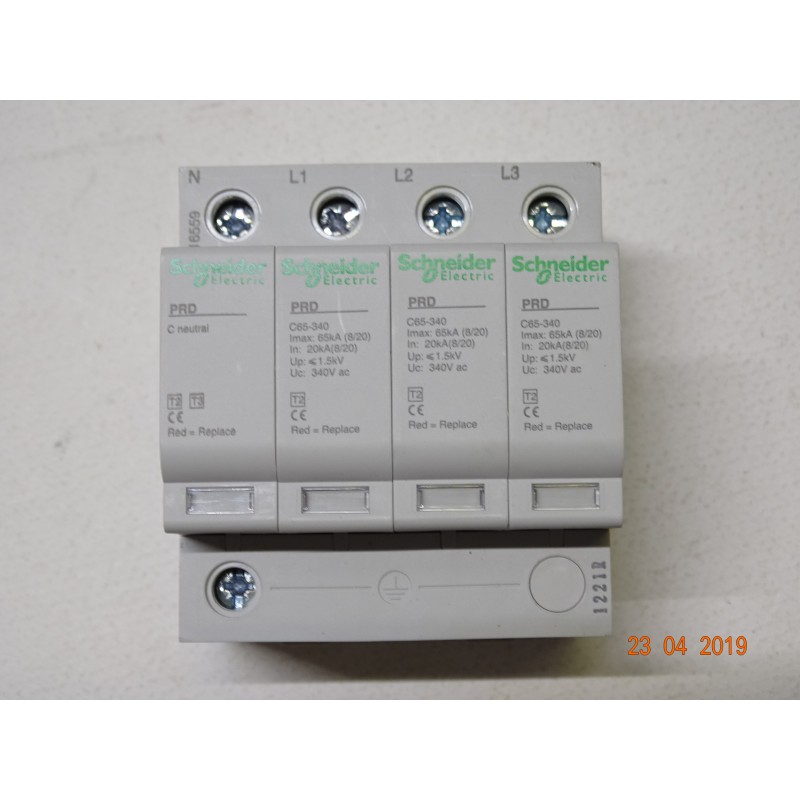

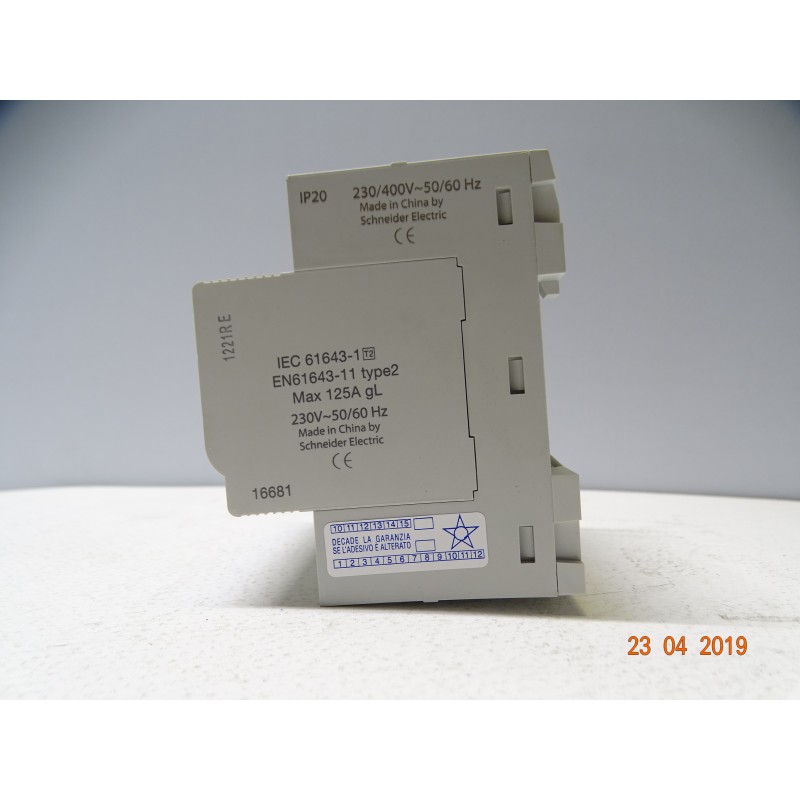

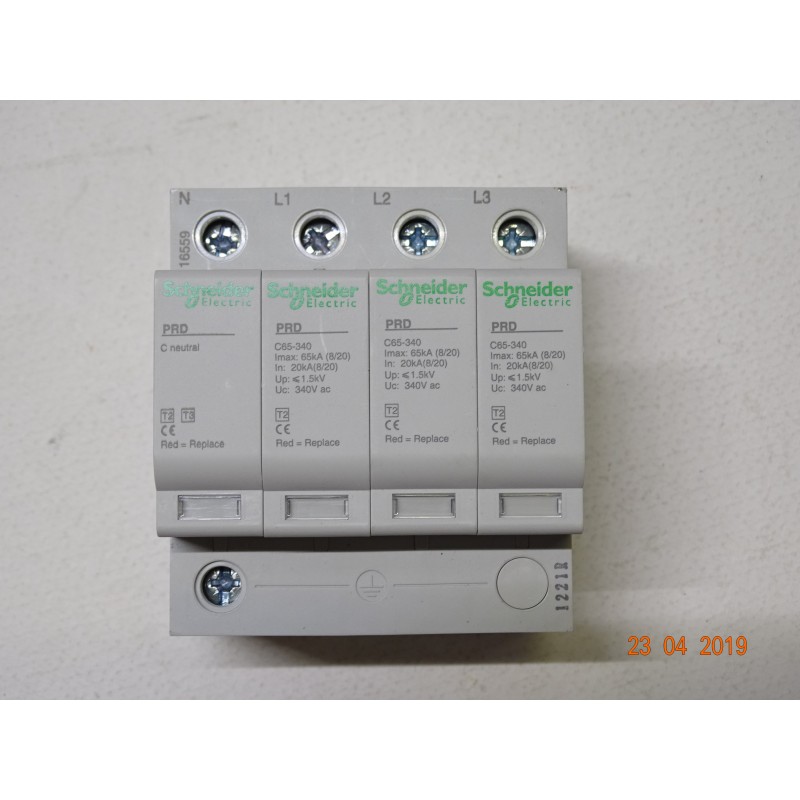

SCHNEIDER 16559 System lightning modular PRD65r - 3P+N-Imax 65KA (IB1)
IB1
Nuovo (Altro)
49,00 € tax incl.
tax incl.
1 Item
Warning: Last items in stock!
| Tipo | Sistema Antifulmine |

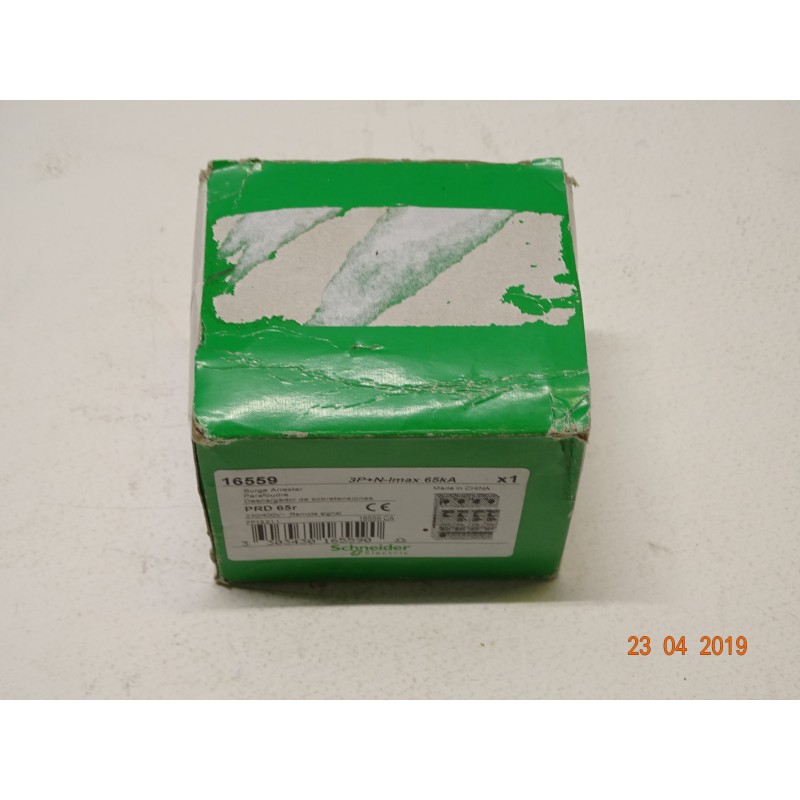

| Description of the conditions | Confezione originale danneggiata |
| Brand | Schneider Electric |
| Modello Librio | 16559 |
SCHNEIDER 16559 System lightning modular PRD65r - 3P+N-Imax 65KA
| the product range |
Multi 9
|
|
|---|---|---|
| product name |
Multi 9 PRD
|
|
| the type of product or component |
System lightning with plug-in card
|
|
| abbreviated name |
PRD65r
|
|
| application |
Distribution
|
|
| number of poles |
4P
|
|
| remote signaling |
With
|
|
| composition signal contacts |
1 SD (1 C/O)
|
|
| type limiter overvoltage |
Network, distribution of electricity,
|
|
| grounding system |
TN-C
|
| type class lim. surge |
Type2
|
|
|---|---|---|
| techn. limiter overvoltage |
MOV
|
|
| Rated operating voltage [Ue] |
230 V (+/- 10 %) AC 50/60 Hz
400 V (+/- 10 %) AC 50/60 Hz |
|
| nominal discharge current [In] |
Common mode : 20 kA L/PE
Common mode : 20 kA N/PE |
|
| maximum discharge current |
Common mode : 65 kA L/PE
Common mode : 65 kA N/PE |
|
| maximum voltage for continuous operation [Uc] |
Common mode : 340 V L/PE
Common mode : 340 V N/PE |
|
| Level of protection voltage [Up] |
1.5 kV type2 common mode L/PE
1.5 kV type2 common mode N/PE |
|
| current download total is [total] |
260 kA
|
|
| type disconnect device |
Associated circuit breaker 50 A - Icu 15 kA
Associated circuit breaker 50 A - Icu 10 kA Associated circuit breaker 50 A - Icu 25 kA |
|
| local reporting |
Flag color: white/red
|
|
| voltage signal circuit |
0.25 A/250 V AC 50/60 Hz
|
|
| editing mode |
Coupling
|
|
| support for mounting |
DIN rail
|
|
| distance of 9 mm |
8
|
|
| height |
81 mm
|
|
| width |
72 mm
|
|
| depth |
69 mm
|
|
| color |
Grey ( RAL 7035 )
|
|
| response time |
<= 25 ns
|
|
| connections - terminals |
Tunnel type terminal downside 2.5...35 mm2
Tunnel type terminal upside 2.5...35 mm2 |
|
| tightening torque |
2.5 Nm
|
| brands quality |
NF
KEMA-KEUR WHERE |
|
|---|---|---|
| degree of protection IP |
On front face : IP40 conforming to IEC 60529
On terminal : IP20 conforming to IEC 60529 |
|
| degree of protection IK |
IK03 conforming to IEC 62262
|
|
| relative humidity |
5...90%
|
|
| operating altitude |
2000 m
|
|
| operating environment temperature |
-25...60°C
|
|
| storage temperature |
-40...85°C
|
