SCHNEIDER 15693 System Lightning Modular PE15-3P+N-400V (IB1)

Reference: IB1/q0

Condition: Nuovo (Altro)

40,00 € tax incl.

This product is no longer in stock

Tipo	Sistema Antifulmine

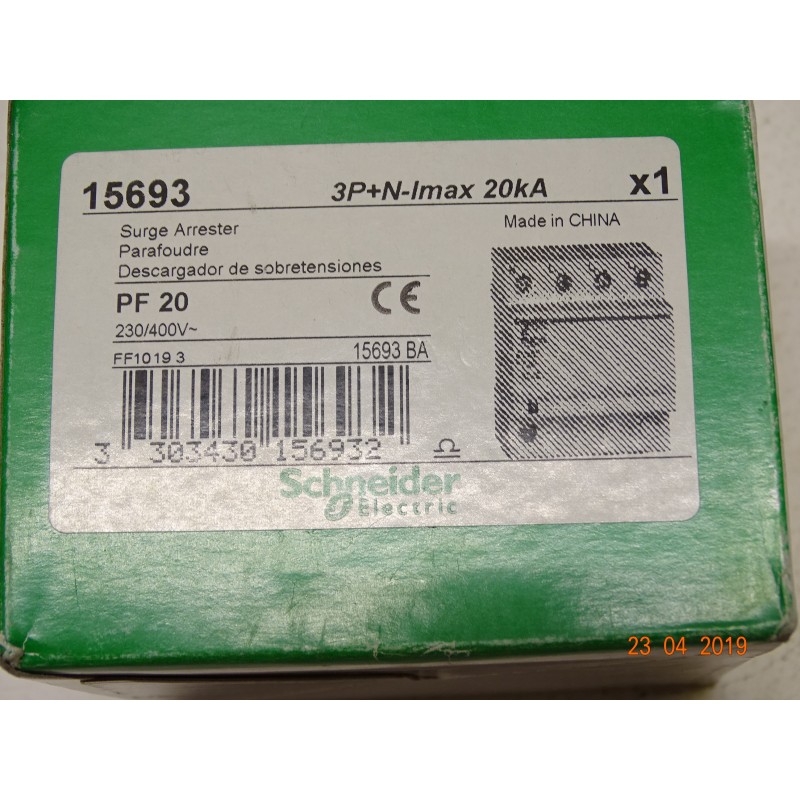

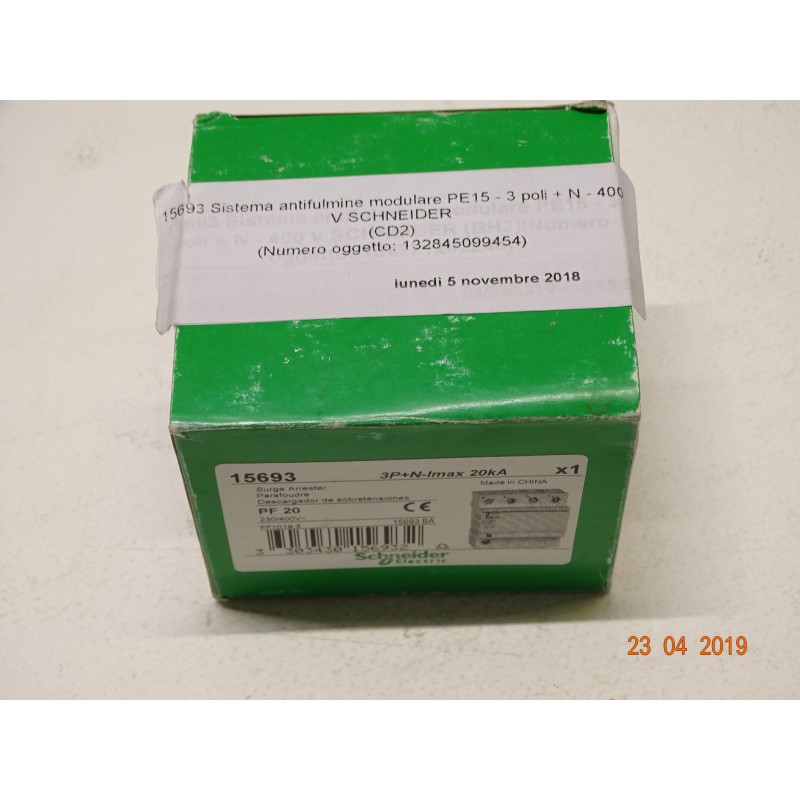

Description of the conditions	Confezione originale danneggiata
Brand	Schneider Electric
Modello Librio	15693

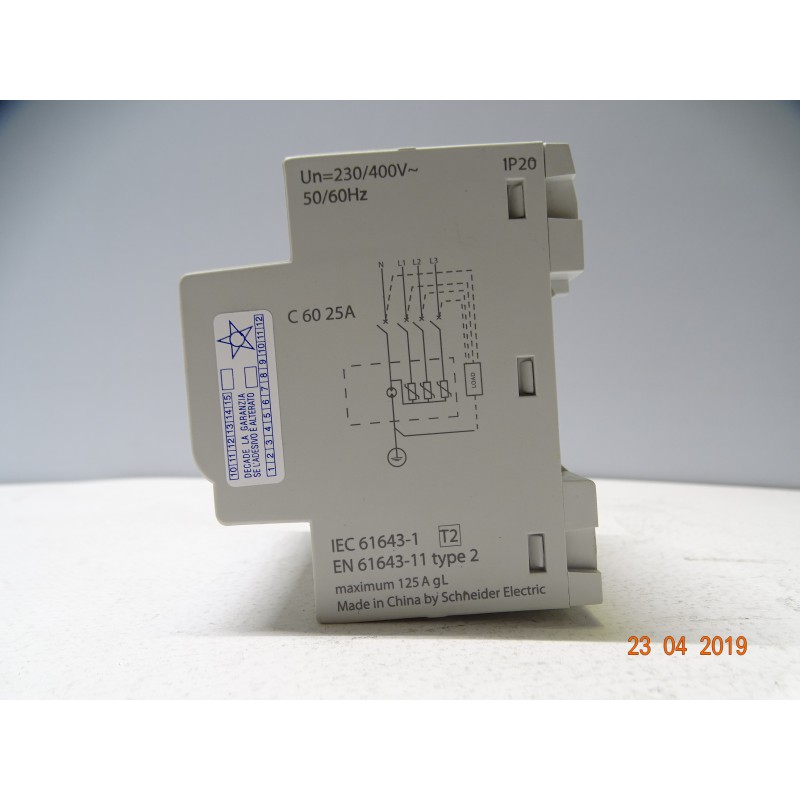

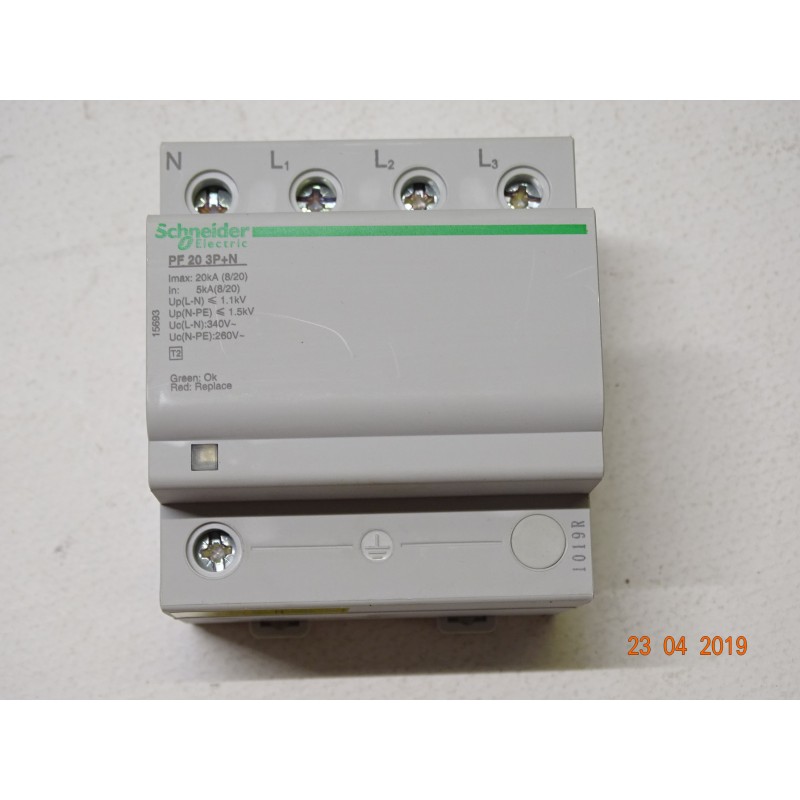

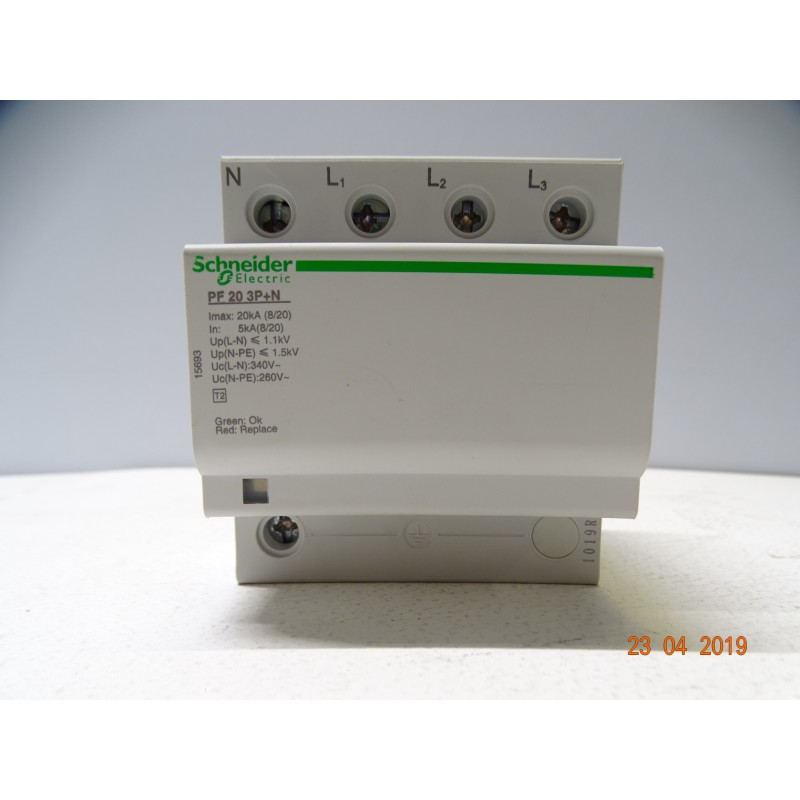

SCHNEIDER 15693 System Lightning Modular PE15-3P+N-400V

Presentation
the product range	Multi 9
product name	Multi 9 PF
the type of product or component	System lightning
abbreviated name	PF20
application	Distribution
number of poles	3P + N
remote signaling	Without
type limiter overvoltage	Network, distribution of electricity,
grounding system	TN-S TT

Technical characteristics
type class lim. surge	Type2
techn. limiter overvoltage	MOV + GDT
Rated operating voltage [Ue]	230 V (+/- 10 %) AC 50/60 Hz 400 V (+/- 10 %) AC 50/60 Hz
nominal discharge current [In]	Differential mode : 5 kA L/N Common mode : 5 kA L/PE Common mode : 5 kA N/PE
maximum discharge current	Common mode : 20 kA L/PE Common mode : 20 kA N/PE Differential mode : 20 kA L/N
maximum voltage for continuous operation [Uc]	Common mode : 260 V N/PE Common mode : 340 V L/PE Differential mode : 340 V L/N
Level of protection voltage [Up]	1.1 kV type2 differential mode L/N 1.5 kV type2 common mode N/PE
type disconnect device	The Associated circuit breaker 25 A - Icu 10 kA The Associated circuit breaker 25 A - Icu 15 kA The Associated circuit breaker 25 A - Icu 25 kA
local reporting	LED color: green/red
editing mode	Coupling
support for mounting	DIN rail
distance of 9 mm	8
height	81,4 mm
width	72 mm
depth	69 mm
product weight	0,355 kg
color	Grey ( RAL 7035 )
response time	<= 25 ns
connections - terminals	Tunnel type terminal downside 2.5...35 mm2 Tunnel type terminal upside 2.5...35 mm2
tightening torque	2.5 Nm

Environment
brands quality	NF KEMA-KEUR WHERE
degree of protection IP	On front face : IP40 conforming to IEC 60529 On terminal : IP20 conforming to IEC 60529
degree of protection IK	IK03 conforming to IEC 62262
relative humidity	5...90%
operating altitude	2000 m
operating environment temperature	-25...60°C
storage temperature	-40...85°C
