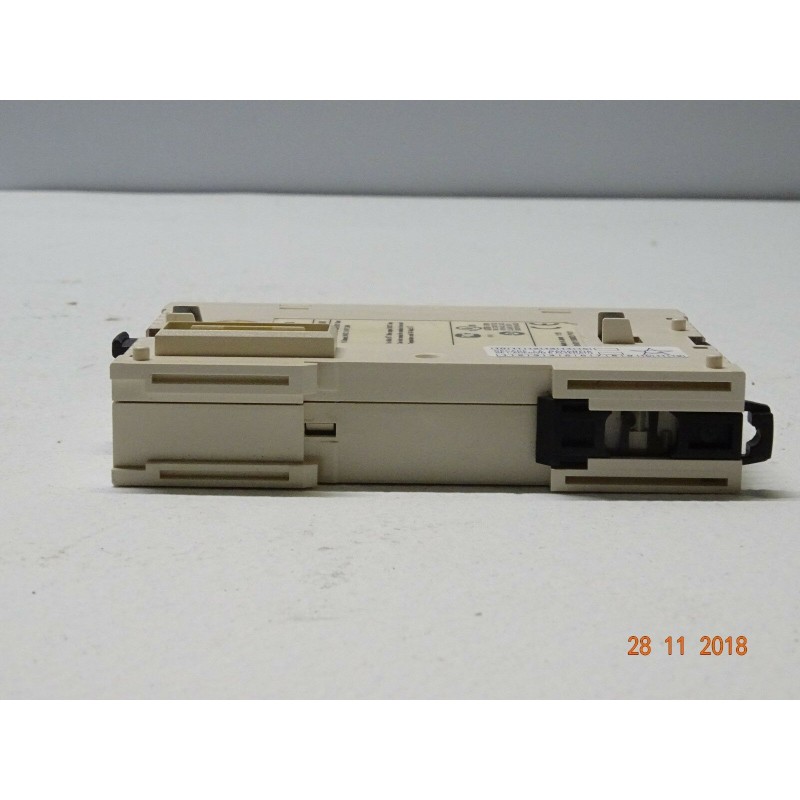

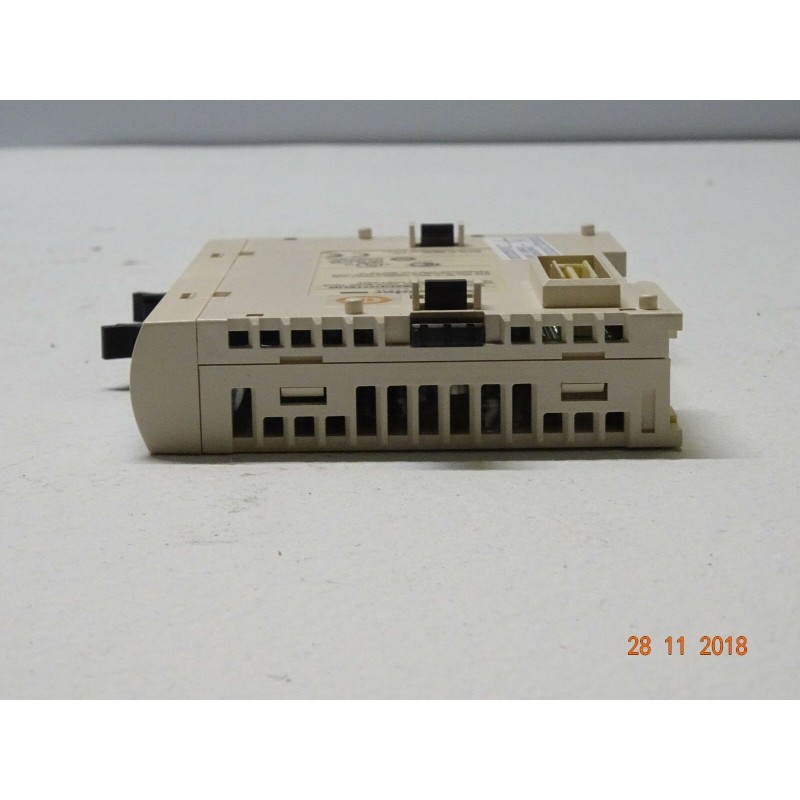

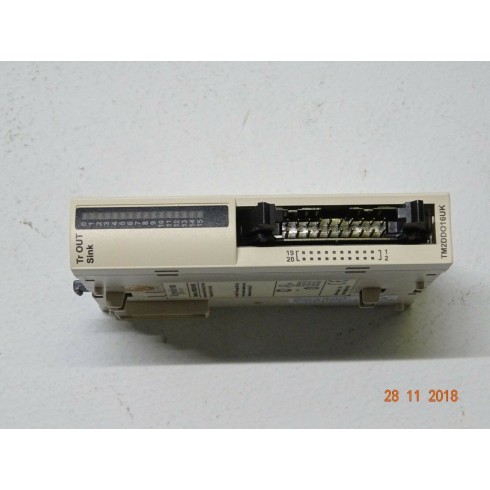

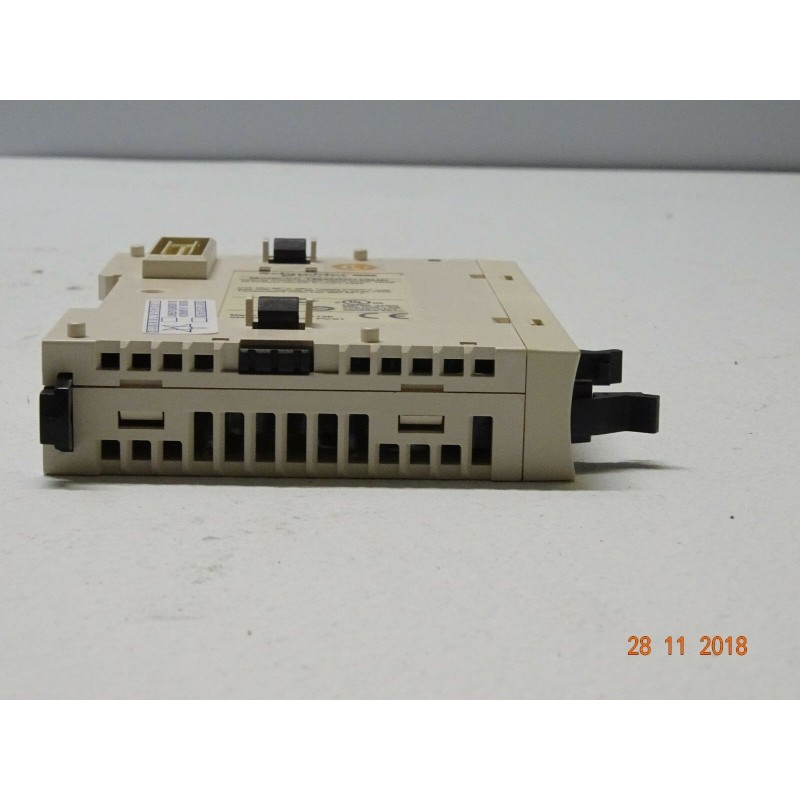

Schneider Modicon TM2DDO16UK Module output discrete M238 - 16 outputs 24 V transistor - 1 connector HE10 (arm 3/4)
368/DA2SX/q1
Nuovo (Altro)
110,00 € tax incl.
tax incl.
1 Item
Warning: Last items in stock!
| Tipo | Modulo |
| Description of the conditions | Nuovo, aperto per fare le foto |
| Brand | Schneider |
| Modello Librio | TM2DDO16UK |
| Fabbricante | Schneider Electric |
| Responsabile dei Prodotti | Schneider Electric |
Schneider Modicon TM2DDO16UK Module output discrete M238 - 16 outputs 24 V transistor - 1 connector HE10
-
Presentation the product range Logic controller Modicon M238the type of product or component Module digital outputnumber of digital outputs 16type digital output Transistorvoltage digital output 24 Vlogic digital output Sinkcurrent digital output 0.1 ToTechnical characteristics compatibility range Advantys OTB
Twidolimits output voltage 20,4...28.8 Vthe current way 0.12 Tocurrent per output common 1 Tothe number of points in common 1response time 300 µs from state 0 to the state 1
300 µs from state 1 to state 0Residual voltage [Ures] <= 1 V at state 1loads of tungsten <= 8 Wshort-circuit protection Withoutoverload protection Withoutthe insulation between the pins Nonethe insulation between the pins and the internal logic 500 V for 1 minutecurrent consumption 10 mA 5 V DC at state 1 for all output
40 mA 24 V DC at state 1 for all outputlocal reporting 2 blocks to the displayelectrical connection 1 cable entry side HE10support for mounting DIN rail symmetrical 35 mmproduct weight 0.07 kg
