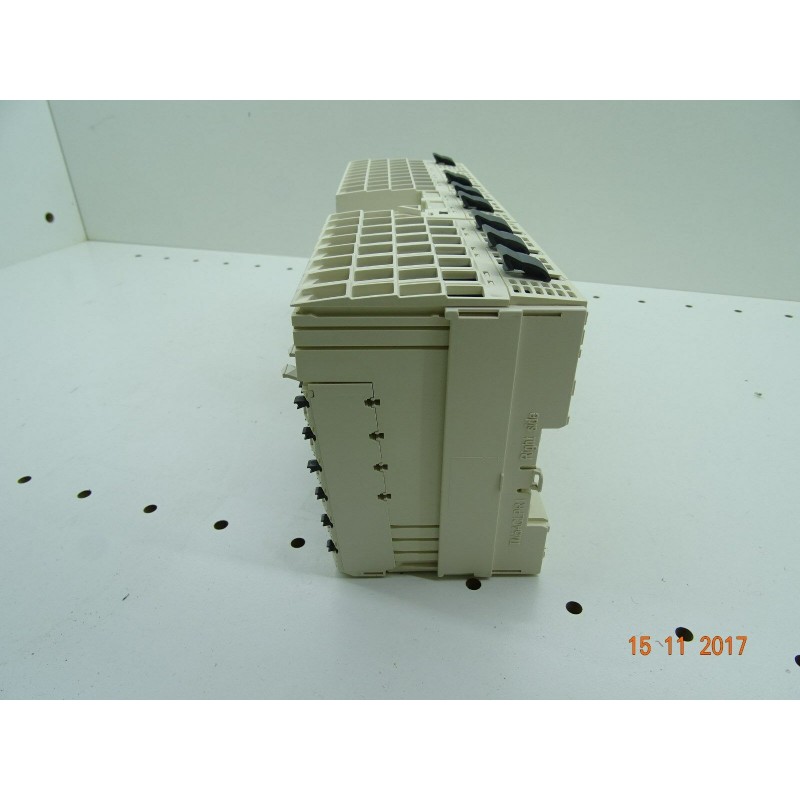

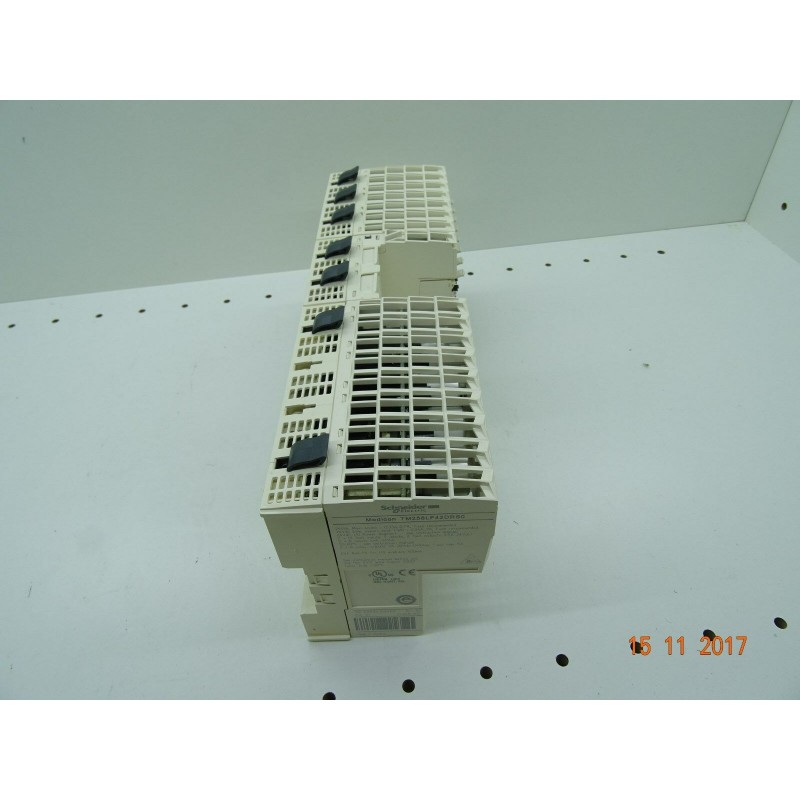

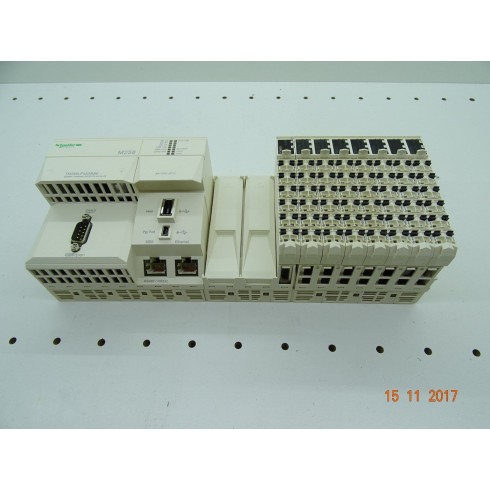

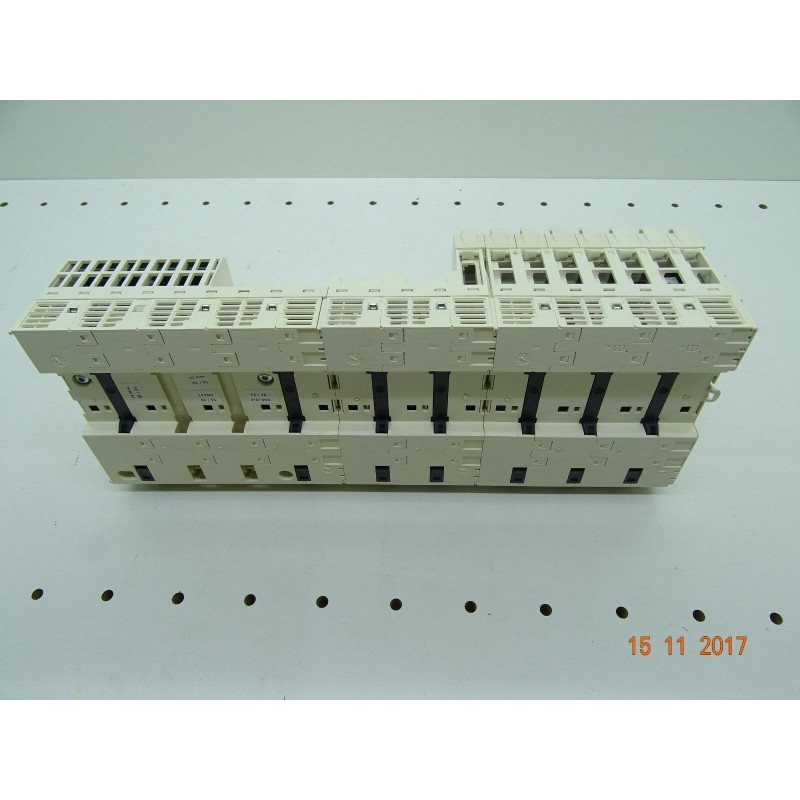

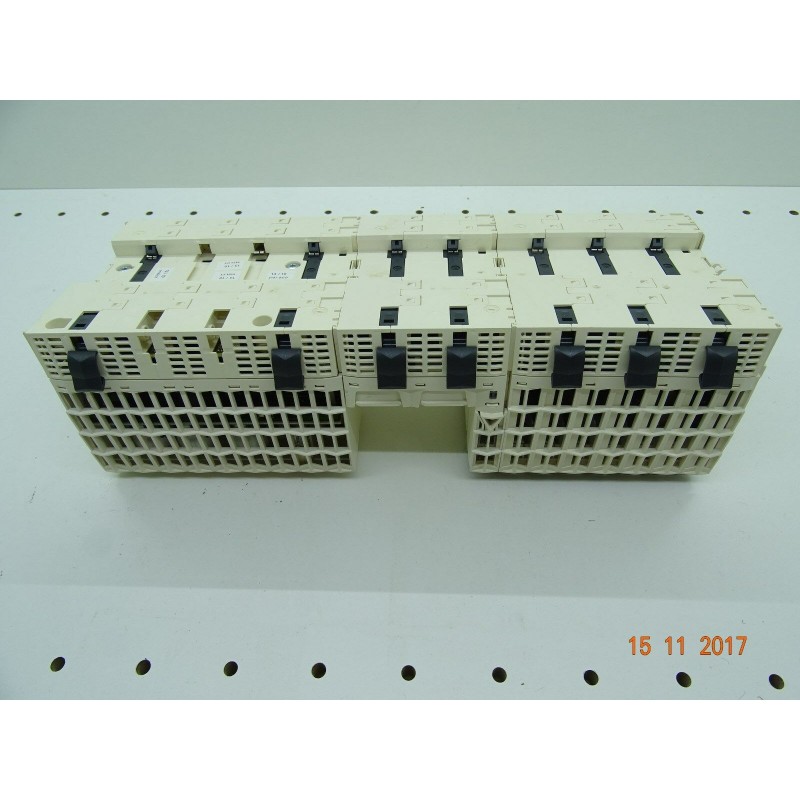

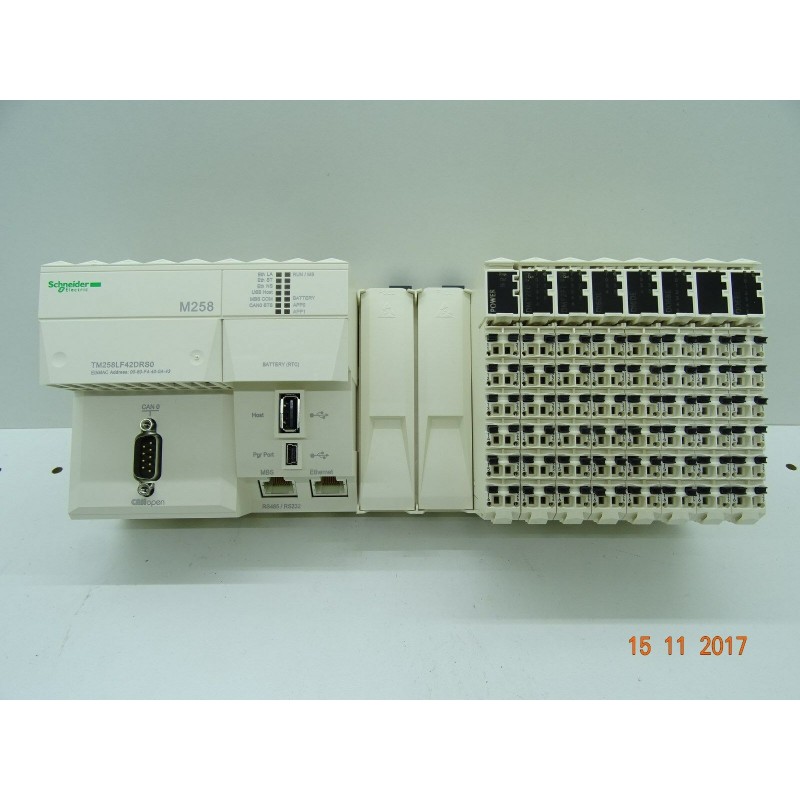

Schneider Modicon TM258LF42DRS0 M258 CTRL Eth/Can/SL/2PCI/42DIO/Relais/S (arm 3/1)
324/BB4SX/Q3
Nuovo (Altro)
749,00 € tax incl.
tax incl.
1 Item
Warning: Last items in stock!
| Tipo | Ethernet card |
| Description of the conditions | Confezione originale danneggiata |
Schneider Modicon TM258LF42DRS0 M258 CTRL Eth/Can/SL/2PCI/42DIO/Relais/S
S/N AD890168468
S/N AD890168468
| range of product |
Modicon M258
|
|
|---|---|---|
| product or component type |
Logic controller
|
|
| product specific application |
For solutions
|
|
| software function |
Applicatives functions blocks
|
|
| discrete I/O number |
42
|
|
| discrete output number |
12 for relay output
4 for fast output |
| discrete input number |
10 for fast input
12 for input 4 for regular input |
|
|---|---|---|
| discrete input logic |
Sink for fast input
Sink for regular input Source for input |
|
| discrete input voltage |
24 V
|
|
| discrete input voltage type |
DC
|
|
| voltage state 1 guaranteed |
>= 15 V for fast input
>= 15 V for fast output >= 15 V for regular input |
|
| voltage state 0 guaranteed |
<= 5 V for fast input
<= 5 V for fast output <= 5 V for regular input |
|
| discrete input current |
4 mA for fast input
4 mA for regular input |
|
| input impedance |
6 kOhm for fast input
6 kOhm for regular input |
|
| configurable filtering time |
0 ms for fast input/regular input and fast output
1.5 ms for fast input/regular input and fast output 12 ms for fast input/regular input and fast output 4 ms for fast input/regular input and fast output |
|
| anti bounce filtering |
2 µs...4 ms (configurable) fast input/regular input and fast output
|
|
| cable distance between devices |
30 m for fast input
30 m for fast output 30 m for regular input |
|
| isolation between channels and internal logic |
500 Vrms AC
|
|
| isolation between channels |
None
|
|
| discrete output logic |
Source
|
|
| discrete output voltage |
24 V DC
|
|
| output voltage limits |
19.2...28.8 V
|
|
| discrete output current |
4 mA for fast output
|
|
| [Us] rated supply voltage |
24 V DC for embedded expert modules power
24 V DC for I/O power segment 24 V DC for main supply |
|
| supply voltage limits |
20.4...28.8 V
|
|
| [In] rated current |
0.04 A for embedded expert modules power
0.33 A for main supply 10 A for I/O power segment |
|
| peak current |
<= 100 kA during <= 70 s main supply
<= 25 kA during <= 500 s I/O power segment <= 50 kA during <= 150 s embedded expert modules power 1.2 A during > 70 s main supply |
|
| power consumption in W |
<= 17.22 W
|
|
| execution time for instruction |
22 ns : Boolean
|
|
| memory description |
Flash 128 MB
Internal RAM 64 MB |
|
| the real-time clock |
With user calibration realtime clock, drift: <= 6 s/month
Without any user calibration realtime clock, drift: < 30 s/month at 25 °C |
|
| data backed up |
Variables of type retain and retain persistent CR2477M Renata, 1.5 years autonomy
|
|
| integrated connection type |
1 CANopen evil SUB-D 9, CANopen master
1 isolated serial link female RJ45, Ethernet Modbus TCP/IP slave (10BASE-T/100BASE-TX) 2 free slots PCI 1 isolated serial link female RJ45, Modbus master/slave RTU/ASCII or character mode ASCII (RS232/RS485), 300...115200 bps 1 isolated serial link mini B USB, 480 Mbit/s 1 isolated serial link USB type A, 480 Mbit/s |
|
| transmission rate |
125 kbit/s for bus length of 500 m, CANopen
250 kbit/s for bus length of 250 m, CANopen 50 kbit/s for bus length of 1000 m, CANopen 500 kbit/s for bus length of 100 m, CANopen 10 kbit/s for bus length of 5000 m, CANopen 1000 kbit/s for bus length of 4 m, CANopen 20 kbit/s for bus length of 2500 m, CANopen 800 kbit/s for bus length of 25 m, CANopen |
|
| counting input number |
8 counting input(s) 200 kHz
|
|
| local signalling |
1 LED per channel for I/O state
1 LED for CAN0 STS 1 LED for MBS COM 1 LED green/red for APP0 1 LED green/red for APP1 1 LED green/red for Eth NS (Ethernet network status) 1 LED green/red for Eth ST (Ethernet status) 1 LED green/red for RUN/MS (module status) 1 LED green/red for USB host 1 LED green/yellow for Eth LA (Ethernet activity) 1 LED red for BATT (battery status) |
|
| marking |
EC
|
|
| mounting support |
Symmetrical DIN rail
|
|
| width |
262.5 mm
|
|
| height |
99 mm
|
|
| depth |
85 mm
|
|
| product weight |
0.8 kg
|
