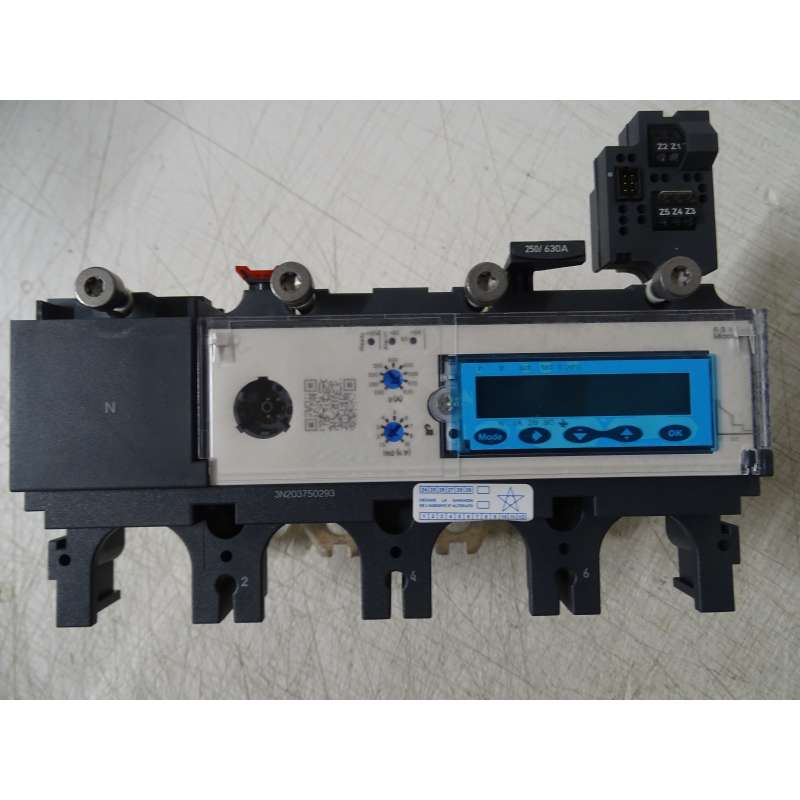

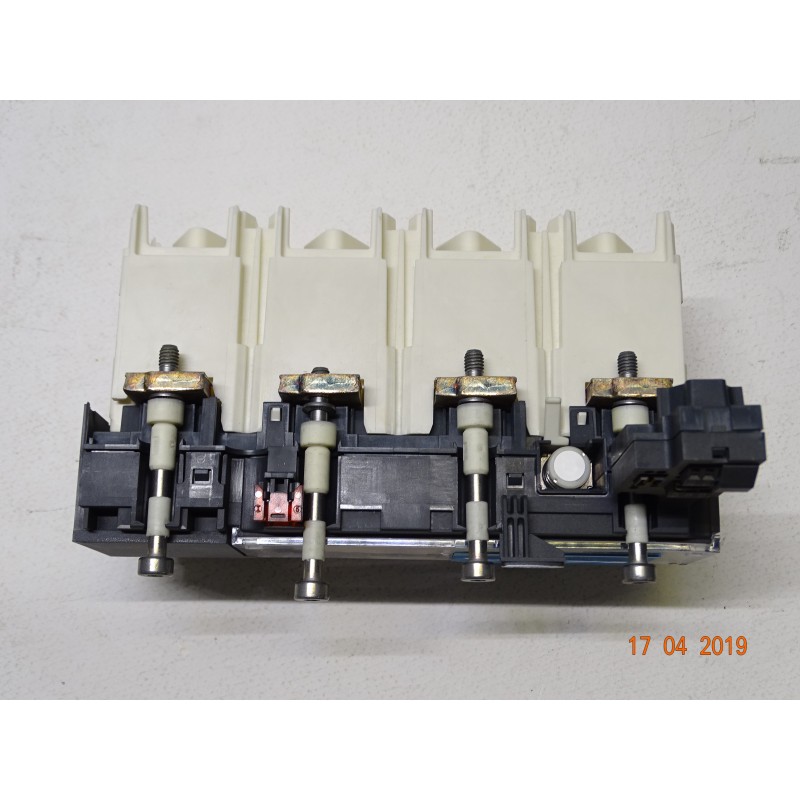

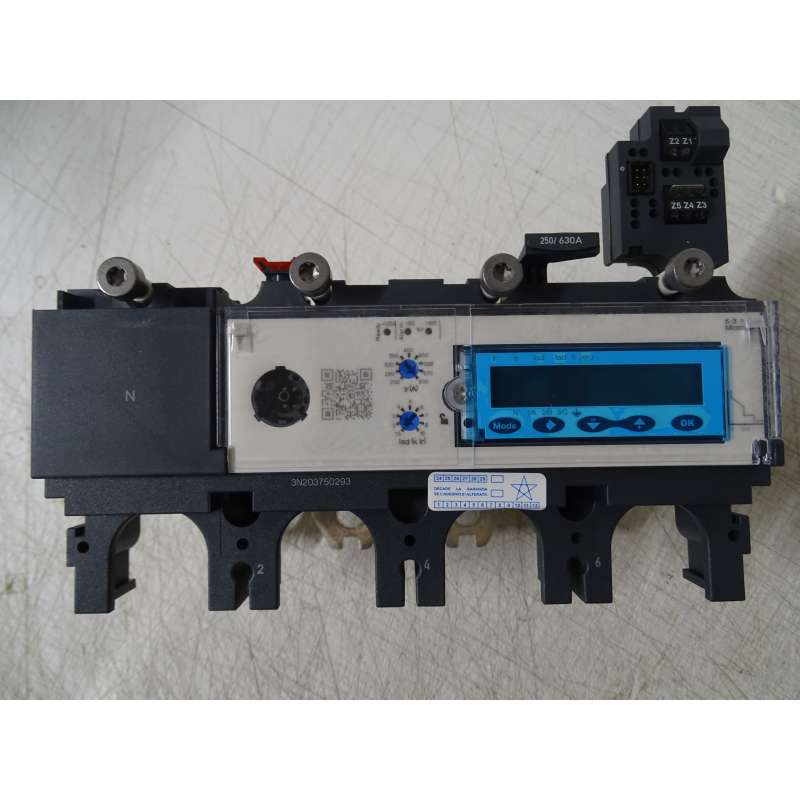

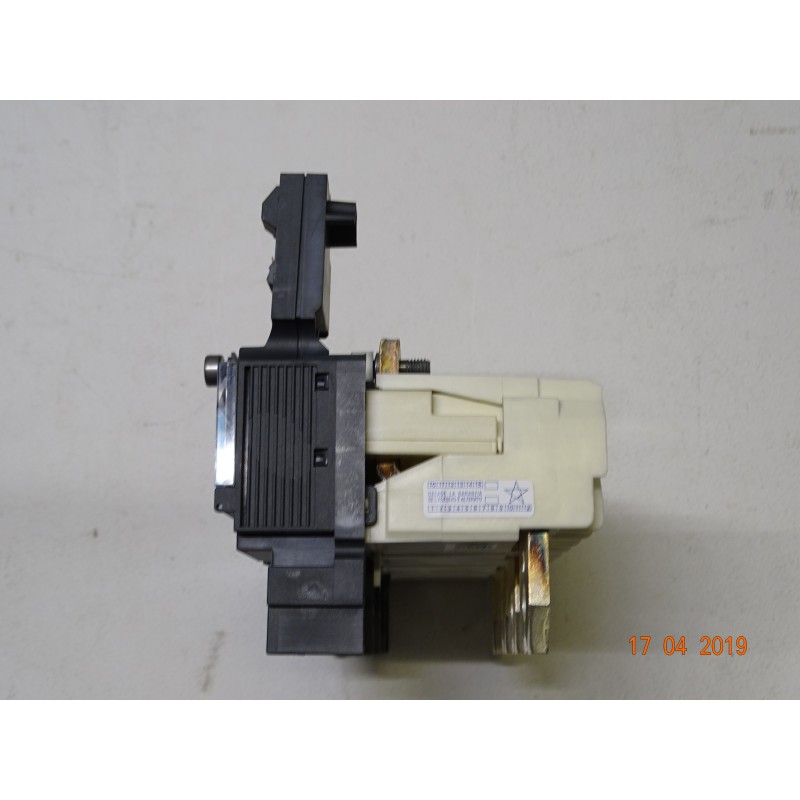

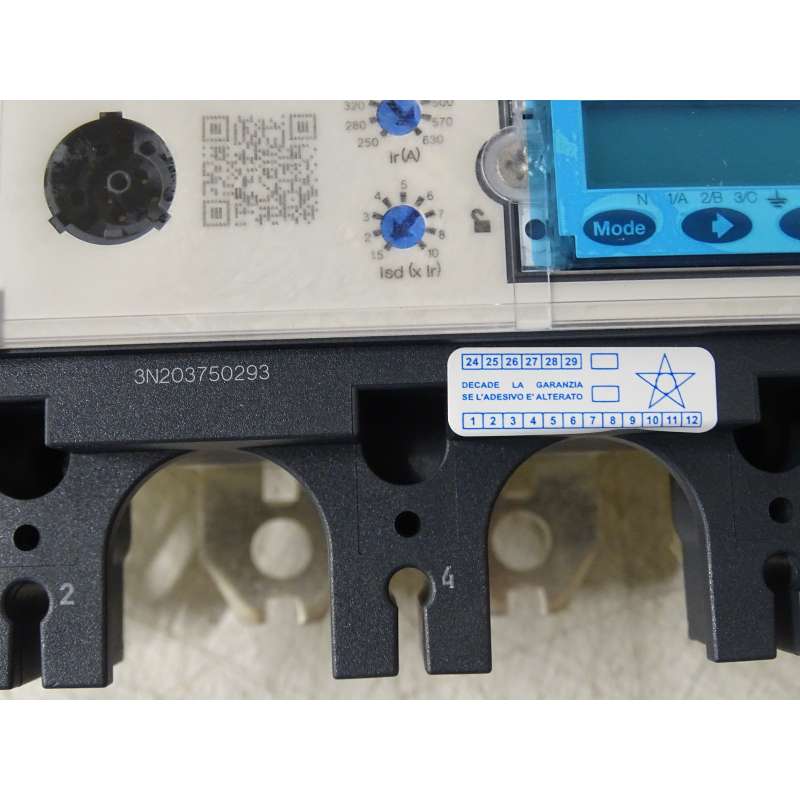

SCHNEIDER LV432093 trip unit - Micrologic 5.3 A - 630 A - 4 poles 4d (C-B-3)
904/CB3SX/Q1+1
Nuovo (Altro)
399,00 € tax incl.
tax incl.
1 Item
Warning: Last items in stock!
| Tipo | Sganciatore |

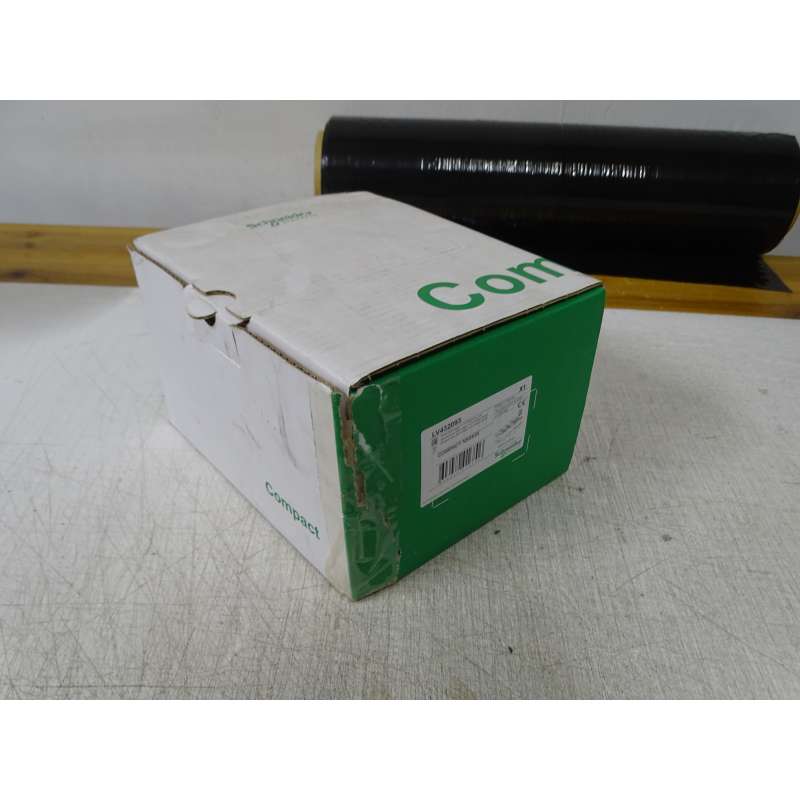

| Description of the conditions | Confezione originale danneggiata |
| Brand | Schneider Electric |
| Modello Librio | LV432093 |
SCHNEIDER LV432093 trip unit - Micrologic 5.3 A - 630 A - 4 poles 4d
| the product range |
NSX400...630
|
|
|---|---|---|
| the type of product or component |
Control unit
|
|
| compatibility range |
Compact NSX400
Compact NSX630 |
|
| application |
Distribution
Generator |
|
| number of poles |
4P
|
|
| description pin protected |
3t
3t + 1.6 N 3t + N/2 4t |
|
| neutral |
The left
|
|
| network type |
CA
|
|
| network frequency |
50/60 Hz
|
|
| name release |
Micrologic 5.3 A
|
|
| technology release |
Electronic
|
|
| protection functions trip unit |
LSI
|
|
| calibre release |
630 A AT 40 °C
|
|
| type of protection |
Overload protection (long time) L
Short-circuit protection snapshot Short-circuit protection the short-term S |
| editing mode |
Fixed
|
|
|---|---|---|
| Rated operating voltage [Ue] |
690 V AC 50/60 Hz
|
|
| adjustment protection neutral |
0.5 x Ir 3t + N/2
1 x Ir 4t 1.6 x Ir 3t + OSN No protection 3t |
|
| type regulating excitation long-term [Ir] |
Adjustable
|
|
| adjustment range start-up extended |
250...630 A
|
|
| type timing control prolonged |
Adjustable
|
|
| timing control prolonged [tr] |
15...400 s 1.5 x Ir
Of 0.35...11 s 7.2 x Ir Of 0.5...16 s 6 x Ir |
|
| thermal memory |
20 minutes before and after taking
|
|
| type adjustment range short-time (Isd) |
Adjustable
|
|
| Adjustment range short-term intervention [Isd] |
1.5...10 x Ir
|
|
| type time delay adjustment short-time |
Adjustable
|
|
| Adjustment range short-time delay [tsd] |
0...0.4 s
|
|
| Time delay adjustment short-term [tsd] |
0,1...0,4 s I2t=on
0...0.4 s I2t=off |
|
| type adjustment instant-on [Ii] |
Adjustable
|
|
| record interval sampling instant |
A 1.5...11 x In Compact NSX630
|
|
| selectivity logic, ZSI |
With
|
|
| communication of the data |
Demand current and power
Measure energy The instantaneous values and the request Maintenance indicators Mean values/average values minimum Quality power supply Security settings, and alarm Tables of historical reports, and events cronodatati |
|
| display type |
LCD Display
|
|
| type of measure |
Ammeter
|
|
| recording electrical data |
Maintenance indicators
|
| reference standards |
EN/IEC 60947-2
UL 508 |
|
|---|---|---|
| certifications product |
CCC
Marina EAC |
|
| degree of protection IP |
IP40 conforming to IEC 60529
|
|
| pollution degree |
3 conforming to IEC 60947-1
|
|
| operating environment temperature |
-25...70°C
|
|
| storage temperature |
-40...85°C
|
