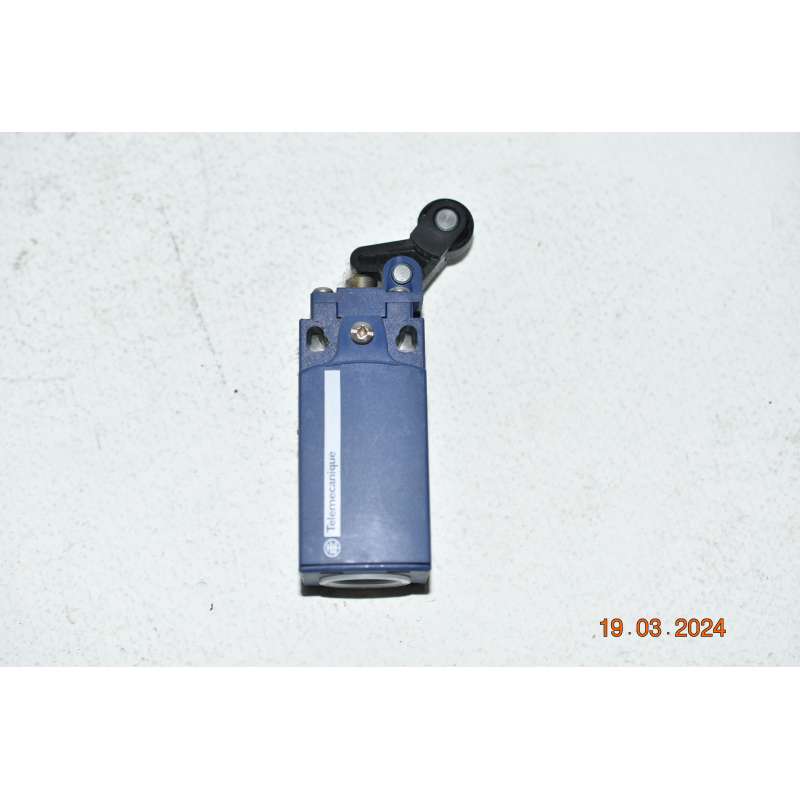

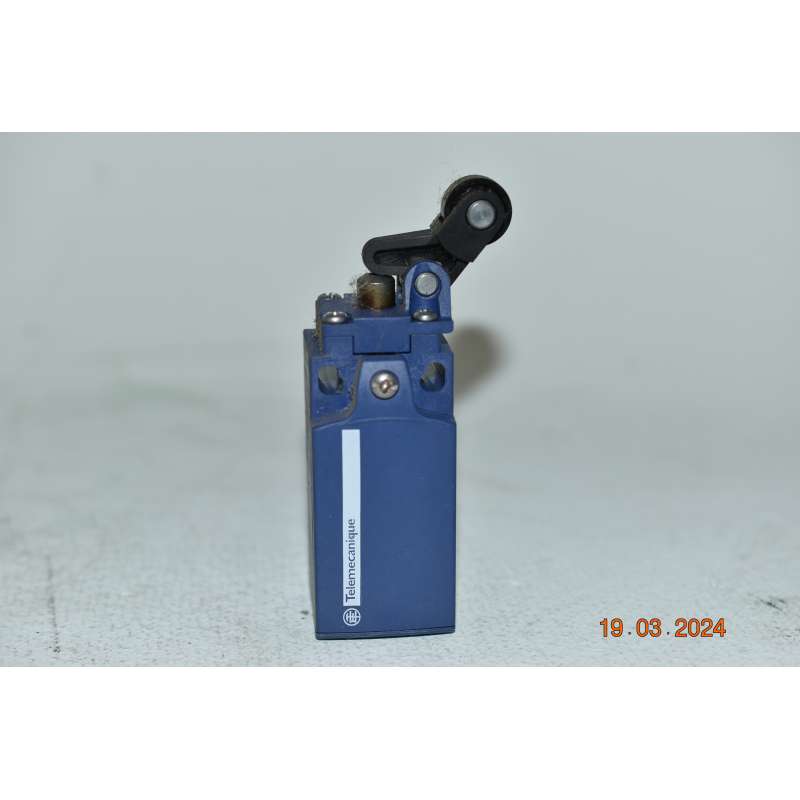

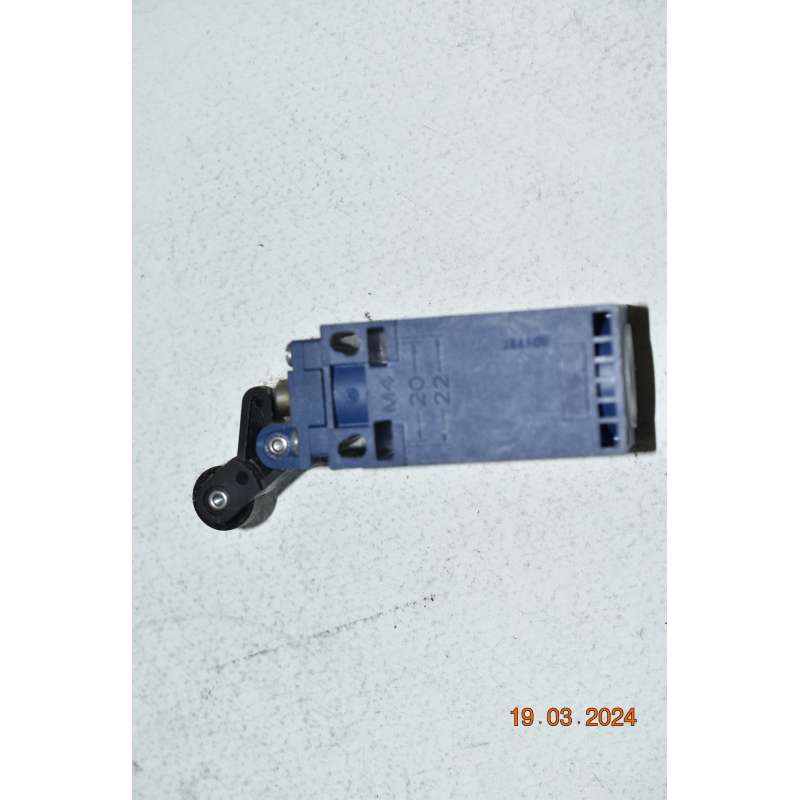

Telemecanique XCKN2127G11 limit switch 1NC+1NO (IB1)

Reference: 939/BA3/DX/Q1

Condition: Nuovo (Altro)

7,00 € tax incl.

1 Item Items

Warning: Last items in stock!

More info
Data sheet

Tipo	Finecorsa
Description of the conditions	Senza confezione
Brand	Telemecanique
Modllo Telemecanique	XCKN2127G11

Telemecanique Osiswitch composed by the body limit switch XCKN button to rottella with spring return thermoplastic material, 1NC+1NO
More information on the website of the manufacturer
Specifications:

Main
range of product	OsiSense XC
series name	Standard format
product or component type	Limit switch
device short name	XCKN
sensor design	Compact
body type	Fixed
head type	The Plunger head
material	Plastic
body material	Plastic
head material	Plastic
fixing mode	By the body
movement of operating head	Linear

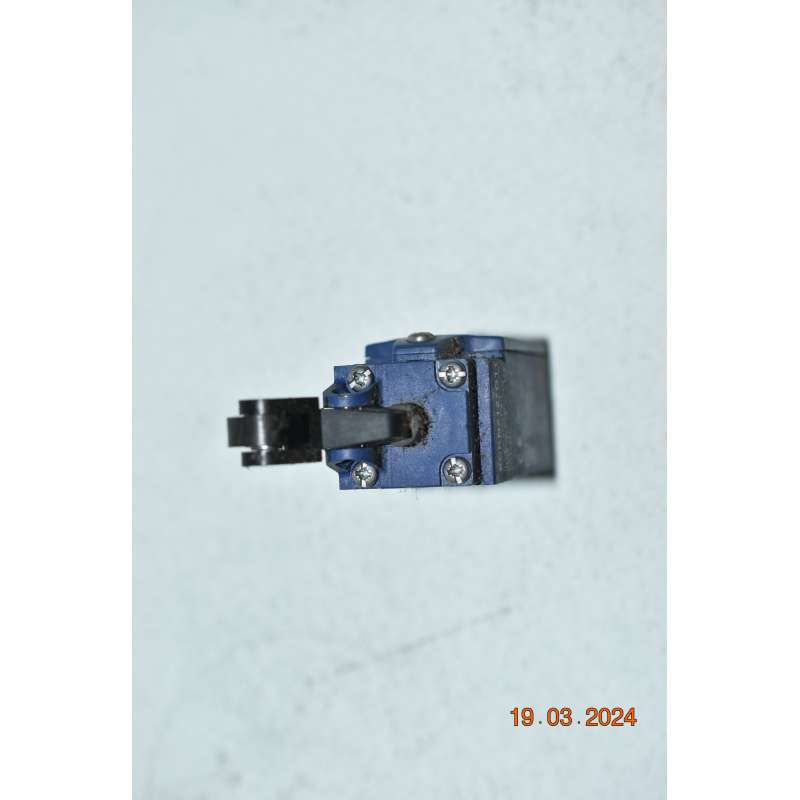

type of operator	Spring return roller lever plunger thermoplastic
type of approach	Vertical approach 1 direction

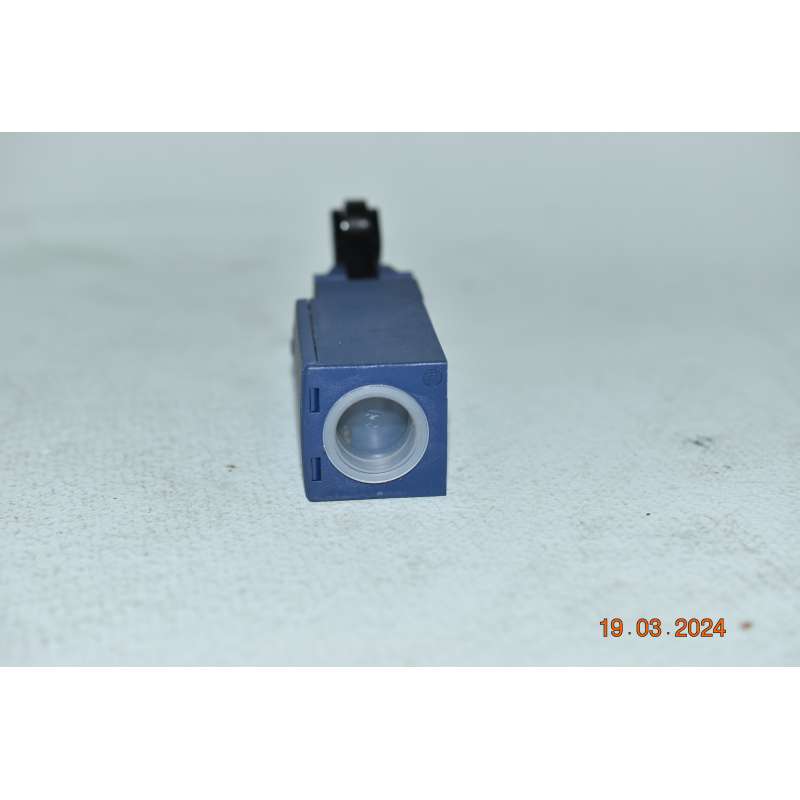

cable entry	1 entry tapped for Pg 11 cable gland
number of poles	2
contacts type and composition	1 NC + 1 NO
contact operation	Snap action

Complementary
switch actuation	By 30° cam
electrical connection	Screw-clamp terminals, clamping capacity: 1 x 0.34...2 x 1.5 mm2
contacts insulation form	Zb
positive opening	With
positive opening minimum force	10 N
minimum force for tripping	6 N
maximum actuation speed	1 m/s
contact code designation	A300, AC-15 (Ue = 240 V, Ie = 3 A) , Ithe = 10 A conforming to EN/IEC 60947-5-1 appendix A R300, DC-13 (Ue = 250 V, Ie = 0.1 A) conforming to EN/IEC 60947-5-1 appendix A
[Ui] rated insulation voltage	300 V conforming to CSA C22.2 No 14 500 V degree of pollution 3 conforming to IEC 60947-1 300 V conforming to UL 508
[Uimp] rated impulse withstand voltage	6 kV conforming to IEC 60664 6 kV conforming to IEC 60947-1
short-circuit protection	10 A cartridge fuse type gG
electrical durability	5000000 cycles, DC-13, 120 V, 4 W, operating rate: <= 60 cyc/mn, load factor: 0.5 conforming to IEC 60947-5-1 appendix C 5000000 cycles, DC-13, 24 V, 10 W, operating rate: <= 60 cyc/mn, load factor: 0.5 conforming to IEC 60947-5-1 appendix C 5000000 cycles, DC-13, 48 V, 7 W, operating rate: <= 60 cyc/mn, load factor: 0.5 conforming to IEC 60947-5-1 appendix C
mechanical durability	10000000 cycles
width	42.5 mm
height	96 mm
depth	30 mm
product weight	0.145 kg

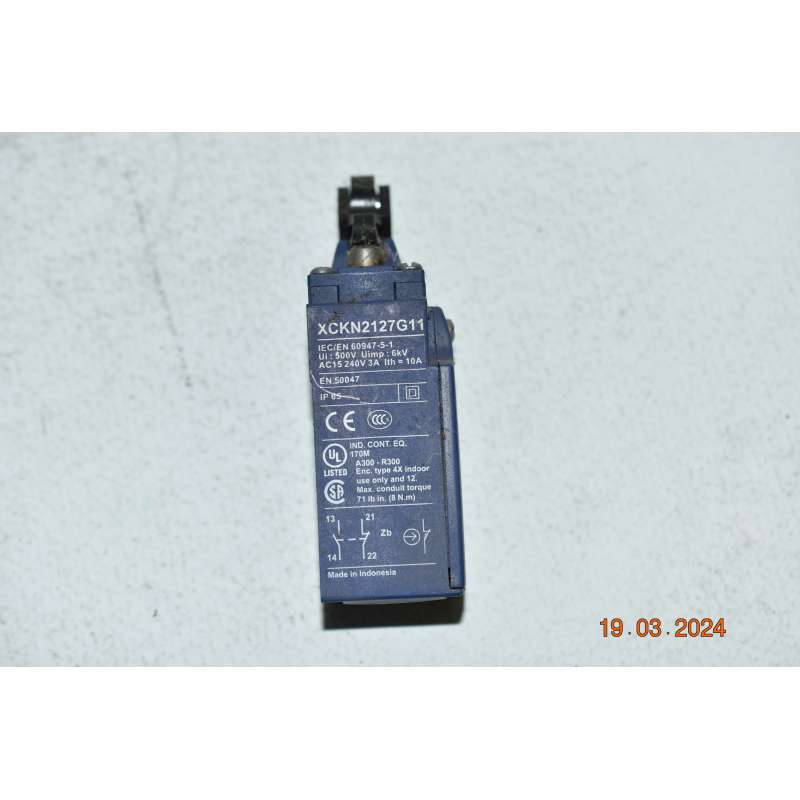

terminals description ISO n°1	(13-14)NO (21-22)NC

Environment
shock resistance	50 gn (duration = 11 ms) conforming to IEC 60068-2-27
vibration resistance	25 gn (f = 10...500 Hz) conforming to IEC 60068-2-6
IP degree of protection	IP65 conforming to IEC 60529
IK degree of protection	IK04 conforming to EN 50102
overvoltage category	Class II conforming to IEC 61140 Class II conforming to NF C 20-030
ambient air temperature for operation	-25...70 °C
ambient air temperature for storage	-40...70 °C
protective treatment	TC
product certifications	CCC CSA UL
standards	EN 60204-1 EN 60947-5-1 IEC 60204-1 IEC 60947-5-1 UL 508 CSA C22.2 No 14
