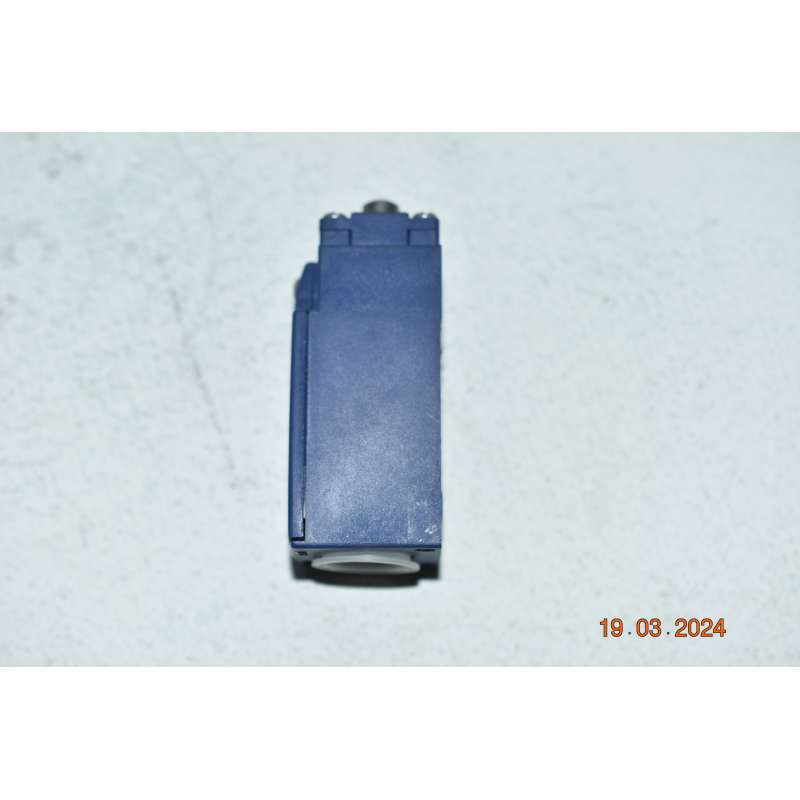

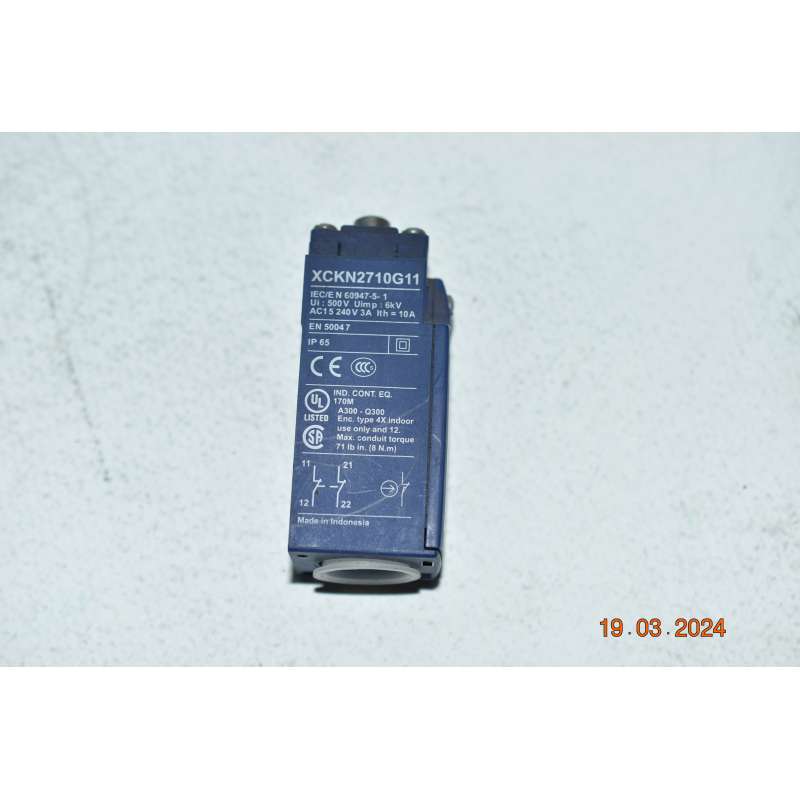

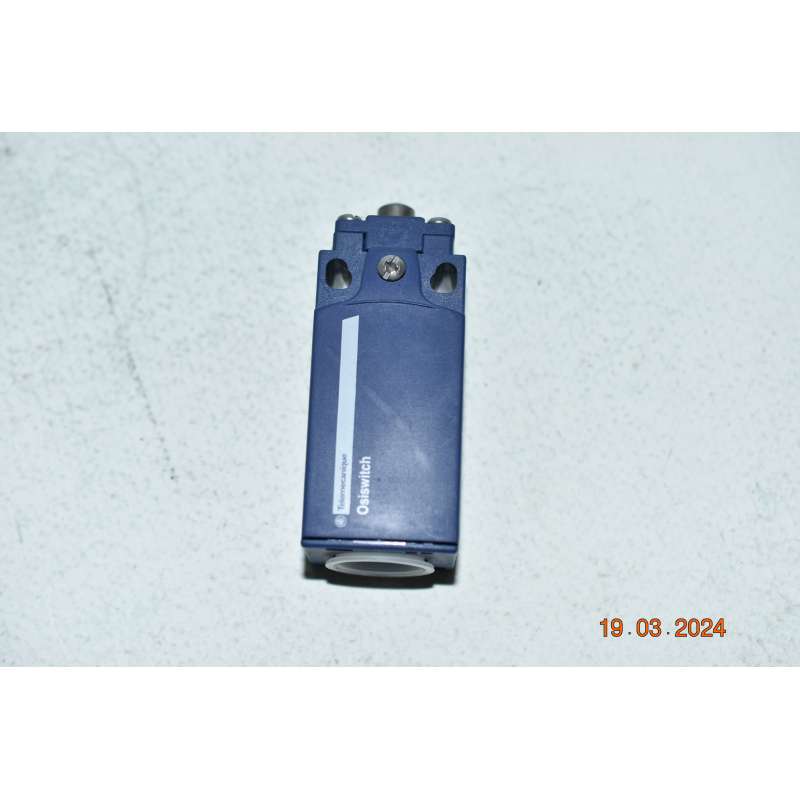

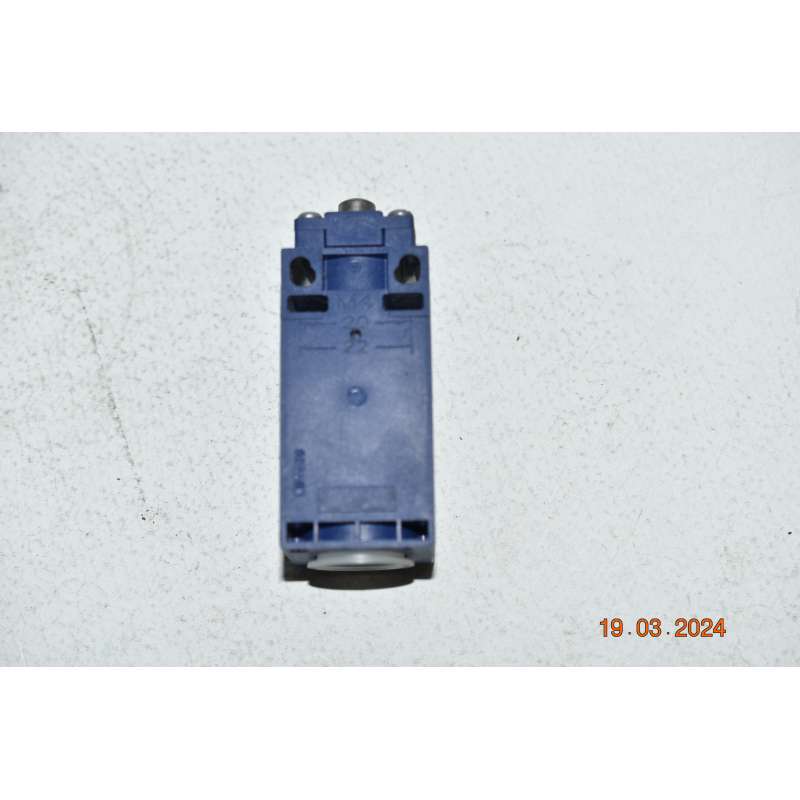

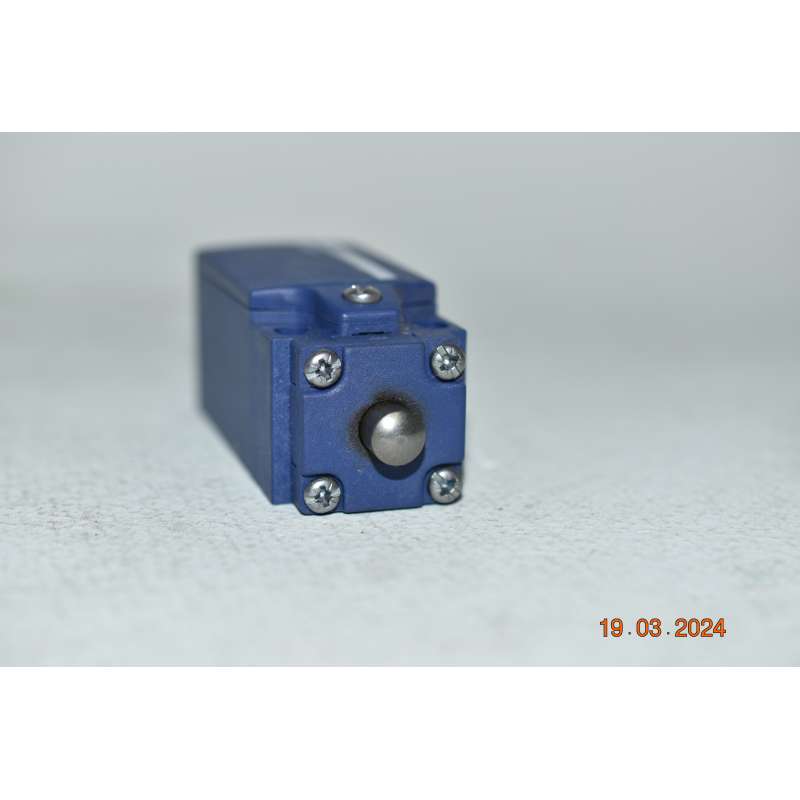

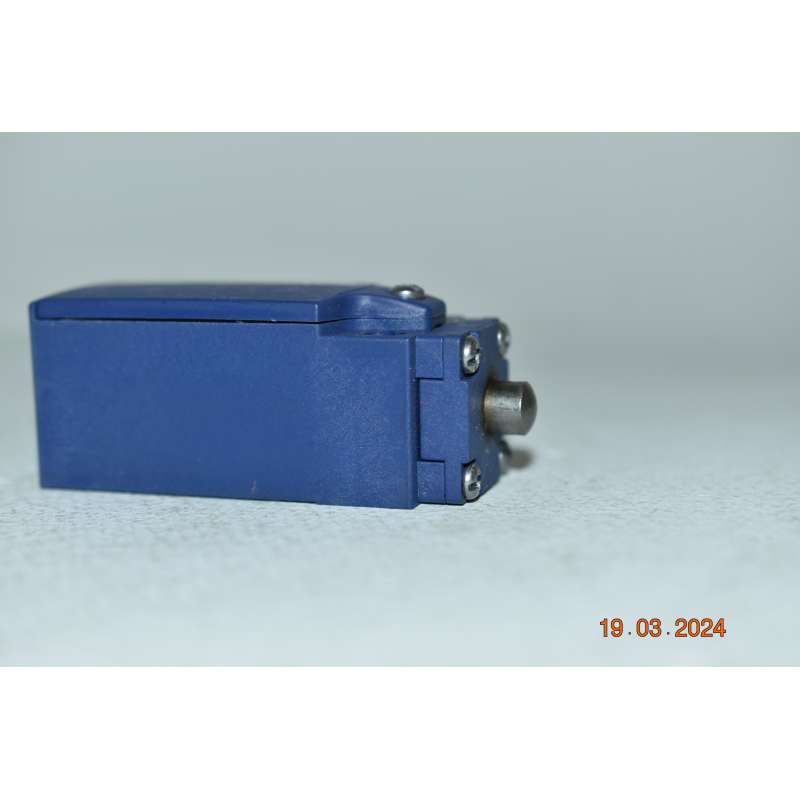

Telemecanique XCKN2710G11 limit switches 2NC (IB1)

Reference: 938/BA3/DX/Q6

Condition: Nuovo (Altro)

7,00 € tax incl.

6 Item Items

More info
Data sheet

Tipo	Finecorsa
Description of the conditions	Senza confezione
Brand	Telemecanique
Modllo Telemecanique	XCKN2710G11

Telemecanique Osiswitch composed by the body limit switch XCKN button final metal 2NC slow Pg11
More information on the website of the manufacturer
Specifications:

Presentation
the product range	OsiSense XC
name range	Standard format
the type of product or component	Switch the end of stroke
abbreviated name	XCKN
the shape of the sensor	Compact
body type	Fixed
type of head	Head-to-button
material	Plastic
the material of the body	Plastic
the material of the head	Plastic
type of fixing	With the body
head movement operational	Linear
type of operator	Plunger spring return metal
type of approach	Vertical approach 1 direction
cable entry	1 entry tapped for cable gland Pg 11
number of poles	2
type and composition contacts	2 NC
operation of the contacts	Slow-break, simultaneous
sale quantity indivisible	20

Technical characteristics
drive switch	At the end
electrical connection	Screw terminals, clamping capacity: 1 x 0.34...2 x 1.5 mm2
isolation contacts	Zb
positive opening	With
strength min. positive opening	30 N
power shutter minimum	15 N
drive speed maximum	0.5 m/s
description code contact	A300, AC-15 (Ue = 240 V, Ie = 3 A) , Ithe = 10 A conforming to EN/IEC 60947-5-1 appendix A R300, DC-13 (Ue = 250 V, Ie = 0.1 A) conforming to EN/IEC 60947-5-1 appendix A
Rated insulation voltage [Ui]	300 V conforming to CSA C22.2 No 14 500 V degree of pollution 3 conforming to IEC 60947-1 300 V conforming to UL 508
Rated voltage impulse withstand [Uimp]	6 kV conforming to IEC 60664 6 kV conforming to IEC 60947-1
protection against short circuits	10 A fuse of the cartridge type dd
mechanical life	10000000 cycles
width	30 mm
height	75 mm
depth	30 mm
product weight	0,065 kg
terminals description ISO n°1	(11-12)NC (21-22)NC

Environment
shock resistance	50 gn (duration = 11 ms) conforming to IEC 60068-2-27
vibration resistance	25 gn (F = 10...500 Hz) conforming to IEC 60068-2-6
degree of protection IP	IP65 conforming to IEC 60529
degree of protection IK	IK04 conforming to EN 50102
overvoltage category	Class II conforming to IEC 61140 Class II conforming to NF C 20-030
operating environment temperature	-25...70°C
storage temperature	-40...70°C
protection treatment	TC
certifications product	CCC CSA UL
reference standards	EN/IEC 60204-1 EN/IEC 60947-5-1 UL 508 CSA C22.2 No 14
