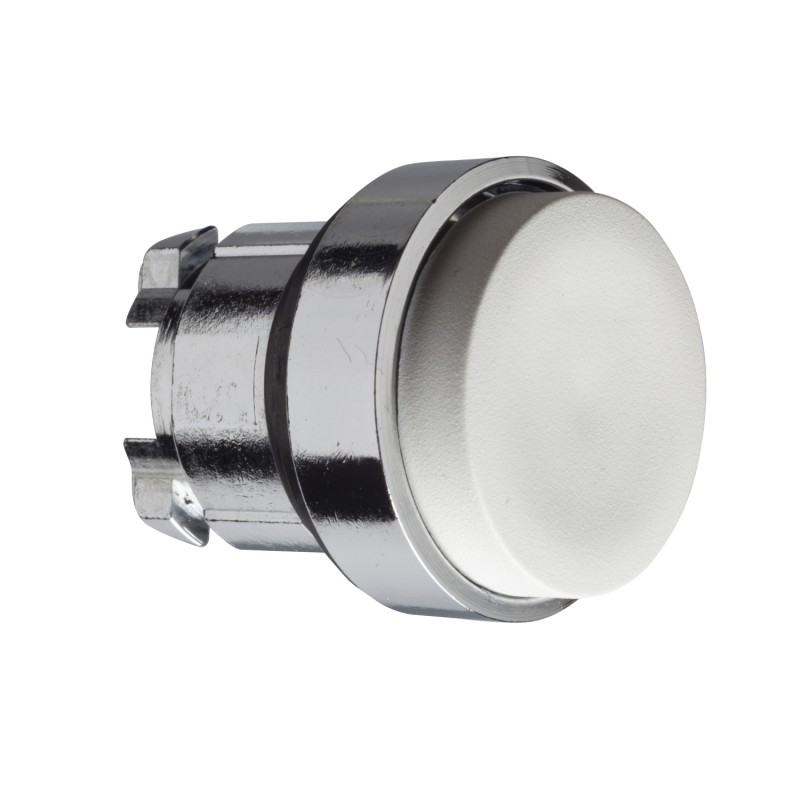

Schneider Harmony XB4 ZB4BH1 button head step-by-step protruding white (IA1)
231/BF3/DX/Q44
Nuovo (Altro)
15,00 € tax incl.
tax incl.
3 Items
Warning: Last items in stock!
| Tipo | Hrmony pulsantiera |
| Description of the conditions | Confezione originale danneggiata |
| Brand | Schneider |
Schneider Harmony XB4 ZB4BH1 button head step-by-step protruding white
| the product range |
Harmony XB4
|
|
|---|---|---|
| the type of product or component |
Head non-illuminated push button
|
|
| abbreviated name |
ZB4
|
|
| Head material |
Chrome-plated metal
|
|
| mounting diameter |
22 mm
|
|
| sale quantity indivisible |
1
|
|
| type of head |
Standard
|
|
| The shape of the head |
Circular
|
|
| type of operator |
Step-by-step coupling
|
|
| operator profile |
White hanging Without marking
|
| overall width CAD |
29 mm
|
|
|---|---|---|
| overall height CAD |
29 mm
|
|
| total depth CAD |
33 mm
|
|
| mechanical life |
2000000 cycles
|
|
| code composition electrical |
C15 for 1 contacts using single blocks in front mounting
C11 to 3 contacts using single blocks in front mounting C9 for 3 contacts using single blocks in front mounting |
| protection treatment |
TH
|
|
|---|---|---|
| storage temperature |
-40...70°C
|
|
| operating environment temperature |
-40...70°C
|
|
| overvoltage category |
Class I conforming to IEC 60536
|
|
| degree of protection IP |
IP66 conforming to IEC 60529
IP69 IP67 IP69K |
|
| degree of protection NEMA |
NEMA 13
NEMA 4X |
|
| degree of protection IK |
IK06 conforming to IEC 50102
|
|
| reference standards |
EN/IEC 60947-1
EN/IEC 60947-5-1 EN/IEC 60947-5-4 EN/IEC 60947-5-5 JIS C 4520 UL 508 CSA C22.2 No 14 |
|
| certifications product |
BV
CSA DNV GL LROS (Lloyds register of shipping) RINA UL listed |
|
| vibration resistance |
5 gn (f = 2...500 Hz) conforming to IEC 60068-2-6
|
|
| shock resistance |
30 gn (duration = 18 ms) for half sine wave acceleration conforming to IEC 60068-2-27
50 gn (duration = 11 ms) for half sine wave acceleration conforming to IEC 60068-2-27 |
