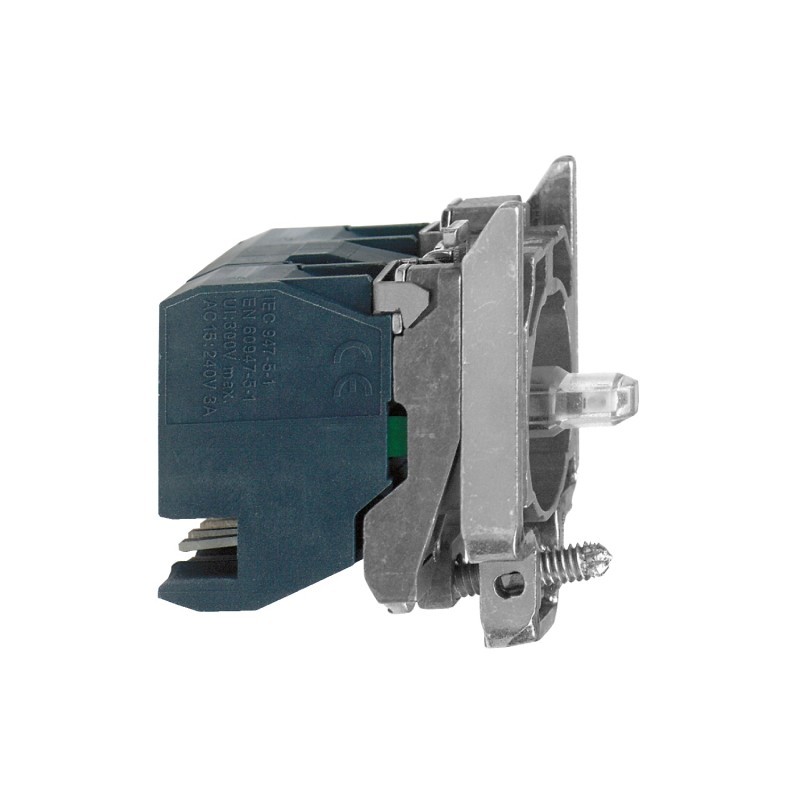

Schneider Harmony ZB4 BW0B534 body for illuminated push button (IA1)

Harmony XB4

Complete body/contact assembly and light block

ZB4

Zamak

1

Standard

2 NO

Slow-break

Plug-in connector

Protected LED

Integral LED

Direct

Orange

24 V AC/DC, 50/60 Hz

1.18 in (30 mm)

1.85 in (47 mm)

(13-14)NO

Standard

Without positive opening

0.1 in (2.6 mm) (NO changing electrical state)
0.17 in (4.3 mm) (total travel)

2.3 N (NO changing electrical state)

0.44 lbf.in (0.05 N. m) (NO changing electrical state)

5000000 cycles

Silver alloy (Ag/Ni)

4 A cartridge fuse type gG conforming to EN/IEC 60947-5-1

10 A conforming to EN/IEC 60947-5-1

250 V (degree of pollution: 3) conforming to EN/IEC 60947-1

4 kV conforming to EN 60947-1

3 A at 240 V, AC-15, A300 conforming to EN/IEC 60947-5-1
6 A at 120 V, AC-15, A300 conforming to EN/IEC 60947-5-1
0.1 A at 250 V, DC-13, R300 conforming to EN/IEC 60947-5-1
0.22 A at 125 V, DC-13, R300 conforming to EN/IEC 60947-5-1

1000000 cycles, AC-15, 1 A at 230 V, operating rate: <= 3600 cyc/h, load factor: 0.5 conforming to EN/IEC 60947-5-1 appendix C
1000000 cycles, AC-15, 1.5 A at 120 V, operating rate: <= 3600 cyc/h, load factor: 0.5 conforming to EN/IEC 60947-5-1 appendix C
1000000 cycles, AC-15, 3 A at 24 V, operating rate: <= 3600 cyc/h, load factor: 0.5 conforming to EN/IEC 60947-5-1 appendix C
1000000 cycles, DC-13, 0.15 A at 110 V, operating rate: <= 3600 cyc/h, load factor: 0.5 conforming to EN/IEC 60947-5-1 appendix C
1000000 cycles, DC-13, 0.4 A at 24 V, operating rate: <= 3600 cyc/h, load factor: 0.5 conforming to EN/IEC 60947-5-1 appendix C

Λ < 10exp(-6) at 5 V, 1 mA in clean environment conforming to EN/IEC 60947-5-4
Λ < 10exp(-8) at 17 V, 5 mA in clean environment conforming to EN/IEC 60947-5-4

Steady

19.2...30 V DC
21.6...26.4 V AC

18 but

100000 h at rated voltage and 25 °C

1 kV conforming to IEC 61000-4-5

TH

-40...158 °F (-40...70 °C)

-40...158 °F (-40...70 °C)

Class I conforming to IEC 60536

EN/IEC 60947-1
EN/IEC 60947-5-1
EN/IEC 60947-5-4
EN/IEC 60947-5-5
JIS C 4520
UL 508
CSA C22.2 No 14

BV
CSA
DNV
GL
LROS (Lloyds register of shipping)
RINA
UL listed

5 gn (f = 2...500 Hz) conforming to IEC 60068-2-6

30 gn (duration = 18 ms) for half sine wave acceleration conforming to IEC 60068-2-27
50 gn (duration = 11 ms) for half sine wave acceleration conforming to IEC 60068-2-27

2 kV conforming to IEC 61000-4-4

9.14 V/yd (10 V/m) conforming to IEC 61000-4-3

6 kV on contact (on metal parts) conforming to IEC 61000-2-6
8 kV in free air (in insulating parts) conforming to IEC 61000-2-6

Class B conforming to IEC 55011
