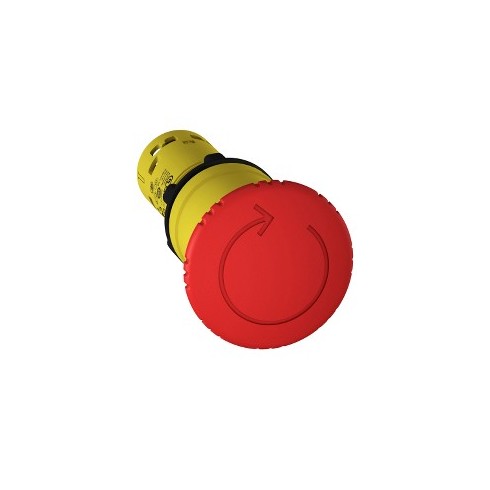

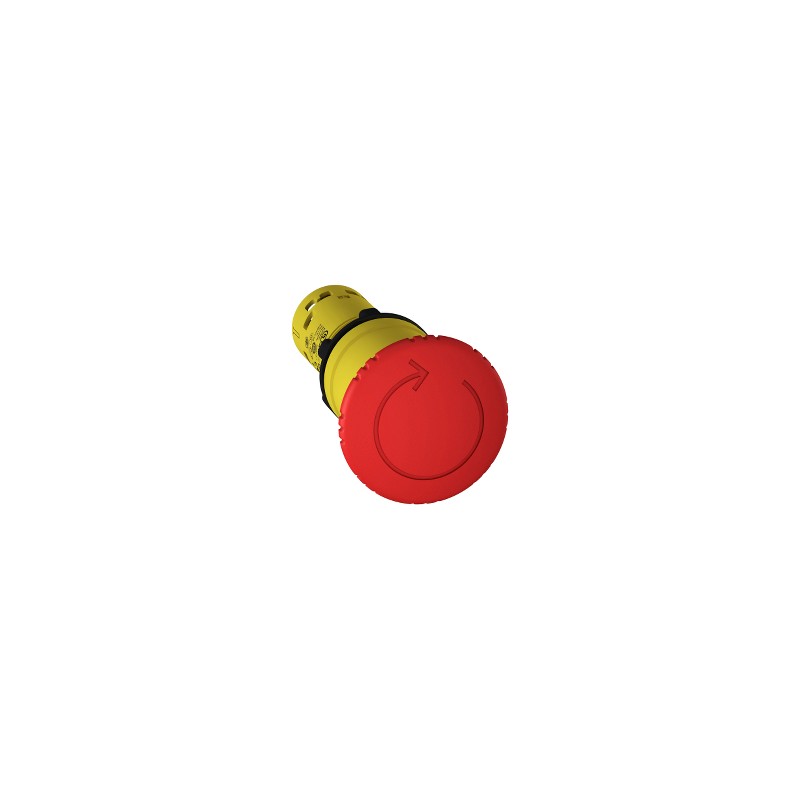

Schneider Harmony XB7 NS8444 button mushroom(IA1)
188/Arm 10/4/q0
Nuovo (Altro)
10,00 € tax incl.
tax incl.
This product is no longer in stock
| Tipo | Hrmony pulsantiera |
| Description of the conditions | Confezione originale danneggiata |
| Brand | Schneider |
Schneider Harmony XB7 NS8444 mushroom button, turn to unlock " emergency-Stop red 2 NC contacts
| the product range |
Harmony XB7
|
|
|---|---|---|
| the type of product or component |
Emergency stop push-button
|
|
| abbreviated name |
XB7
|
|
| mounting diameter |
22 mm
|
|
| sale quantity indivisible |
10
|
|
| The shape of the head |
Circular
|
|
| type of operator |
Coupling
|
|
| Reset |
Turn to unlock
|
|
| operator profile |
Red mushroom Ø 40 Without marking
|
|
| type and composition contacts |
2 NC
|
|
| Connections - terminals |
Screw terminal : <= 2 x 1.5 mm2 with cable end conforming to EN/IEC 60947-1
Of the screw terminals : 1 x 0.34...2 x 2.5 mm2 without cable end conforming to EN/IEC 60947-1 |
|
| type of product |
Monolithic product
|
| overall width CAD |
40 mm
|
|
|---|---|---|
| overall height CAD |
40 mm
|
|
| total depth CAD |
72 mm
|
|
| terminals description ISO n°1 |
(11-12)NC
(21-22)NC |
|
| product weight |
0,035 kg
|
|
| mounting device |
Fixing hole: Ø 22.5 mm (22,3 +0,4/0) conforming to EN/IEC 60947-1
|
|
| fixing |
>= 30 x 40 mm, panel support, metal, thickness: 1...6 mm
>= 30 x 40 mm, panel support, plastic, thickness: 2...6 mm |
|
| type of fixing |
Fixing nut beneath head recommended torque: 2...2,4 Nm
|
|
| operation of the contacts |
Snap-on
|
|
| use contacts |
Standard
|
|
| positive opening |
With positive opening conforming to EN/IEC 60947-5-1 appendix K
|
|
| mechanical life |
100000 cycles
|
|
| tightening torque |
0.8...1.2 Nm conforming to EN 60947-1
|
|
| the shape of the head (screw) |
Head to the cross head compatible with JIS NO 1 screwdriver
Head to the cross head compatible with Philips no 1 screwdriver Head to the cross head compatible with pozidriv No 1 screwdriver Slotted head compatible with flat Ø 4 mm screwdriver Slotted head compatible with flat Ø 5.5 mm screwdriver |
|
| protection against short circuits |
4 To fuse the cartridge type gG conforming to EN/IEC 60947-5-1
|
|
| Rated insulation voltage [Ui] |
250 V (degree of pollution: 3) conforming to EN/IEC 60947-1
|
|
| Rated voltage impulse withstand [Uimp] |
4 kV conforming to EN/IEC 60947-1
|
|
| Nominal operating current [Ie] |
0.75 A at 240 V, AC-15, C300 conforming to EN/IEC 60947-5-1
1.5 a At 120 V, AC-15, C300 conforming to EN/IEC 60947-5-1 0.1 A at 250 V, DC-13, R300 conforming to EN/IEC 60947-5-1 0.22 A at 125 V, DC-13, R300 conforming to EN/IEC 60947-5-1 |
|
| electrical life |
1000000 cycles, DC-13, 0.3 A at 24 V, operating range: 216000 cycles/m, load factor: 0.5 conforming to EN/IEC 60947-5-1 appendix C
1000000 cycles, AC-15, 0.03 A 230 V, operating range: 216000 cycles/m, load factor: 0.5 conforming to EN/IEC 60947-5-1 appendix C 1000000 cycles, AC-15, 0,09 a AT 240 V, operating range: 108000 cycles/m, load factor: 0.5 conforming to EN/IEC 60947-5-1 appendix C |
|
| electrical reliability |
Λ < 5 x 10exp(-7) at 17 V, 5 mA conforming to IEC 60947-5-4
|
