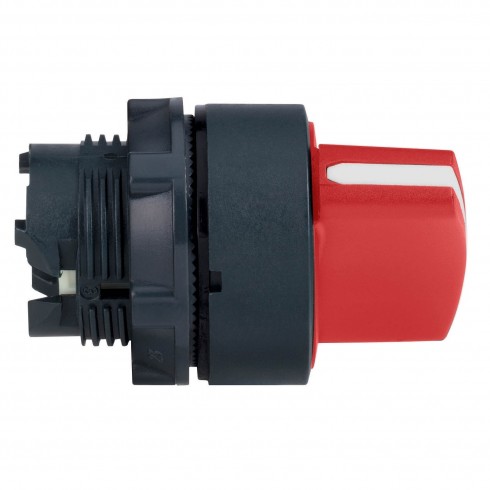

Schneider Harmony XB5-ZB5AD304 head 3-position selector switch IA1)
183/FB3/SX/Q20
Nuovo (Altro)
20,00 € tax incl.
tax incl.
2 Items
Warning: Last items in stock!
| Tipo | Hrmony pulsantiera |
| Description of the conditions | Confezione originale danneggiata |
| Brand | Schneider |
Schneider Harmony XB5-ZB5AD304 head 3-position selector switch 22mm
| range of product |
Harmony XB5
|
|
|---|---|---|
| product or component type |
Head for selector switch
|
|
| device short name |
ZB5
|
|
| bezel material |
Plastic
|
|
| mounting diameter |
22 mm
|
|
| head type |
Standard
|
|
| sale per indivisible quantity |
1
|
|
| shape of signaling unit head |
Round
|
|
| type of operator |
Stay put
|
|
| operator profile |
Red standard handle
|
|
| operator position information |
3 positions +/- 45°
|
| CAD overall width |
29 mm
|
|
|---|---|---|
| CAD overall height |
29 mm
|
|
| CAD overall depth |
46 mm
|
|
| product weight |
0.017 kg
|
|
| mechanical durability |
1000000 cycles
|
|
| station name |
XALD 1...5 cut-outs
XALK 2...5 cut-outs |
|
| electrical composition code |
C11 for 3 contacts using single blocks in front mounting
SF1 for 3 contacts using single blocks in front mounting C7 for 4 contacts using single blocks in front mounting C8 for 4 contacts using single and double blocks in front mounting SR1 for 3 contacts using single blocks in rear mounting C4 for 6 contacts using single and double blocks in front mounting C5 for 5 contacts using single blocks in front mounting C6 for 5 contacts using single and double blocks in front mounting C3 for 6 contacts using single blocks in front mounting |
| protective treatment |
TH
|
|
|---|---|---|
| ambient air temperature for storage |
-40...70 °C
|
|
| ambient air temperature for operation |
-40...70 °C
|
|
| overvoltage category |
Class II conforming to IEC 60536
|
|
| IP degree of protection |
IP69 conforming to IEC 60529
IP67 conforming to IEC 60529 IP69K |
|
| NEMA degree of protection |
NEMA 13
NEMA 4X |
|
| resistance to high pressure washer |
7000000 Pa at 55 °C,distance: 0.1 m
|
|
| IK degree of protection |
IK06 conforming to IEC 50102
|
|
| standards |
EN/IEC 60947-1
EN/IEC 60947-5-1 EN/IEC 60947-5-4 JIS C 4520 UL 508 CSA C22.2 No 14 |
|
| product certifications |
BV
CSA DNV GL LROS (Lloyds register of shipping) RINA UL listed |
|
| vibration resistance |
5 gn (f = 2...500 Hz) conforming to IEC 60068-2-6
|
|
| shock resistance |
30 gn (duration = 18 ms) for half sine wave acceleration conforming to IEC 60068-2-27
50 gn (duration = 11 ms) for half sine wave acceleration conforming to IEC 60068-2- |
