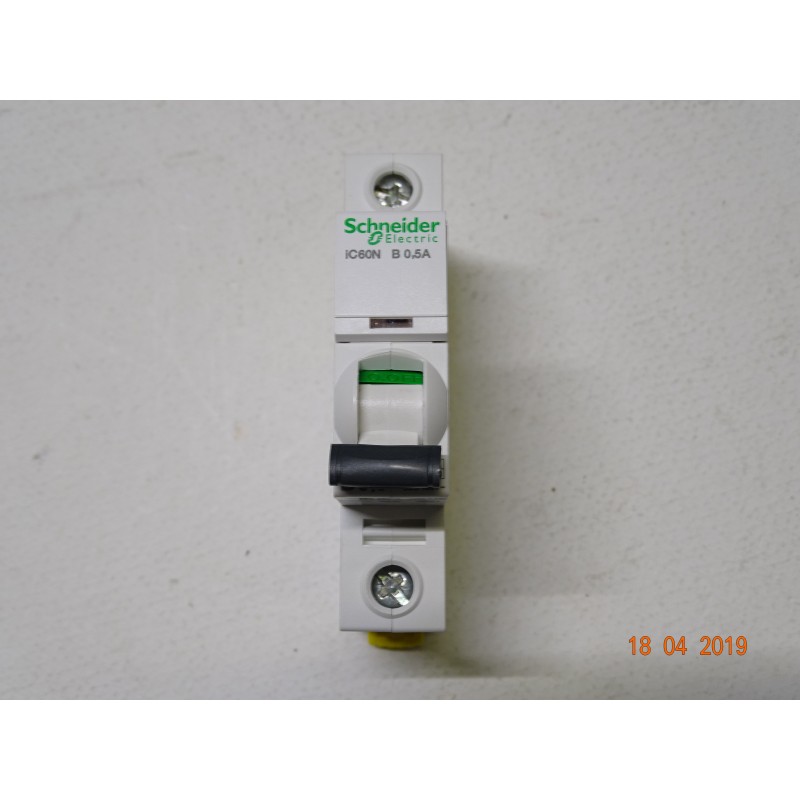

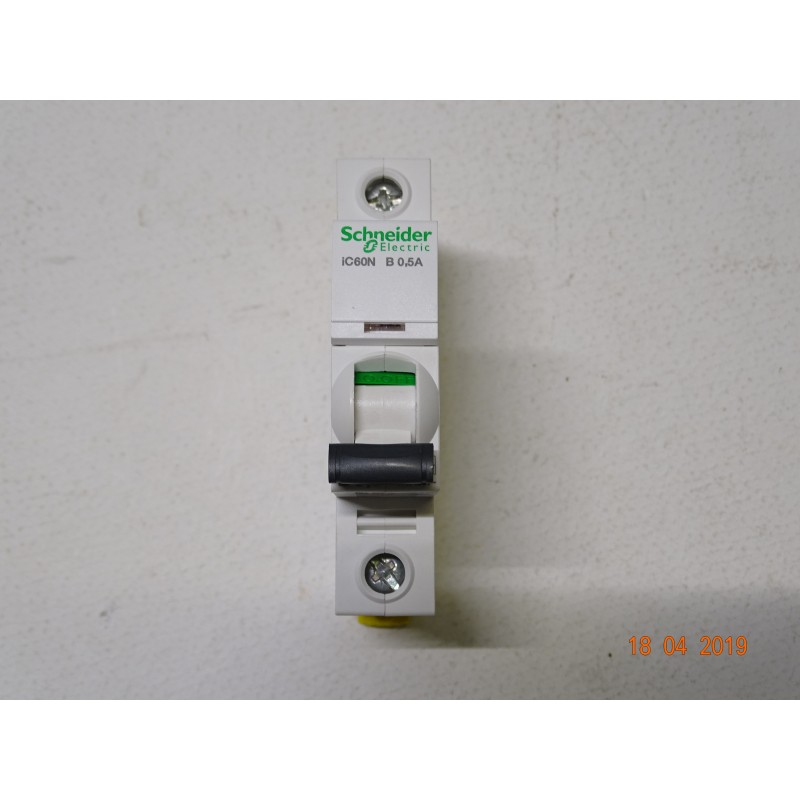

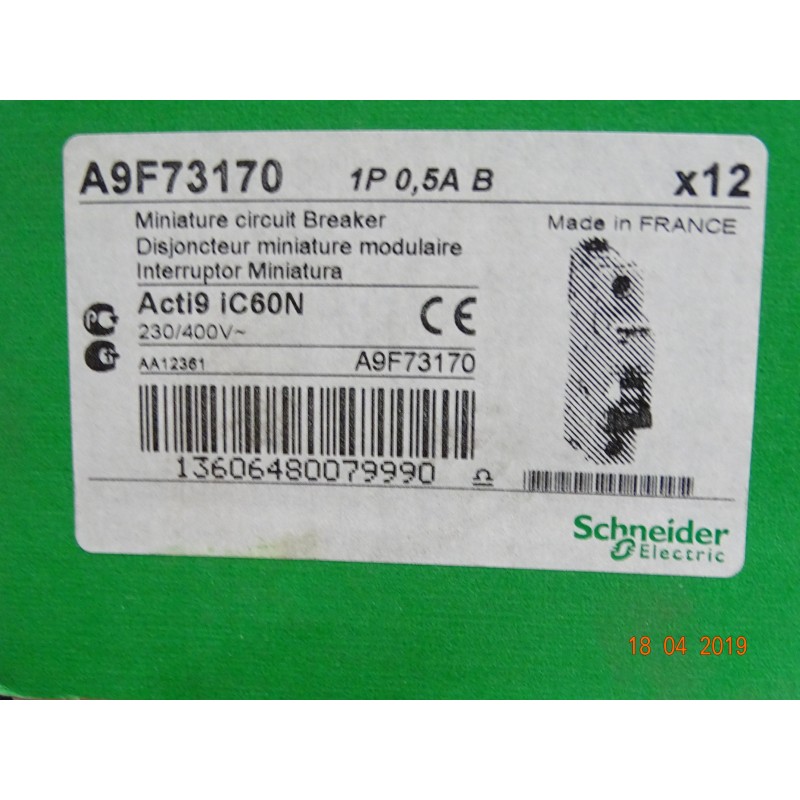

SCHNEIDER A9F73170 Circuit Breaker-iC60N 1P-B-0.5 A-6 (C-A-2)
CA2DXq5
Nuovo (Altro)
4,00 € tax incl.
tax incl.
4 Items
| Tipo | Interruttore magnetotermico |
| Description of the conditions | Senza confezione |
| Brand | Schneider Electric |
| Modello Librio | A9F73170 |
SCHNEIDER A9F73170 Circuit Breaker-iC60N 1P-B-0.5 A-6
| application |
Distribution
|
|
|---|---|---|
| range |
Acti 9
|
|
| product name |
Acti 9 iC60
|
|
| the type of product or component |
Switch modular
|
|
| abbreviated name |
IC60N
|
|
| number of poles |
1P
|
|
| number of poles-protected |
1
|
|
| Rated current [In] |
0.5 To
|
|
| network type |
CA
DC |
|
| technology release |
Breaker
|
|
| code curve |
B
|
|
| power outage |
50 kA Icu conforming to EN/IEC 60947-2 - 220...240 V AC 50/60 Hz
50 kA Icu conforming to EN/IEC 60947-2 Spec. 12...60 V AC 50/60 Hz 50 kA Icu conforming to EN/IEC 60947-2 Spec. 100...133 V AC 50/60 Hz 6000 A Icn conforming to EN/IEC 60898-1 - 230 V AC 50/60 Hz 10 kA Icu conforming to EN/IEC 60947-2 - 60...72 V DC 15 kA Icu conforming to EN/IEC 60947-2 - 12...60 V DC |
|
| category of use |
Category A conforming to EN 60947-2
Category A conforming to IEC 60947-2 |
|
| attitude cutting |
Yes conforming to EN 60947-2
It conforms to IEC 60947-2 Yes conforming to EN 60898-1 It conforms to IEC 60898-1 |
|
| reference standards |
EN 60898-1
EN 60947-2 IEC 60898-1 IEC 60947-2 |
| network frequency |
50/60 Hz
|
|
|---|---|---|
| the limit of magnetic release |
4 x In +/- 20 %
|
|
| Rated breaking capacity service [Ics] |
10 kA 100 % x Icu conforming to EN 60947-2 - 72 V DC
10 kA 100 % x Icu conforming to IEC 60947-2 - 72 V DC 6000 A 100 % x Icu conforming to IEC 60898-1 - 230 V AC 50/60 Hz 15 kA 100 % x Icu conforming to EN 60947-2 - 12...60 V DC 15 kA 100 % x Icu conforming to IEC 60947-2 - 12...60 V DC 6000 A 100 % x Icu conforming to EN 60898-1 - 230 V AC 50/60 Hz 50 kA 100 % x Icu conforming to EN 60947-2 - 12...60 V AC 50/60 Hz 50 kA 100 % x Icu conforming to EN 60947-2 - 220...240 V AC 50/60 Hz 50 kA 100 % x Icu conforming to IEC 60947-2 - 12...60 V AC 50/60 Hz 50 kA 100 % x Icu conforming to IEC 60947-2 - 220...240 V AC 50/60 Hz 50 kA 100 % x Icu conforming to IEC 60947-2 - 100...133 V AC 50/60 Hz 50 kA 100 % x Icu conforming to EN 60947-2 - 100...133 V AC 50/60 Hz |
|
| limitation class |
3 conforming to EN 60898-1
3 conforming to IEC 60898-1 |
|
| Rated insulation voltage [Ui] |
500 V AC 50/60 Hz conforming to IEC 60947-2
500 V AC 50/60 Hz conforming to EN 60947-2 |
|
| Rated voltage impulse withstand [Uimp] |
6 kV conforming to EN 60947-2
6 kV conforming to IEC 60947-2 |
|
| location reporting contacts |
You
|
|
| command type |
Lever
|
|
| local reporting |
Indicator shutter
|
|
| editing mode |
Fixed
|
|
| support for mounting |
DIN rail
|
|
| compatibility combs distribution |
YOU the top or the bottom
|
|
| distance of 9 mm |
2
|
|
| height |
85 mm
|
|
| width |
18 mm
|
|
| depth |
78.5 mm
|
|
| product weight |
0.215 kg
|
|
| color |
White
|
|
| mechanical life |
20000 cycles
|
|
| electrical life |
10000 cycles
|
|
| connections - terminals |
Single terminal, top or bottom rigid cable 1...25 mm2 max
Single terminal, top or bottom flexible cables 1...16 mm2 max |
|
| stripping length wire |
14 mm top or bottom
|
|
| tightening torque |
2 Nm top or bottom
|
|
| differential protection |
Without
|
| degree of protection IP |
IP20 conforming to EN 60529
IP20 conforming to IEC 60529 |
|
|---|---|---|
| pollution degree |
3 conforming to EN 60947-2
3 conforming to IEC 60947-2 |
|
| overvoltage category |
IV
|
|
| weather sealing |
2 conforming to IEC 60068-1
|
|
| relative humidity |
95 % ( 55 °C )
|
|
| operating altitude |
0...2000 m
|
|
| operating environment temperature |
-35...70°C
|
|
| storage temperature |
-40...85°C
|
