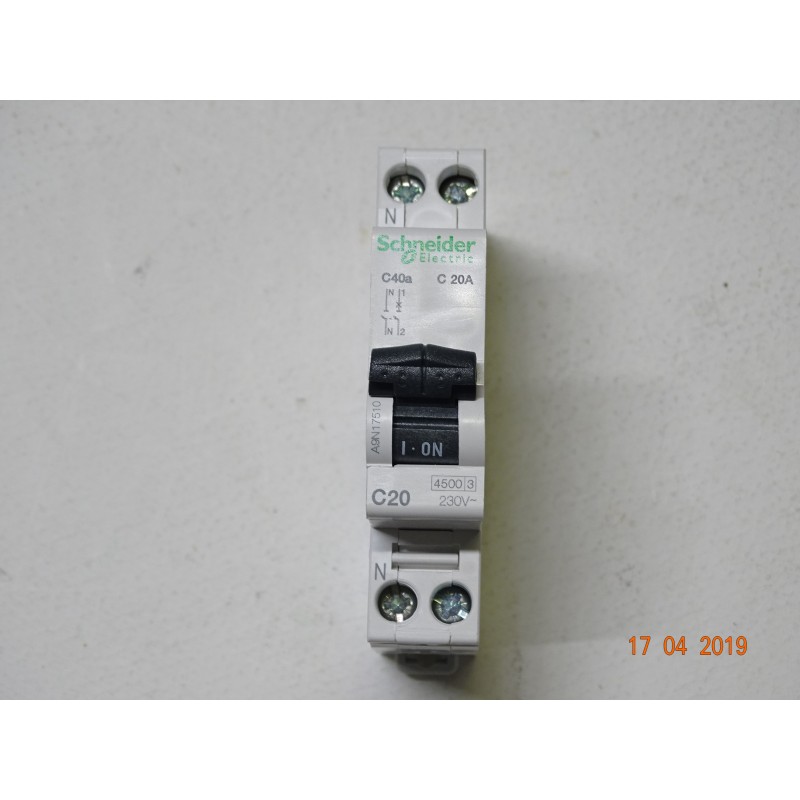

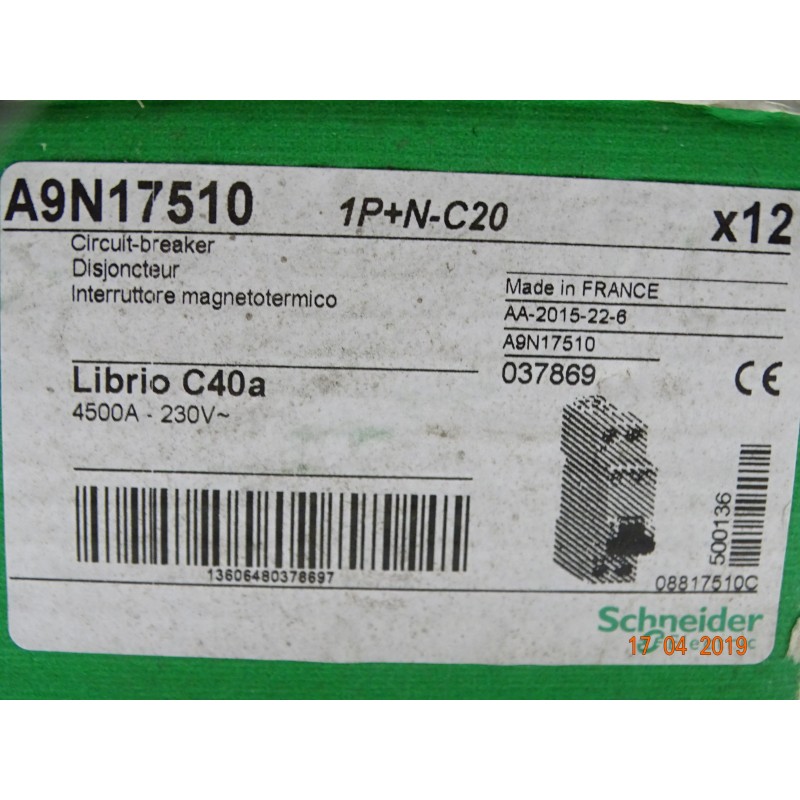

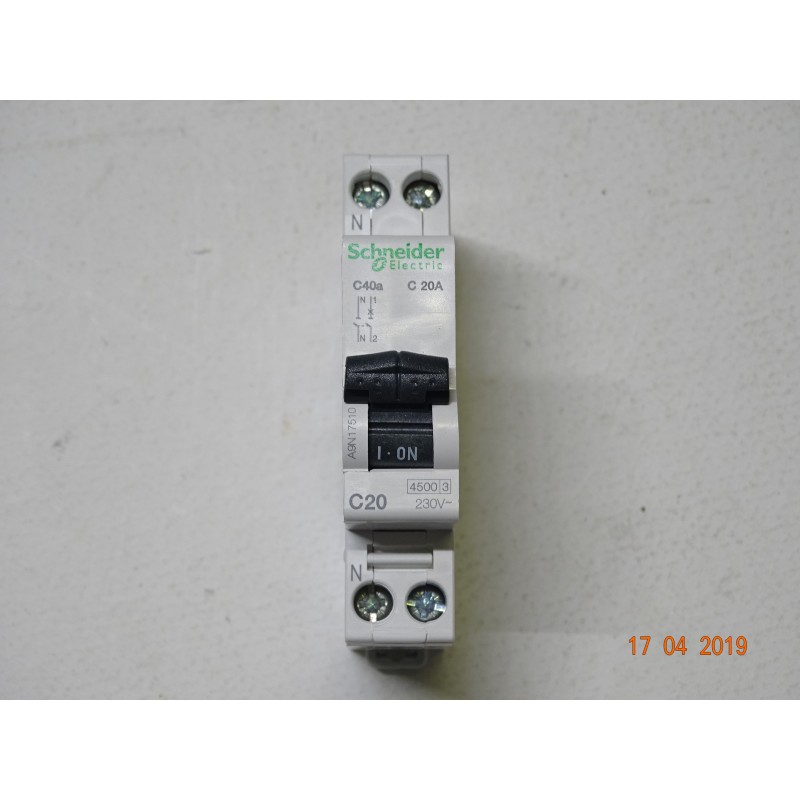

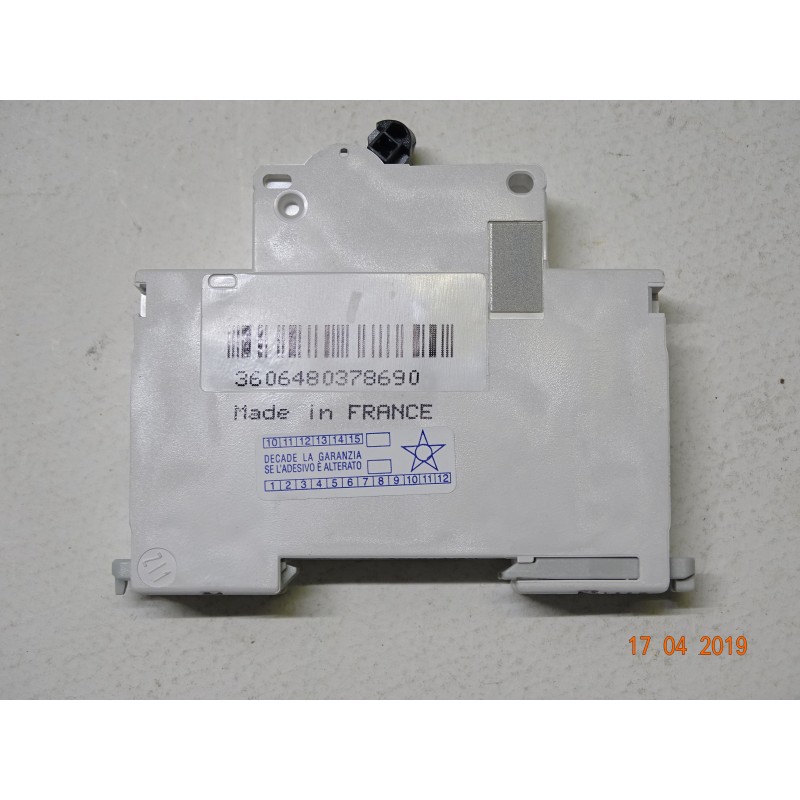

SCHNEIDER A9N17510 Circuit Breaker C40a 1P+N-20A-C-4500A (C-A-2)
910/CF2/DX/Q118
Nuovo (Altro)
4,00 € tax incl.
tax incl.
118 Items
| Tipo | Interruttore magnetotermico |
| Description of the conditions | Senza confezione |
| Brand | Schneider Electric |
| Modello Librio | A9N17510 |
SCHNEIDER A9N17510 Circuit Breaker C40a 1P+N-20A-C-4500A
| the product range |
Librio
|
|
|---|---|---|
| range |
Librio
|
|
| product name |
C40
|
|
| the type of product or component |
Switch modular
|
|
| abbreviated name |
C40a
|
|
| application |
Distribution
|
|
| number of poles |
1P + N
|
|
| number of poles-protected |
1
|
|
| neutral |
The left
|
|
| Rated current [In] |
20 To
|
|
| network type |
CA
|
|
| technology release |
Breaker
|
|
| code curve |
C
|
|
| power outage |
Icn 4500 a At 230 V AC 50 Hz conforming to EN/IEC 60898-1
|
|
| attitude cutting |
It conforms to IEC 60947-2
|
| network frequency |
50 Hz
|
|
|---|---|---|
| Rated operating voltage [Ue] |
230 V AC 50 Hz between phase and neutral
|
|
| the limit of magnetic release |
5...10 x In
|
|
| Rated breaking capacity service [Ics] |
4500 Ax Icn 230 V AC 50 Hz conforming to EN/IEC 60898-1
|
|
| limitation class |
3 conforming to EN/IEC 60898-1
|
|
| Rated insulation voltage [Ui] |
400 V AC 50 Hz conforming to EN/IEC 60898-1
|
|
| Rated voltage impulse withstand [Uimp] |
4 kV conforming to IEC 60947-2
|
|
| location reporting contacts |
You
|
|
| command type |
Lever
|
|
| local reporting |
ON/OFF indication
|
|
| editing mode |
Coupling
|
|
| support for mounting |
DIN rail
|
|
| distance of 9 mm |
2
|
|
| height |
81 mm
|
|
| width |
18 mm
|
|
| depth |
78 mm
|
|
| product weight |
115 g
|
|
| color |
White
|
|
| mechanical life |
20000 cycles
|
|
| electrical life |
20000 cycles
|
|
| description options locking |
Device lock
|
|
| connections - terminals |
Box terminals, downstream flexible cables of 0.33...10 mm2 max
Box terminals, downstream rigid cables 0,75...16 mm2 max Screw-cage clamps, to mount the flexible cables of 0.33...10 mm2 max Screw-cage clamps, to mount the hard cables 0,75...16 mm2 max |
|
| stripping length wire |
13 mm
|
|
| tightening torque |
2 Nm
|
|
| differential protection |
A separate block
|
| Rules |
EN/IEC 60898-1
|
|
|---|---|---|
| degree of protection IP |
IP20 conforming to IEC 60529
|
|
| pollution degree |
3 conforming to IEC 60947-2
|
|
| weather sealing |
2 conforming to IEC 60898-1
|
|
| relative humidity |
95 % ( 55 °C )
|
|
| operating altitude |
2000 m
|
|
| operating environment temperature |
-25...70°C
|
|
| storage temperature |
-40...70°C
|
