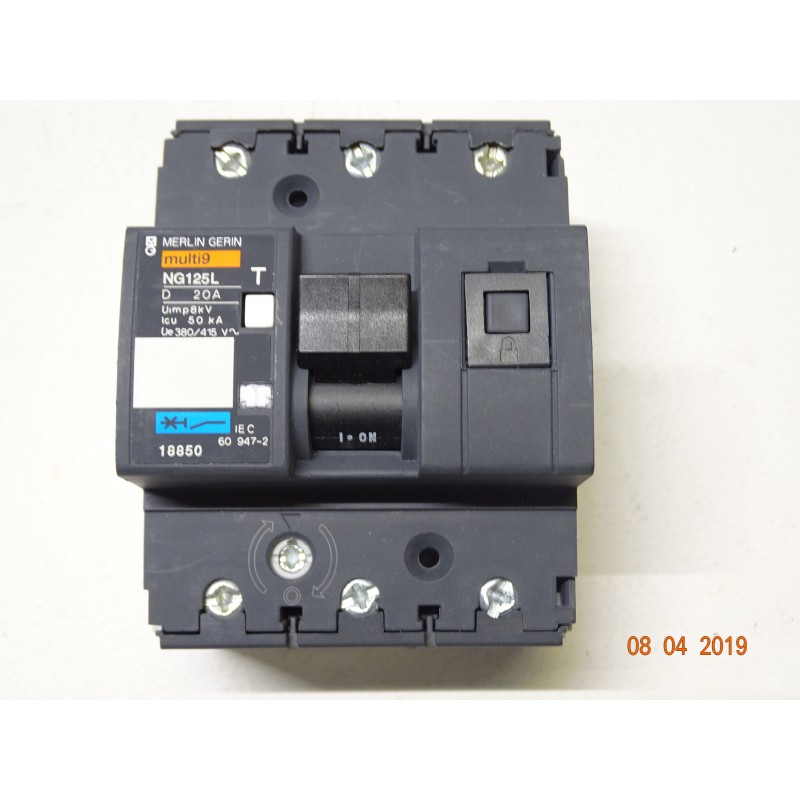

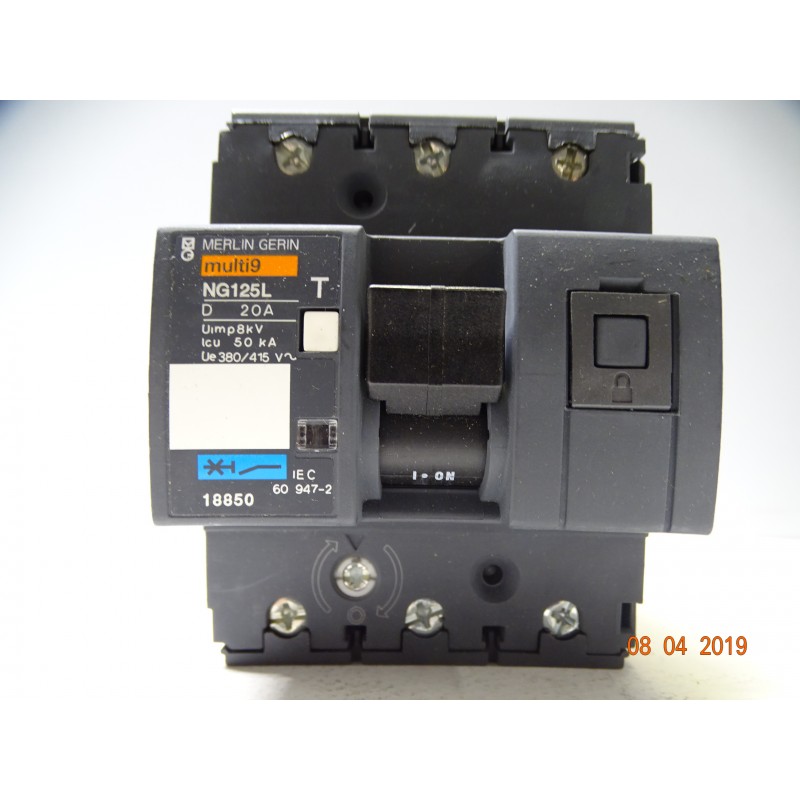

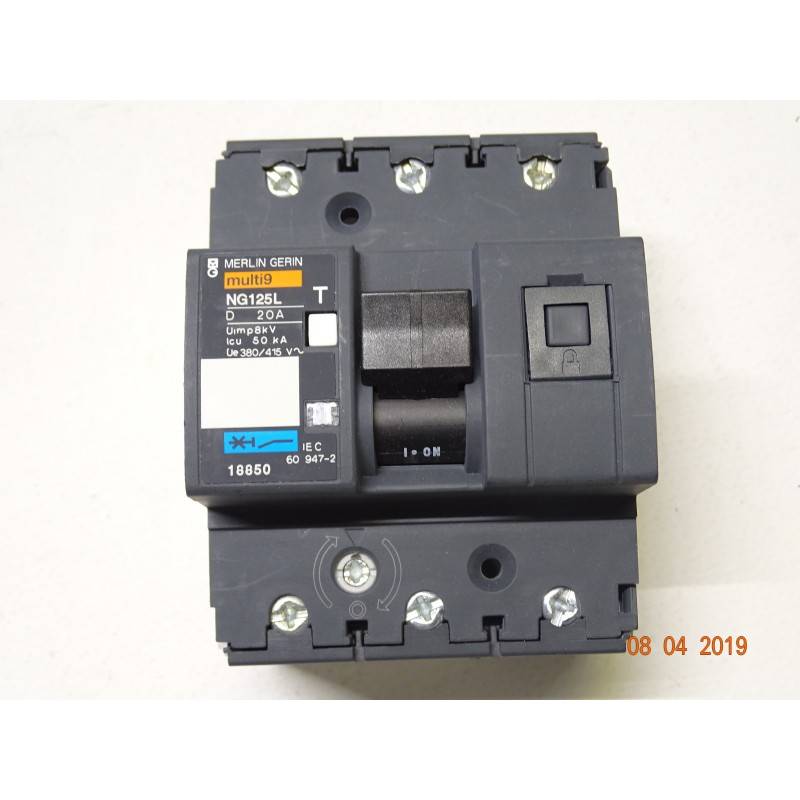

MERLIN GERIN 18850 Circuit Breaker NG125L-3P-D-20A-50kA (ARM9/1)
ARM9/1/Q3
Nuovo (Altro)
70,00 € tax incl.
tax incl.
1 Item
Warning: Last items in stock!
| Tipo | Interruttore magnetotermico |
| Description of the conditions | Confezione originale danneggiata |
| Brand | Merlin Gerin |
| Modello Librio | 18850 |
MERLIN GERIN 18850 Circuit Breaker NG125L-3P-D-20A-50kA
| the product range |
NG125
|
|
|---|---|---|
| range |
Acti 9
|
|
| product name |
Acti 9 NG125
|
|
| the type of product or component |
Switch modular
|
|
| abbreviated name |
NG125L
|
|
| application |
Distribution
|
|
| number of poles |
3P
|
|
| number of poles-protected |
3
|
|
| Rated current [In] |
20 To 40 °C
|
|
| network type |
CA
DC |
|
| technology release |
Breaker
|
|
| code curve |
D
|
|
| power outage |
100 kA Icu conforming to EN/IEC 60947-2 - 220...240 V AC 50/60 Hz
50 kA Icu conforming to EN/IEC 60947-2 - 380...415 V AC 50/60 Hz 15 kA Icu conforming to EN/IEC 60947-2 - 500 V AC 50/60 Hz 40 kA Icu conforming to EN/IEC 60947-2 - 440 V AC 50/60 Hz 36 kA Icu conforming to EN/IEC 60947-2 - <= 375 V DC |
|
| category of use |
Category A conforming to IEC 60947-2
|
|
| attitude cutting |
It conforms to IEC 60947-2
|
| network frequency |
50/60 Hz
|
|
|---|---|---|
| Rated operating voltage [Ue] |
<= 375 V DC
220...240 V AC 50/60 Hz 380...415 V AC 50/60 Hz 440 V AC 50/60 Hz 500 V AC 50/60 Hz |
|
| the limit of magnetic release |
12 x In +/- 20 %
|
|
| Rated breaking capacity service [Ics] |
75 kA at 75 % of breaking capacity conforming to EN/IEC 60947-2 - 220...240 V AC 50/60 Hz
A 37.5 kA at 75 % of breaking capacity conforming to EN/IEC 60947-2 - 380...415 V AC 50/60 Hz 30 kA at 75 % of breaking capacity conforming to EN/IEC 60947-2 - 440 V AC 50/60 Hz 11,25 kA at 75 % of breaking capacity conforming to EN/IEC 60947-2 - 500 V AC 50/60 Hz 50 kA at 100 % of breaking capacity conforming to EN/IEC 60947-2 - 375 V DC |
|
| Rated insulation voltage [Ui] |
690 V AC 50/60 Hz conforming to EN/IEC 60947-2
|
|
| Rated voltage impulse withstand [Uimp] |
8 kV conforming to EN/IEC 60947-2
|
|
| location reporting contacts |
You
|
|
| command type |
Lever
Test manual release |
|
| local reporting |
ON/OFF indication
Indicator shutter |
|
| editing mode |
Coupling
|
|
| support for mounting |
DIN rail symmetrical 35 mm
|
|
| compatibility combs distribution |
YOU
|
|
| distance of 9 mm |
9
|
|
| height |
103 mm
|
|
| width |
81 mm
|
|
| depth |
81 mm
|
|
| product weight |
0.72 kg
|
|
| mechanical life |
20000 cycles
|
|
| electrical life |
10000 cycles
|
|
| provision for padlocking |
Lockable
|
|
| description options locking |
Built-in padlock
|
|
| connections - terminals |
Box terminals 1,5...50 mm2 rigid
Box terminals 1...35 mm2 flexible |
|
| stripping length wire |
20 mm
|
|
| tightening torque |
3.5 Nm
|
|
| differential protection |
A separate block
|
| reference standards |
EN/IEC 60947-2
|
|
|---|---|---|
| degree of protection IP |
IP20 conforming to IEC 60529
|
|
| degree of protection IK |
IK05 conforming to EN/IEC 62262
|
|
| pollution degree |
3 conforming to IEC 60947-2
|
|
| overvoltage category |
IV
|
|
| weather sealing |
2 conforming to IEC 60068-1
|
|
| relative humidity |
95 % 55 °C
|
|
| operating altitude |
2000 m
|
|
| operating environment temperature |
-30...70°C
|
|
| storage temperature |
-40...70°C
|
