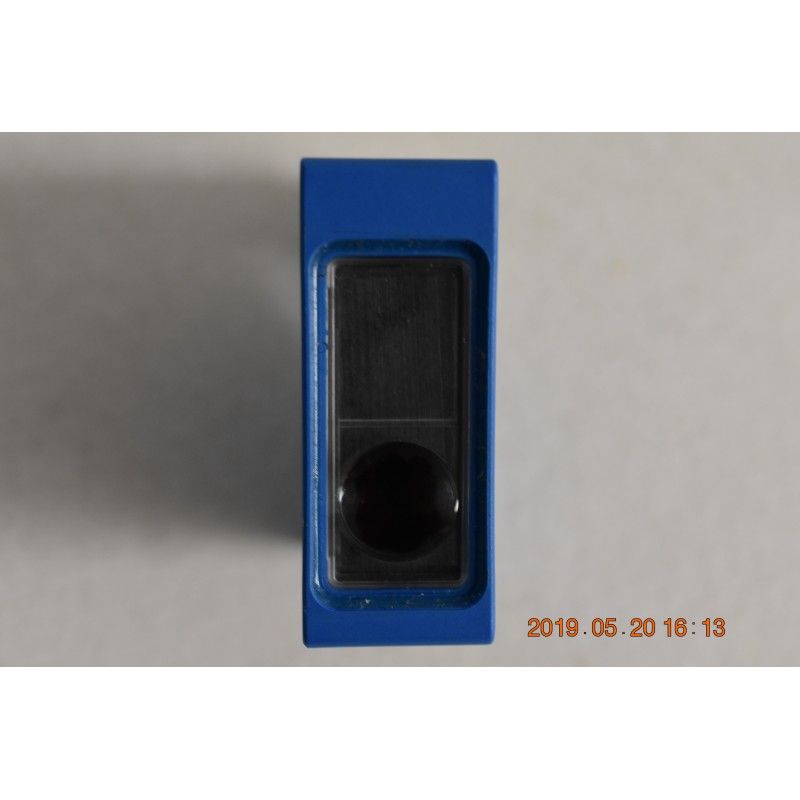

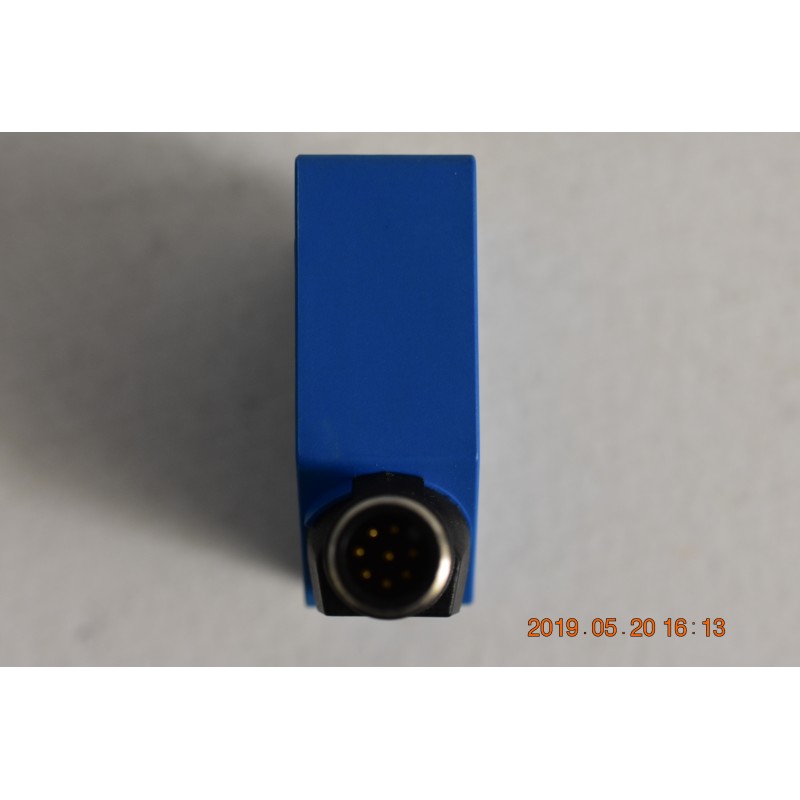

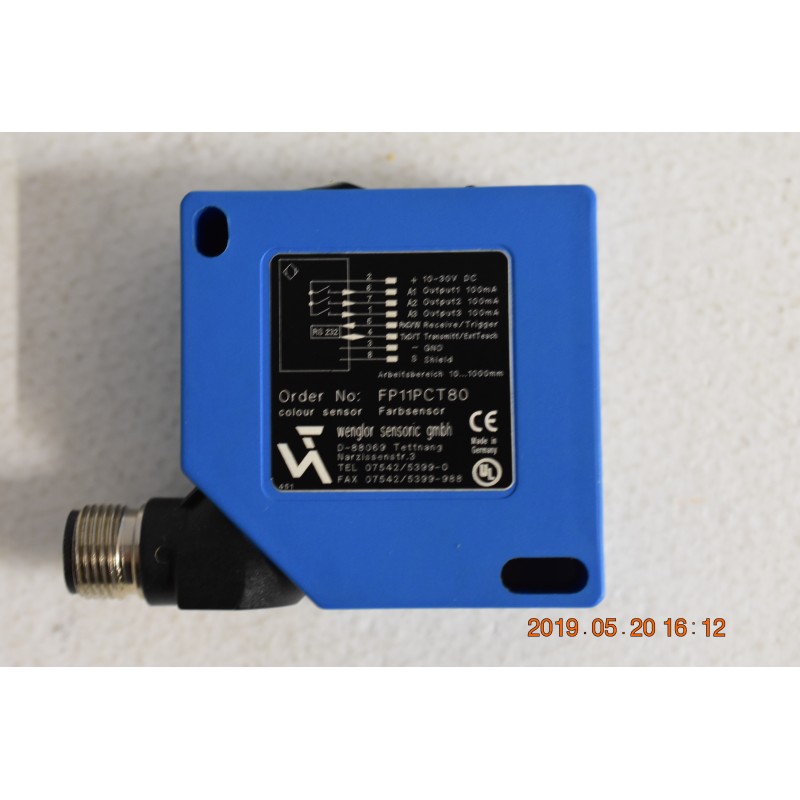

VENGLOR Sensor FP11PCT80 Color sensor (CA3)

Reference: 1044/CA3SX/Q1

Condition: Nuovo

30,00 € tax incl.

More details

1 Item Items

Warning: Last items in stock!

More info
Data sheet

Tipo	Sensore
Marca	Wenglor Sensor
Modello	FP11PCT80

VENGLOR Sensor FP11PCT80 Color sensor

Technical Data

Optical Data Working Range 10...1000 mm Reference Reflector/Reflex Foil RE6151BM Light Source White Light Service Life (T = +25°C) 100000 h max. Ambient Light 10000 Lux Light Spot Diameter 10 mm Electrical Data Supply Voltage 10...30 V Current Consumption (Ub = 24V) < 50 mA Switching Frequency 1660 Hz Response Time 300 µs On-/Off-Delay 0...1 s Temperature Range -25...60 °C Switching Outputs 3 Switching Output Voltage Drop 1,5 V PNP Switching Output/Switching Current 200 mA Short Circuit Protection yes Reverse Polarity Protection yes Teach Mode FT Interface RS-232 Baud Rate 38400 Bd Digital Inputs 2 Mechanical Data Adjustment Teach-In Housing Plastic Degree of Protection IP67 Connection M12 x 1 Protective Insulation, Rated Voltage 50 V PNP NO/NC switchable RS-232 Interface Connection Diagram No. 156 Control Panel No. P 4 Suiting Connection Technology No. Suiting Mounting Technology No. 380
